RT-409 Paper Cups Body Stiffness Tester
RT-409 Paper Cups Body Stiffness Tester
The instrument is fully automatic electronic test equipment, easy to use, test range, applicable to a variety of capacities cup body stiffness measurements is the ideal cup body stiffness measurements. Also, it is the specific instrument for the paper cup body stiffness detection.
Product Details：
Main Features:

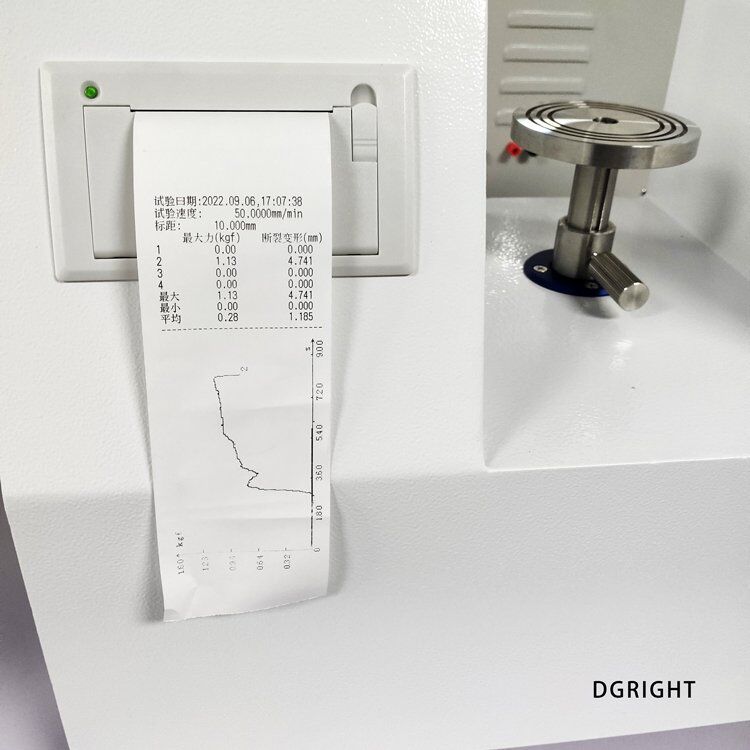

Mechanical cup body stiffness requirements are in accordance with the principles of design. The instrument contacts forward and backward with the number of motor drives, cup body resistance force sensor, all the movements control, data, measurement and calculation of processing by the MCU to complete by the liquid crystal display, printer, printing test report. The instrument is fully automatic electronic test equipment, the use of special convenience, the test range, applicable to a variety of capacities cup body stiffness measurements, is the ideal cup body stiffness testing instrument.
Corresponding standard:
The instrument according to QB / T 2294-2006 “cups,” GB2679 • 3 “Cardboard Stiffness Determination of the” standard of the instrument’s basic requirements and JJG157-1995 “Non-metallic tension, pressure, and universal testing machine” General technical requirements for the design.
Applicable Industry:
It is the necessary physical properties testing equipment for a paper cup manufacturing plant and associated research. Also, it is the ideal measuring cup for body stiffness.
Technical parameter:
| Model | RT-409 |
| Measurement range | 1~10N |
| Indication resolution | 0.01N |
| Indication accuracy | Indication error 0.1%,indication changes≤1% |
| Testing speed | (12.5±1.2)mm/min |
| The relative movement of the distance probe | (9.5±0.2)mm |
| Measuring head-to-neutral | ≤0.2mm |
| Distance of two probe | (40~120)mm |
| Outside dimension | 500mm×270mm×340mm(L*W*H) |
| Temperature | 20 Degree/ temperature ±10 Degree/Temperature |
| Power | 220V±10%;50Hz, Reliable power supply should be grounded |
| Protection | The force of more than full-scale, the contacts automatically return |
| Note | The working environment is clean, with a strong magnetic field and vibration source. |
