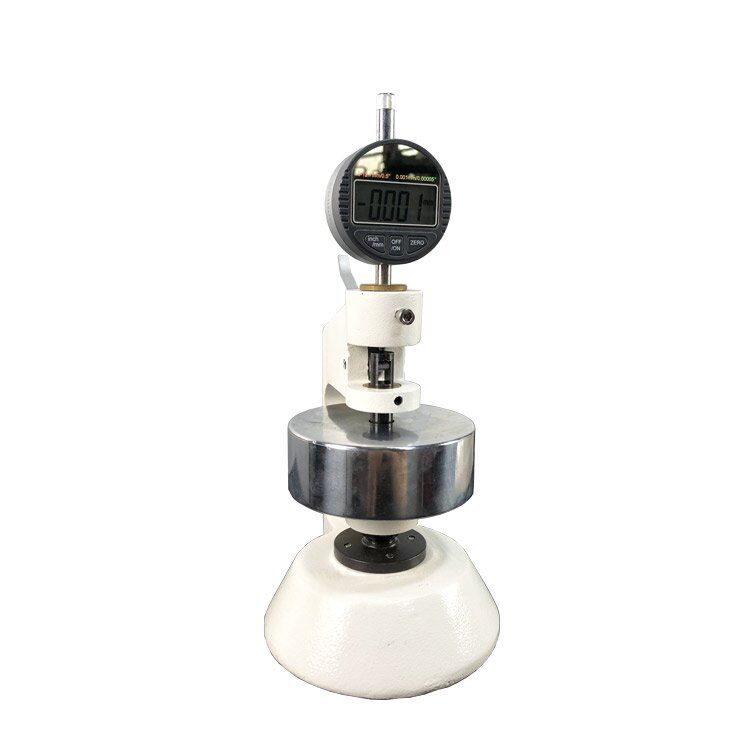

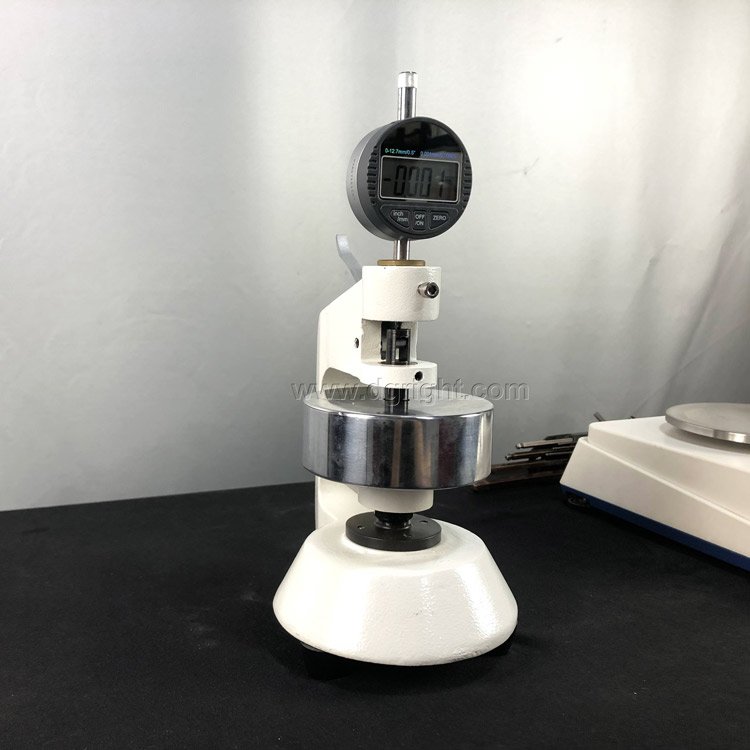

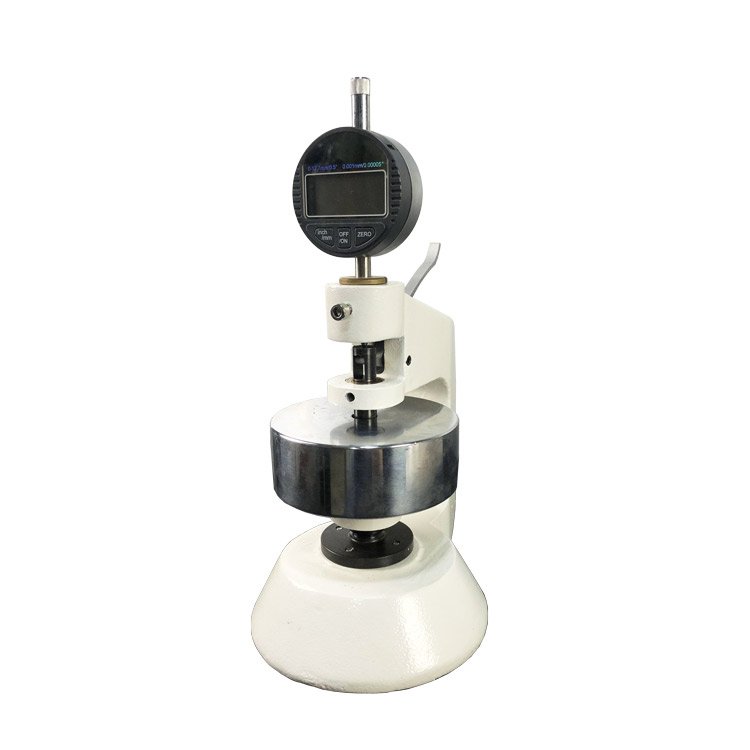

RT-407 Paper and Cardboard Thickness Tester

Category 5. Paper and Carton Box Testing Machine

Additional information

RT-407 Paper and Cardboard Thickness Tester

Consistent with “Paper and board Determination of thickness” of the relevant provisions can be widely applied to paper, cardboard, and other sheet materials, the thickness of the measurement.

Product Details：

Equipment Overview:
Consistent with “Paper and board Determination of thickness” of the relevant provisions can be widely applied to paper, cardboard, and other sheet materials, the thickness of the measurement.

To meet the standards:
GB451 • 3 “Determination of thickness of paper and paperboard Law”

Applicable Industry:
It is the ideal testing instrument for paper making, research,product quality supervision ,inspection industries and so on.

Technical parameter:

Model	RT-407
Measurement range	0 ~10mm
Minimum reading	0.01mm
Contact pressure	100±10kPa (Paper), 20+/-5kPa (cardboard)
Contact dimension	200±5 mm² (Paper), 1000+/-5mm² (cardboard)
