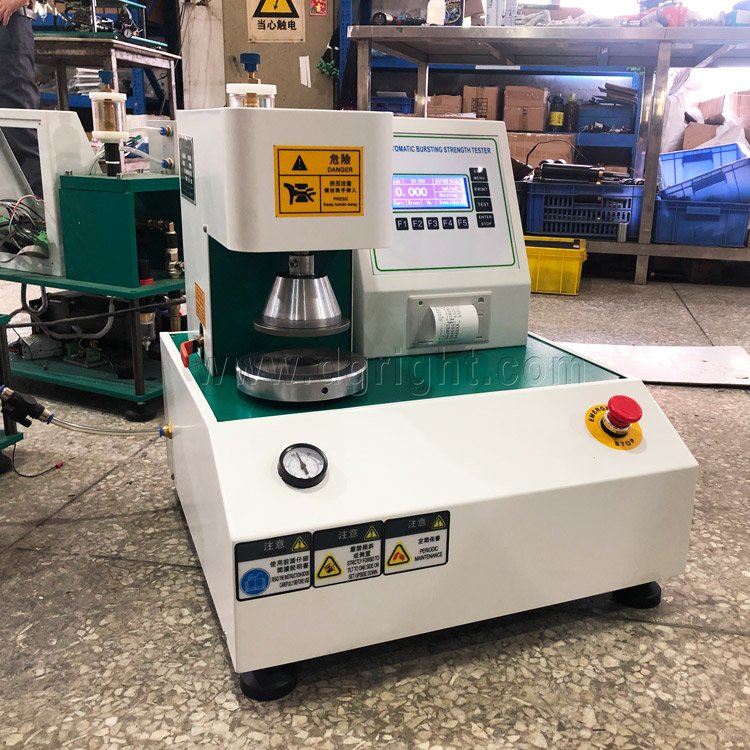

RT-406 Automatic Carton Rupture Strength Tester, Paper Bursting Strength Tester

RT-406 Automatic Carton Rupture Strength Tester, Paper Bursting Strength Tester - Image 7

Category 5. Paper and Carton Box Testing Machine

Additional information

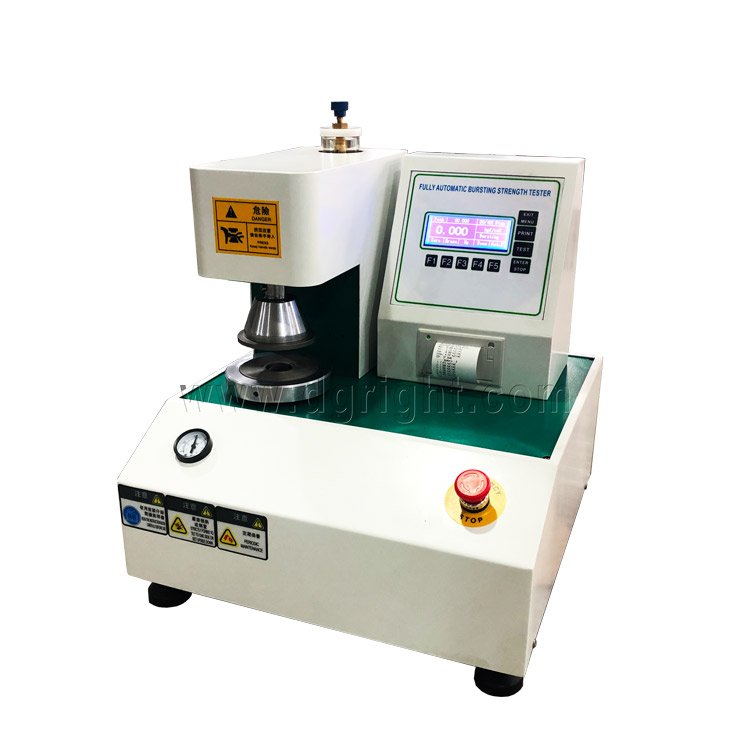

RT-406 Automatic Carton Rupture Strength Tester Paper Bursting Strength Tester

This machine is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.

Product Details：

Product Summary:

RT-406 Automatic Carton Rupture Strength Tester Paper Bursting Strength Tester is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.

Applicable Industry:

RT-406 Automatic Carton Rupture Strength Tester Paper Bursting Strength Tester applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.

Technical Parameters:

Model	RT-406 Automatic Carton Rupture Strength Tester Paper Bursting Strength Tester
Capacity choice	0~50 kg/cm²can be set
Resolution	0.01 kg/cm²
Hydraulic speed	170±20cc/min
Hydraulic oil	glycerin 85%,distilled water15%

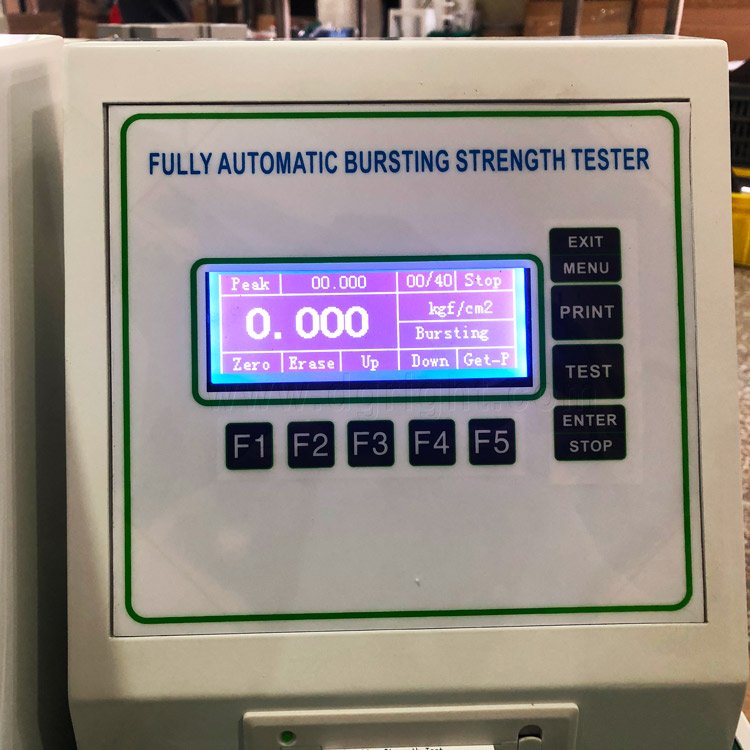

Display	LCD monitor
Unit of force	kg/cm², KPa, or self-set

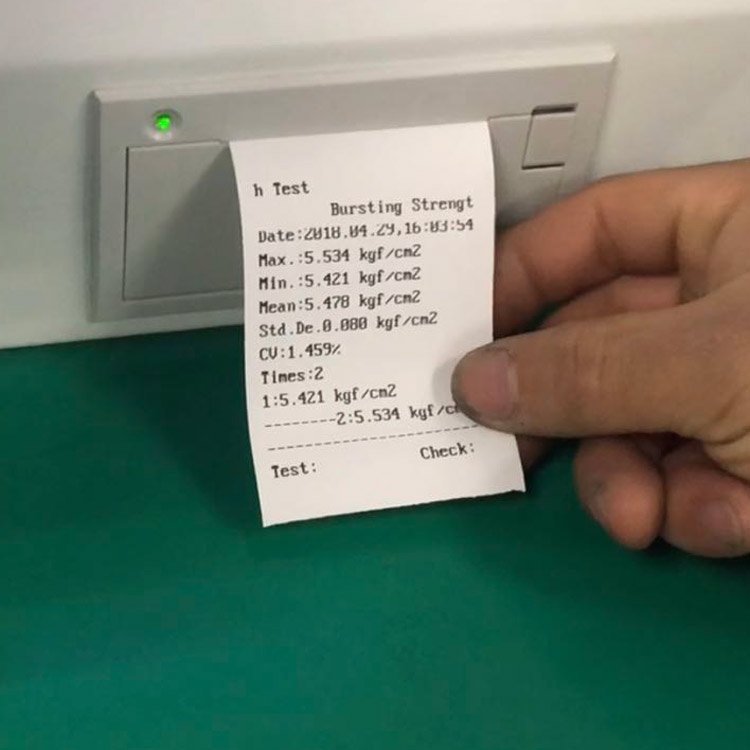

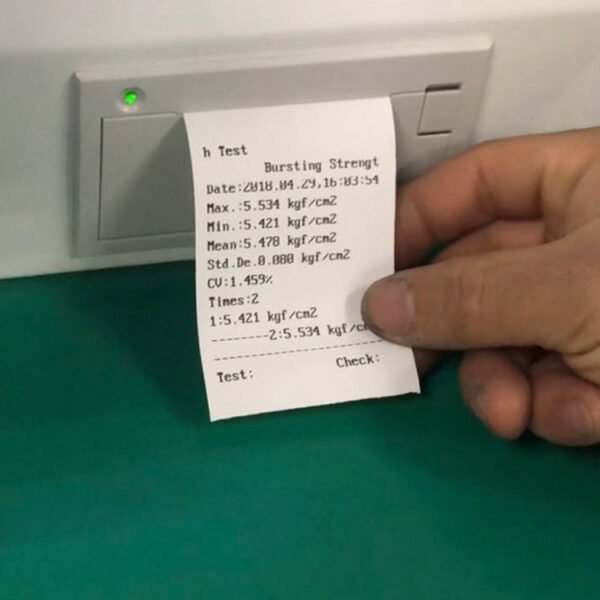

Specific featuretester with micro-printer
Clamping pressure	5kg/cm², adjustable
Air-pressure	min 6kg/cm² (customer-owned)
Volume	(W×D×H)56×47×55 cm
Weight	113kg
Power	AC220V,3A

Corresponding Standard:

RT-406 Automatic Carton Rupture Strength Tester Paper Bursting Strength Tester operative standardI:SO-2759,GB-6545,JIS-P8112,L1018,

ASTM-D2210,TAPPI-T403
