RT-402 Microcomputer Corrugated Board (PAT/CMT/SCT/CCT) Tester, Paper (ECT/FCT/RCT) Testing Machine
RT-402 Microcomputer Corrugated Board (PAT/CMT/SCT/CCT) Tester, Paper (ECT/FCT/RCT) Testing Machine

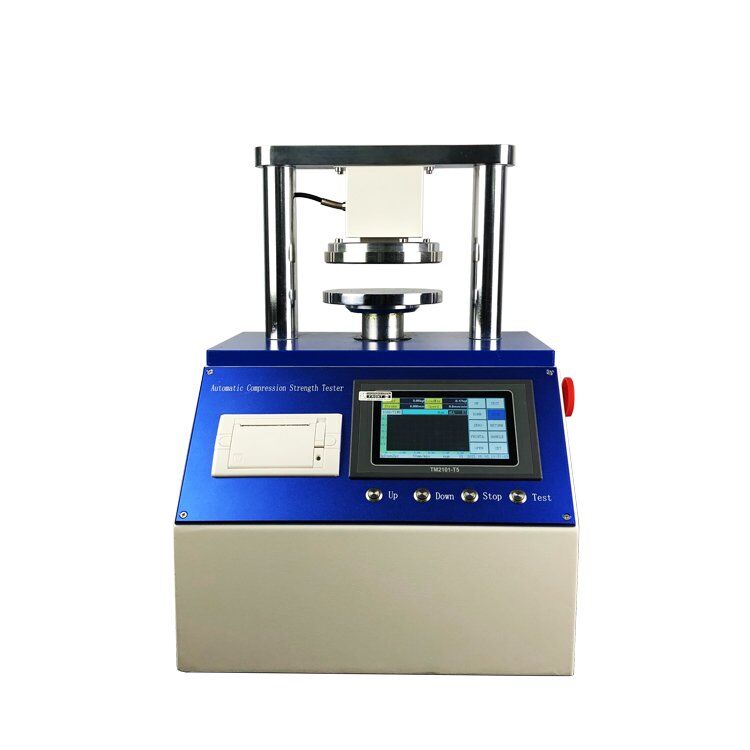

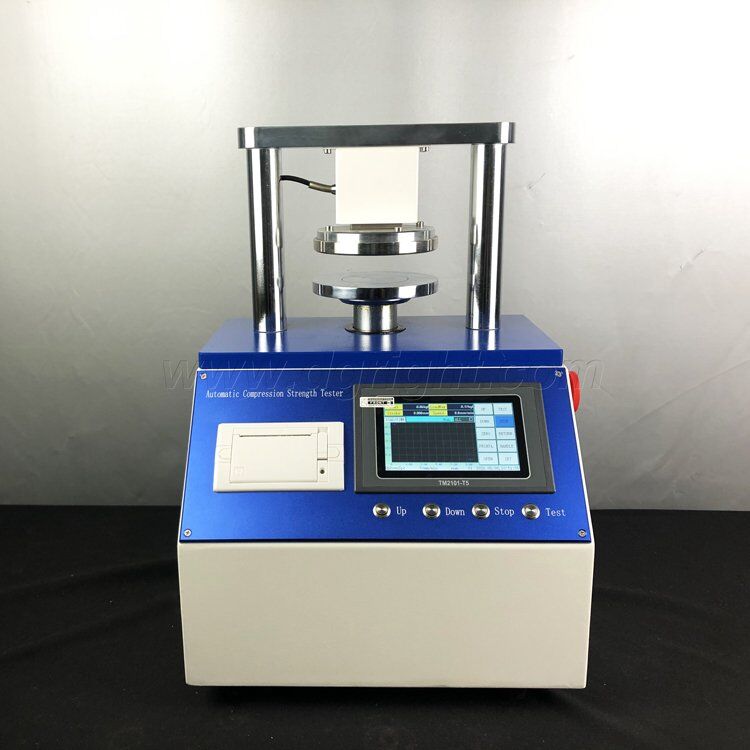

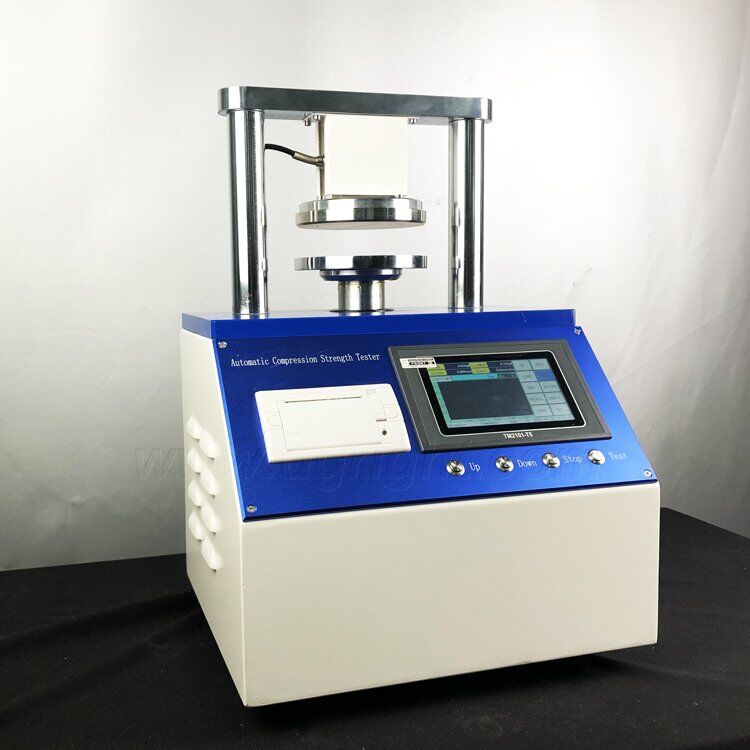

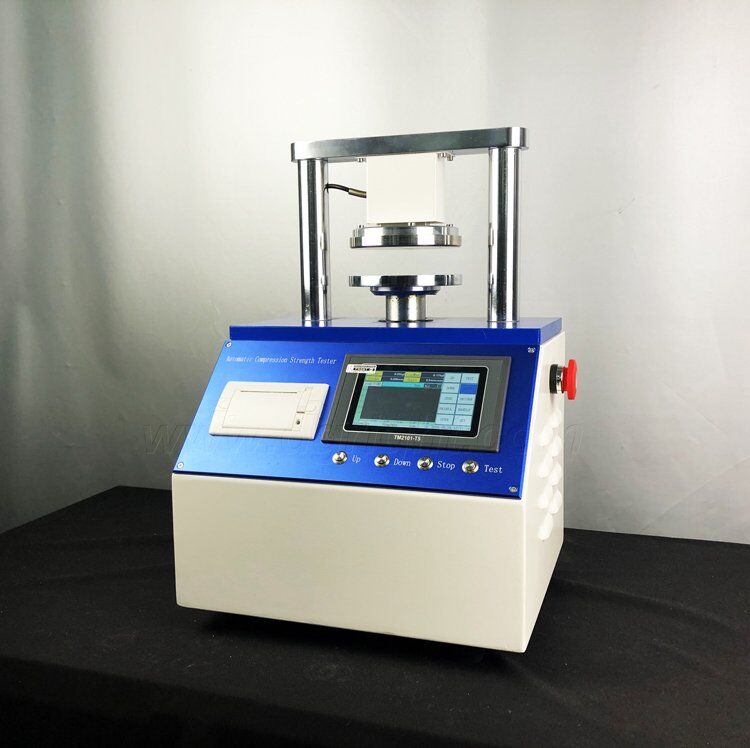

This machine uses microcomputer to control, double-column frame, sensor measuring system, stepless speed regulation.
The machine in order to test the quality of paper for a variety of paper can be Ring Crush Test (RCT), Flat Crush Test (FCT), Edge Crush Test (ECT), bonding (PAT) and the Flat Crush of Corrugated Fiberboard (CMT) and many other tests.
Product Details：
Product description:
RT-402 Microcomputer Corrugated Board (PAT/CMT/SCT/CCT) Tester, Paper (ECT/FCT/RCT) Testing Machine used to test the compression resistance degree of corrugated paper and kraft paper in upright direction at certain condition. This machine can also do flat crush strength test, compression resistance test, Sticky degrees test as well as other compression tests.
This machine also equipped with advanced high precision load device and load displayer, thus the test load value can display and read directly.
Technical parameter:
| Name | RT-402 Corrugated Board (PAT/CMT/SCT/CCT) Tester, Paper (ECT/FCT/RCT) Testing Machine |
| Compression Speed | 12.5±1.0mm/min(Or by the customer separate and non-section speed) |
| Constant Speed | 12.7,25.4, 38.1, 50.8, 60mm/min |
| Compression plate size | Φ127mm/Φ124mm. |
| Determination of the maximum pressure | 5~3000N(can make it according to the requirement) |

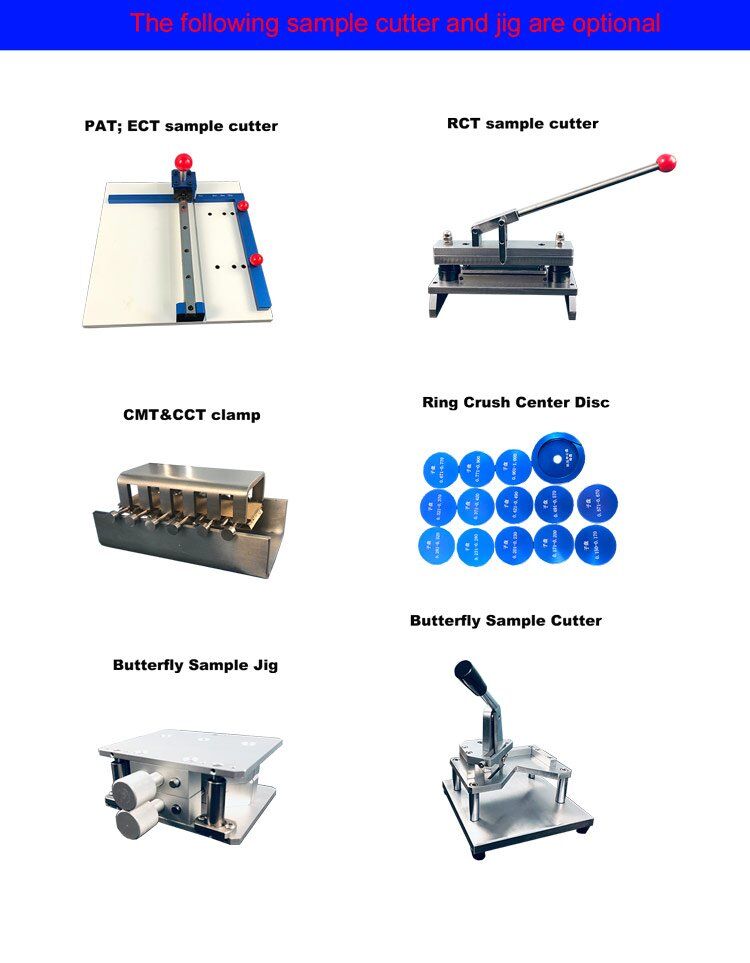

| Ring Compression Testing Machine is equipped with an optional fixture into the test under the following | Ring Crush Test Center is equipped with disc and ring voltage dedicated sampler to carry out cardboard ring compression strength test (RCT) |

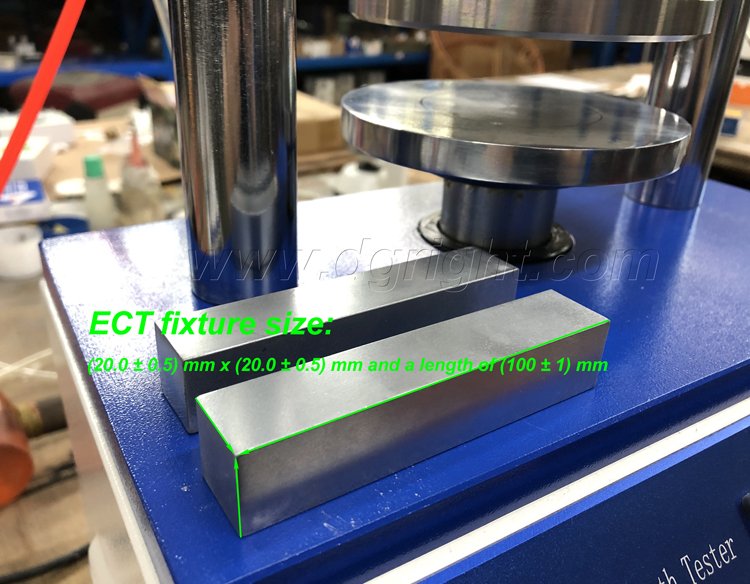

| Equipped with side pressure (adhesive) and the secondary sample for lead blocks for compressive strength of corrugated board edge test (ECT) | |
| Peel strength test frame is equipped to carry out corrugated board adhesion (peel) strength test (PAT) | |
| Is equipped with platen specimen sampler to carry out compressive strength of corrugated board level test (FCT) | |
| Standard | Ring Crush Test Fixture for a group. |
| Power | 220V 50Hz |
| Weight | 75kg |
| Dimension | 480×480×600mm |
Main functions:
RT-402 Microcomputer Corrugated Board (PAT/CMT/SCT/CCT) Tester, Paper (ECT/FCT/RCT) Testing Machine uses microcomputer to control, double-column frame, sensor measuring system, stepless speed regulation.
Its novel structure, digital processing and accurate, easy to use and easy to maintenance, Its the most economical ring compressive strength testing machine in the market at present.
The machine in order to test the quality of paper for a variety of paper can be Ring Crush Test (RCT), Flat Crush Test (FCT), Edge Crush Test (ECT), bonding (PAT) and the Flat Crush of Corrugated Fiberboard (CMT) and many other tests.
Corresponding standard:
RT-402 Microcomputer Corrugated Board (PAT/CMT/SCT/CCT) Tester, Paper (ECT/FCT/RCT) Testing Machine in accordance with the national standard CNS production, paper and paperboard test in accordance with requirements of the equipment design, in line with GB2679.8 “Cardboard Ring Crush Strength Determination”, GB6546 “compressive strength of corrugated board edge Determination”, GB6548 “corrugated board adhesiveDetermination of combined strength “and GB2679.6” corrugated core-level Determination of compressive strength “and other standard requirements.
