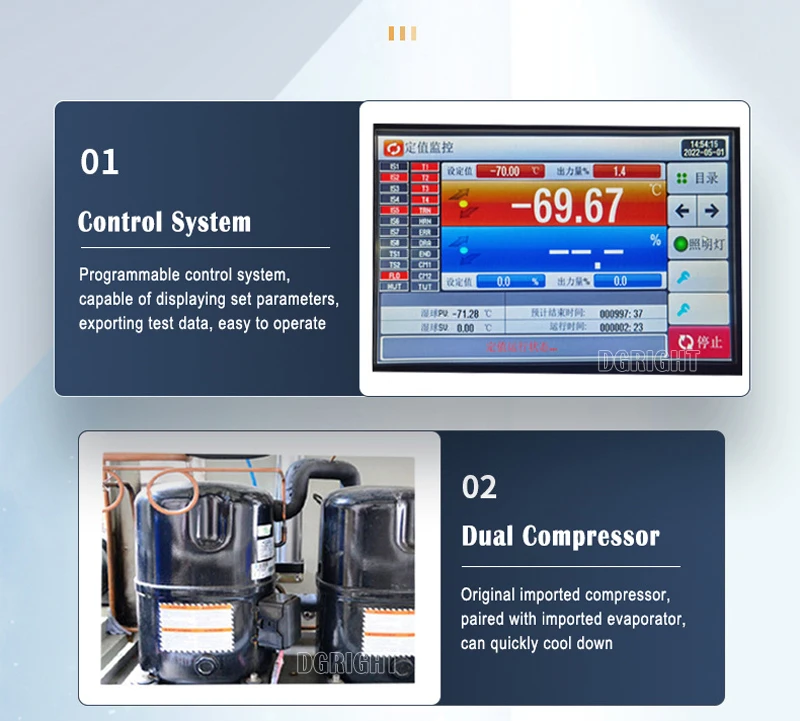

⊙ Color touch screen controller
⊙ Expandable network monitoring function
⊙ Unique air circulation system provides accuracy for the tested sample
⊙ Equipped with fault self diagnosis function
⊙ Equipped with low water level alarm and automatic filtering circulation function
⊙ Unique humidity testing system
Product name
|

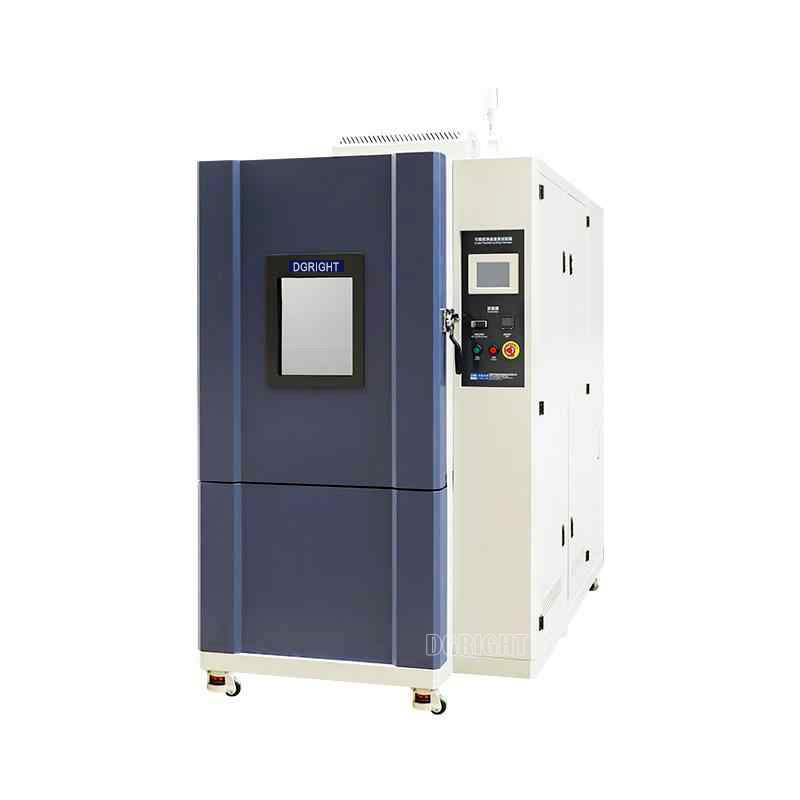

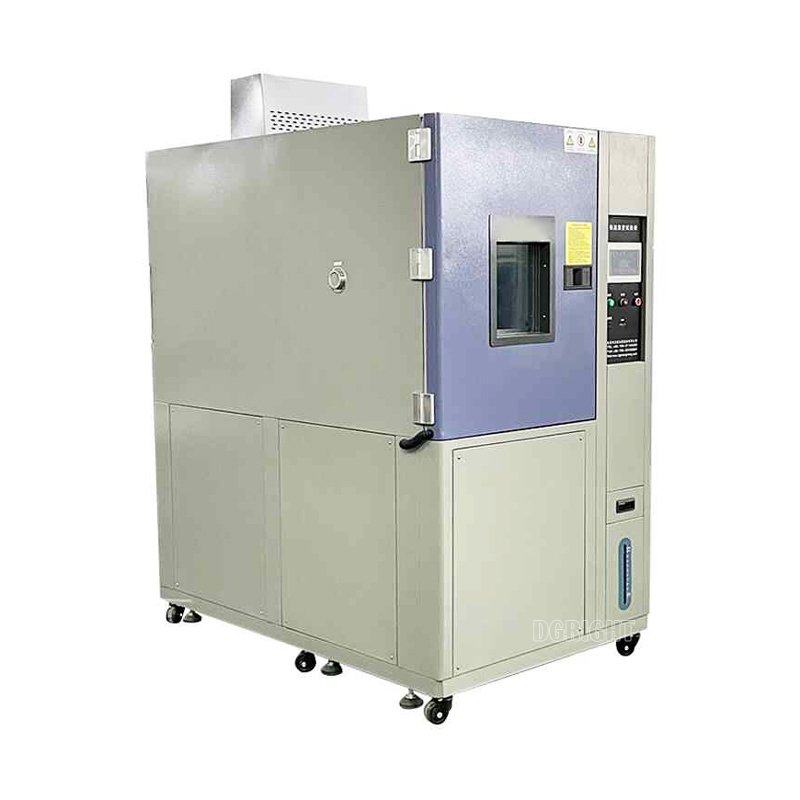

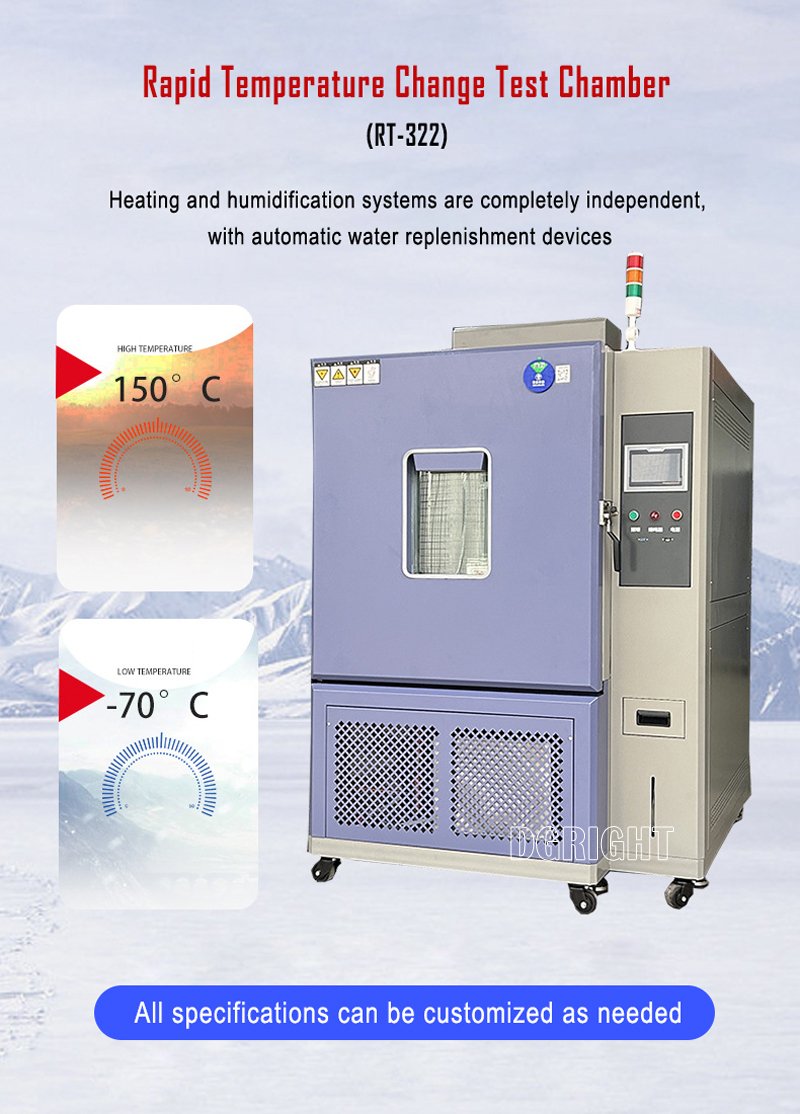

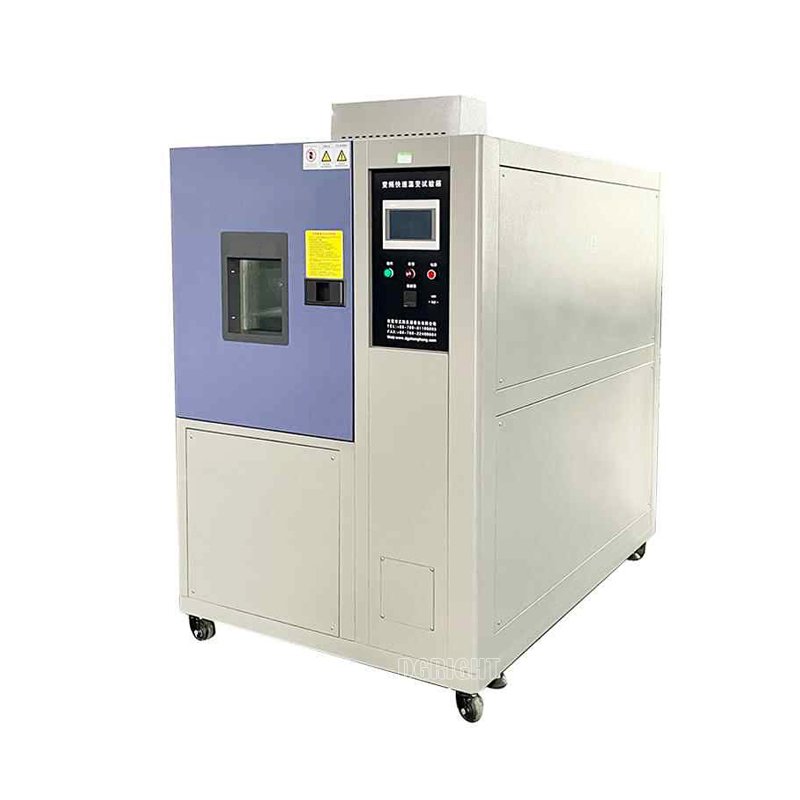

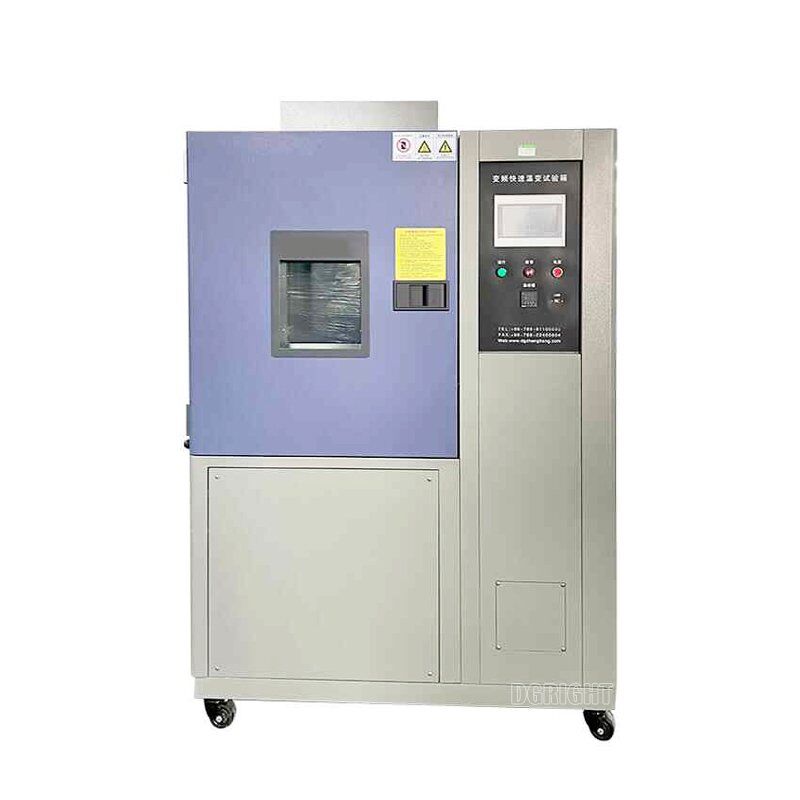

Rapid-Rate Thermal Cycle Test Chamber
|
||||
Model No
|
RT-322-150
|
RT-322-225
|
RT-322-408
|
RT-322-800
|
RT-322-1000
|
Working room
|
150L
|
225L
|
408L
|
800L
|
1000L
|

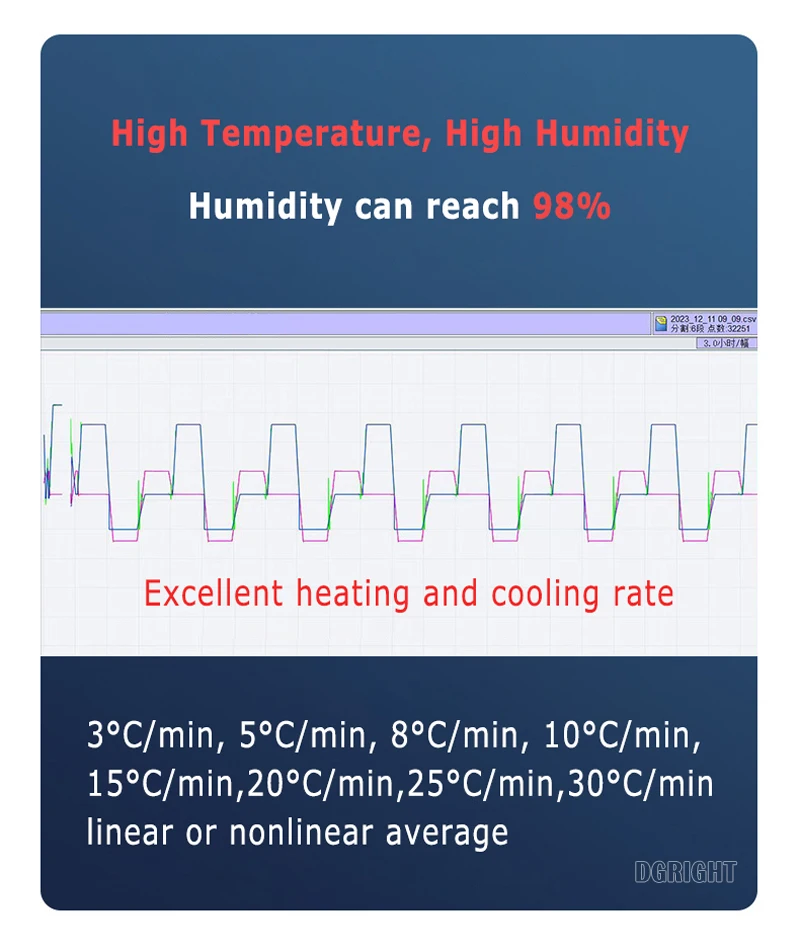

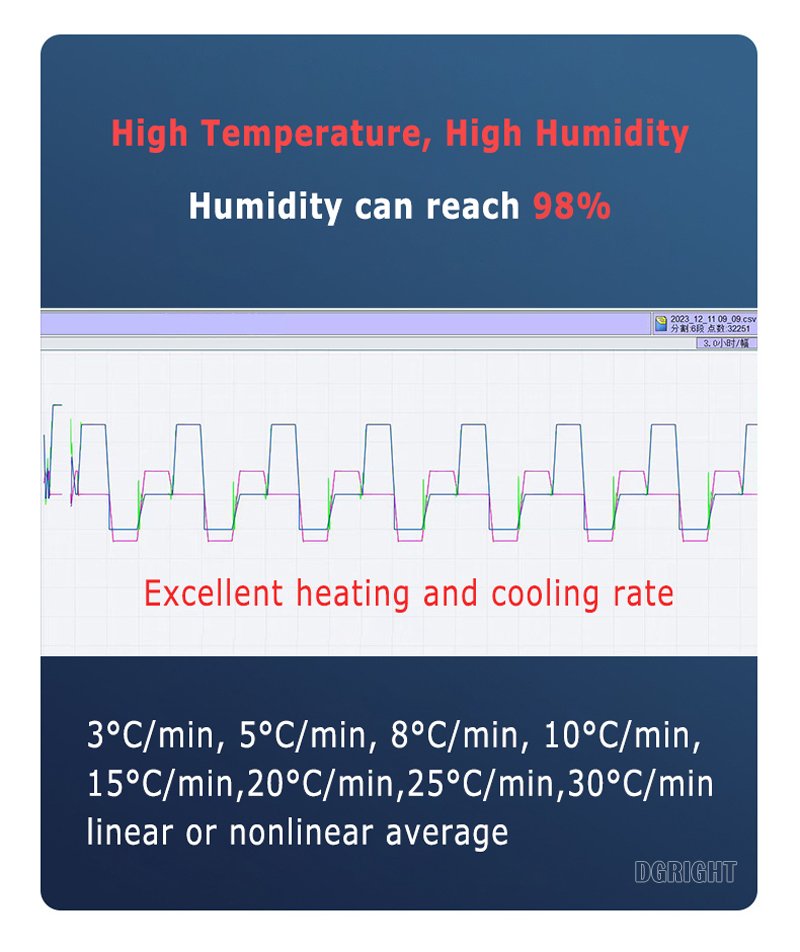

Temperature change rate
|
5°C/min, 10°C/min, 15°C/min, 20°C/min, 25°C/min
|
||||
Rapid Changes Temp.Range
|
-70℃:-50~+85℃(KS);-40℃:-20~+85℃(KL);-20℃:0~+85℃(KL)
|
||||
Temperature range
|
-70 ° C~150 ° C (linear temperature range -40 ° C-125 ° C)
|
||||
Temperature fluctuation
|
±0. 5℃
|
||||
Temperature uniformity
|
±1.5℃
|
||||
Temperature deviation
|
±2.0℃
|
||||
Humidity range
|
20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)
|
||||
Humidity deviation
|
+5% RH (<75% RH)
|
||||
Inner box material
|
SUS#304 stainless steel plate
|
||||
External material
|
Stainless steel plate or powder-coated
|
||||
Thermal insulation material
|
PU & Fiberglass wool
|
||||
Refrigeration system
|

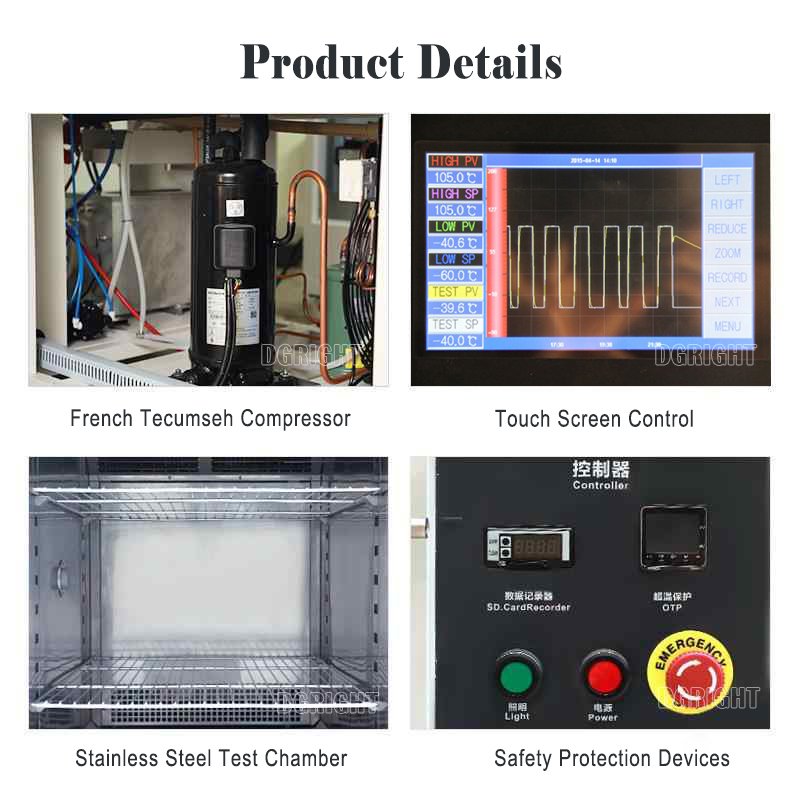

Tecumseh compressor, finned type evaporator, air(Water)-cooling condenser
|
||||
Refrigerating fluid
|
R23/ R404A USA Honeywell
|
||||
Condensation
|
Air(Water)-cooling condenser
|
||||
Observation window
|
Coated heat film insulated glass
|
||||
Safety device
|
Over temperature protection, compressor oil shortage, overpressure, circuit breaker, overload protection, fan overload protection, power phase loss protection, water shortage protection
|
||||
Standard configuration
|
test hole 1, lighting lamp 1, silicone rubber soft plug 1 set, sample rack 2 sets
|
||||
Optional accessories
|
Remote monitoring computer and software, RS232, RS485 communication interfaces, recorders, etc
|
||||
Power supply
|
AC 380V+10% 50Hz three-phase five wire
|
||||
Notes
|
Other studio sizes can be customized according to requirements, with main parameters and configurations requested separately
|
IEC 60086: 2007 “Original battery Part 4 Safety requirements for lithium batteries”
This machine is used to simulate the ability of the adapt to the environment in a rapidly changing temperature environment.
The programmable test box can be controlled in multiple stages, because the program is relatively complicated and multi-functional, such as Button control, function keys are complicated and difficult to remember, so the LCD touch screen control is directly used, and only the experimental program can be set up, and the test can be completed without the need for the staff to stay in care, especially for the busy laboratory staff.
