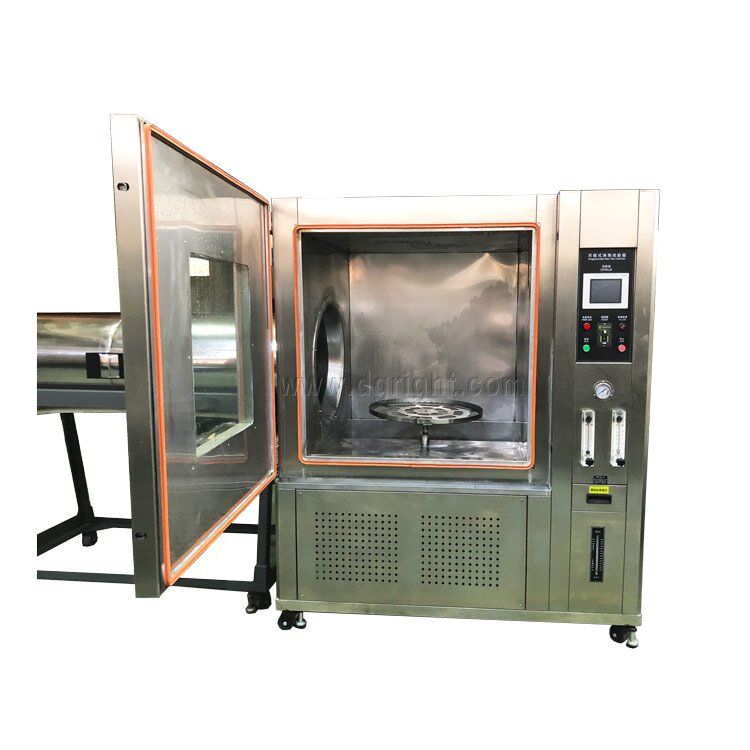

RT-314 IPX4 / IPX 5 / IPX6 / IPX7 / IPX8 / IPX9K Waterproof Rain Test Equipment

This equipment is suitable for the test of rainproof and immersion sand for industrial electronic products such as auto parts and electronic appliances. The auto parts include outdoor lamps, lights, door locks, electrical, instrument, dust jacket, electronic Testing of the complete sealing stability of systems such as household appliances.

Product Details:

Equipment summary:

This equipment is suitable for the test of rainproof and immersion sand for industrial electronic products such as auto parts and electronic appliances. The auto parts include outdoor lamps, lights, door locks, electrical, instrument, dust jacket, electronic Testing of the complete sealing stability of systems such as household appliances.

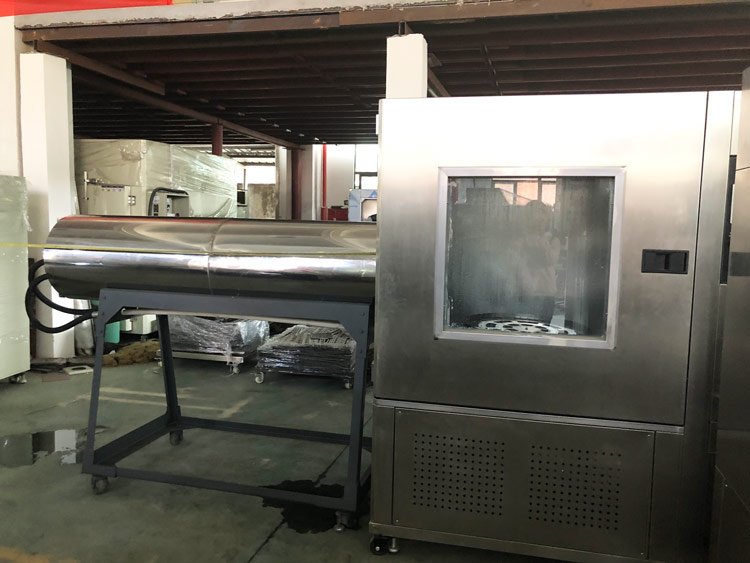

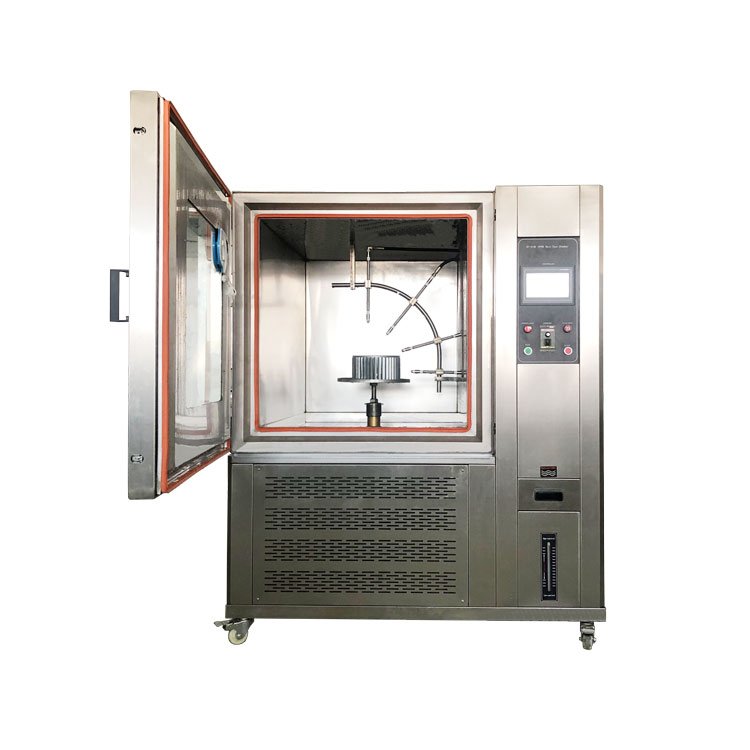

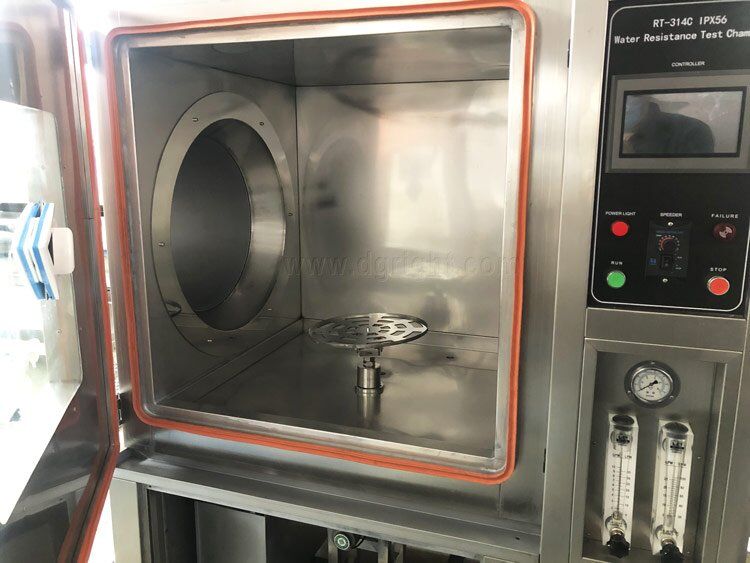

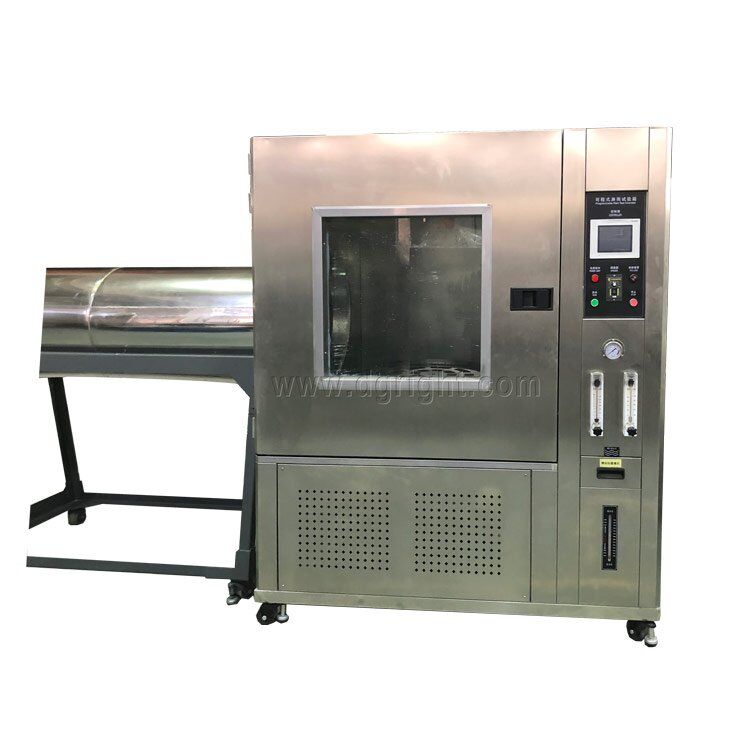

The rain tester is a combination type, which is controlled by IPX5 IPX6 rain test level combination. It saves the customer’s laboratory space and saves 6 cubic meters of water per hour. Control mode programmable control system, set by touch screen setting interface. Set the spray time and independent sample carousel control.







Corresponding standard:

Comply with IEC60529:2001 “Degrees of protection provided by enclosures (IP Code)”,

GB4208-2008 “Shell protection class (IP code)” 14.2.5, 14.2.6 terms and Figure 6 and

GB7000.1 “Lamps Part I: General Requirements and Tests” 9.2.6, 9.2.7 Terms and Conditions 9.5 Requirements.



Product Features:

1. Split structure, safe and reliable.

2. The equipment rack and sample turntable are all made of high quality aluminum alloy and SUS304# stainless steel plate to ensure no rust for long time use.

3. The electric parts of the turntable are fully sealed to effectively prevent leakage of water.

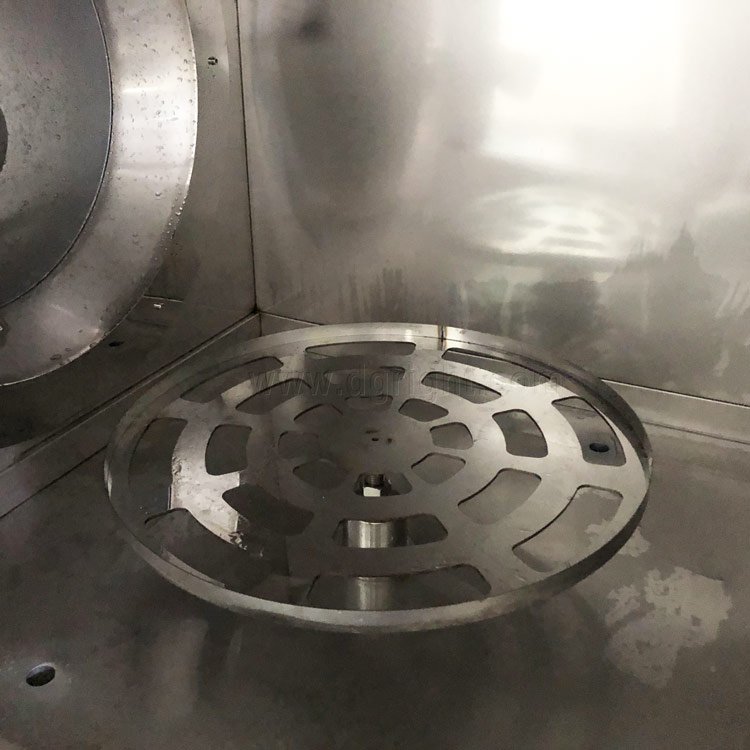

4. The turntable uses the speed-regulating motor, the speed is steplessly adjustable within the standard range, and can control the forward and reverse rotation (suitable for the sample with power-on test to prevent winding).

5. The spray water flow is adjusted by the flow meter and adjusted manually.

6. Nozzle: According to the specifications of IEC60529

7. All electrical components are imported brands such as LG and Omron; the wiring process conforms to the requirements of national standards, the layout of the electric board is reasonable, the wiring is firm, and the marking is clear.

8. Bring the water tank, the water tank float valve automatically controls the water inlet, and has low water level alarm monitoring to effectively prevent the water pump from running dry and damaged.

9. The test time is controlled by time relay, which is simple and practical; it can be set: 0-999min (adjustable), after the test is completed, it will stop automatically; (IPX56: test time can be set on the touch screen).

10, IPX5 and IPX6 one-key conversion, one-button start, automatic shutdown, simple and intelligent.

Technical parameter:



No.

Description Parameter

1

Controller LCD touch screen

2

Inner size(mm) 800*800*800mm, SUS304#

3

IPX5 water spray nozzle diameter (mm)

6.3

4 IPX6 water spray nozzle diameter (mm)

12.5

5

IPX5 water flow rate (L/min) 12.5±0.625

6

IPX6 water flow rate  (L/min)

100±5L/min

7 Water pressure(Mpa)

100~150kpa (Adjust the water flow according to the regulation)

8

Test time 0~9999min
9 Flow control

The flow rate is manually adjusted by using the rotor flowmeter

10

Spray distance 2.5-3m (controlled by operator)
11 Fixing method of spray gun

handheld

12

Water pump Stainless steel multistage pump
13 Waterway material

Stainless steel + PPR water pipe weld

14

Sample rotor disc diameter (mm) 500 or customize

15

Sample rotor power AC 220V
16 Material

Stainless steel 304#

17 Protection device

Electric leakage, water shortage, short circuit

18

Voltage (V) 380V
19 Power (KW)

3

20 Comply standard

IEC60529:1989+A1:1999,GB4208,GB7000.(IPX5,IPX6)
