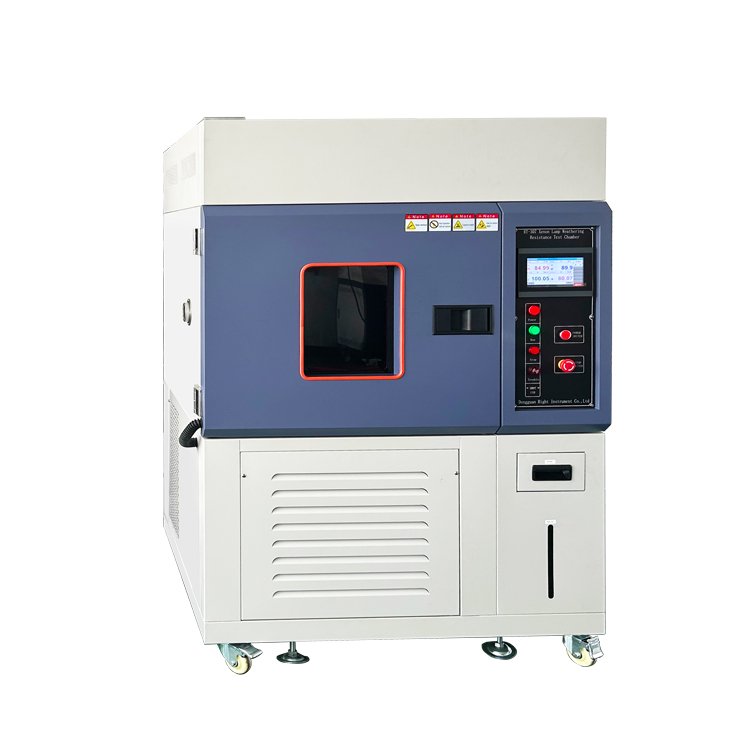

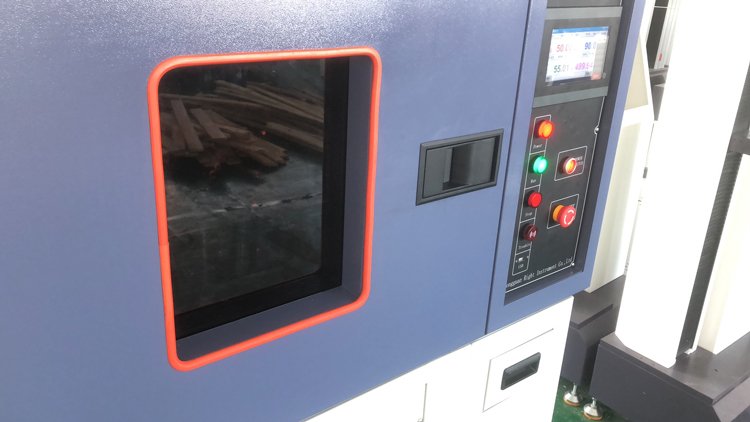

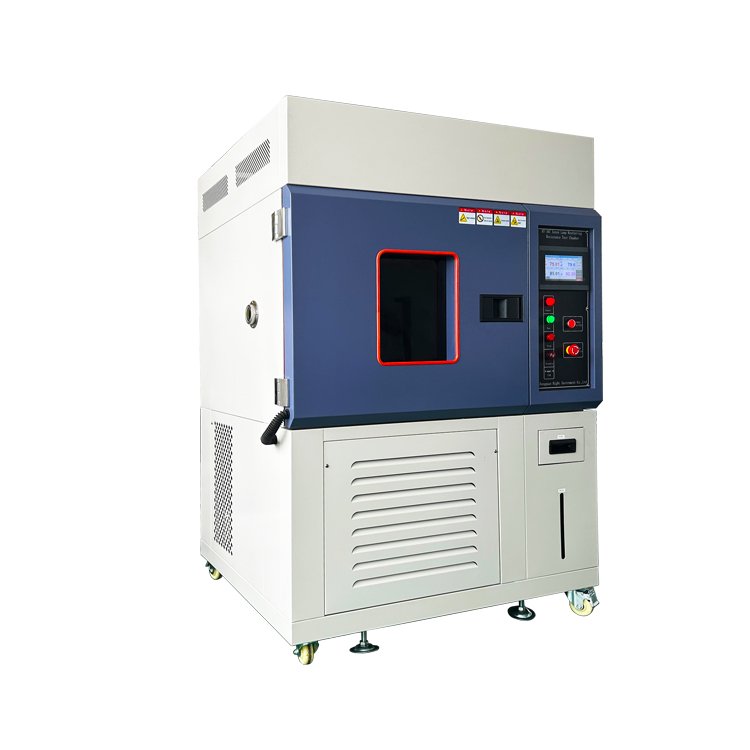

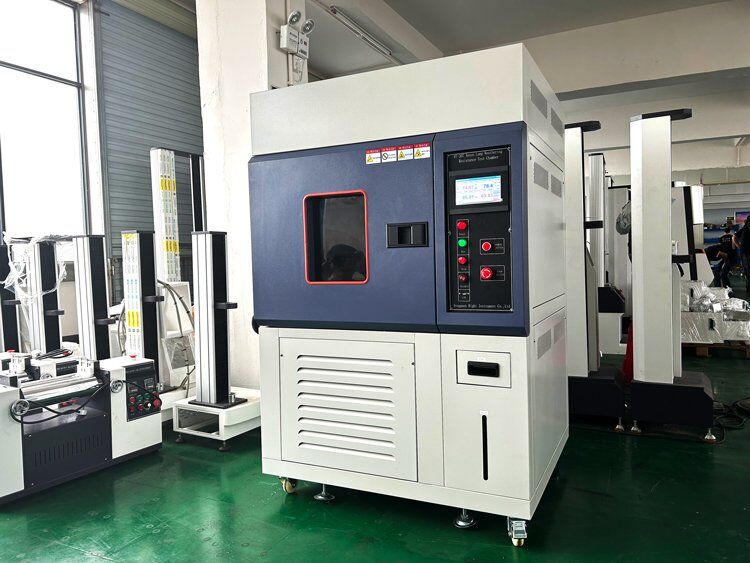

RT-307A Xenon Lamp Aging Tester Manufacturer

Category 7. Simulated Environment Testing Machine

Additional information

Plate Rack Xenon Aging Testing Machine

This product is a xenon lamp as a light source, simulation and strengthening of weathering accelerated light aging test equipment in order to quickly obtain near-atmospheric aging test results, used to evaluate the weathering of materials.

Weathering test is an important means of screening formulae to optimize the composition of products in the process of scientific research and production, but also an important element of product quality inspection, application materials such as coatings, plastics, aluminum-plastic panels, and automotive safety glass and other product standards are required to do the weathering test.

Product Details：

The main factors causing material aging are sunlight and humidity. Weathering chambers can simulate the hazards caused by sunlight, rain and dew.

Weathering test chambers use xenon lamps to simulate the effect of sunlight and condensing moisture to simulate rain and dew; the material under test is placed at a certain temperature in the light and moisture alternating cyclic program for testing, with a few days or weeks can be reproduced outdoors for months or even years of hazards, artificial accelerated aging test data to help select new materials, the transformation of existing materials, as well as evaluation of the formulation of the changes are how to affect product durability.

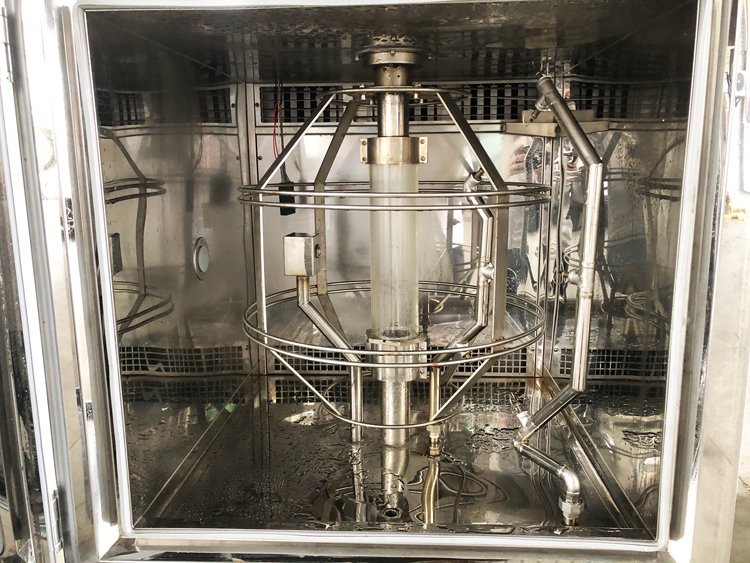

Rotating cage-type sample holders is optional.

Equipment Parameters

Power supply: AC 380V/50Hz;
Xenon lamp power: 3KW;
Blackboard temperature: 35 ~ 100 ℃ ± 3 ℃;
Humidity range: 65 ~ 98%RH ± 5%;
Rainfall time: 1 ~ 9999 hours and 59 minutes adjustable;
Rainfall cycle: 1 ~ 240 minutes, interval (break) adjustable;
Spectral wavelength: 290-800nm;
Xenon radiation intensity: 50W/m2 ~ 500W/m2;
Box material: A3 steel (paint);
Box liner: SUS304 stainless steel plate;
Door: silicone rubber sealing device;

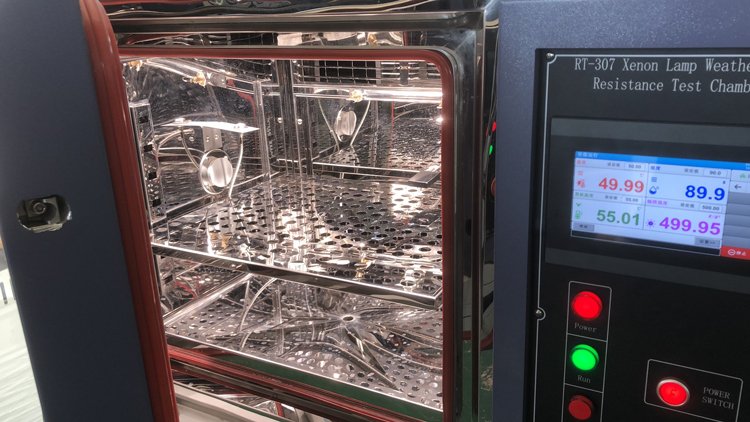

Sample frame: all stainless steel manufacturing, specimen fixed position adjustable, standard stamping molding sample plate;

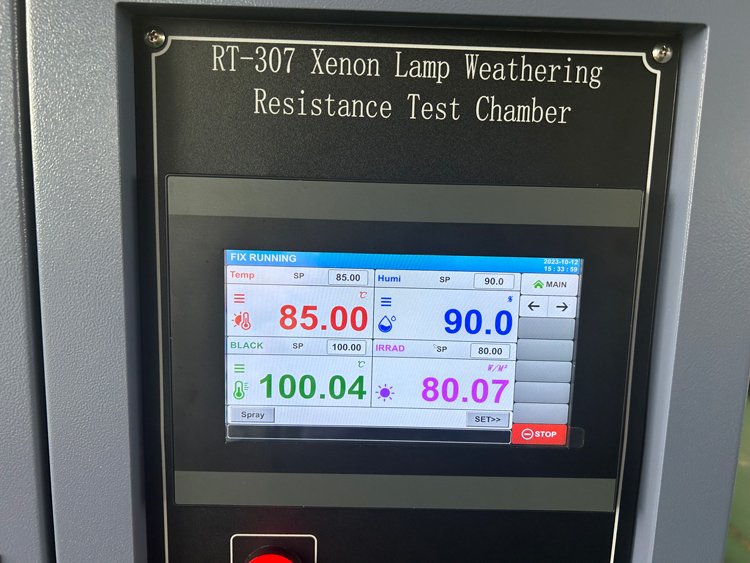

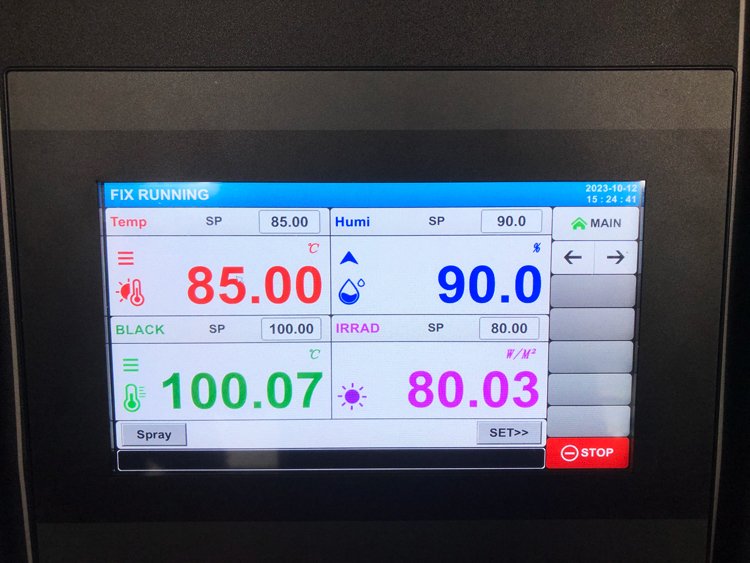

Controller: programmable touch screen controller, test conditions can be set program automatically;

Working size D×W×H: 500x600x500MM;
Integral structure: by the test chamber, heating/light/system / electrical control components;

Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Corresponding Standard :

ASTM D5099, ISO 11443, GFT 014-02, JIS K 6259 , ASTM1149, ASTM1171, ISO1431, DIN53509, GB/T13642, GB/T 7762-2003, GB 2951, GB10485-89, GB/T16422.2 etc.
