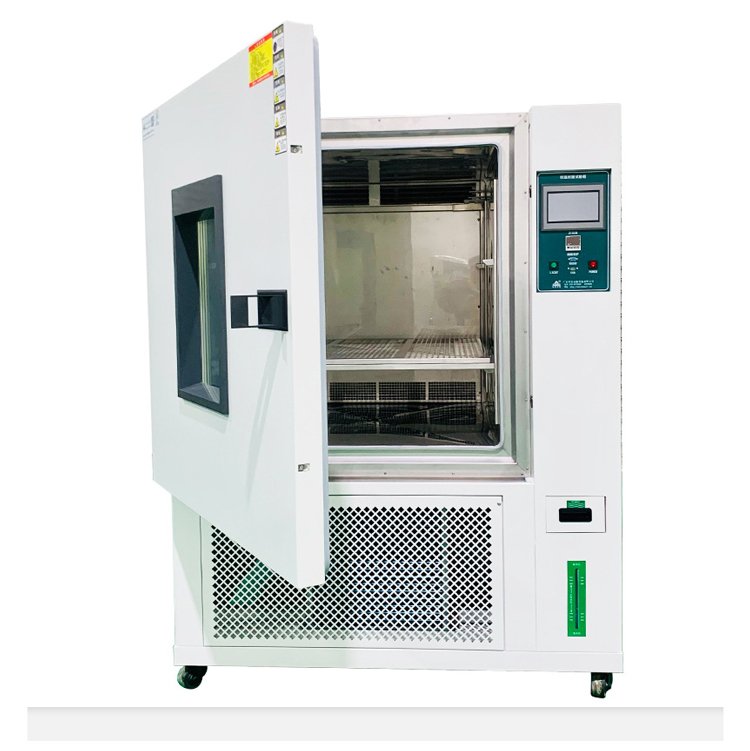

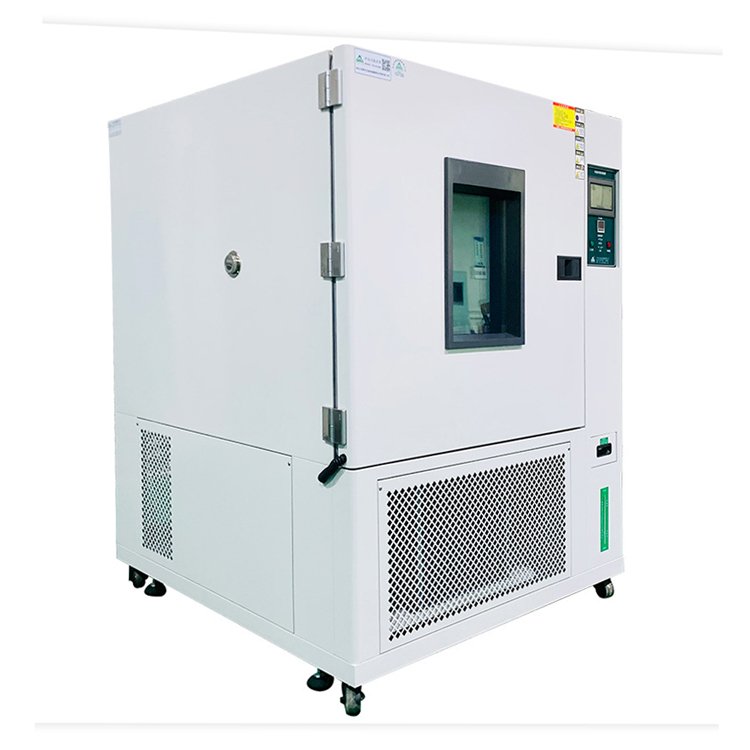

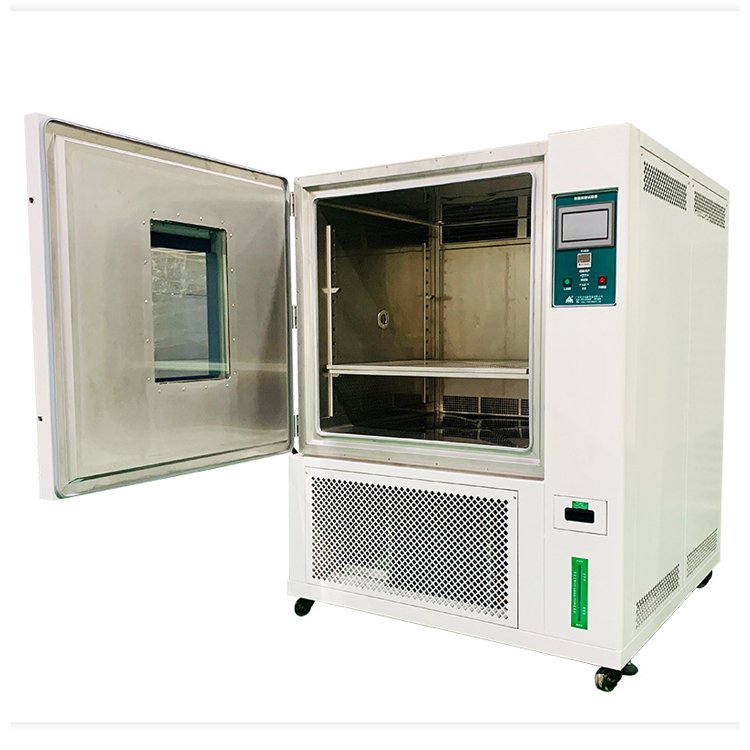

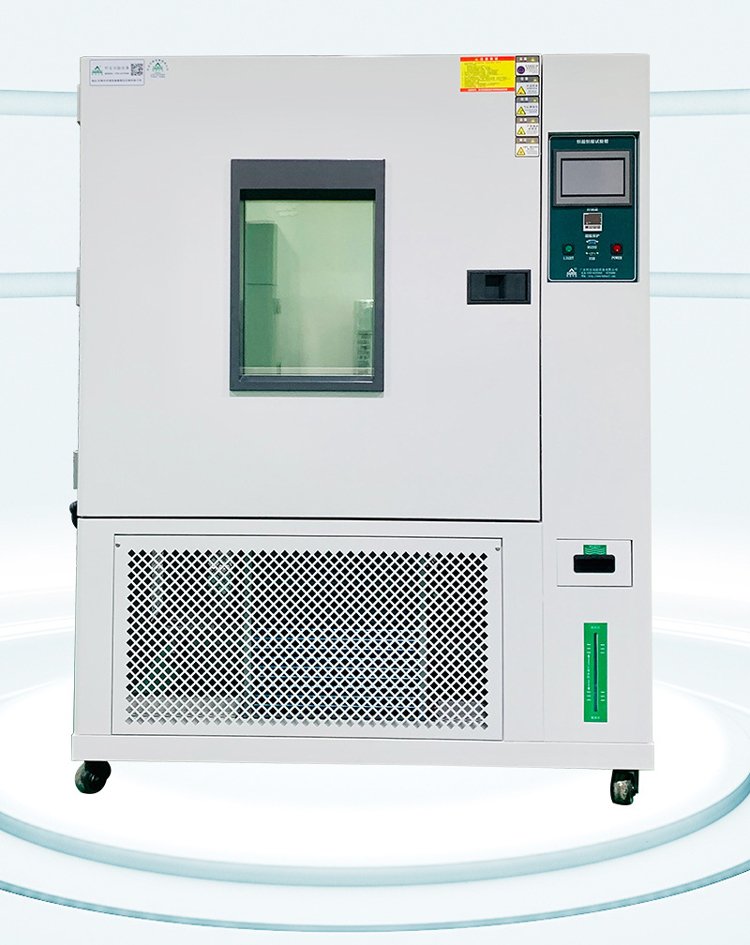

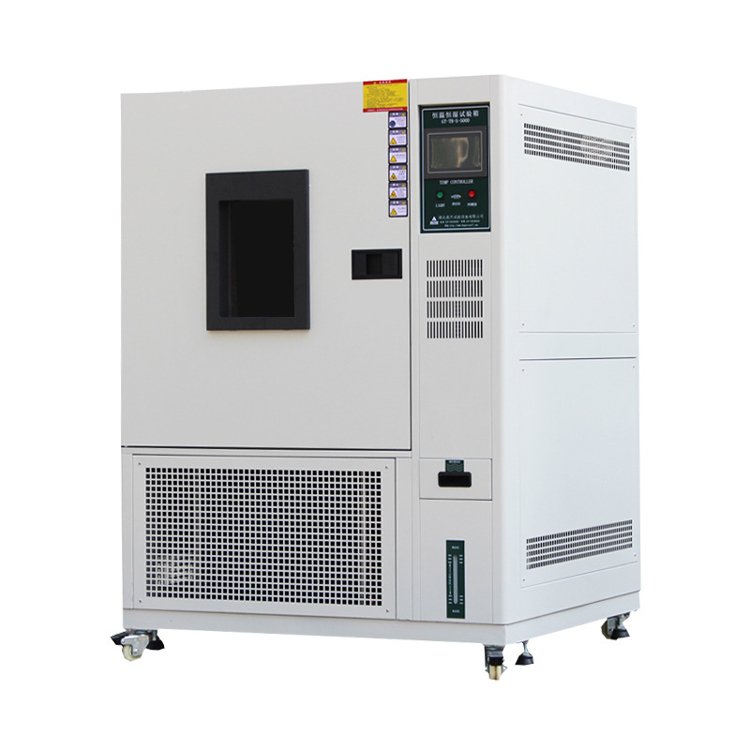

RT-303 High and Low Temperature Testing Chamber

RT-303 High and Low Temperature Testing Chamber

The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, through testing to determine product performance whether it is still be able to meet the intended requirements.

Product Details:



Equipment summary:

Temperature test chamber can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, Through testing to determine product performance whether it is still be able to meet the intended requirements.



Corresponding standard:

1.GB 10589-89 low temperature testing condition
2. GB 10592-89 high temperature testing condition
3. GB 11158-89 high temperature testing condition
4. GB/T5170.2-1996 basic parameters of environmental testing method for Electrical and   electronic products,
5. GB2423.1-89 The basic test regulation for electrical and electronic products,  Test A: low-temperature test method
6. GB2423.2-89 The basic test regulation for electrical and electronic products,  Test B: high-temperature test method
7. The basic test regulation for electrical and electronic products,  Test: high-low-temperature test method

Applicable industries :

Applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care … and so on.



Technical Parameter:



Inner size D×W×H 40*50*40 cm 40*50*50 cm 50*60*50 cm
index temperature -60oC to 150oC
fluctuate/uniformly ≤±0.5oC /.+2oC to 3oC
Heating-up time -70oC to 100oC about 65min
Cooling time 25oC to -60oC about 80min
Control system controller LED digital P,I,D, +S,S,R.microcomputer controller
accuracy Setting accuracy temperature ±0.1oC,directed accuracy temperature ±0.1oC,resolution ±0.1oC
sensor Platinum resistance PT100Ω/MV
Heating system Independent system, nickel-chromium alloy electric heating type heater
Cooling system Totally enclosed air-cooled single-stage compression refrigerate mode / original from French “Taikang” / totally enclosed air-cooled re-compression refrigerate mode
Circulatory system Temperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel
material Outer material High-quality carbon steel plate. Phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment
Inside material SUS304 High-quality stainless steel light board
Insulation material Rigid polyurethane foam, ultra-fine glass fiber cotton
insulation Double-resistant high-temperature aging of silicone rubber  seal
Standard collocation a set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs
Protector Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
Timer 0.1 to 999.9 (S,M,H)adjustable
Voltage AC380V±10%,  50±0.5Hz  Three-phase five-wire system
environmental temperature 5oC to 30oC ≤85%R.H
annotation
1. Above data were measured at temperature (QT) 25oC and no-load condition.
2. Can be customized non-standard-type high-low-temperature testing machine according to uses requirements
