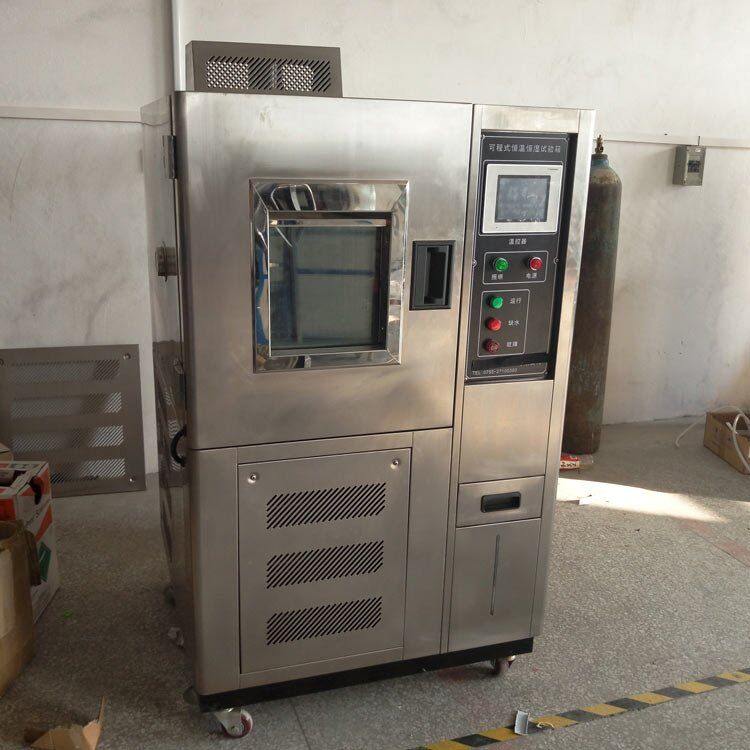

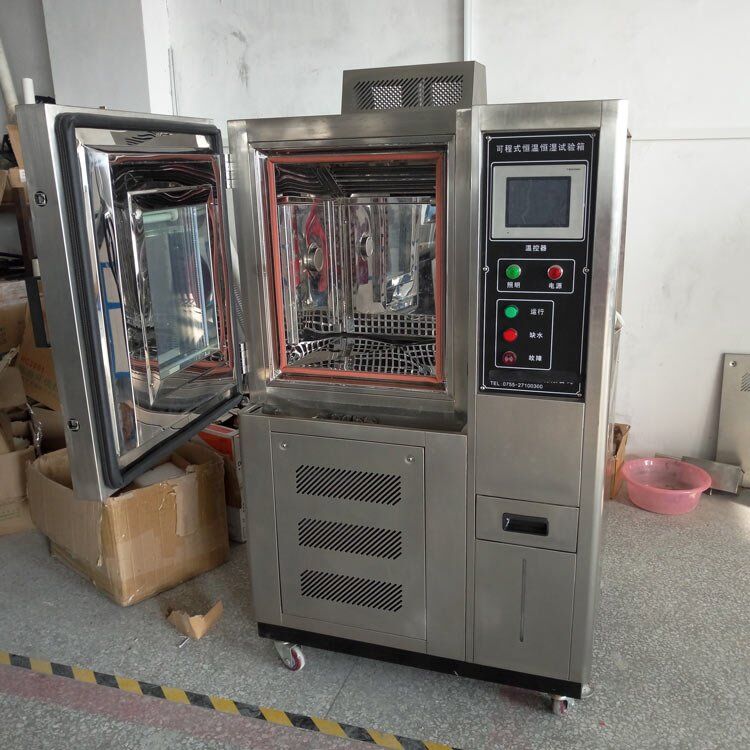

RT-301 Simulate Environmental Testing Chamber

RT-301 Simulate Environmental Testing Chamber

The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Product Details:



Simulate environmental testing chamber

Features:

1.High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.

2.Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.

3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.

4.With an external water supply system can be easy to supply water and automatically reuse.

5.Compressor circulatory system from French “Taikang”, more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).

6.Controller imported LCD display screen can be displayed measuring values and setting the value and time.

7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).

8.Built-in mobile pulley easy to move and has a strong positioning screw fixed position







Corresponding standard:



1.International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

IEC68-2-02_test method B_dry heat

  1. Military Standards:

MIL-STD-810F-507.4 humidity

MIL-STD-810F-501.4 high temperature

MIL-STD-810F-502.4 low temperature

MIL-STD883C test method 1004.2 temperature and humidity cycling test

MIL-STD810D test method 502.2

MIL-STD810 test method 507.2 procedure 3

  1. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature

  1. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test



Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Detailed parameters:





Inside size WxHxD (cm) 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Outside size WxHxD (cm) 90x136x94 100x146x104 100x161x117 110x171x137 130x181x137 150x186x137 150x186x157
Temperature range -70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)
Accuracy/ uniformly ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Accuracy / volatility ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Heating / cooling time About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition)
Inside material Stainless steel SUS 304#
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
protection compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
accessories recorder(purchase)、view window、50mm testing hole、PL lamp、clapboard、Dry and wet gauze ball
controller TEMI 580 or TEMI 880 touch screen controller
compressor France “TECUMSEH”
power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz





Detailed Configuration and function of software :

A.wind circulative system

1.Using multi-wing centrifugal Rewind fans, strengthen the axis is made of aluminum alloy in order to attain loop forced convection

2.Stainless steel added long axis

3.Stainless Steel Multi-blade centrifugal wind wheel

B.water Supply system

1.with water tank at the back

2.automatically supply water

3.warning for the shortage of water

C.cooling system(diego-style、single machine、refrigerator;

1.compressor:France“Taikang”Hermetic Refrigeration Compressor TFHK2522K two unit

2.refrigerator:Air-cool condenser coil

3.Evaporator: pomfret Chip Multi-Segment

4.Other Accessories: Imported desiccant cooling, Freon-borne window, the U.S. oil-water separator

5.Expansion System: Italian expansion valve

D.Temperature and humidity control system

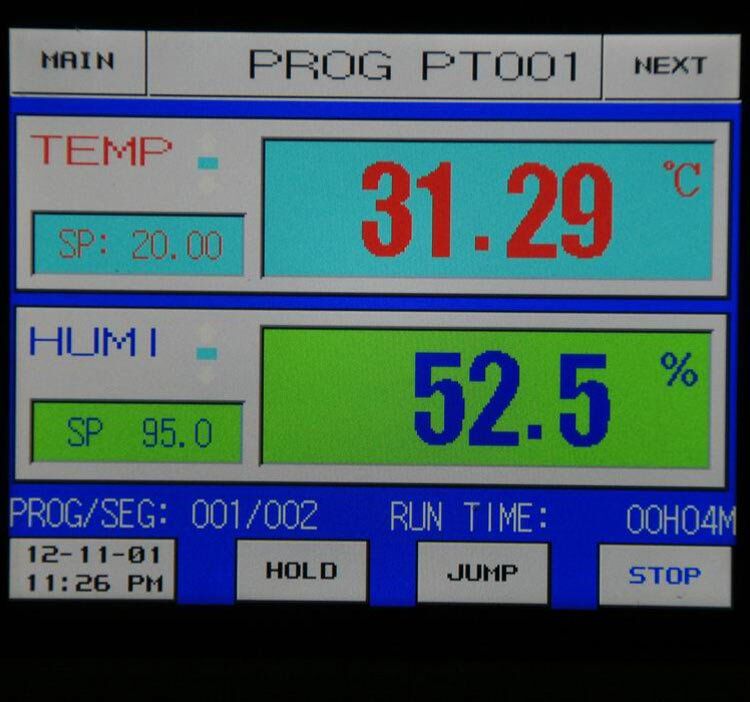

1.Control Specifications: Original South Korea TEMI880 color LCD touch screen in English and Chinese

Accuracy: ± 0.5 ℃ ± 1% R.H

Resolution: 0.1 ℃ 1% R.H

  1. Functions can accommodate memory 999 program, optional single-stage control

or multi-segment program control, operating as a functional form model, can be

directly programmed and solid curve of function and the RS-232 communication interface.

3.connect with computer, directly monitored by the computer to operate program,

it also records temperature data and print! (Need anther purchase)

4.The main components of the system is equipped with a safe inspection and

interface devices, when an fault occurs, immediately through the LCD to

display fault status and cut off the power

5.With the cumulative operating time, display the run time

6.Sensor: PT100 Sensor

7.Temperature and humidity control diagram attached



E.Standard Accessories

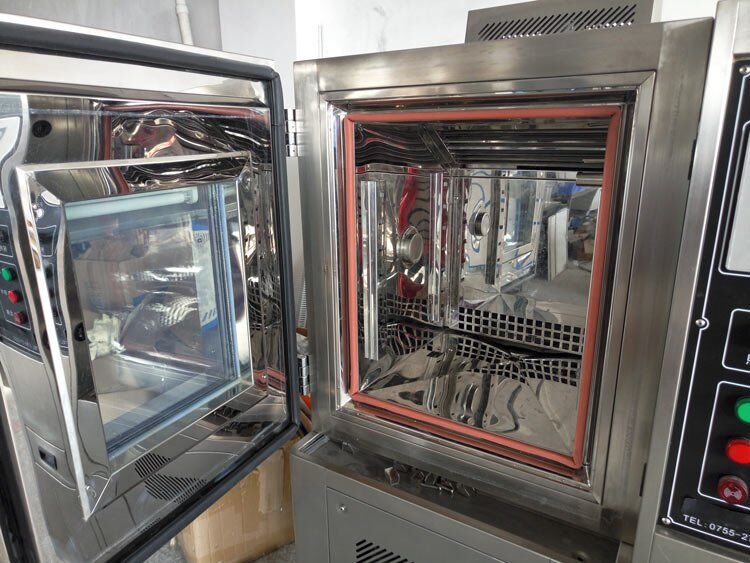

1 two groups adjustable shelf board made of stainless steel, the distance can be arbitrarily changed

2.Perspective vacuum glass windows, explosion-proof type

3.Wide-angle lighting, using energy-saving high-efficiency fluorescent lights

4.The machine is equipped with 4 group adjustable fixed wheel axle and control indicator light

  1. a pair of Φ50mm hole for testing



Power:

Three-phase 380V ± 10% Power frequency: 50Hz ± 2% 4KW



Information and services

  1. To provide equipment drawing, electrical schematics, electrical wiring diagram, consume parts, operating manuals and other technical information, copy of two, and to provide essential technical information.
  2. Trained how to operate and maintain the equipment, so the staff grasp to the skill of of equipment.
  3. Equipment, one year warranty for free maintenance service: after one year provide the accessories for paying costs price.

RT-301 following list of the programmable constant temperature and humidity testing machine:

Structure material Model From description
box Shell Stainless steel SUS304B import Antirust
Liner Stain steel SUS304B import Antirust
insulation Rigid polyurethane foam, ultra-fine glass fiber Hongkong insulation
Door Stainless steelSUS304B import Good sealing performance
View window 38026 insulating glass Observed the testing sample
Frame Stainless steel ring export Diameter 8mm
Testing hole Diameter 60MM Wire through directly
Heating system Heating pipe Stainless steel heat sink Hongkong Storage’s temperature rise up
Air circulation system fan YYF100-25-4S Japan Storage back to ring
Cooling









system

compressor CAJ2464 France cooling
Condenser Taikang France Storage back to ring
Coolant R23/404/environmentally United States cooling
electromagnetic valve 1028/3  Castor Italy Refrigerant opening and closing
Expansion valve TY2  Danfoss United States Refrigerator throttling
filters 0835  Danfoss United States Filter oxide cooling pipe
Humidity system Humidity tube Stainless steel 304 import The effective protection of laboratory humidity
Humidity box Made by oneself Provide temperature
