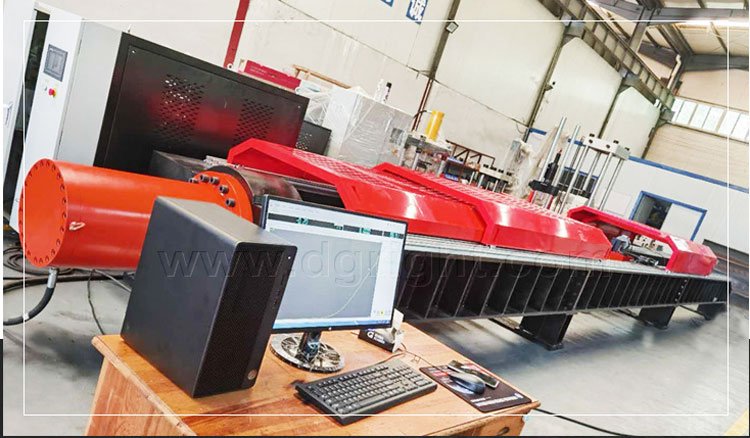

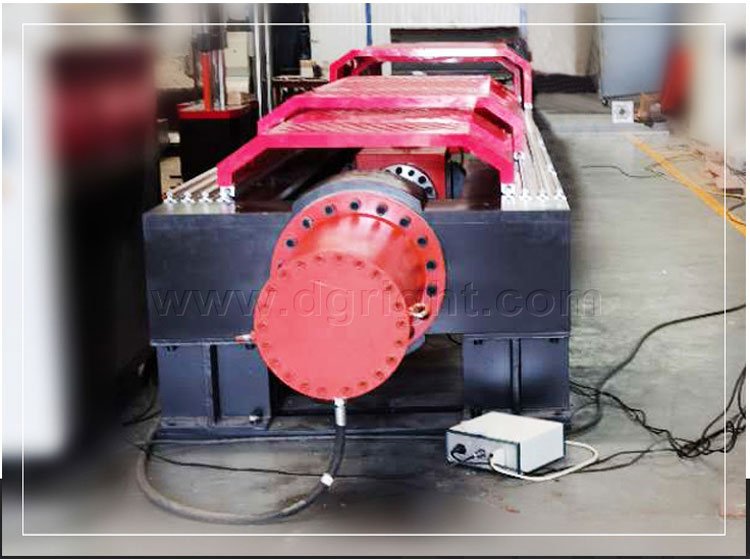

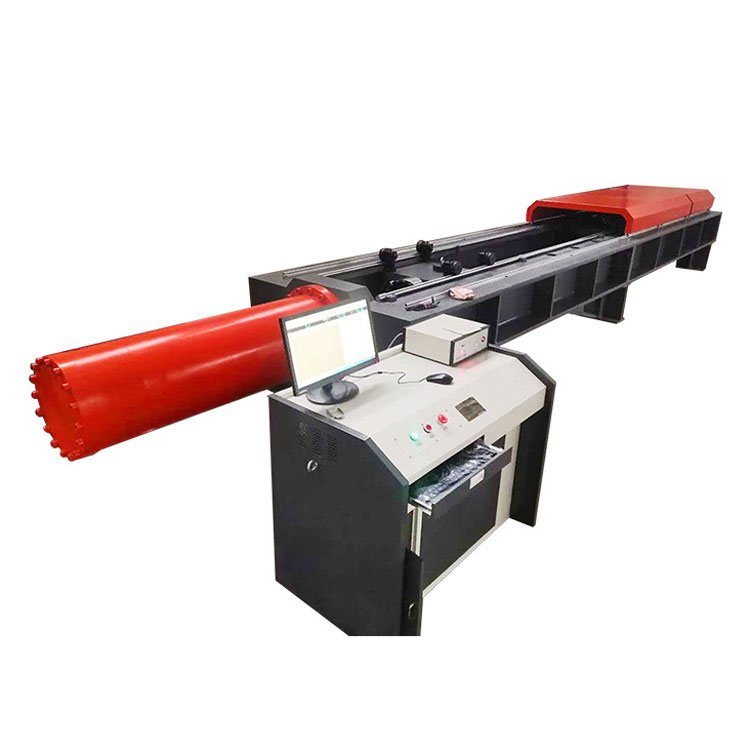

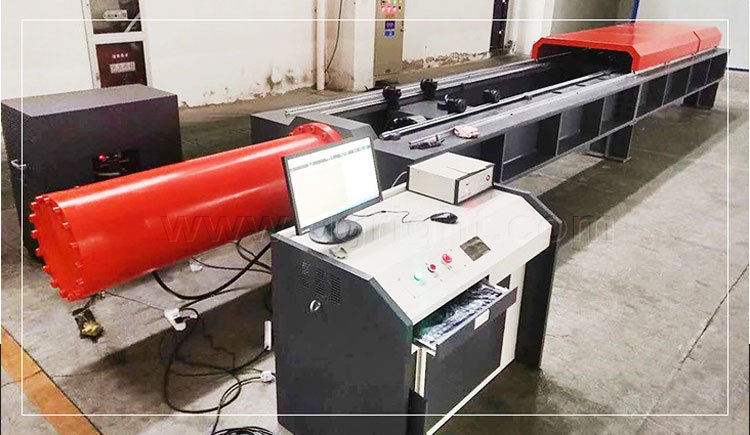

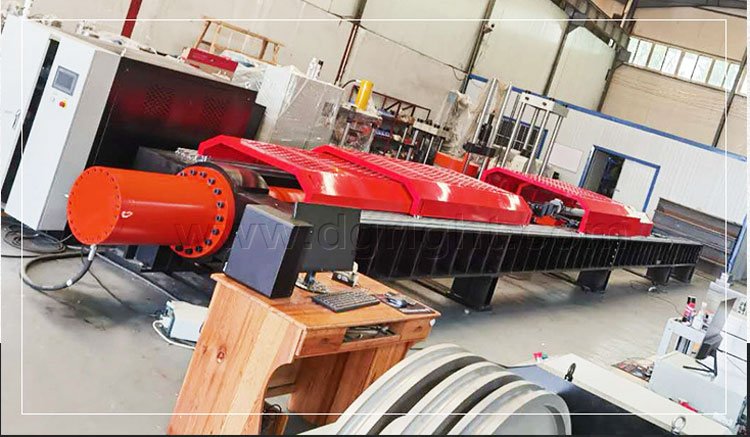

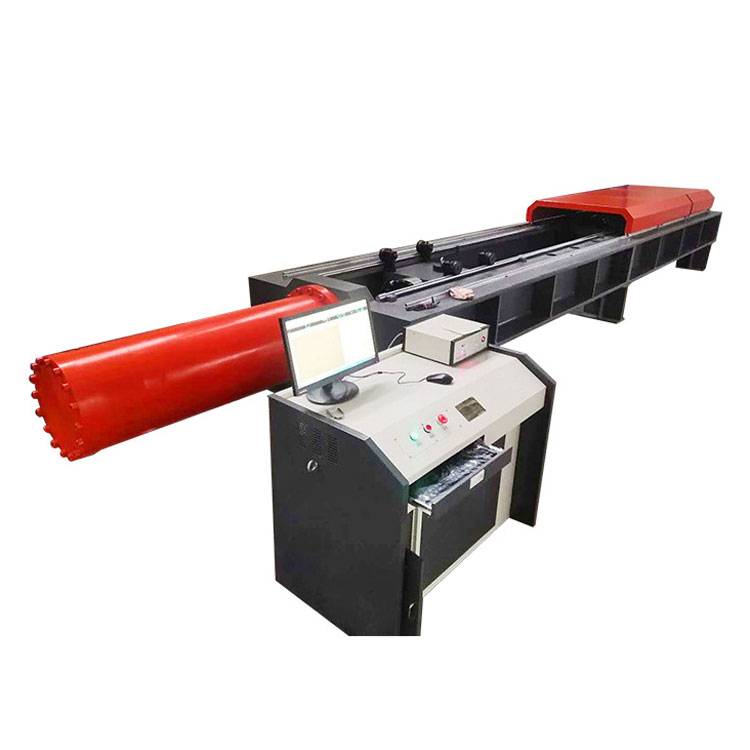

RT-211 Computer Type Servo Hydraulic Horizontal Universal Testing Machine

Additional information

Main Functions:

This type of horizontal tensile machine is used for tensile test of chain, wire rope, cable, electrical porcelain insulator and etc.

Product Details:

Main Functions:

This type of horizontal tensile machine is used for tensile test of chain, wire rope, cable, electrical porcelain insulator and etc.



Structural features and working principle

The aircraft consists of host, control cabinet, computer control system and other parts.

1) Piston advance, retreat, and test are facilitated by manual valves.

2) The composition of the electrical part:

The electrical part is composed of a control system and a display measurement system. The load measurement system consists of a high-precision pressure sensor, measurement amplifier, A/D converter, and power supply. All control parameters and measurement results can be displayed on the large-screen LCD in real time. And with overload protection.

Frame:

  • Horizontal structure, reasonable height, easy to operate, stable transmission.
  • Loading cylinder with excellent center alignment and shock absorbing performance.
  • Servo system with pressure difference regulation ability to reduce energy consumption, reduce heat and protect the oil.
  • Apply imported servo valve with fast response and high control precision.

Imported tension/compression force transducer with high precision and stability can be verified by compression direction and used at tensile direction.

Controller:

  • Resolution is up to 1/350,000FS
  • Based on advanced adaptive neuron PID control algorithm, closed-loop control of stain, stress, load, displacement and extension. All control modes shift easily and smoothly.
  • 8-channel analog signal acquisition and 3-channel digital signal acquisition
  • USB communication
  • Provide fully automatic control of metal tensile tests. Separate control of force, extension and displacement during elastic stage, plastic stage and hardening stage.



Software:

  • Open test procedure setup: customer can compile the test procedures by themselves.
  • Curve real-time display: force, displacement, speed and extension.
  • Open test report: customer can customize the report template according to their needs and the report can be exported to EXCEL for second time edit.
  • Powerful authorization management: the administrator can allocate different functions for different operators to avoid any misuse.
  • Powerful expandability: software can communicate with serial port; collect data like micrometer and centimeter. 6-channel is preserved for expansion with real-time data acquisition and display and process.
  • Data query function: customer can search according to serial number, date, test procedure name and etc.
  • Rich curve analysis function: software can mark the characteristic point, zone in/out the curve and explore the curve. During the test, three different types of curves can be display at the same time. After test, customer can customize the upper and lower yield point, greatly facilitating data analysis.
  • Unit definition: Also user can define the unit by themselves using formula.
  • Software provides limit protection, position limit protection, over-capacity protection.



Technical Parameter:



Max. Force 500kN~2000KN
Accuracy 1grade
Force range 1% ~ 100% FS
Force accuracy ±1% of reading
Force resolution 1/±350,000 of max force
Force rate 0.02 ~ 2%FS/S
Cylinder speed 150mm/min
Displacement range 0 ~ 600mm
Displacement accuracy ±0.1mm
Tensile space (excluding piston travel) 12meter
Piston Stroke 1500mm
Dimension 18000 (L) x 800(W) x 700(H) mm (estimate)
Power supply 415V±10%, 4.0kW
Weight 30,000kg
Standard accessories:
Load frame 1 set
Driving system 1 set
Single pole double-acting servo cylinder 1 set
movable cross-beam 1 set
500kN loading cylinder 1 set
500kN load cell 1 set
Displacement load cell 1 set
display module, A/D Module 1 set
Hydraulic power unit 1 set
Hydraulic tension grip

Stranded wire diameter

1 set

26mm

English version manual/ software Testing Machine operation Manual and software (hard copy and 1 CD)
Branded High performance Computer System & printer
