RT-205 50KN UTM Universal Material Tensile Testing Machine

RT-205 50KN UTM Universal Material Tensile Testing Machine

Mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-point extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Product Details:

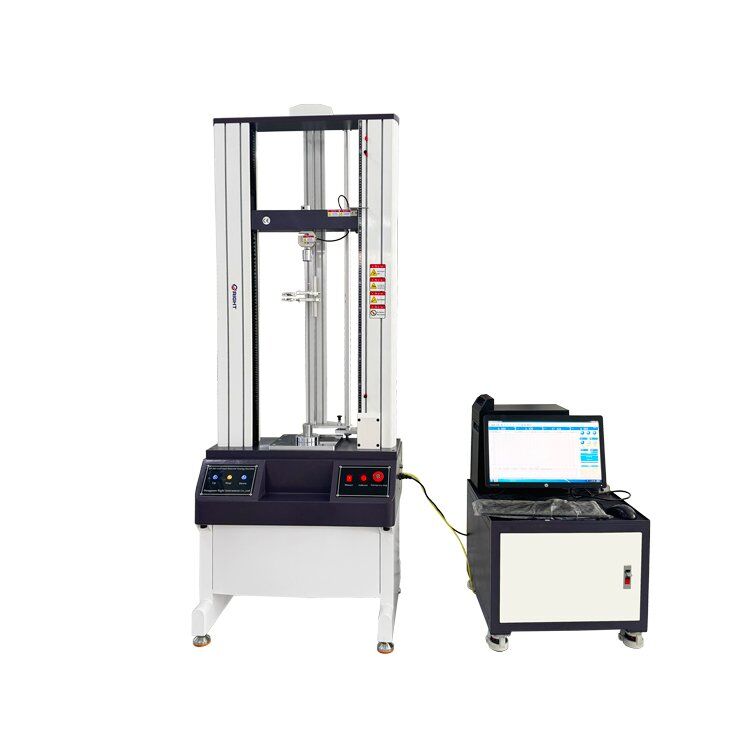

Computer Servo Metal Universal 50KN Tensometer Mechanical Tensile Testing Machine

Equipment summary:

RT-205 Computer Servo Type Universal Testing Machine is a new material testing machine that combines with electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate and is especially suitable for controlling quality in the production lines; this series of machines is mainly applied to test the non-metallic and metallic materials for with a load of less than 5 tons.



Main function:

Mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-point extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

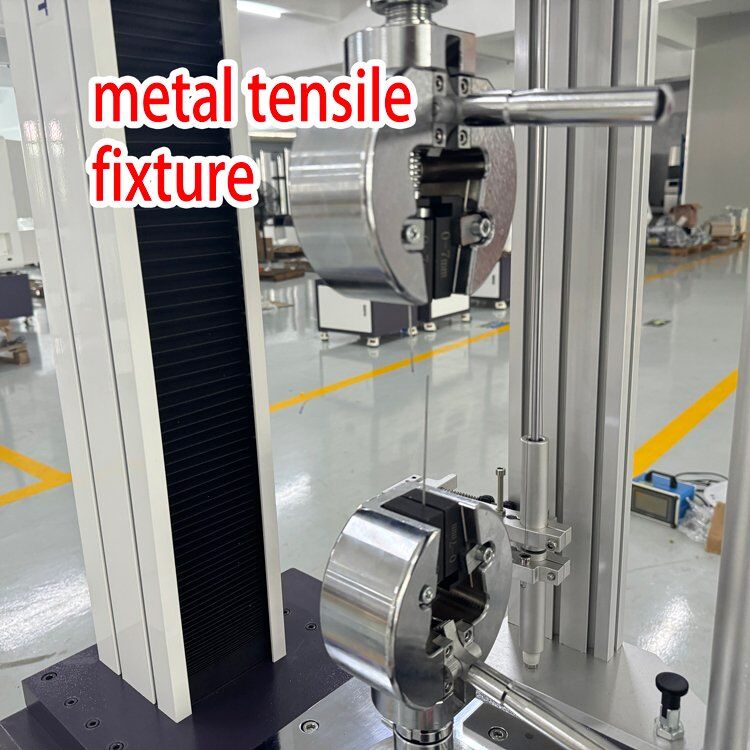

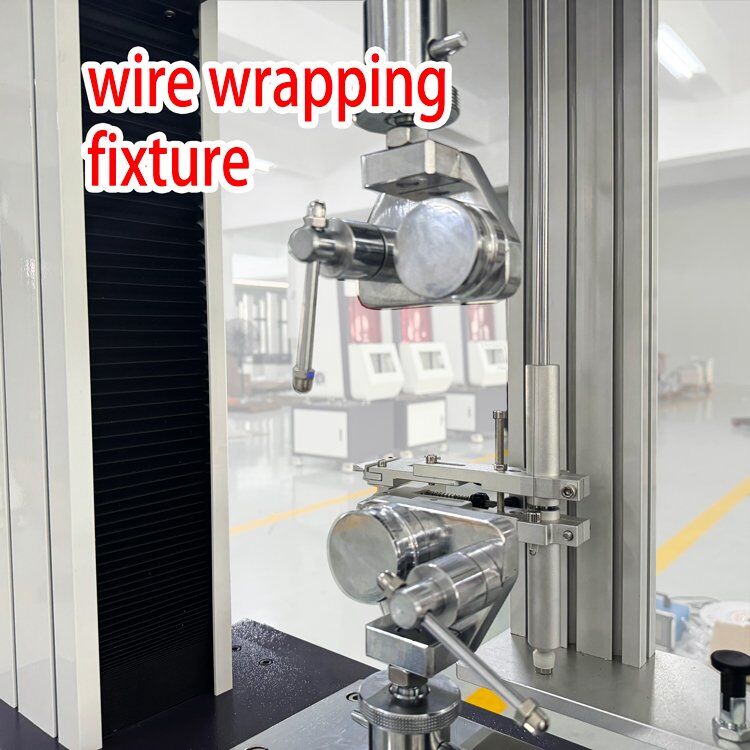

universal testing clamps

Main feature:

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatically calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; it automatically records the most significant point, breaking point, the designated point value or the rate of elongation; Using a computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.



Computer Servo Metal Universal 50KN Tensometer Mechanical Tensile Testing Machine

Computer Servo Metal Universal 50KN Tensometer Mechanical Tensile Testing Machine

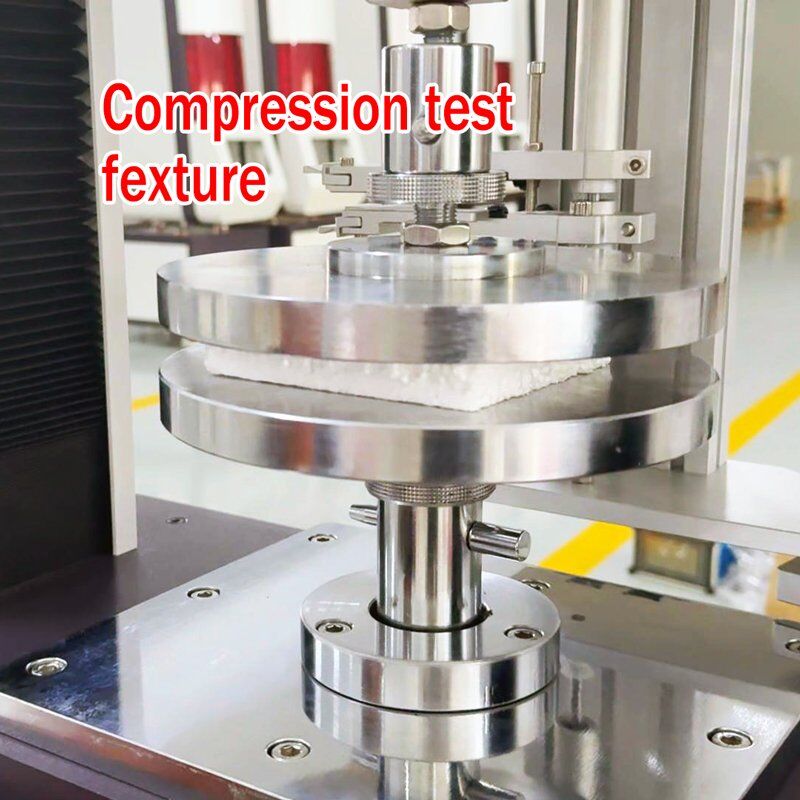

Compression-test-fixture RT-205

Technical parameter:

Model RT-205
Maximum load 5 ton
Accurate grade 1 grade /0.5 grade
Effective measuring range 0.2%~100%(1 grade)/0.4%~100%(0.5 grade)
Measuring accuracy Display the value ±1%/Display the value±0.5%
Tester resolution Max load 1/200000, constant the resolution
Load sensor Basic configuration:sensor(max load): one

Extended configuration: can add more sensors

Effective testing width 350mm(can be widened according to customer’s requirement )
Effective tensile stroke 800mm;1000mm;1200mm (can be increased the height according to customer’s requirement)
Range of testing speed 0.001~200mm/min
Accuracy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system (according to the requirements) Min span:10mm、Max range of deformation: 800mm

Extended deformation: Min span: 25mm、50mm、100mm, range of deformation:5mm、10mm、25mm

Accuracy of measured deformation Tolerance:±0.5% (according to the requirement of the customer to choose the larger or smaller deformation)
safety Electronic-limit protection
Testing platform moving  device Fast /slow  two speeds to control, can jog
Back to function of testing platform Manual or automatic operation、After the test, the moving iron returns to its initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%, automatic protection
fixture A set of tensile fixture
Machine size 107*56*210cm(length*width*height)
Motor Panasonic AC servo motor and drive
power 220V、50HZ、
power 0.75KW(depending on different demand of force, using different motor)
weight (about)320 KG
Unit KG, N, LB, and TON can be exchanged.

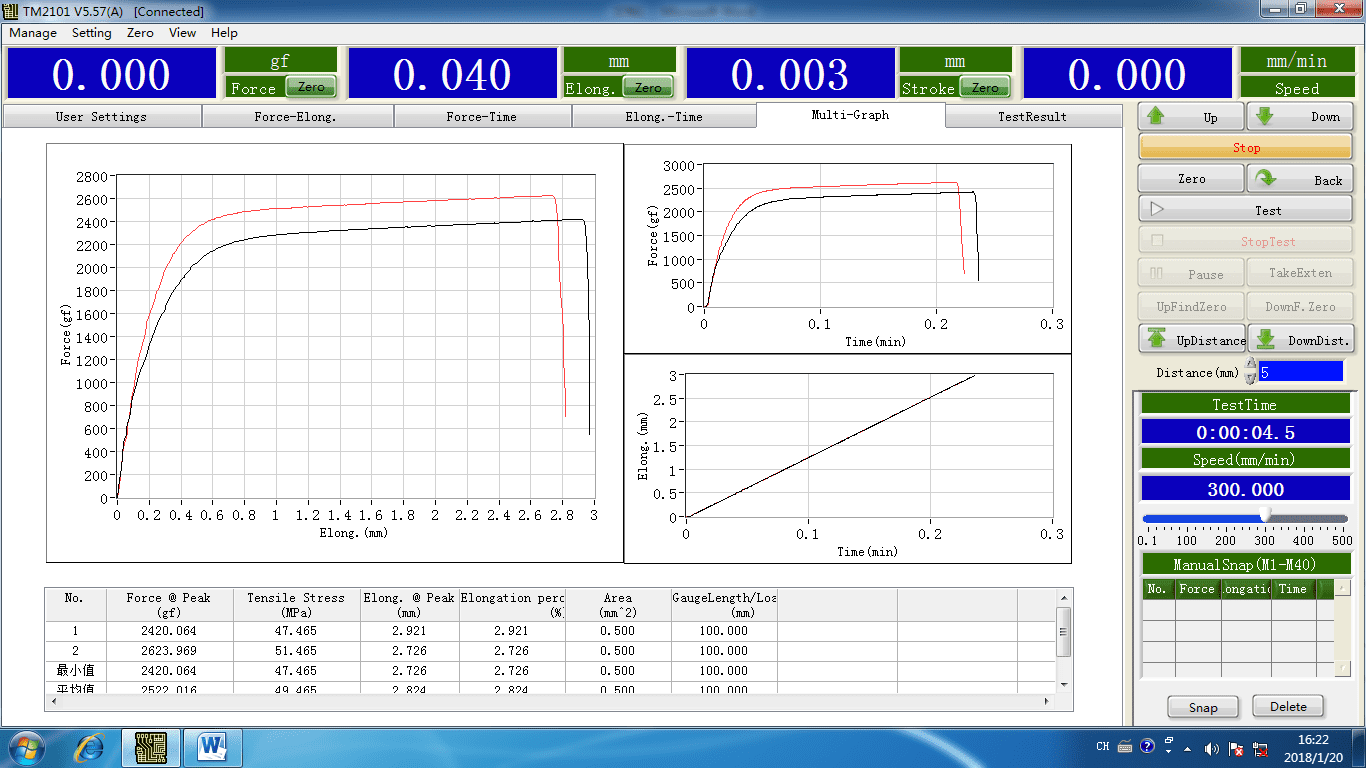

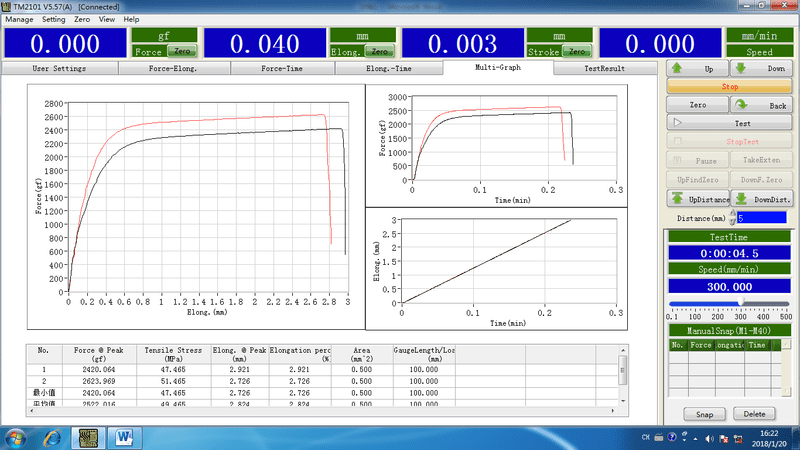

Software features:

The software description of computer servo-type universal testing machine

  1. The function of standard modular is to provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS, and other testing standard specifications.
  2. Tested product information: provide users with the data to set about the products, one time to input and re-use permanently. To improve accuracy, the data can be corrected by the formula automatically.
  3. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)
  4. the data’s unit of length and force can be exchanged; a unit of force is T, Kg, N, KN, g, lb, and the unit of length in mm, cm, and inch.
  5. Auto-optimization of graphic scale displays the best measurement of graphics. It can test the moving exchange in graphics. It has load displacement, load time, displacement time, stress-strain load -2 points extending maps, and many graphs compared.
  6. Test results can be output in EXCEL format.
    G. testing results can be automatically preserved or manually preserved. After the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.
  7. The software can output the previous data.

The accessories for computer servo-type universal testing machine

  1. warranted book within one year and operating instructions.
  2. A group of fixture
  3. testing software for tensile machines.
  4. A set of brand computers, a color printer



items can be tested in the computer servo-type universal testing machine

Common items: ( display data and calculation )

  • tensile stress                     ● tensile strength
  • tensile strength                  ● rate of elongation at break
  • fixed stress                     ● rate of stress at break
  • stress strength                  ● tear strength
  • the value of force at any point     ●rate of elongation at any point
  • pull-out strength                 ● force of adhesion
