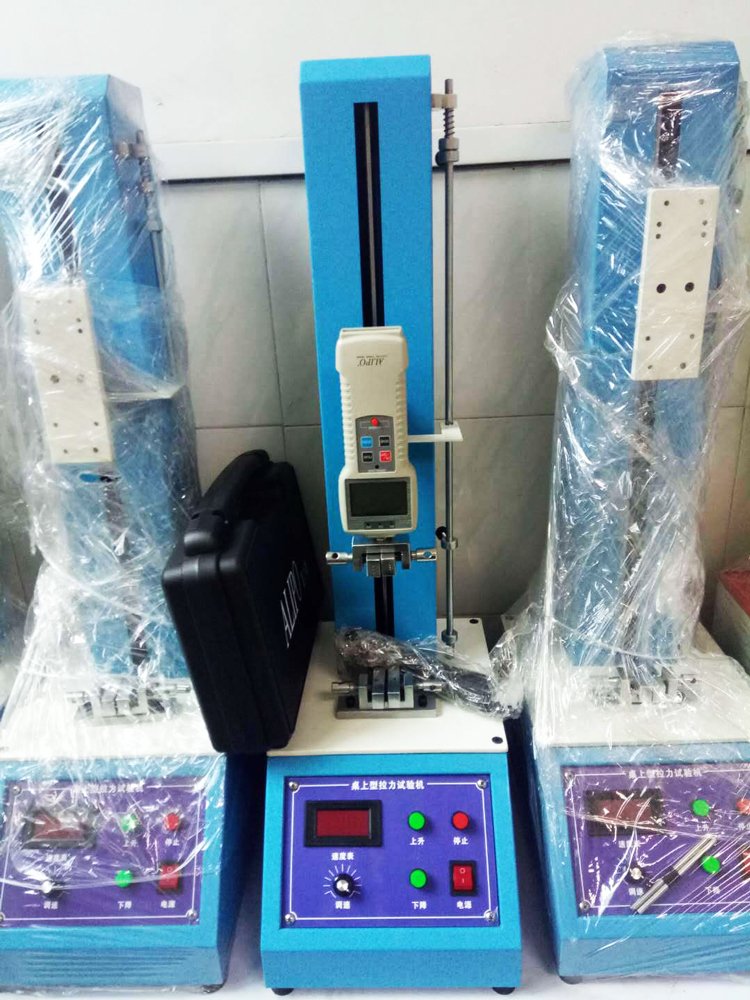

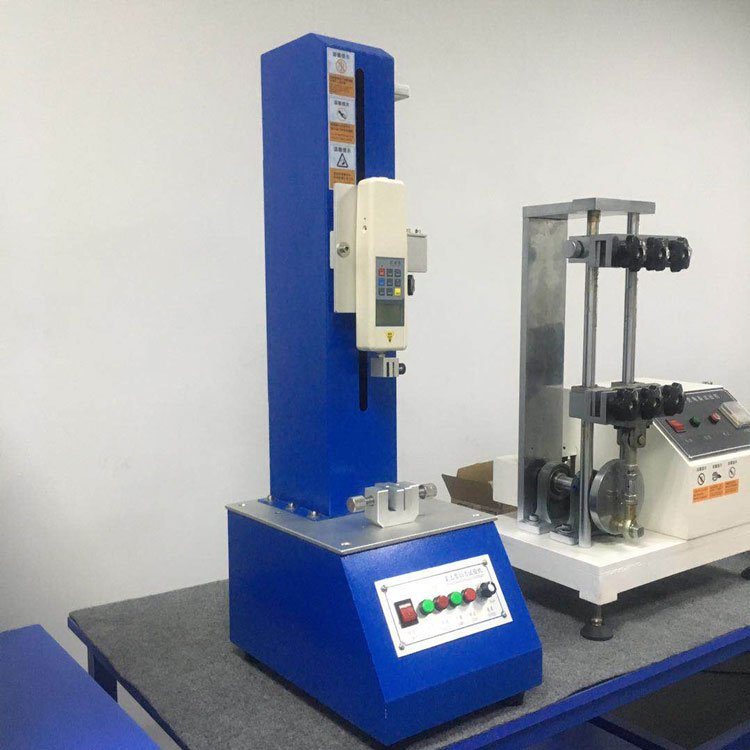

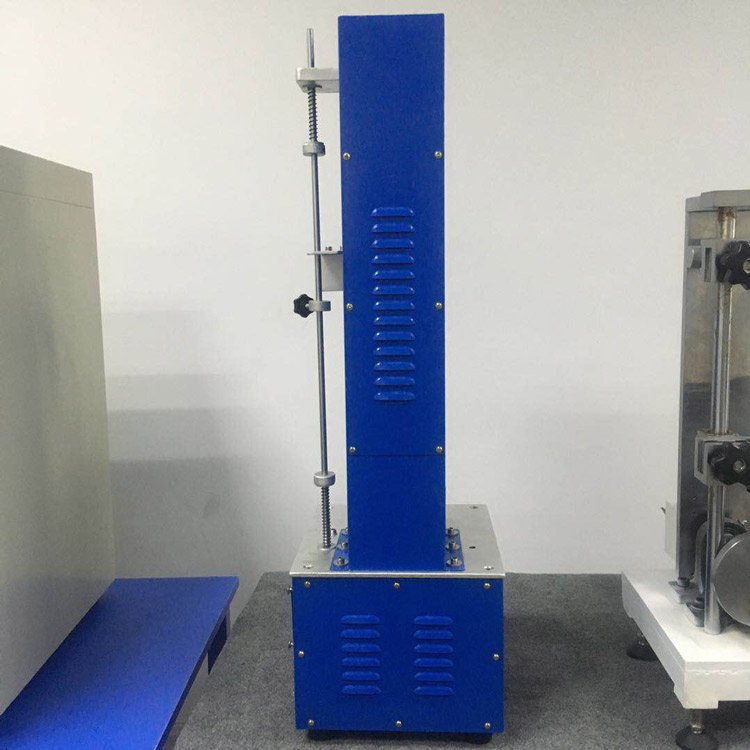

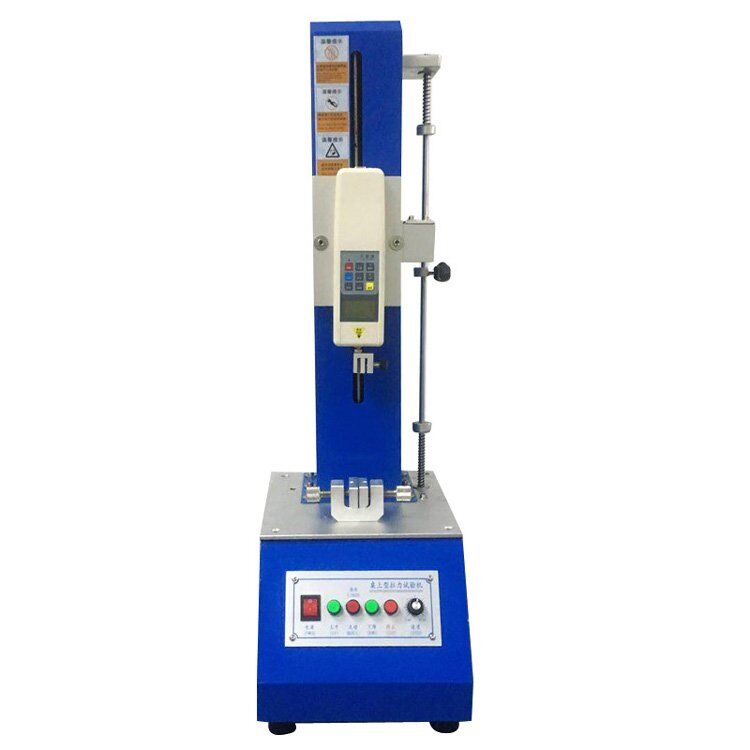

RT-201D Button Type Pull Testing Machine

Additional information

RT-201D Electric Digital Tensile Testing Machine

is a simple-type tensile testing machine which simple structure, convenient to operate, it can be placed in the operative table. It especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 500N.

Product Details:

Technical parameters:

Model: RT-201D

Capacity choice: 100N, 200N, 500N or less than can be self-selected

Units : Kg, N

Measured System: 500N pull and push dynamometer

Effective tensile displacement: 100mm

distance from testing Center to the center pillar: 80mm

Testing speed :50-300mm / min with stepless speed and 5 fixed-speed

Display: pointer display.

Shape: Hollow-cast aluminum base

Power Systems: electromotion

Power: 40W

Volume: 280 × 300 × 890mm

Weight: 25kg

Power: 1Φ, 220V, 15A

Main functions:

This machine used to judge the products quality by testing the materials in tensile, peel, tear, the material such as textile, rubber, plastics, synthetic leather, tape, electronics, metals and others.



Main features:

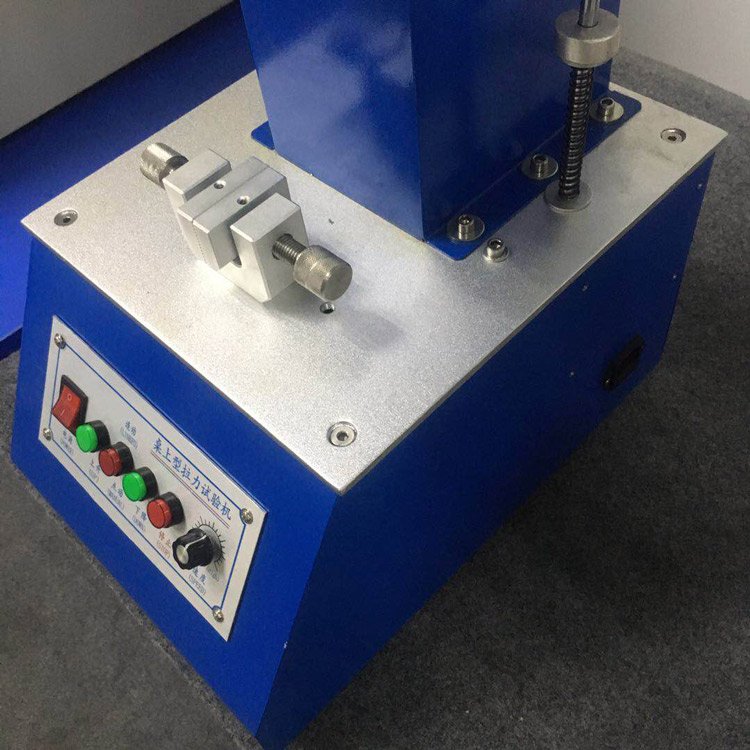

  1. Shape is compact and mechanical table is made of precision aluminum.
  2. Pointer display,easy to read, discernible tension or pressure,
  3. Two kinds of units: N-Kgf optional
  4. With single-column structure, seating operation, relaxed and natural

corresponding standard :

《GB/T16491-1996  electronic universal testing machine》

Applicable industry:

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
