can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.

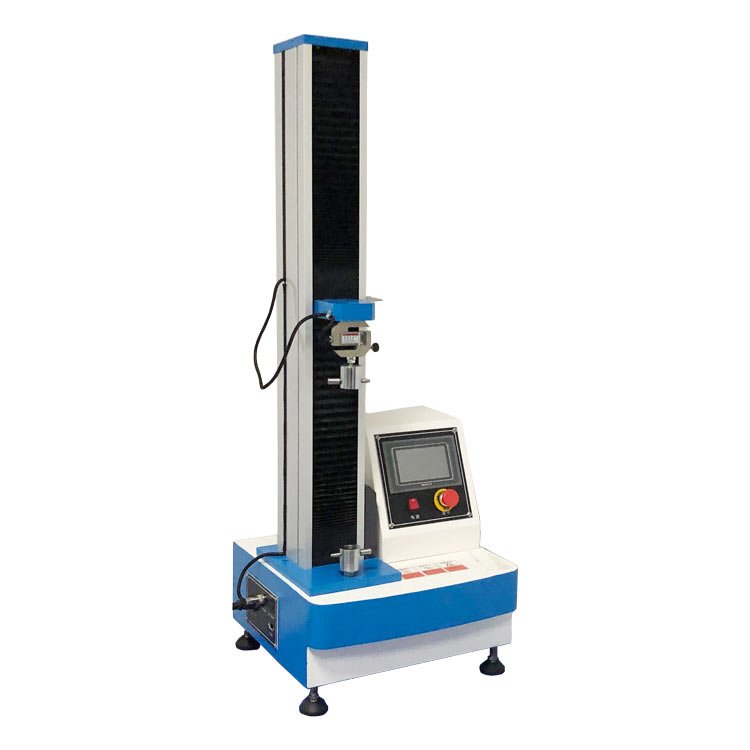

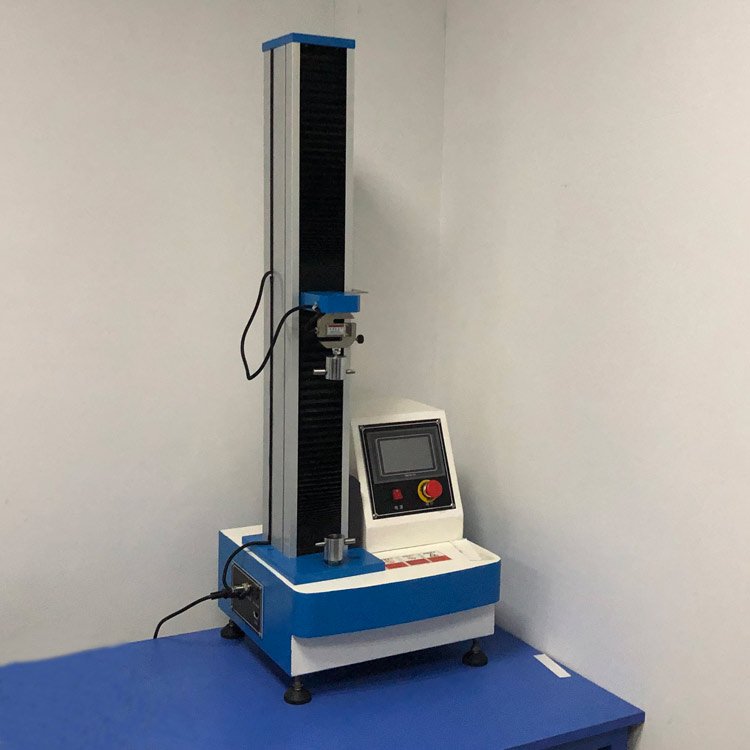

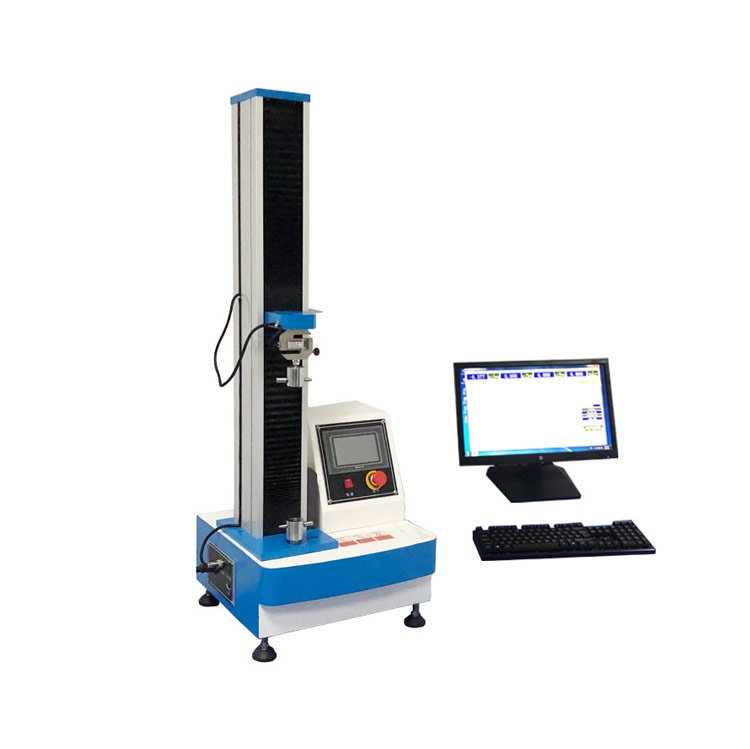

RT-201B digital type universal material Testing Machine a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1KN.
《GB/T16491-1996 electronic universal testing machine》
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
Model | RT-201B |
Maximum load | 1KN |
Capacity choice | 200N, 500N, 1KN or less than can be self-selected |
Unit | KG,N,LB, TON can be exchanged. |
Measurement system | LCD touch screen |
Accuracy load of measurement | full range of 5% -100% |
Resolution | 1 / 50000 |
Maximum test stoke(excluding fixtures) | About 500mm (excluding gripper, special testing space can be customized according to customer needs) |
Test speed | 50-300mm / min with stepless speed and 5 fixed-speed (special testing speed can also be customized according to customer needs) |
Data sampling frequency | 200times/sec |
Machine with thermal printers can automatically output the testing results. | |
Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break. | |

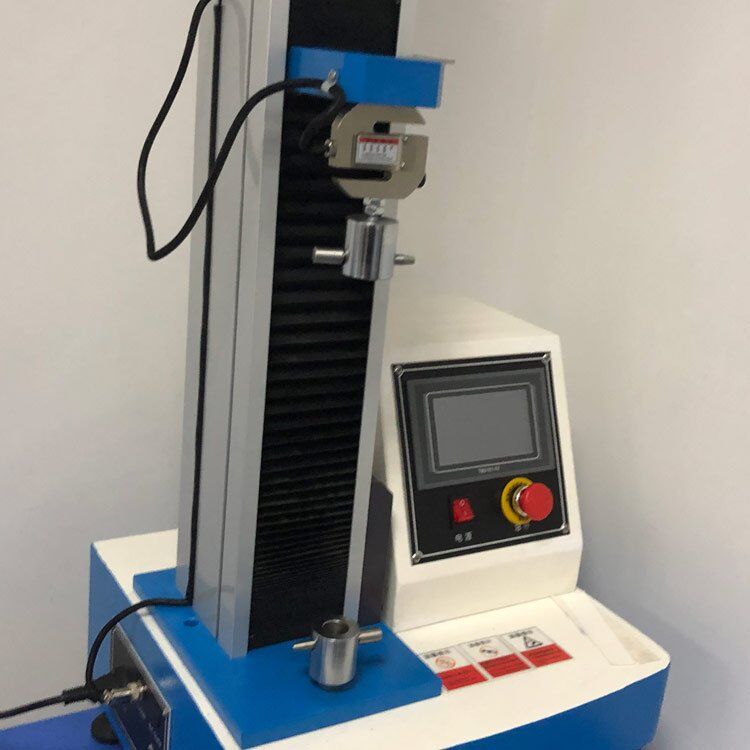

Display | dark blue LCD display, membrane touch keys, with the following functions. |
Machine size | 45x58x135cm (length*width*height) |
Weight | 75KG |
Ratio of Breakpoint | from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position. |
Safety | The system would shut down if overload or over-trip. |
Shape | column shell is made of aluminum material. |
Power system | AC Motor |
Power | 120W(depending on different demand of force using different motor) |

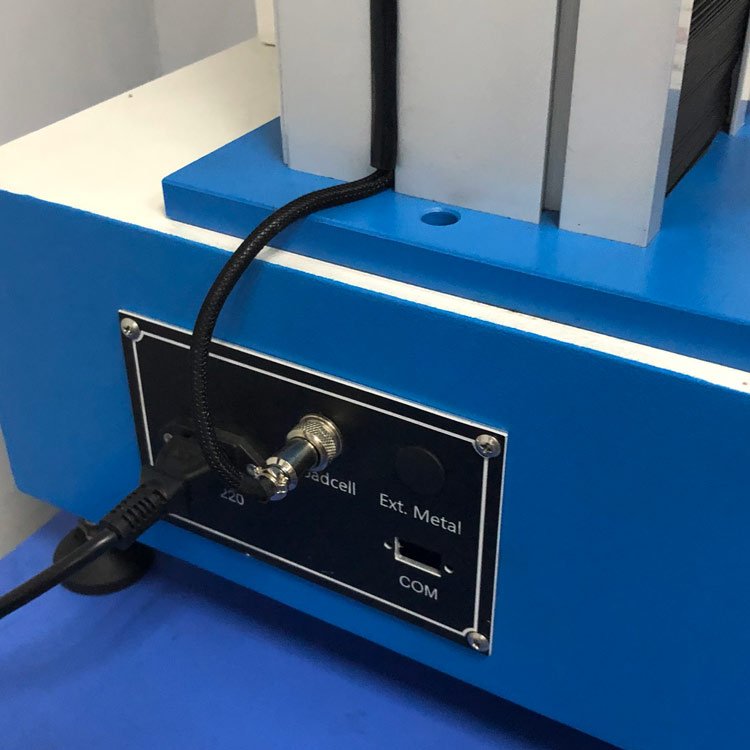

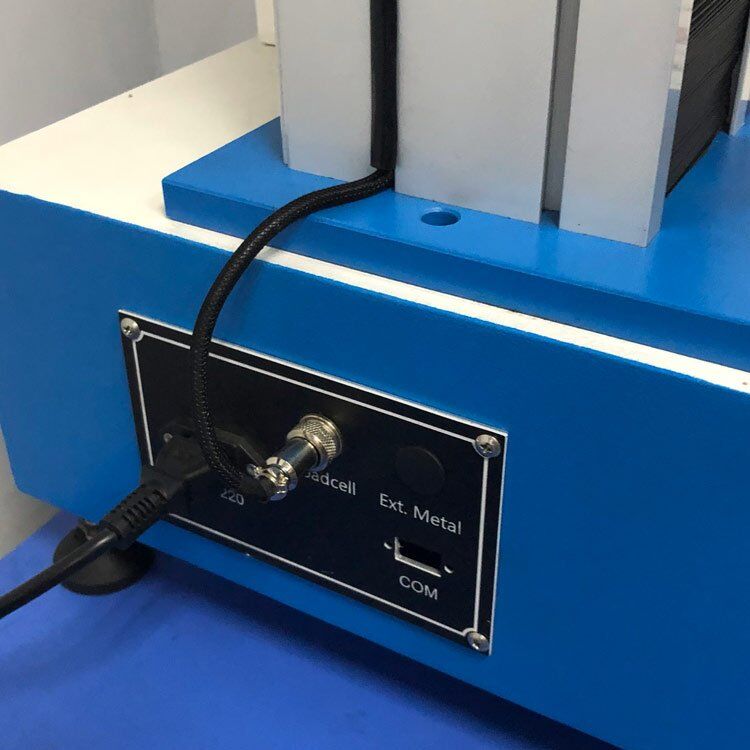

Power supply | 1Φ, 220V, 15A |
① single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kgf, Lbf, N;ton
③. function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use
⑨. ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
⑩. Overload protection function can be set, effectively preventing machine from overload;
