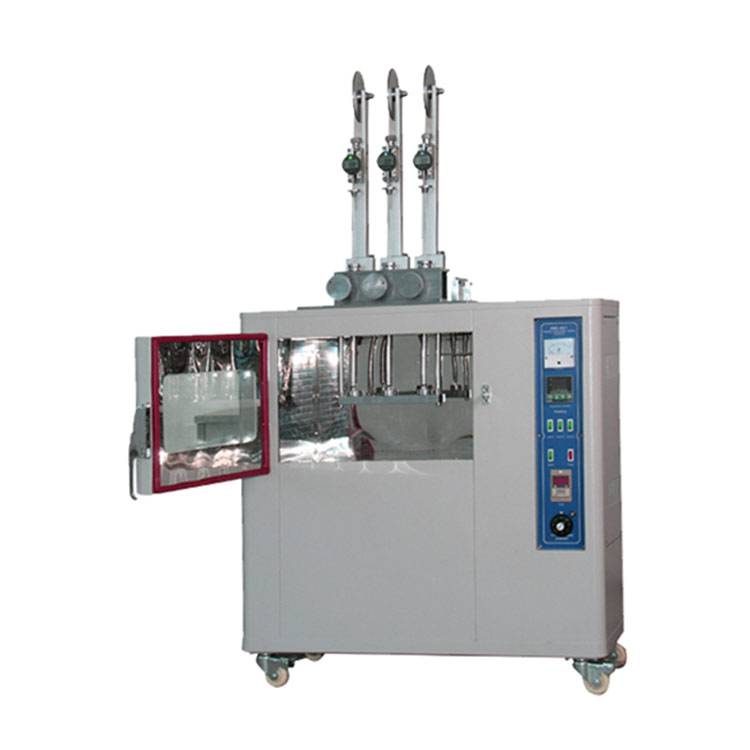

RT-1303 Heating Deformation Testing Machine
Imposed load in high-temperature environments and measurement of changes in the amount of compression, the main test materials properties is suffered pressure at high temperatures.
Product Details：
Equipment summary:
Imposed load in high-temperature environments and measurement of changes in the amount of compression, the main test materials properties is suffered pressure at high temperatures. This equipment is used to study the material such as plastic, wire and cable placed at a certain temperature for 30 minutes, and then imposed a certain load for 30 minutes, its thickness before and after heating shall be the rate of deformation. Reference to JIS, CNS and other specifications.
Main features:
Measured using load balance type, sensitivity accuracy. Laboratory excellent design, high air convection. Fan mixer with anti-vibration device, determination of high stability. PID temperature control with digital settings, SCR current adjustment control. Determination of leg using lifting structural design, not easy to determine when the injuries caused by the specimen.
Applicable Industry:This machine applied to plastics, synthetic resin products, etc.
Corresponding standard
The instrument in line with JIS-C-3005 of wire test standard.
Technical parameter
| RT-1303 | |
| Dimension L×W×H(mm) | 125×48×160 |
| Testing temperature(RT℃) | Room temperature～200℃0.1℃,Display±0.3℃ |
| Time controller | 0～24hr / Appoint |
| Temperature controller | Electronic type |
| Electric heater(KW) | 5 |
| Power supply(V) | 220V |
| Maximum current(A) | 25A |
| Weight(kg) | 180 |
| Dial indicator | 0.01~10.00mm, Trimming device, visual test plate thickness adjustment Dial indication |
| Protective device | Ultra high temperature breaker |
