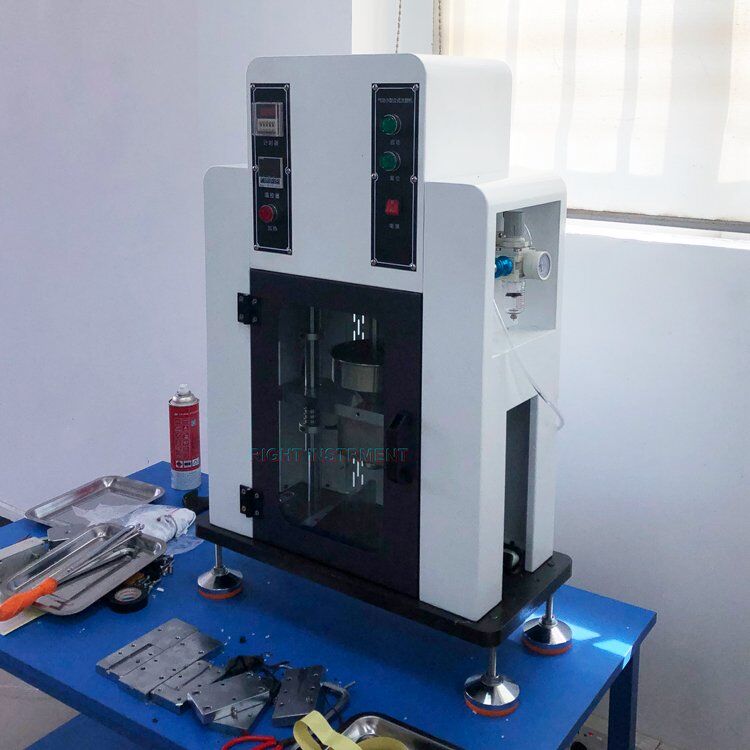

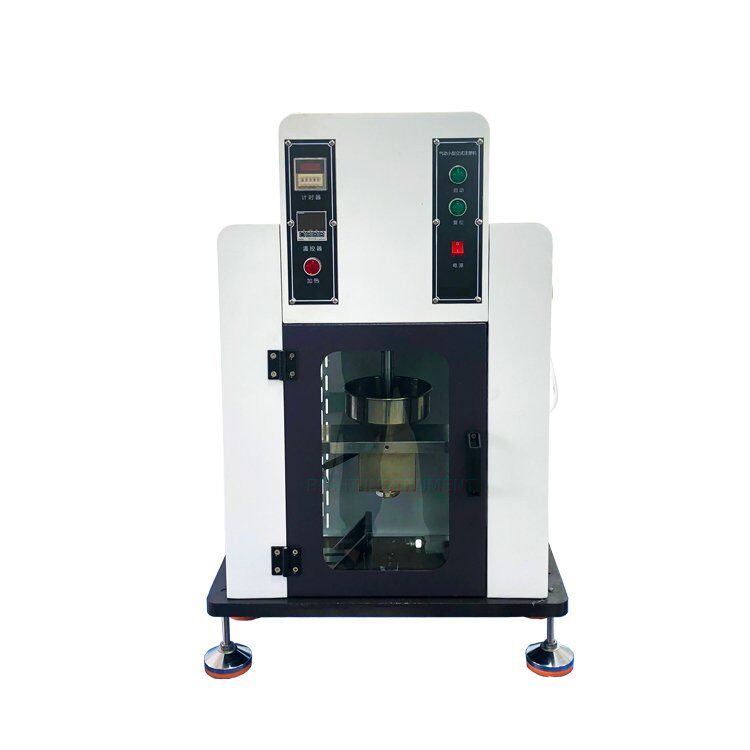

This small injection molding machine is very easy to operate. It can be used for short-term production operations, prototype models, and low-cost casting resin molds. It is suitable for a variety of plastic materials, such as PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PE…
Model | RT-129B-20 | RT-129B-40 | RT-129B-60 |
Temperature control range | RT〜450℃(±3℃) | ||
Plunger diameter (mm) | 25 | 35 | 45 |
Maximum compressing stoke (mm) | 150 | ||

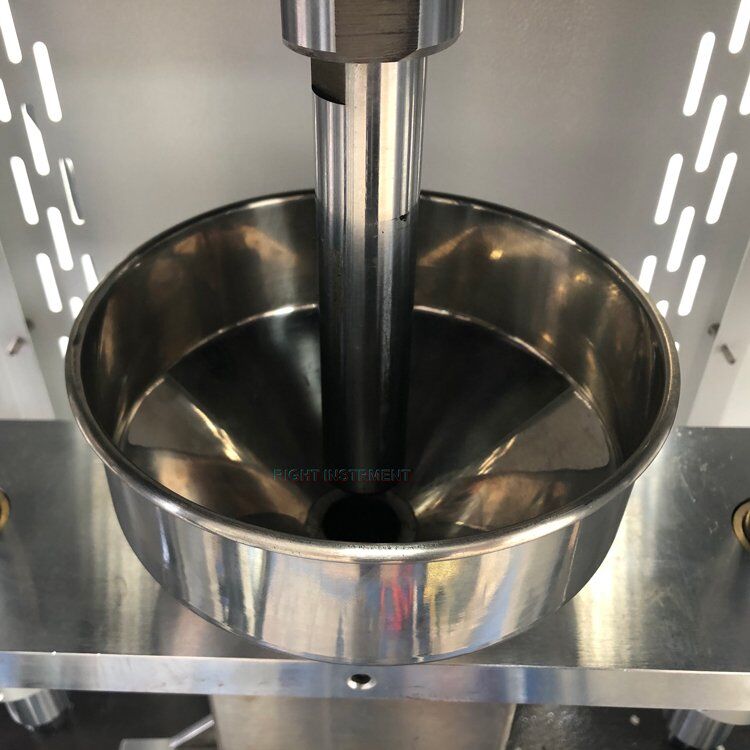

Heating cavity size (mm) | 25 * 110 | 35 * 110 | 45 * 110 |
Maximum injection volume | 20g | 40g | 60g |
Injection pressure | 1T | ||
Injection time | 0-9999s (adjustable) | ||

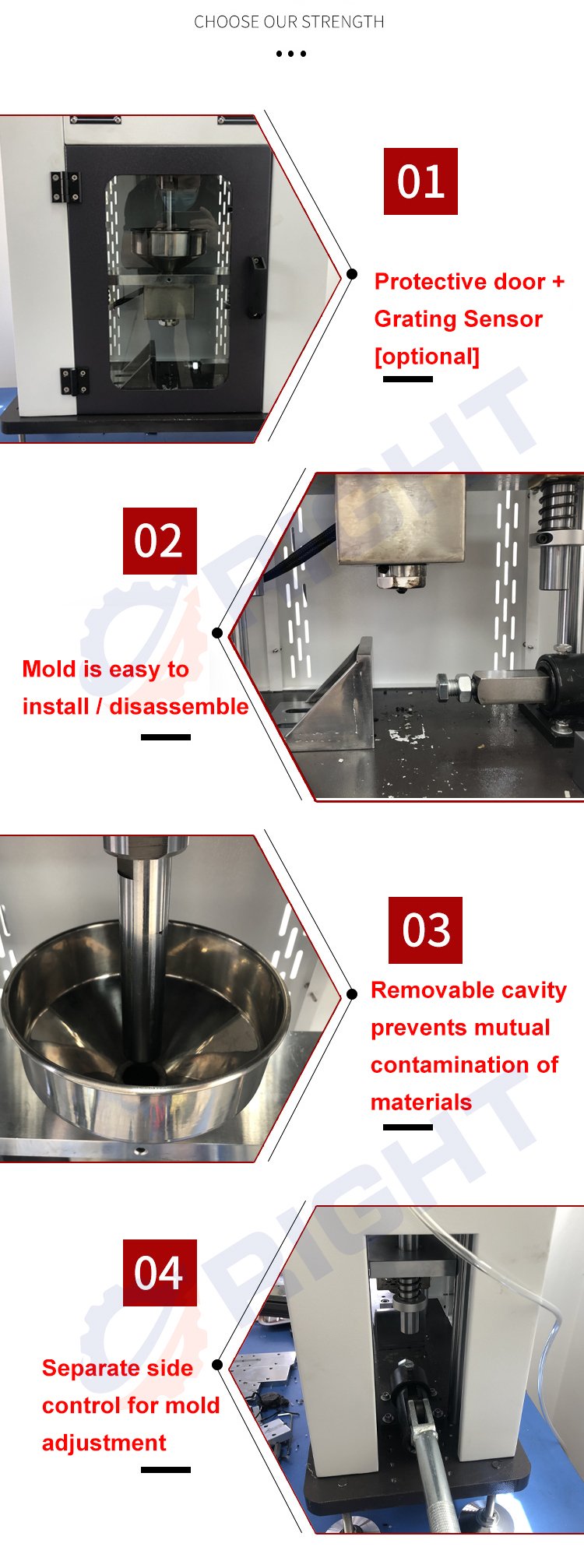

Cavity structure | Removable cavity can effectively prevent mutual contamination of materials | ||

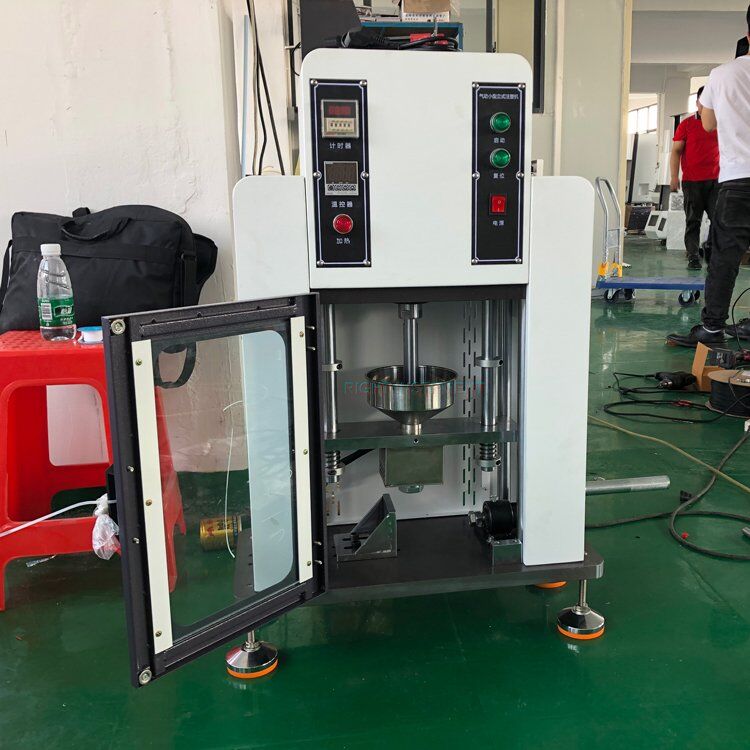

Security and protection | Protective door + safety grating (optional) | ||

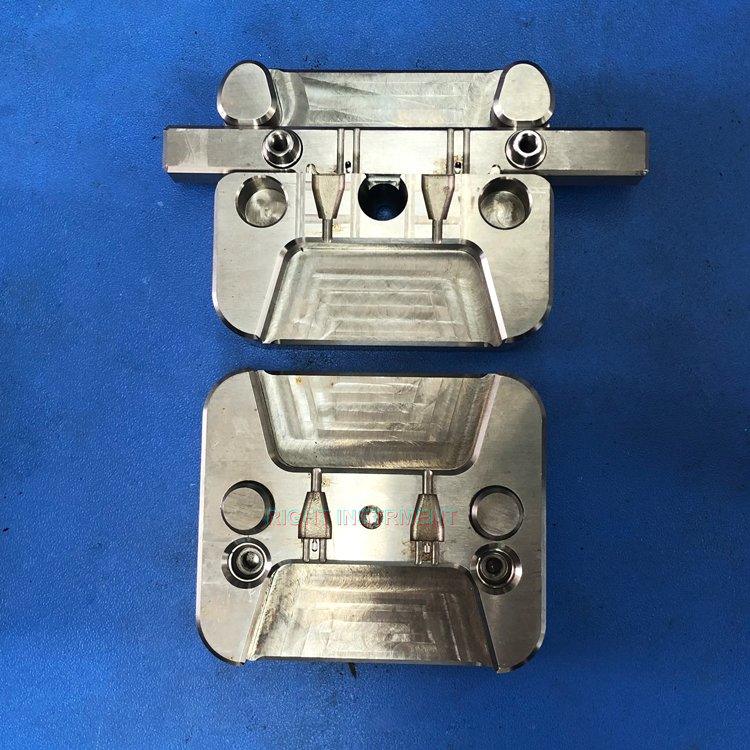

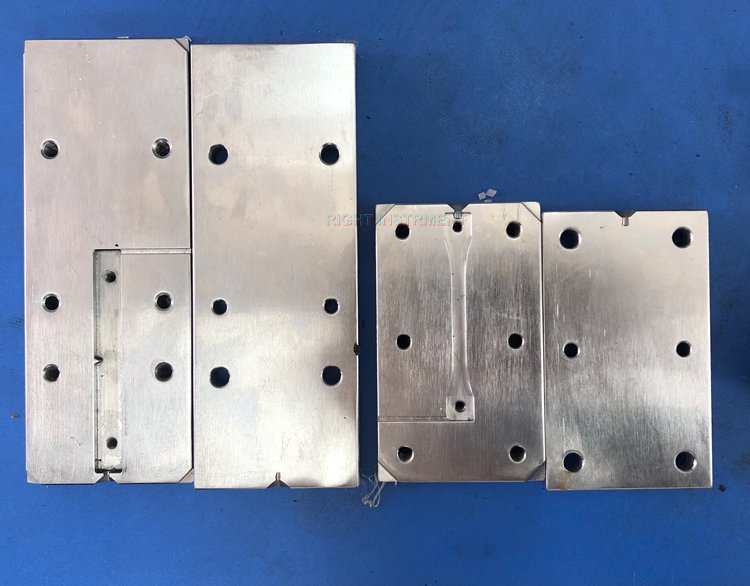

Mold mounting maximum size (cm) | 20 * 16 * 21 | 20 * 20 * 21 | 21 * 20 * 21 |
Machine weight (kg) | 35 | 55 | 65 |
Power | 800w | 1000w | 1200w |
Voltage | 220V/ 60HZ | ||

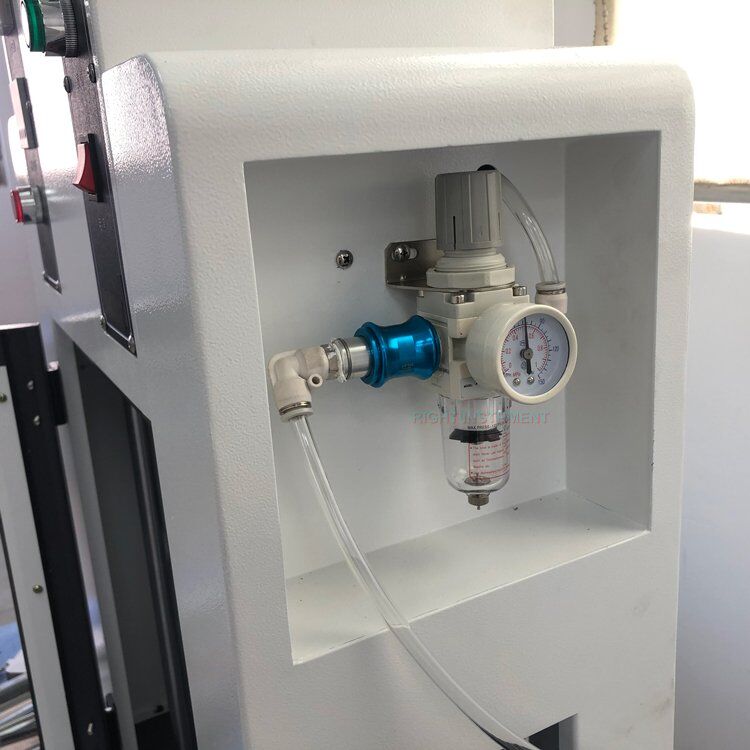

Air supply | 0.6mpa | ||
Control way | pneumatic | ||
Machine size (cm) | 55 * 60 * 130 | 60 * 66 * 140 | 65 * 66 * 155 |
This small injection molding machine is very easy to operate, can be used for short term production operation, can also be used for prototype models and low-cost casting resin mold, suitable for a variety of plastic materials, such as: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EP…
