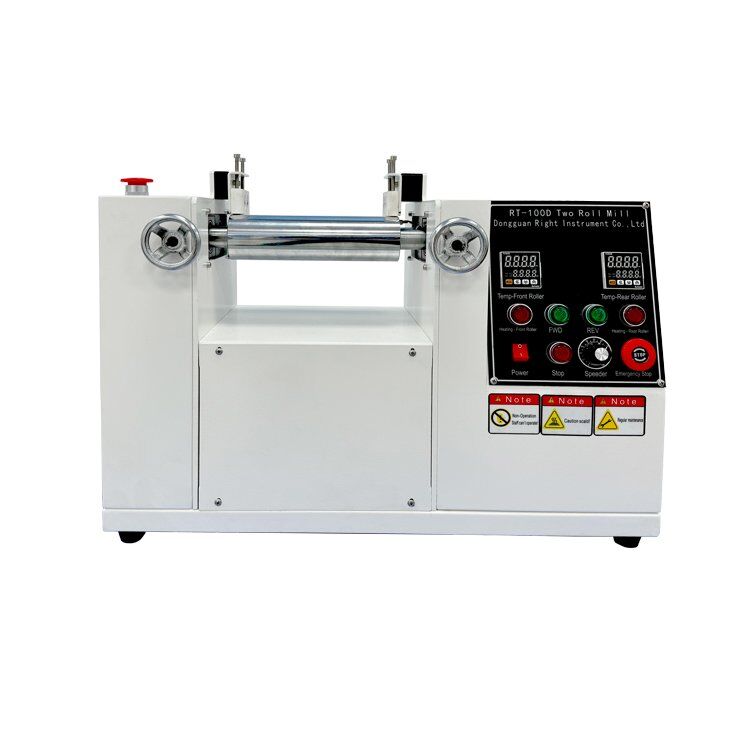

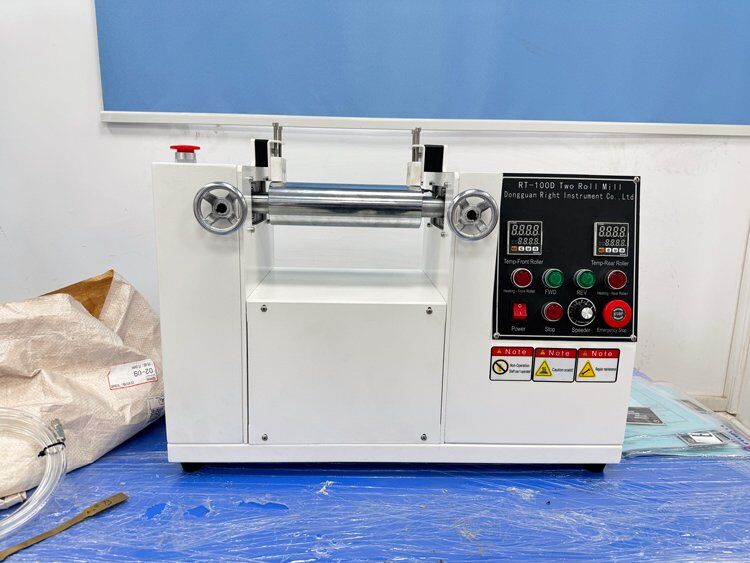

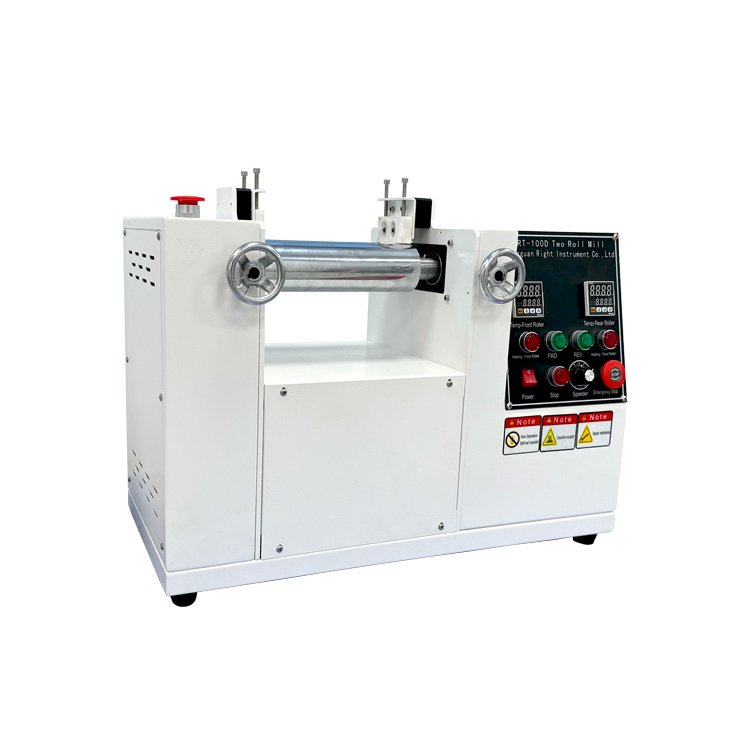

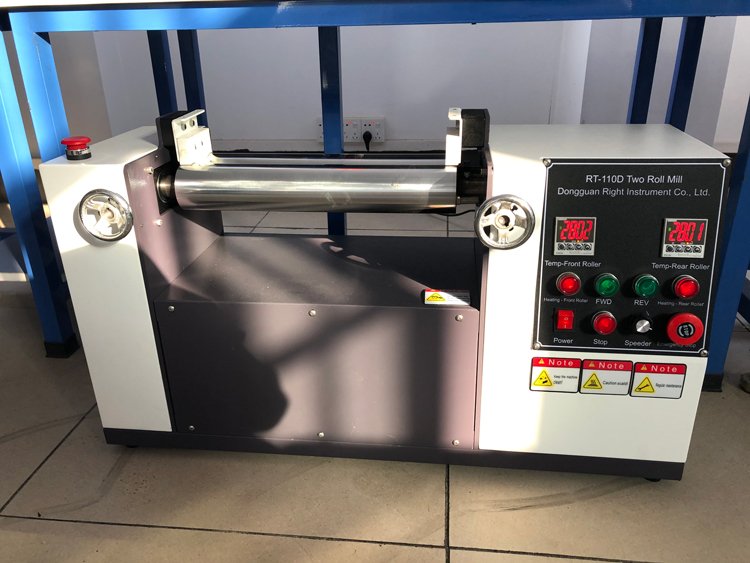

This machine is suitable for plastic industry polymer material mixing and processing such as PVC, and color master batch.
This machine is suitable for plastic industry polymer material mixing and processing such as PVC, and color master batch and making the raw material and compound mixing and achieving the required color and quality. The machine adopts a special heated mold, roll surface temperature uniformity, never takes off a layer, sample thickness can be mixed, the machine safety protection device, and is convenient to use.
GB 6038-2006 Rubber ingredients for rubber testing, mixing, and vulcanization equipment and operating procedures.
GBT 13577-1992 Mill for rubber and plastics
HGT 2149-2004 Open rubber mixing machine, plastic mixing mill test methods
JBT 53113-1999 Open plastic mixing mill product quality grading
⑴The core technology from Taiwan, The main parts adopt the French Schneider.
⑵The whole floor is easy to install, and the driving mode is uniaxial output, ensuring the torsion is big; imported bearings reduce rubbing force to ensure electricity, low noise, and rubber thickness is uniform, parallel, and controllable.

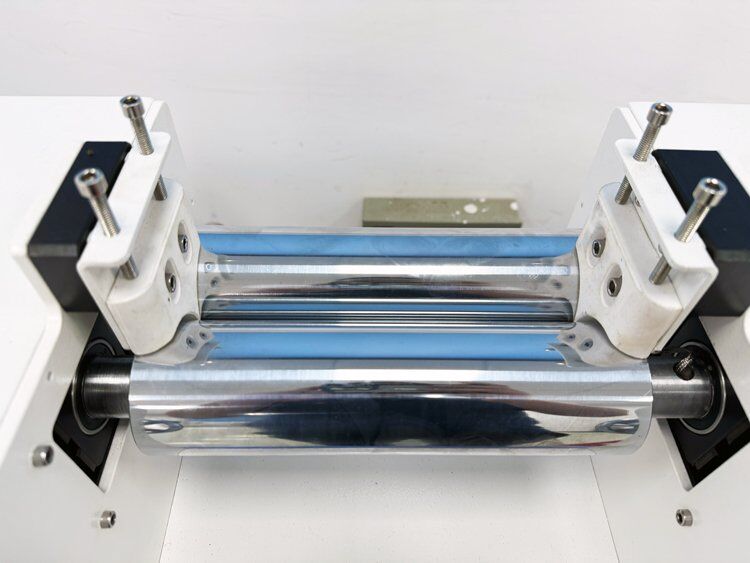

⑶Roll adopts the vanadium titanium alloy chilled cast iron, roll hardness(HRC)50-60, and the surface is hard wear-resisting and durable. Roller lumen finish machining to ensure that the roller body cools quickly and evenly.
⑷The machine adopts manual adjustment mode, Thickness control precision, easy operation, and High safety factor.
⑸The machine is equipped with an emergency brake; when in emergency accidents, four corners have an emergency switch, a number of brake systems, and a convenient quick-stop machine.
⑹Transmission device adopts hardened reducer, compact structure, transmission efficiency, and little noise.
⑺Automatic oiling device to ensure that long-term oil for driving part, Make up the pump forget supply damage to part of serious consequences.
(8)Two motor driven, arbitrary roller speed ratio before and after implementation, easy to operation;
(9)Integral plate, easy installation. Driving mode is uniaxial output to ensure the big torque, imported bearings to reduce friction to save electricity, reduce noise, and Rubber thickness uniform parallel controllable.
Model Project | RT-110D |
Roller Diameter (metric /inch) | 65mm(Can be customized) |
Roller face width | 200mm(Can be customized) |
Mixing capacity | 0.1~1kg |
Roller temperature | RT~300℃ |
Heating method | electrical heating |
Temp Accuracy | ±3℃ |

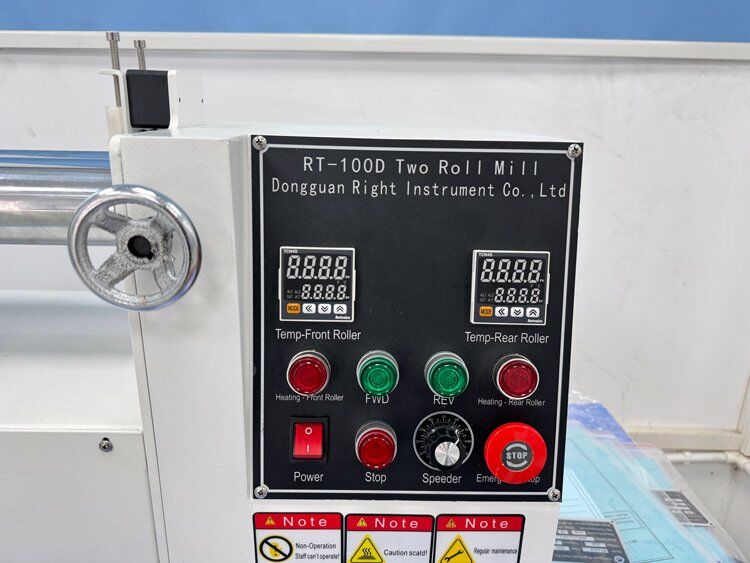

temperature controller | PID control |
Roller hardness | 50~60HRC |
Roller processing | Mirror polishing chrome plated |
Roller spacing | 0.6~10mm adjustable |
Spacing display mode | Calibration/digital display |
Special function | Emergency stop inversion |
Motor power | 750KW |
Power voltage | Φ1 AC220V |
Dimension | 650mm x 370mm x 570mm(L*W*H) |
Weight | 65kg |
