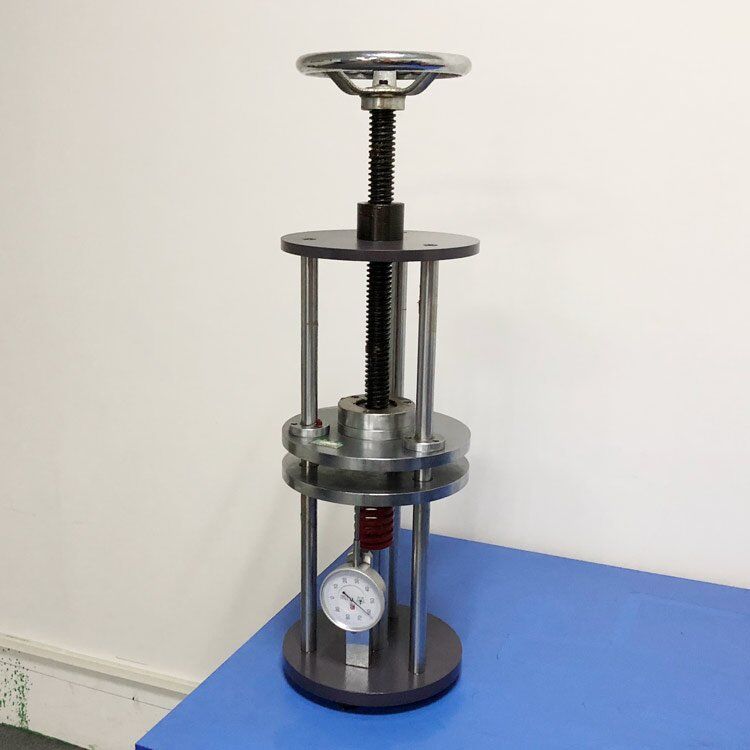

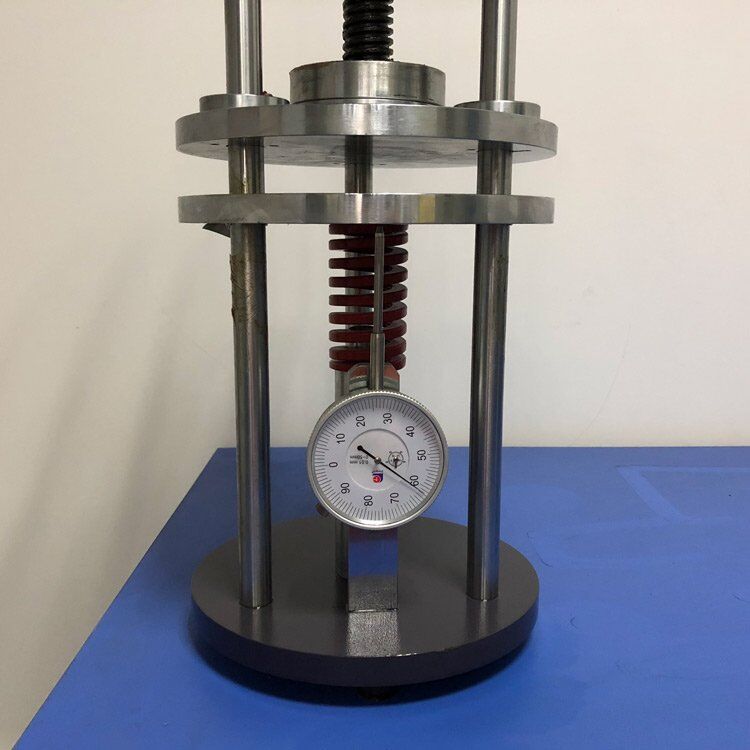

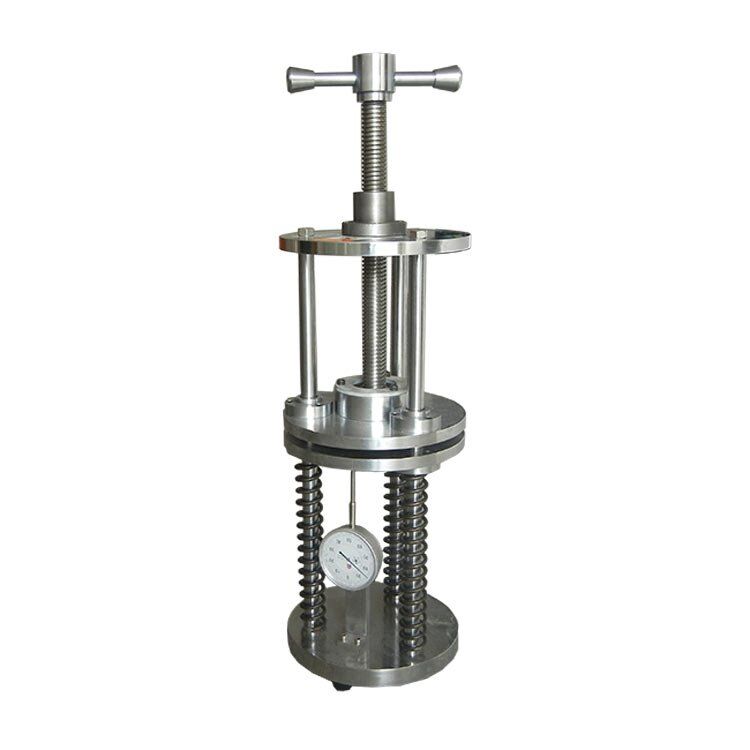

RT-108 Rubber Compression Rebound Tester
RT-108 Rubber Compression Rebound Tester
The tester used to test performance of rebound for rubber after a certain time and pressure. Take the standard test piece, the distribution flat on the test plate, clamped between two plates, the release of the specimen and cooling after prescribed time, respectively to measure the center thickness of test film and then use the formula to calculate its compression resilience.
Product Details：
Tester summary:
The tester used to test performance of rebound for rubber after a certain time and pressure. Take the standard test piece, the distribution flat on the test plate, clamped between two plates, the release of the specimen and cooling after prescribed time, respectively to measure the center thickness of test film and then use the formula to calculate its compression resilience.
Corresponding standard :
FIA304，SATRA-PM64, ISO 815-2
Technical parameter:
| Model | RT-108 |
| Number of specimen | 3~27 PCS |
| Max capacity | 500kgf |

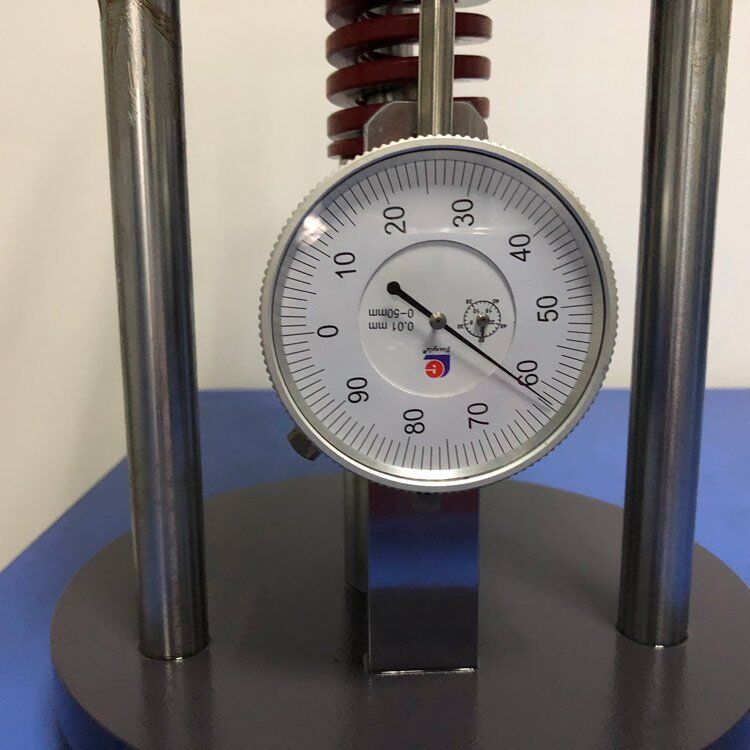

| Dial indicator | 50mm |
| Measure thickness of specimen | 9.52mm |
| Specimen size 1 | Method 1：foam Ø29.0 mm， Non-foaming material Ø14.5 mm |
| Specimen size 2 | Method 2：foam 25.4 × 25.4 mm；Non-foaming material Ø12.7 mm |
| Volume | Ø23cm， H 65cm |
| Weight | 40 kg |
