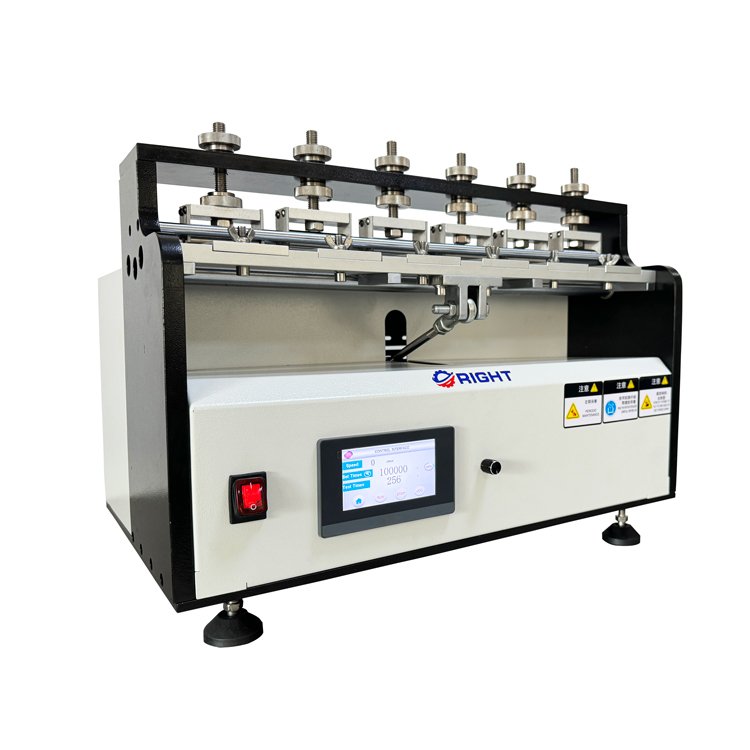

Rubber ROSS Flexibility Tester Shoes Sole Ross Flex Tester (RT-607)

ASTM D1052 Leather Shoes Ross Flexing Fatigue Test Machine

This tester is designed according to GB, BS, and ASTM standards. It can test 12 specimens at the same time and can be used for intermittent (observed once every 1000 times) or continuous testing. It is suitable for testing the flexing resistance of shoe soles, leather, synthetic leather, rubber, plastic, and thermoplastic elastomer.

Product Details:

Shoe Sole Ross Flexometer

Shoe Sole Ross Flexometer





Product Description

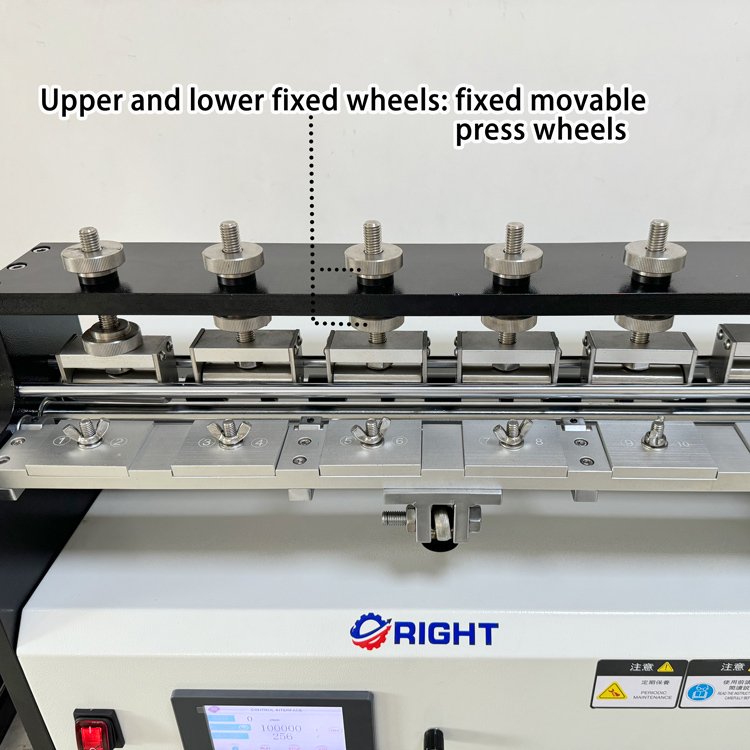

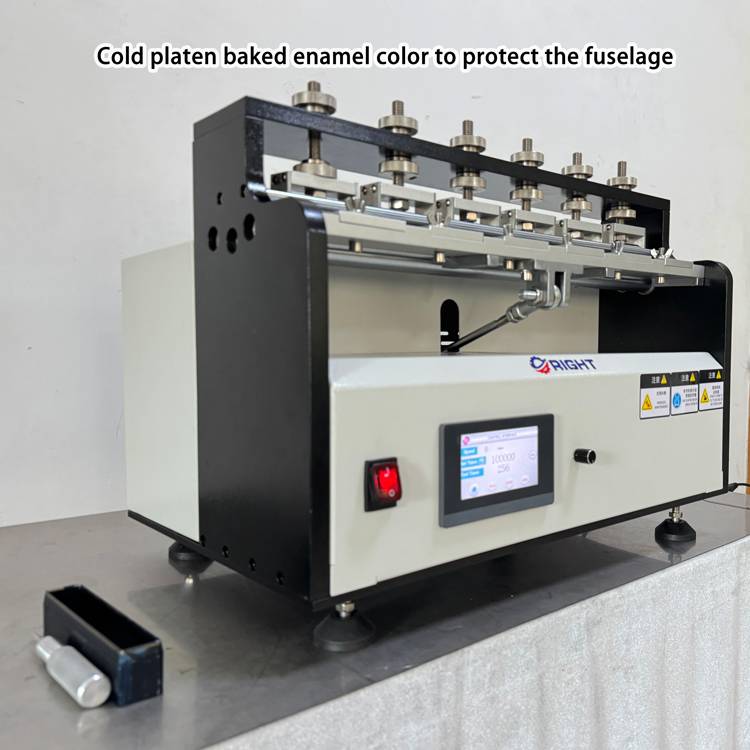

RT-607 Ross Flexometer / Ross Flexing Tester is a straight-angle test for rubber products, soles, PU, and other materials. After the
specimen is constantly retractable and bent, it can be examined for its decline, damage and crack.


Test Standard
:

ASTM-D1052, ISO-5423, SATRA TM60, HB-T2411, HG/T 2411, ISO-4643
Shoe Sole Ross Flexometer

Features:

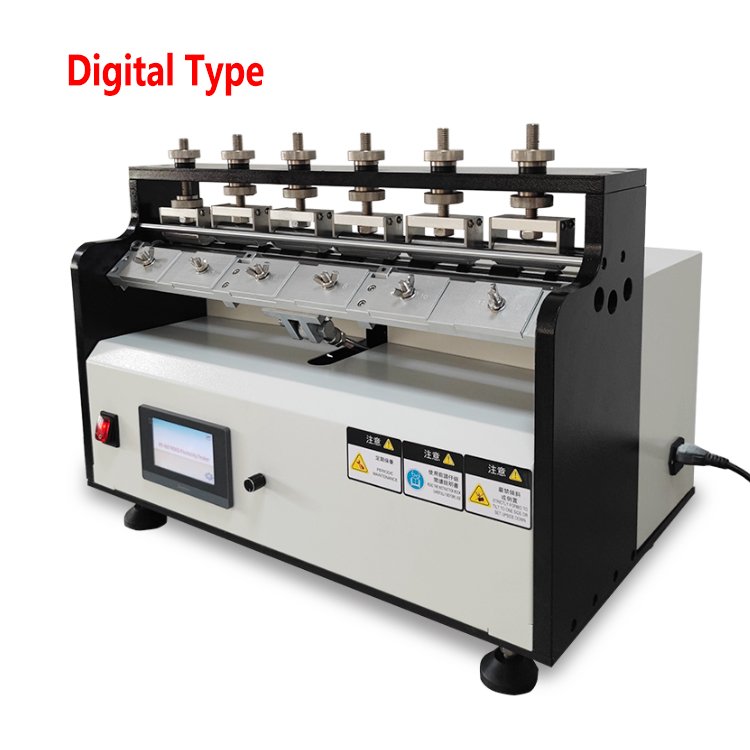

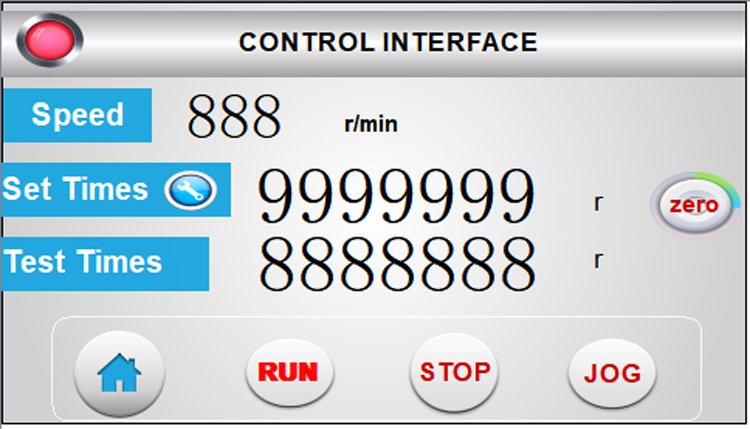

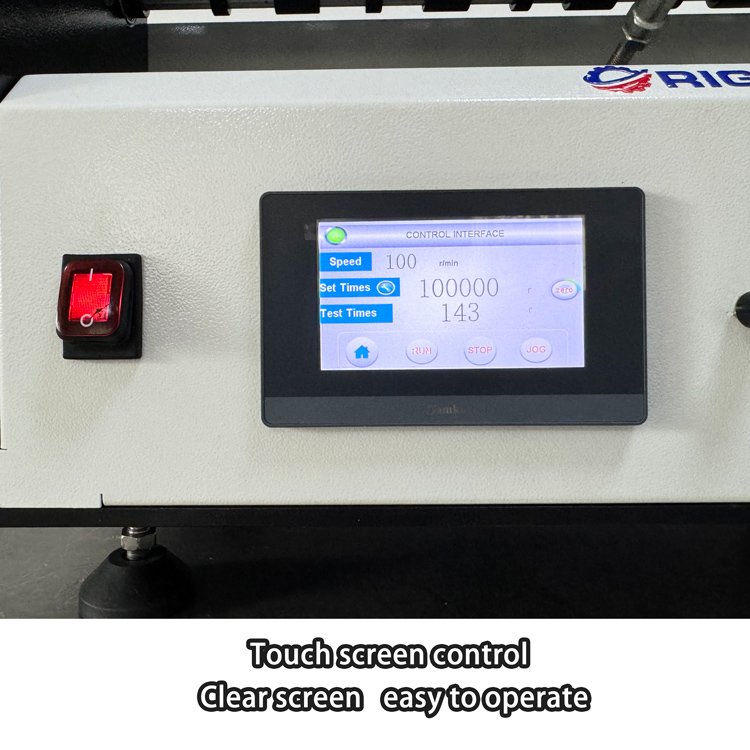

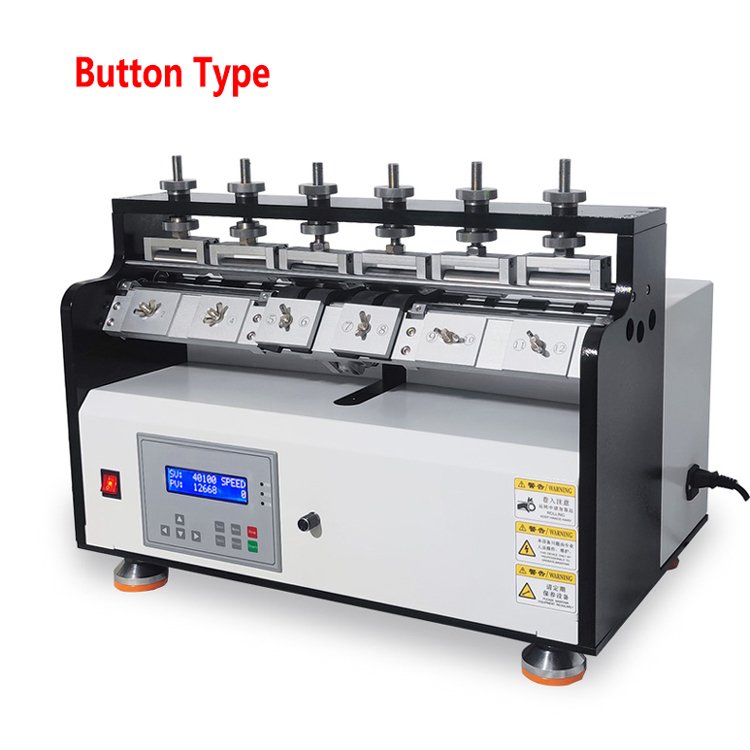

1. Button type or touchscreen type is optional.

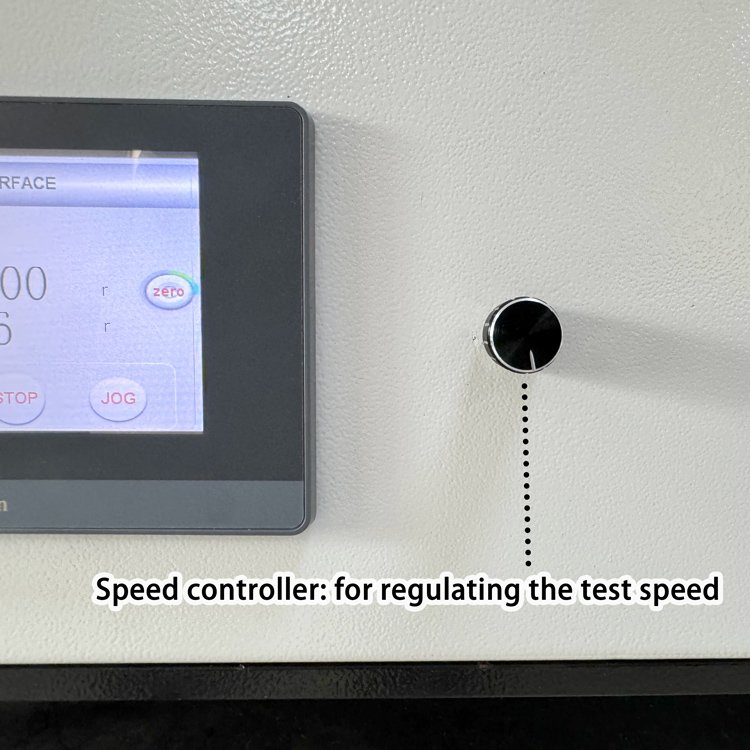

2. The position can be adjusted by jogging, and the test speed is adjustable at 0~100r/min.

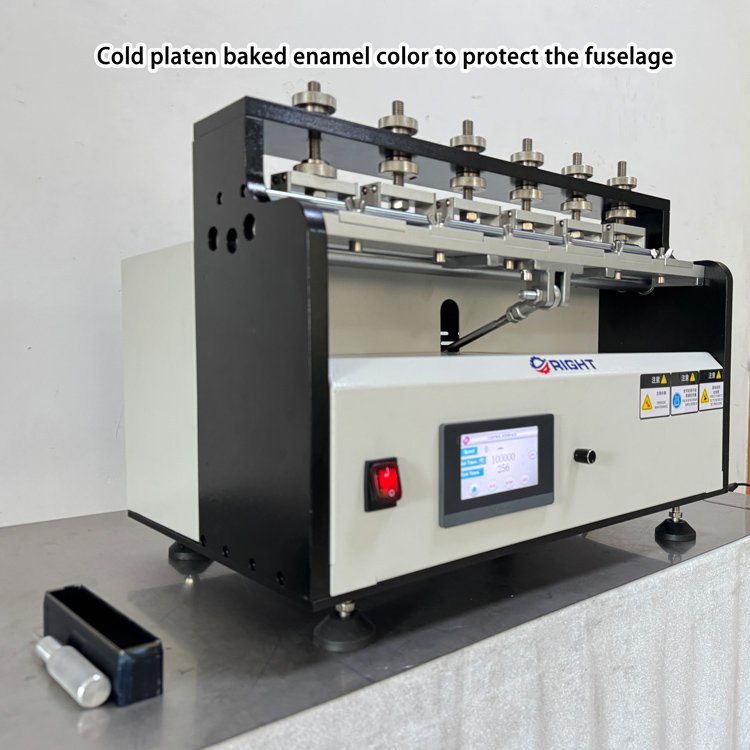

3. Mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials.
4. Precision motor driving, stable operation and low noise.
5. With the counting and timing self-stop function, it can automatically stop the test when reaching set test times.
6. One-button automatic test, easy to operate.
Shoe Sole Ross Flexometer

Specification:

Specimen Capacity
6 Groups (12 Pcs
Flexing Angle
90±2º
Test Speed
0-100r/min can be set
Dimension
600*380*420mm
Weight

55kg



Shoe Sole Ross Flexometer
