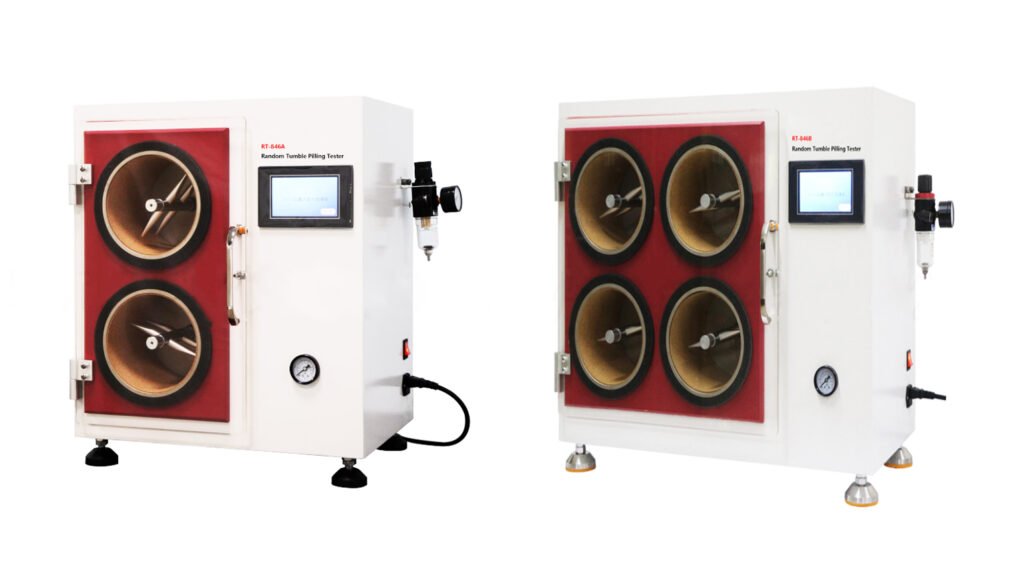

2 or 4 Chambers Touch Screen Random Tumble Pilling Tester (RT-846)
Random Tumble Pilling Tester
(for Pilling Resistance and Other Related Surface Changes of Textile Fabrics)
Product Details：
Product Description
Test Principles and Methods
RT-846 Random Tumble Pilling Tester is used to make the fabric roll and rub randomly in a cylindrical test chamber with a cork liner and a small amount of short gray cotton. The pilling performance was evaluated by visual description under specified light source conditions.
Specification

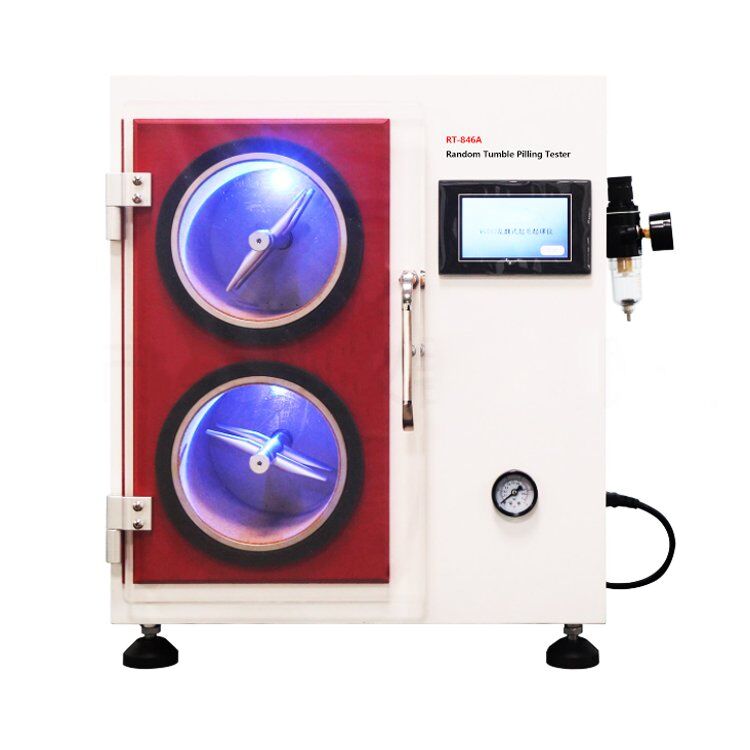

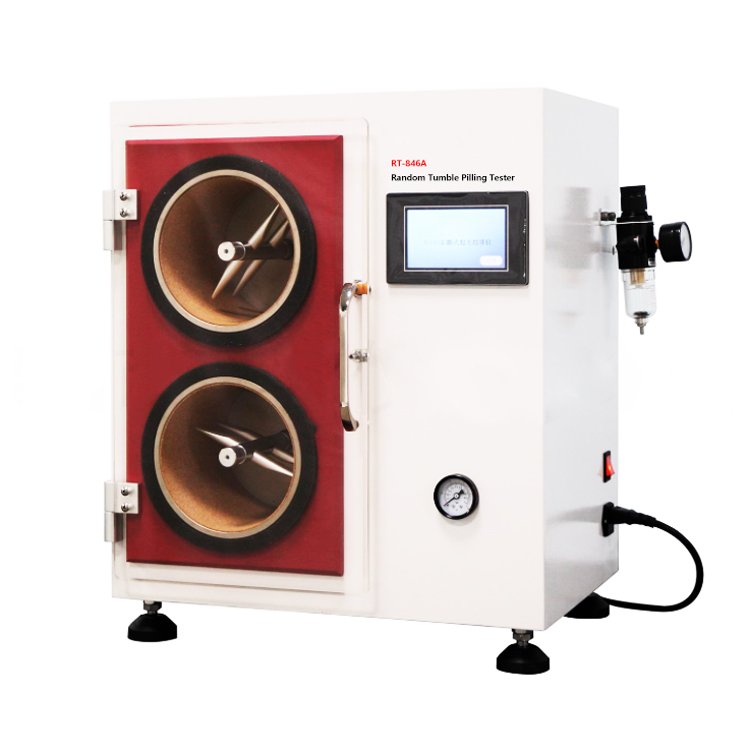

| Test Chamber | RT-846A(2 chambers) |
| Time Count | 1 ~ 999999 minutes |
| Roller Specifications | 146×152mm |
| Cork Lining Specification | 452×146×1.5mm (optional), gray sliver (optional) |
| Stirring Rod Specification | 121mm |
| Test Speed | 1200r/min |
| Chamber Pressure | 14 ~ 21kPa (2 ~ 3psi) |
| Machine dimensions | 540×380×500mm |
| Weight | 60kg |
| Power Source | AC220V 50Hz 90W |
Specification

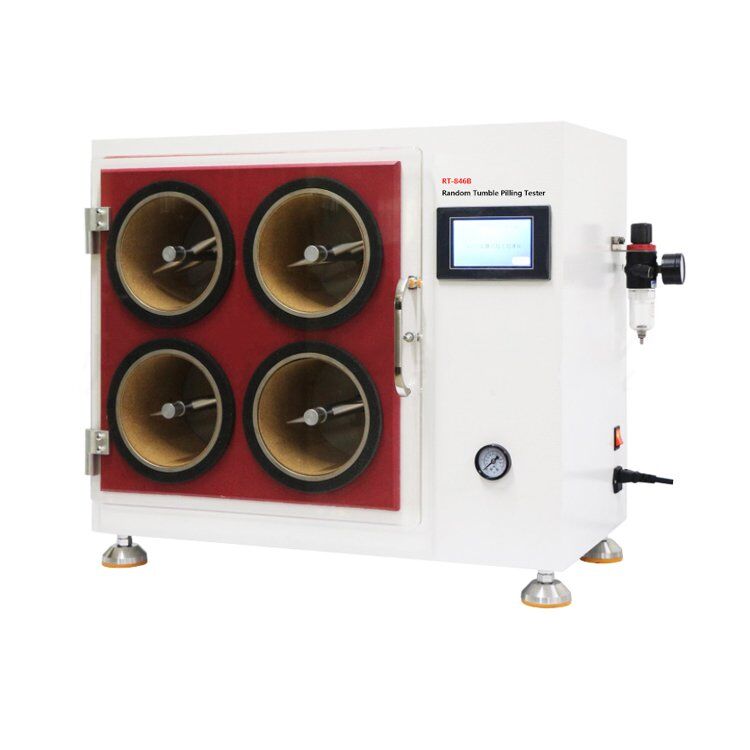

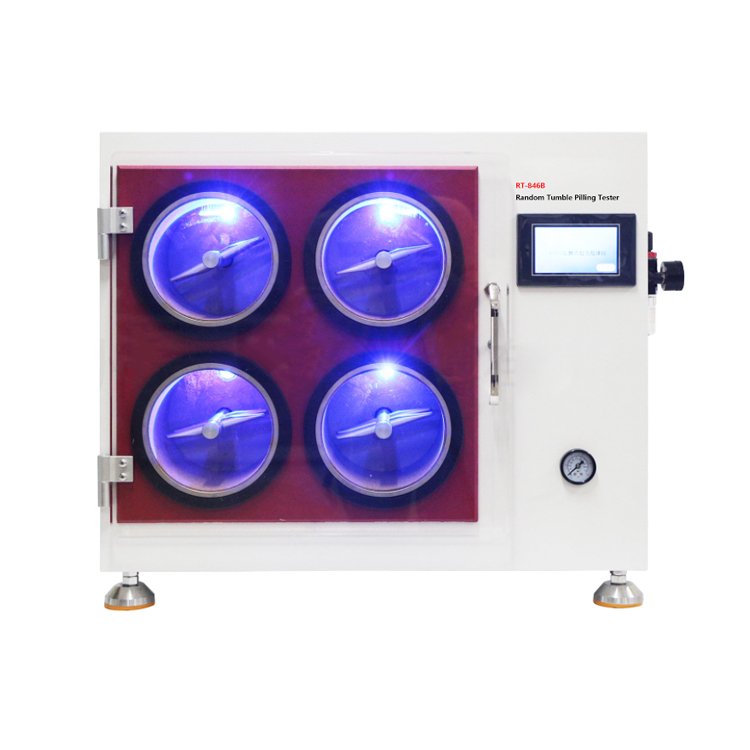

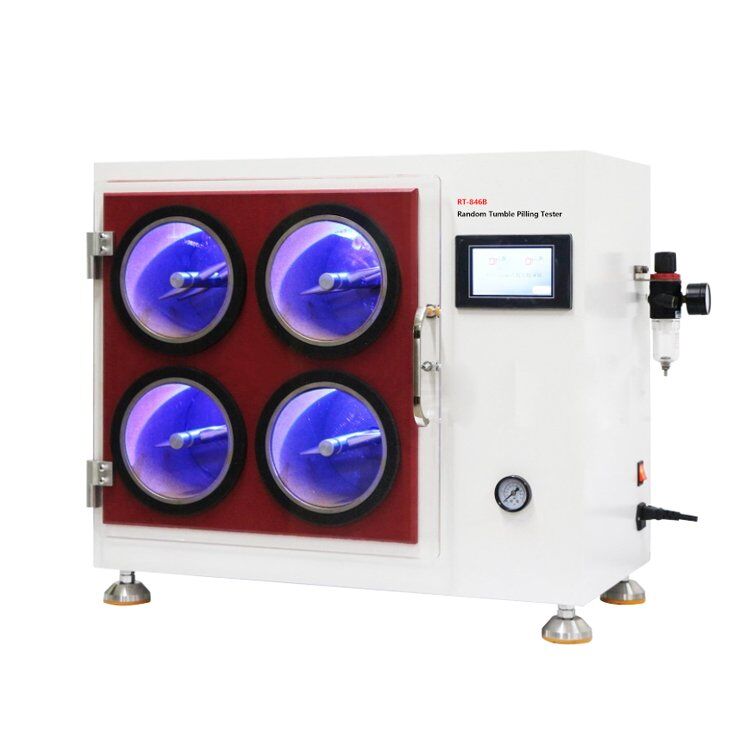

| Test Chamber | RT-846B(4 chambers) |
| Time Count | 1 ~ 999999 minutes |
| Roller Specifications | 146×152mm |
| Cork Lining Specification | 452×146×1.5mm (optional), gray sliver (optional) |
| Stirring Rod Specification | 121mm |
| Test Speed | 1200r/min |
| Chamber Pressure | 14 ~ 21kPa (2 ~ 3psi) |
| Machine dimensions | 720×430×850mm (RT-846B) |
| Weight | 80kg (RT-846B) |
| Power Source | AC220V 50Hz 90W |
Features

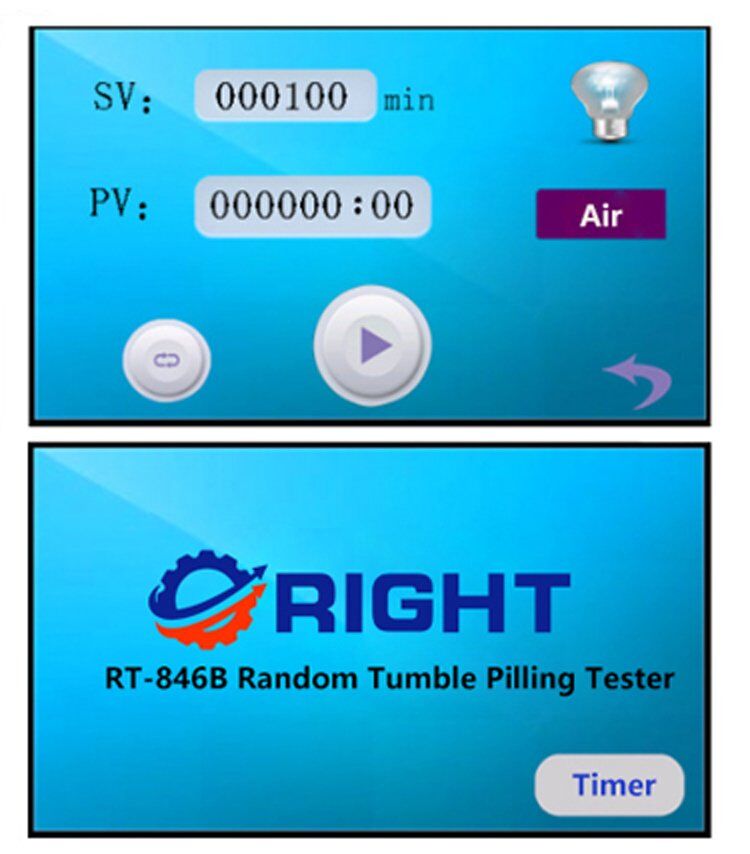

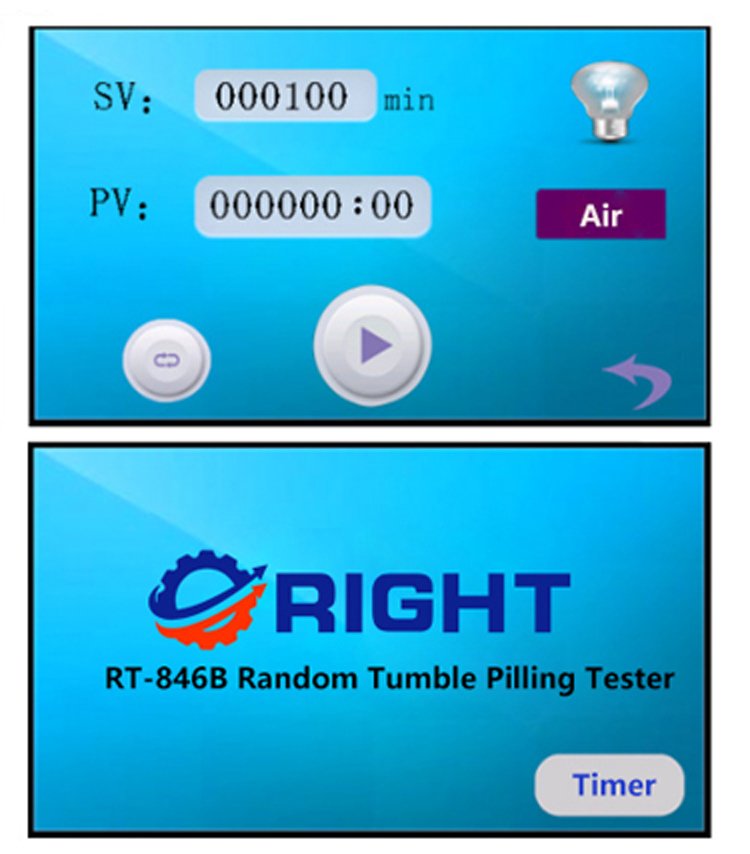

1. The instrument adopts touch screen control, the interface is simple and easy to understand, and easy to operate.
2. With door detection, the door motor automatically stops rotating, making the instrument safer.
3. One-button start, press the start button air source and motor work at the same time, the experiment is finished automatically stop, and the buzzer reminds.
4. Rotating components using a circular pulley, the instrument runs smoothly with low noise.
Test Consumables and Auxiliary Equipment (provided by users)
1. Cork liner: long(452 mm),wide(146 mm),thick(1.5 mm).
2. Gray sliver: used to improve the pilling performance of samples.
3. Adhesive: used to seal the edge of the sample.
4. Vacuum dust collector: The dust collector can be used to clean the test chamber after the test is complete.
5. Rating box: RECOMMENDED TN1748 general rating goggles.
6. Standard rating control card.
