The high-speed mixer is suitable for modifying various powder materials, such as coating powders, metal powders, plastic powders, etc., and completes molecular-level material modification at a constant temperature. The entire PLC process includes precise control, centralized feeding, nanoscale breathing valve dust removal, and double-layer high-efficiency sealing. The backend has a milligram-level weighing and packaging system, which can complete product feeding, mixing, packaging, and packing in one stop.

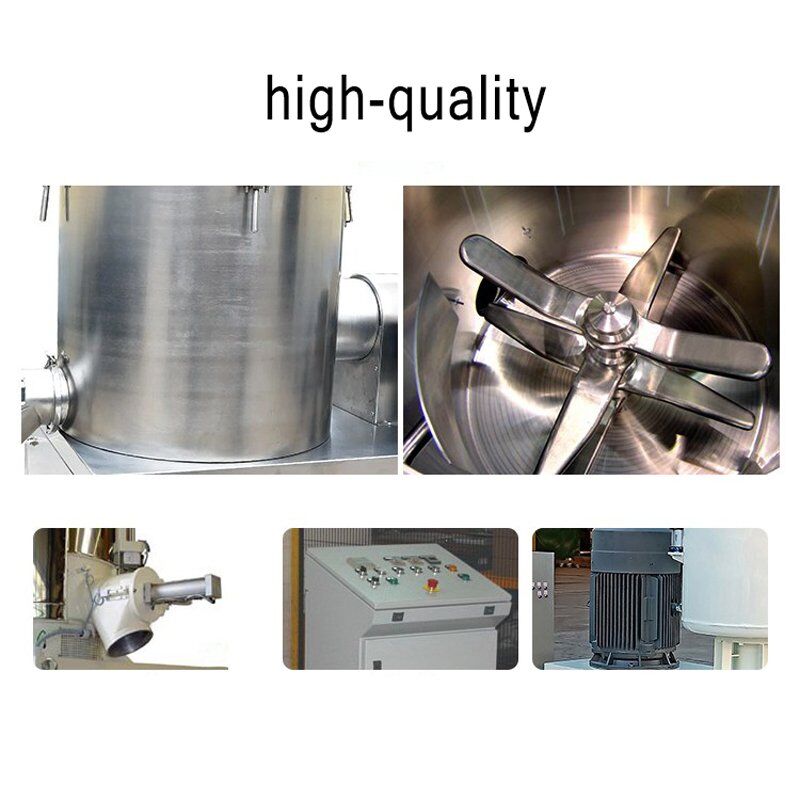

RT-746 PVC Mixer Machine Features:

1. The high-speed mixer adopts a full copper wire high and low-speed motor, which starts at low speed and runs at high speed. The motor is equipped with a thermal protection switch;

2. The bottom of the bucket is designed with a circular arc, ensuring no dead corners during mixing; Double layer sealed lid, no dust flying phenomenon;

3. Adopting imported bearings and PTFE sealing, with good sealing performance and long service life;

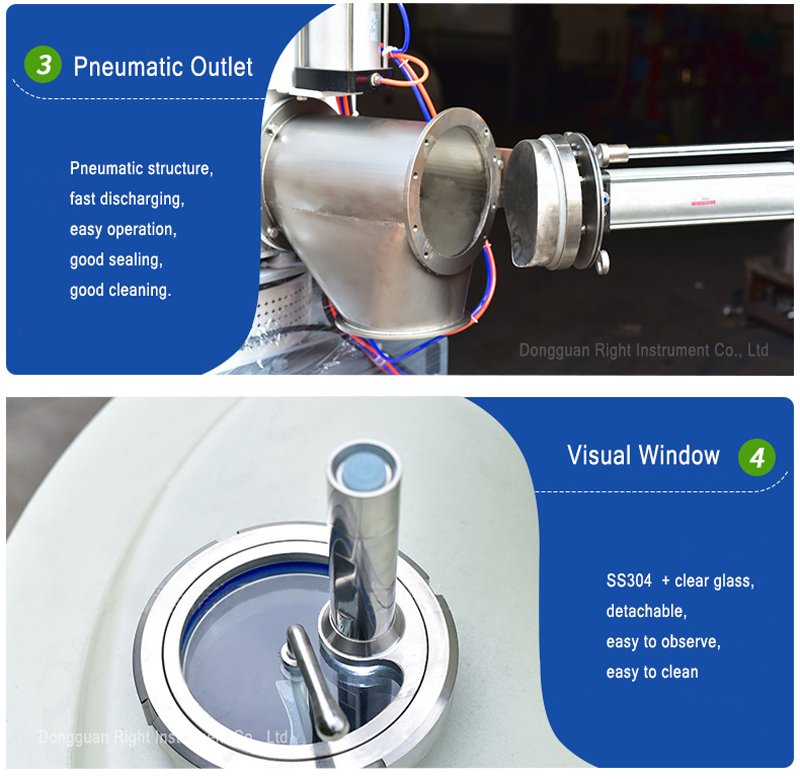

4. Equipped with an integrated electrical cabinet, it automatically opens and releases materials when the timing and temperature reach preset conditions, improving efficiency;

5. Cover the outside of the pot with a thermal insulation layer to reduce heat loss;

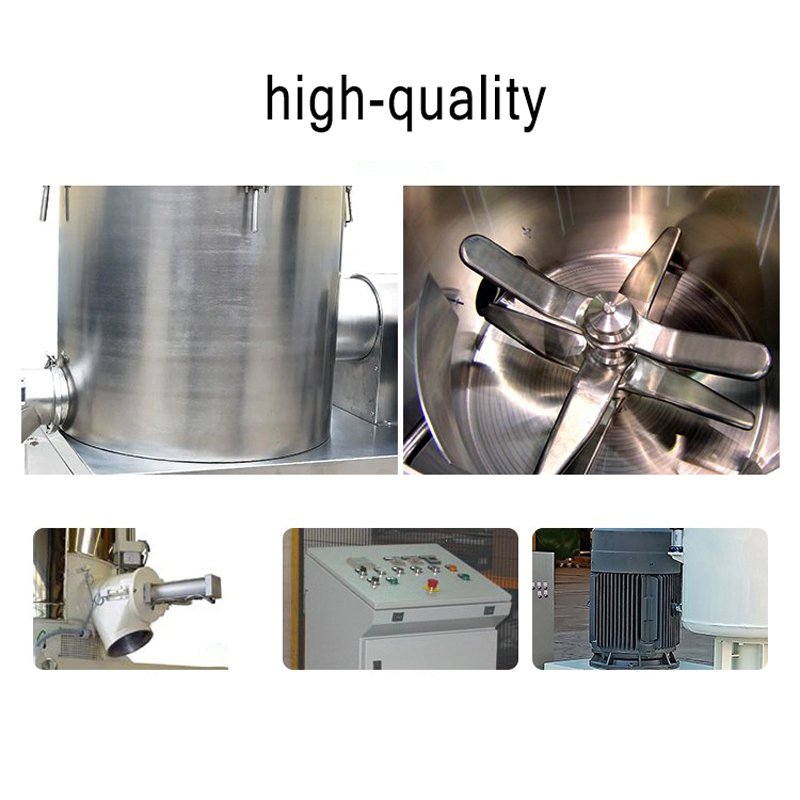

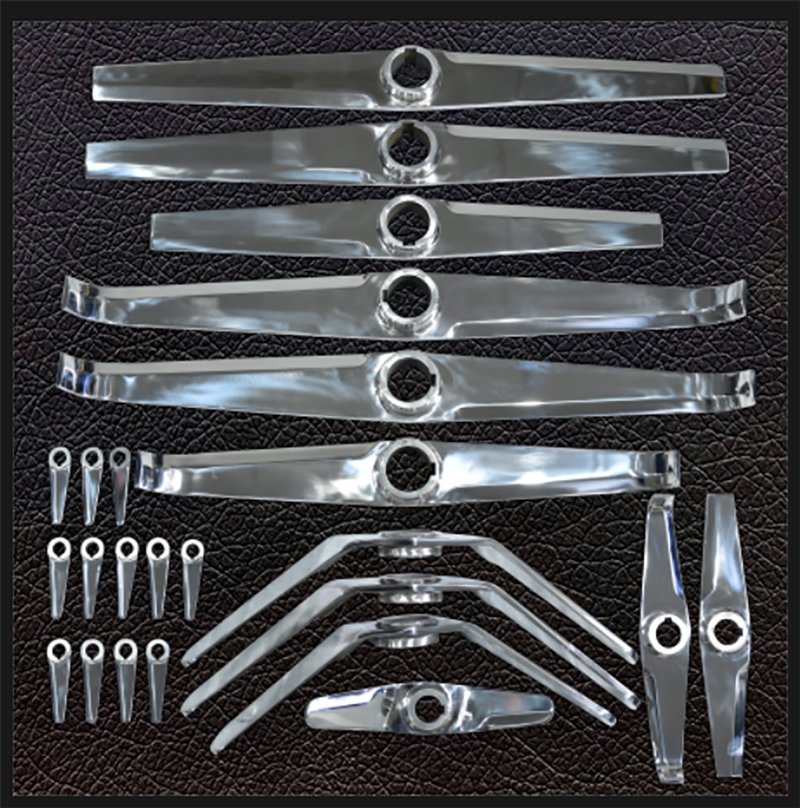

6. The propeller blades are made of thickened stainless steel castings, which are balanced and precisely calibrated to ensure high-speed rotation without eccentricity;

7. Multiple methods such as electric heating/self-friction heating are available to save energy consumption;

8. The pot lid adopts double concave-convex sealing to prevent material leakage.



Product Parameters

Model	CAP	Effective Capacity	Speed	Power	Heat method	Discharge method	Production
RT746-5A	5L	3L	1450rpm	1.1kw	self-friction	Manual	8kg/h
RT746-10A	10L	7L	1450rpm	3kw			16kg/h
RT746-50A	50L	35L	750/1500rpm	7/11kw	electrical	Pneumatic	82kg/h
RT746-100A	100L	75L	650/1300rpm	14/22kw			165kg/h
RT746-200A	200L	150L	475/950rpm	30/42kw			330kg/h
RT746-300A	300L	225L	475/950rpm	40/55kw			495kg/h
RT746-500A	500L	375L	430/860rpm	55/175kw			825kg/h
RT746-800A	800L	600L	370/740rpm	83/110kw			1320kg/h
RT746-200C	200L	150L	475/950rpm	30/42kw	self-friction		330kg/h
RT746-300C	300L	225L	475/950rpm	40/55kw			495kg/h
RT746-500C	500L	375L	430/860rpm	55/75kw			825kg/h

Pre-operation Inspection

1. Check whether each rotating component is flexible, whether the mixer is securely installed, and whether the main shaft rotates lightly;

2. The mixing container and discharge chamber should be cleaned and free of foreign objects;

3. Check whether the rotation direction of the motor is consistent with the direction indicated by the symbol;

4. Check the various connecting components of the mixer and tighten them immediately if they are loose.

Precautions During Running

1. Check if the rotating parts, such as spindle bearings and V-belt pulleys, usually operate. Stop the vehicle immediately for inspection if any abnormal noise or vibration is found. If damaged parts are found, they should be replaced;

2. When the high-speed mixer equipment is running, if adjusting the plasticizer, it should be slowly added. The wrong approach is to suddenly add the plasticizer directly into the machine body, causing local material agglomeration, resulting in a sudden increase in load and equipment damage;

3. When changing the color of materials, it is necessary to clean the mixing container and discharge area thoroughly, as it may be stained with materials of other colors;

4. The electric motor runs smoothly without any abnormal sound, and it is necessary to check whether the temperature rises normally regularly.
