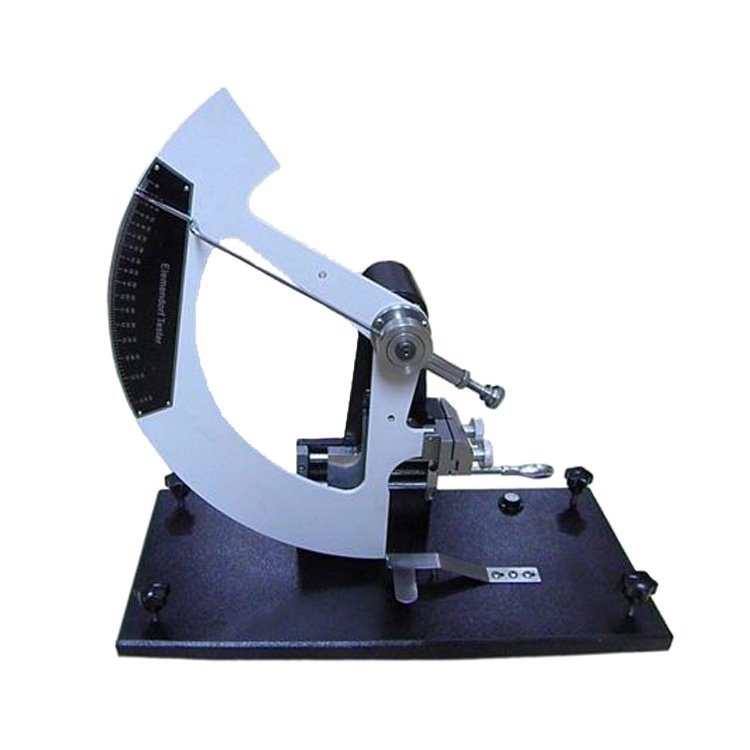

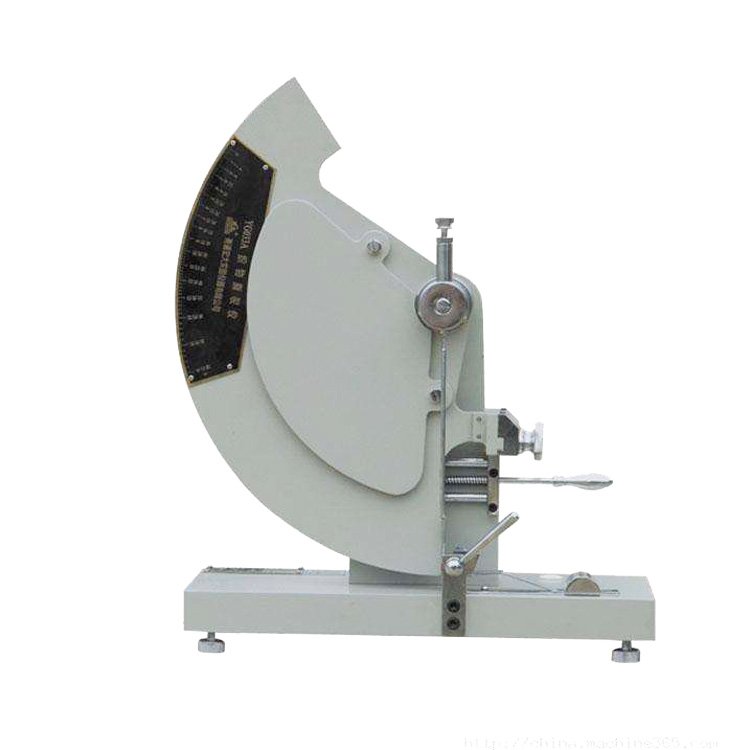

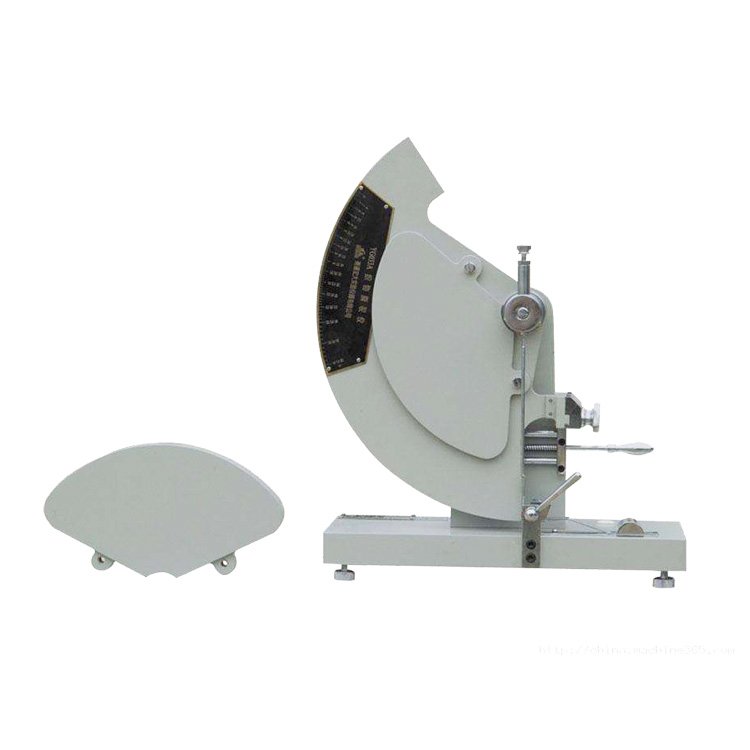

RT-404A Pointer Type Paper Tearing Strength Tester

RT-404A Pointer Type Paper Tearing Strength Tester - Image 3

Category 5. Paper and Carton Box Testing Machine

Additional information

RT-404A Cardboard tear tester (pointer type)

this machine is for testing the tear strength of the paper. The main technical indexes and performance parameters are accord with ISO1974 and GB455.1, and apply to all kinds of testing of the tearing of the paper and can also be used for the lower strength tear of the cardboard.

Product Details：

Product Summary:

RT-404A Cardboard tear tester (pointer type) is a machine for testing the tear strength of the paper. The main technical indexes and performance parameters are accord with ISO1974 and GB455.1, and apply to all kinds of testing of the tearing of the paper and can also be used for the lower strength tear of the cardboard.

Meet Standards:

With the performance parameters of the ISO1974 paper — tear the doorways of measurement (love markov GB455 and law,the paper tore degree 1 determination of relevant provisions of such standards.

Applicable Industry:

RT-404A Cardboard tear tester (pointer type) is the ideal experiment instrument for the papermaking,

scientific research, product quality supervision, inspection departments of industry and so on.

Technical Parameter:

Model	RT-404A Cardboard tear tester (pointer type)
Measurement range	(100~16000)mN
Swing	(100~8000)mN,Indexing 100Mn
Increase swing	(100~16000)mN,Indexing 200mN
Error	Upper limited 20%~80% Within±1%;beyond±0.5%FS
Error of repeatability	Upper limited 20%~80% Within≤1%;beyond≤0.5%FS
Tearing arms	(104±1)mm
Size of clip paper	(25×15)mm
The distance between the paper clip	(2.8±0.3)mm
Temperature	20±10 Degree/temperature
The initial angel of tearing	27.5±0.5
Tear distance	(43±0.5)mm
Notice	No vibration, no corrosive gas, the working environment clean.

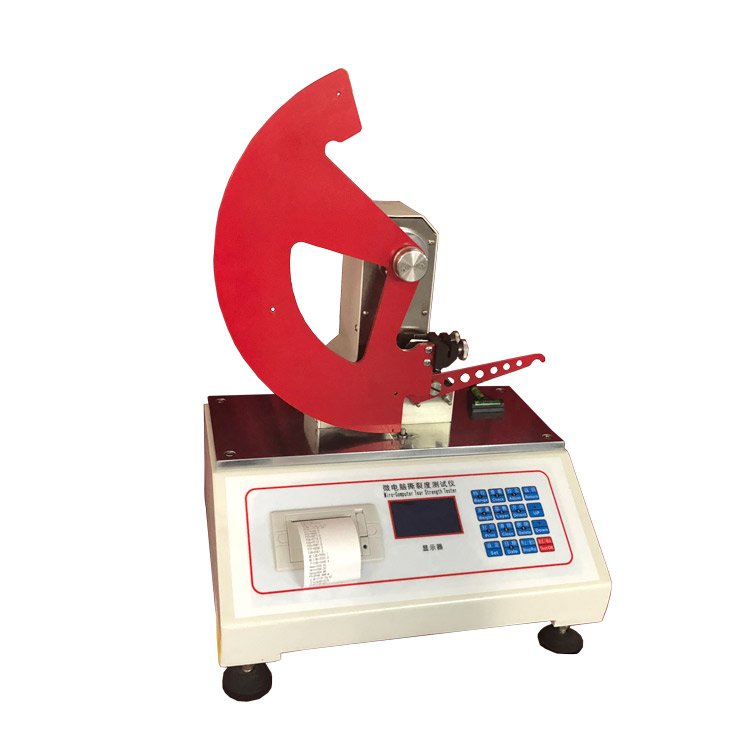

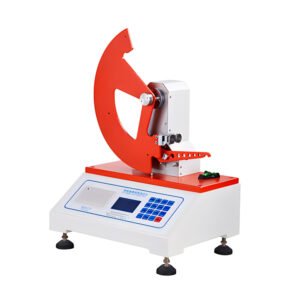

RT-404B Microcomputer Control Cardboard Paper Tearing Strength Test Machine
