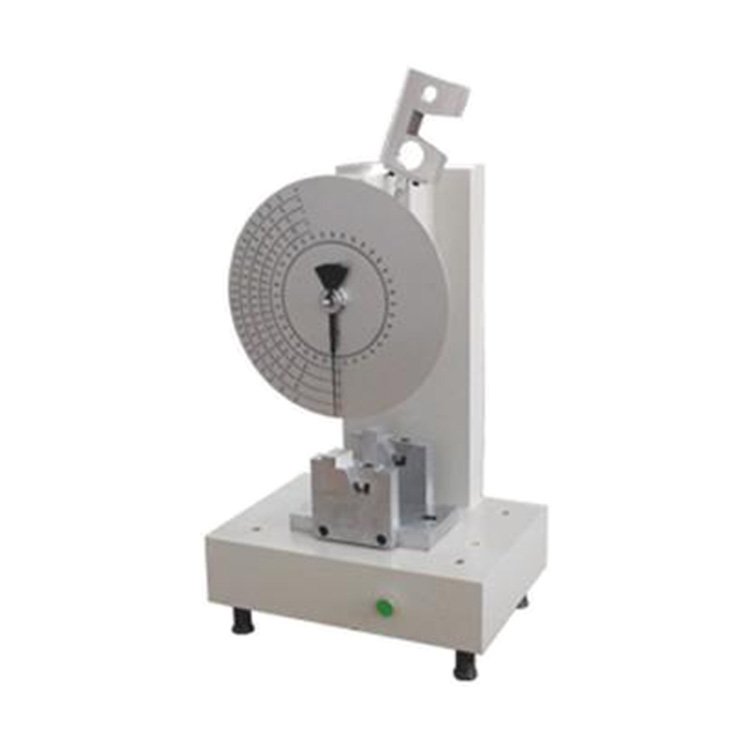

RT-703B-50 Pointer Type Charpy Impact Tester

Additional information

Summary:

Charpy impact test dial pointer, electric hammer release.This machine is reasonable, structure, attractive appearance, convenient operation, data accurate detection equipment.

Product Details:

Applicable industry:

Hard plastic, fiber-reinforced composite material, fiberglass, ceramics, asbestos and other non-metallic materials impact test.

Applicable standards: JB / T8761, GB / T1043, ISO179 etc.

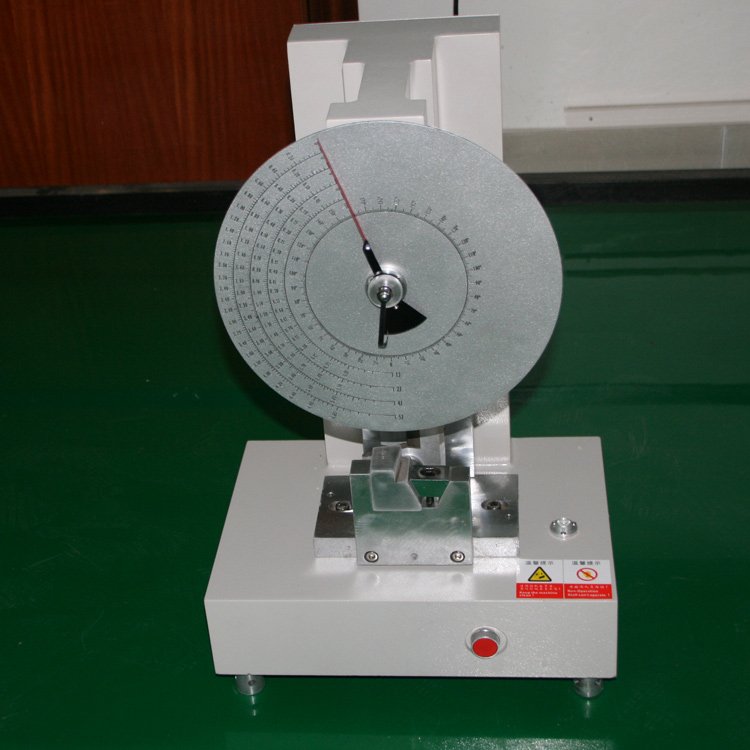

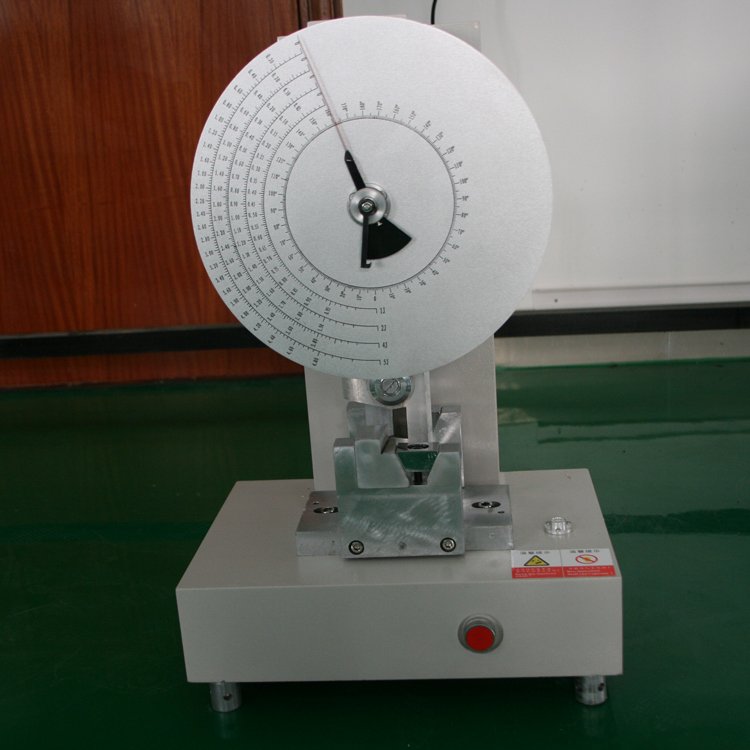

Pointer type Charpy impact tester



Technical parameter:

1.Pendulum energy: 7.5J, 15J, 25J, 50J (a standard hammer)

2.Pendulum moment:

7.5J pendulum PL = 3.866Nm

15J pendulum PL = 7.733Nm

25J pendulumPL = 12.889Nm

50J pendulumPL = 25.777Nm

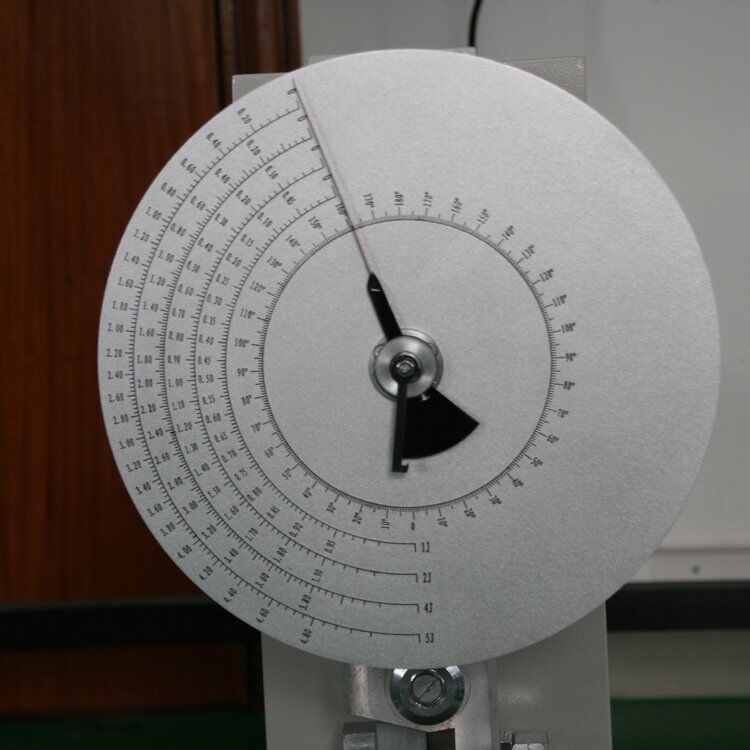

3.Dial minimum scale value: 1/100

4.Impact speed: 3.8m / s

5.Pendulum Yang angle: 160 °

6.Pendulum center to center distance sample: 380mm

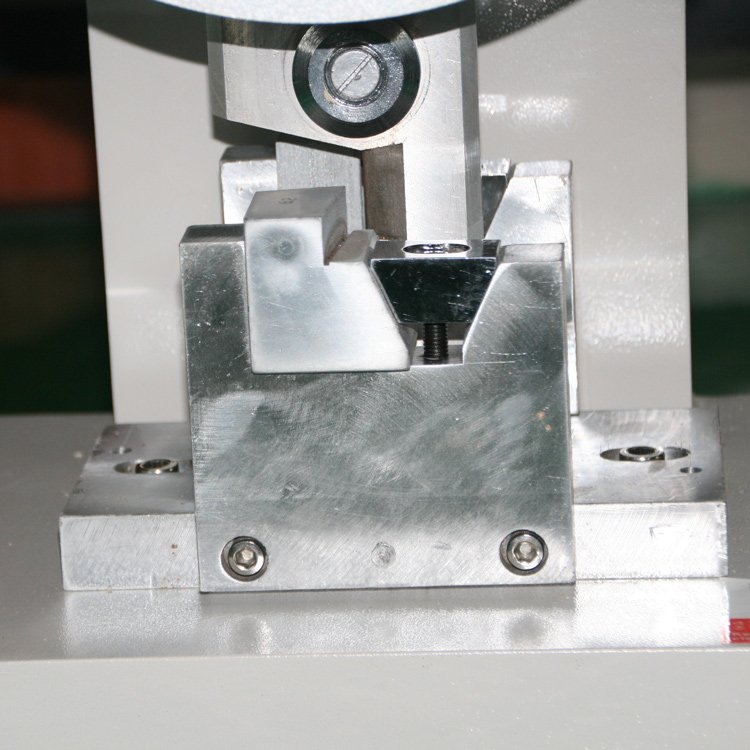

7.Jaw radius: R = 1 ± 0.1mm

8.Edge radius: R = 2 ± 0.5mm

9.The blade angle of impact: 30 ± l °

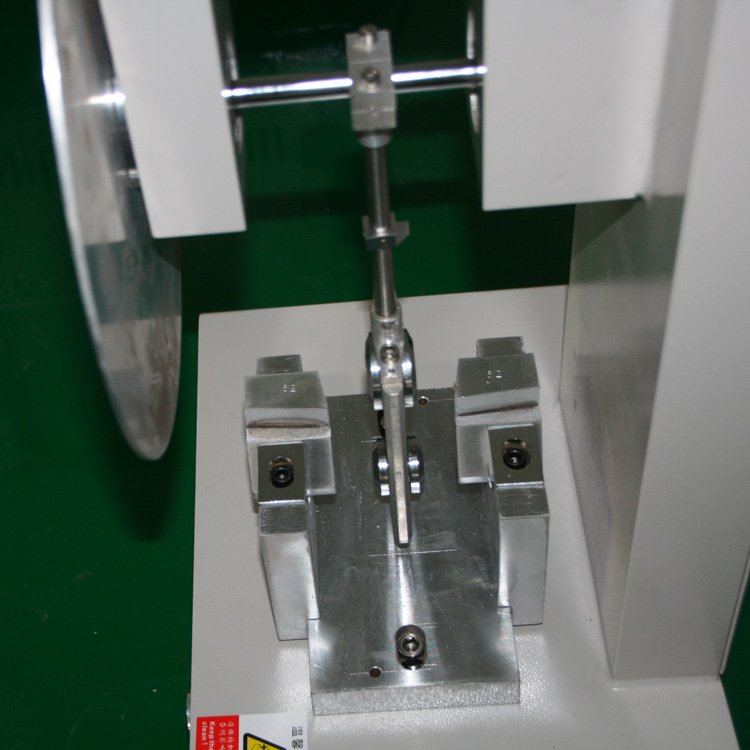

10.Between jaw support line distance: 40mm, 60mm, 70mm, 95mm

11.Charpy impact energy air loss: 0.5%

12.Sample type, size, support from the following table (test type, size, refer to GB / T1043-93) Unit (mm)

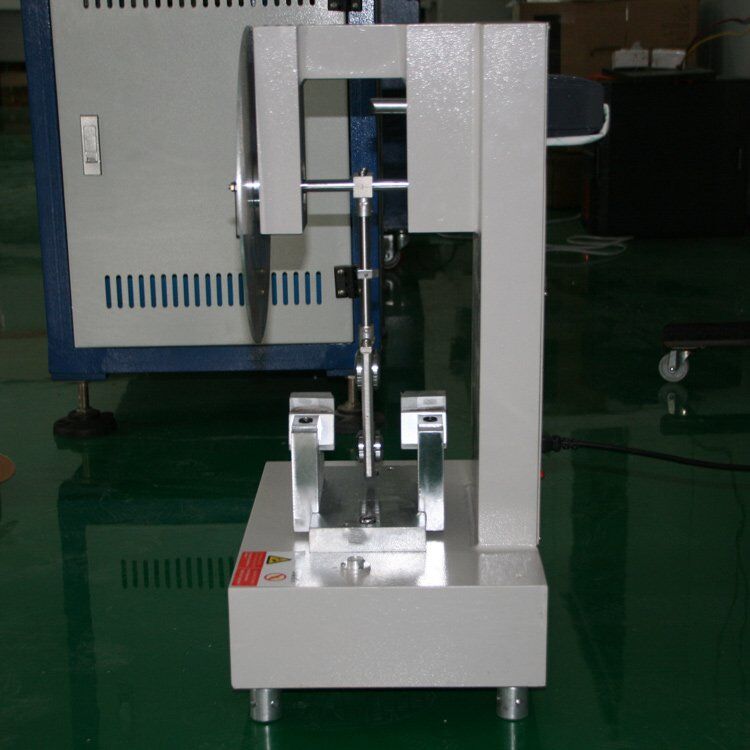

Pointer type Charpy impact tester

Pointer type Charpy impact tester

Sample type Length  breadth  Thickness distance between the support line
I 80 10 4 60
II 50 6 4 40
III 120 15 10 70
IV 125 13 13 95



Pointer type Charpy impact tester
