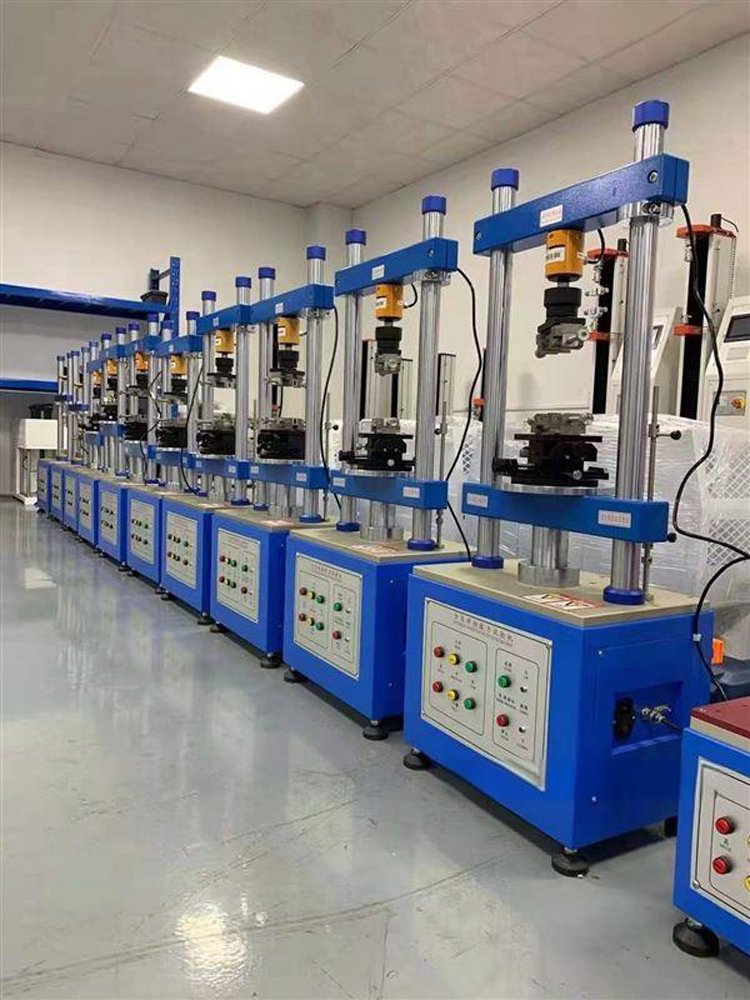

RT-220A Computer Control Charging Plug Insertion and Extraction Force Tester

Additional information

Automatic Connectors Plug Insertion and Extraction Force Test Machine

The Automatic Connectors Insertion Force Testing Machine and Extraction Force Tester is designed for conducting force tests on connectors during insertion and withdrawal. It comes with a unique device that automatically matches with a variety of special fixture connectors to provide accurate force results. All testing information can be set through the computer, and the machine can automatically store testing conditions, test results (load-displacement) curves, and life decay curves and generate reports.

Product Details:

Insertion and extraction force tester

I. Terminal Insertion and Extraction Force Testing Machine Purpose:

This machine is suitable for all kinds of connector insertion force and extraction force tests, and can also do tension or pressure tests, with the automatic centering device, will be able to get completely accurate insertion and extraction force tests, the use of Windows Windows Chinese screen settings, simple and convenient operation, and all the information can be stored ( test conditions, displacement, graphs, life curve graphs, inspection reports, etc.) Solve all kinds of connector test fixture problems and test the male and female connectors can be automatically aligned, there will be no eating one side of the problem. With a dynamic impedance test system, dynamic impedance can be tested and plotted at the same time as testing insertion and extraction force.

Insertion and extraction force tester

Ⅱ. Features of Plug Insertion and Extraction Force Tester:

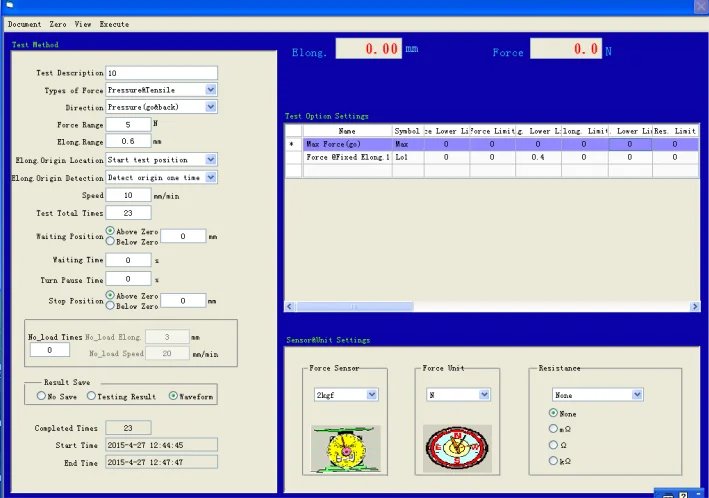

1. Test conditions are set by the computer screen and can be stored. They can be set by drop-down menu or directly input data. (They contain the test category, determination of the direction of movement, load determination range, travel determination range, travel home position, travel home detection, determination of speed, measurement of the total number of times, pause time each time the waiting position, the number of times empty pressure, etc.).
2. Can store and print graphs (load – stroke curve graph – load decay life curve graph – inspection report) load element overload protection
This function ensures that the load element will not be damaged.
3. Simultaneous display of load-stroke curve and life curve.
4. Automatic load zero detection, and can be set to check the load value at the origin.
5. Load unit display: N, lb, gf, Kgf can be freely switched.

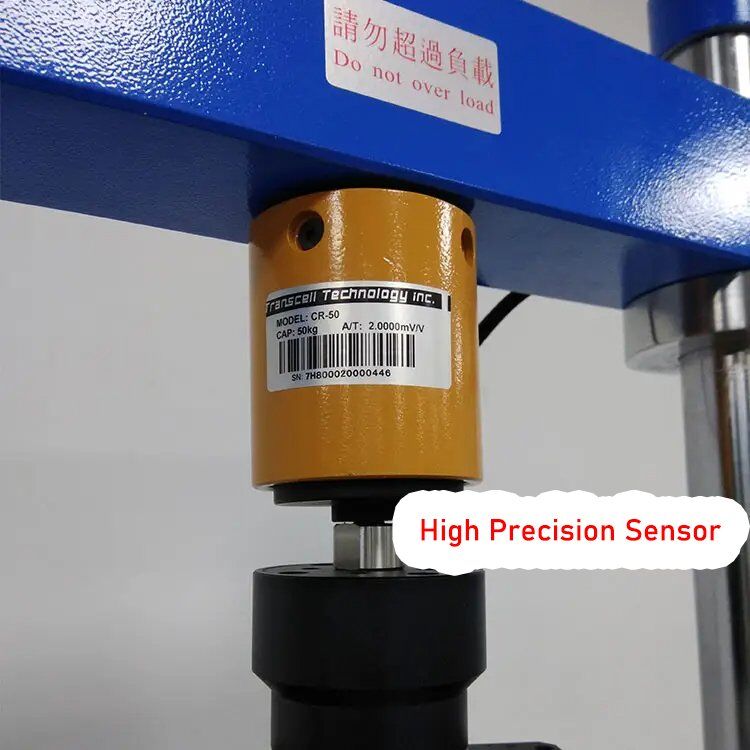

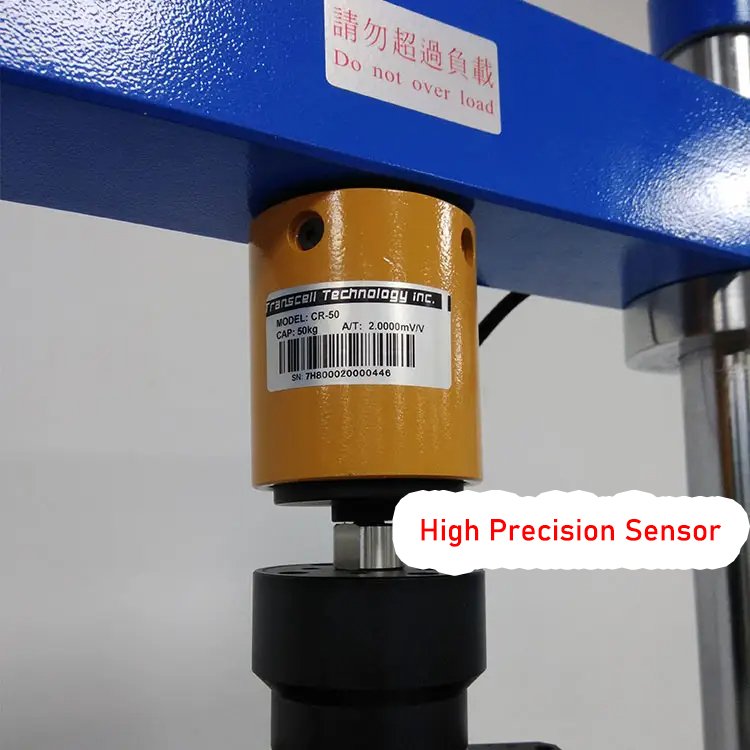

6. Several load elements (2Kgf/5Kgf/20Kgf/50Kgf/100Kg/200Kg) are available at the same time.
7. The machine adopts a high steel structure design with a servo motor, long time use can ensure accuracy is suitable for general lead compression tests and insertion and extraction force life tests.
8. over-specification value stop (in the life test, test data beyond the set upper and lower limit values when the machine automatically stops.
9. Measurement items: maximum load value, peak value, valley value, load value of the stroke, load of the stroke value of the insertion point resistance value, load or resistance value of the stroke.

Insertion and extraction force tester

Ⅲ. Automatic Connectors Insertion Force Testing Machine Test Items:

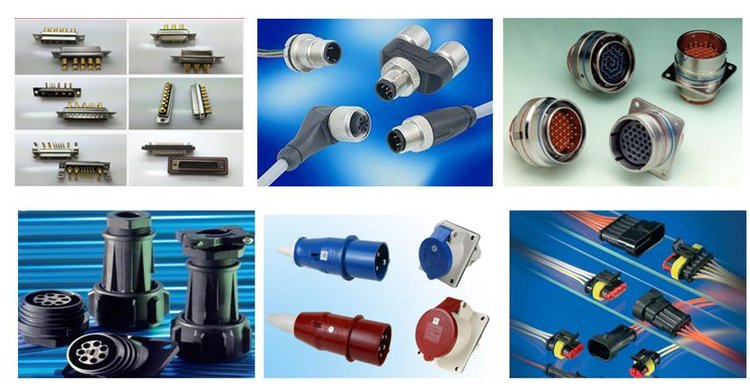

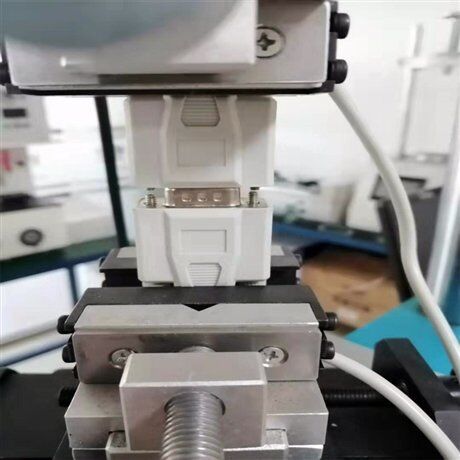

1. Connector single-hole insertion and removal test;
2. Connector insertion and extraction life test;
3. Connector normal force test;
4. Connector row insertion and removal test;
5. Connector single Pin and plastic retention force test;
6. At the same time with the contact impedance machine line (optional);
7. A variety of compression and tensile strength tests.

Insertion and extraction force tester

Ⅳ. Charging Plug Insertion Pulling Force Tester Technical Parameters:

Load Capacity

2kg, 5kg, 20kg, 50kg, 100kg, 200kg

Unit switch over

gf, kgf, ibf, N

Resolution

0.001kg

Load precision

±0.2%

Maximum travel

150mm

Test speed

0~200mm/mim(0~600mm/mim)

Speed precision

0.5%

Displacement resolution

0.01mm

Motor

Panasonic servo motor

Size

360×260×940mm

Weight

70kg

Power

220V,50HZ / Customized

Insertion and extraction force testerInsertion and extraction force tester

V. USB Insertion Extraction Force Dynamic Fatigue Testing Machine Test Report Output:

1. Load-stroke graph, life curve graph, and test report, all are A4 standard paper specifications, and printed directly by the computer printer;

Insertion and extraction force tester

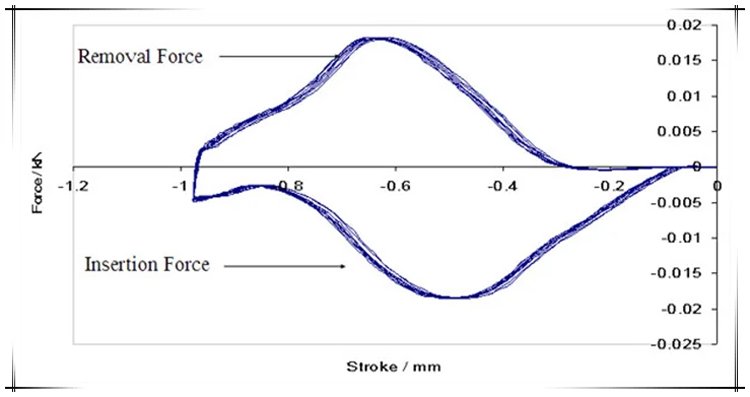

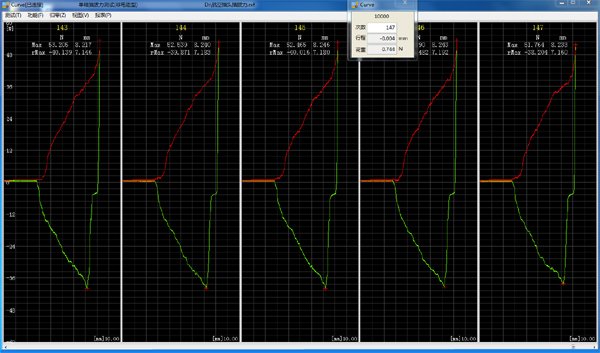

2. Plugging load – travel curve: can directly display and store each test displacement and force value change;
( X-axis represents travel, Y-axis represents force )
a) Each measurement graph can be traced by the cursor to determine the corresponding load and travel value of each measurement point;
b) The minimum resolution is 0.01mm;
c) The curve is automatically stored by computer, can be enlarged or reduced at any time, and N graphs can be placed on one sheet of paper;
d) Scroll type curve display, can browse the curve at any time;
f) Load-stroke curve and life curve are displayed at the same time.

Insertion and extraction force tester



3. Life curve graph:
a) The header of the report can be modified at any time;
b) The maximum value, minimum value and average value of each curve can be displayed on the report;
c) The report can display the specification line of the upper and lower limits of the test;
d) Multiple life curve graphs can be set to be displayed at the same time.

Insertion and extraction force tester

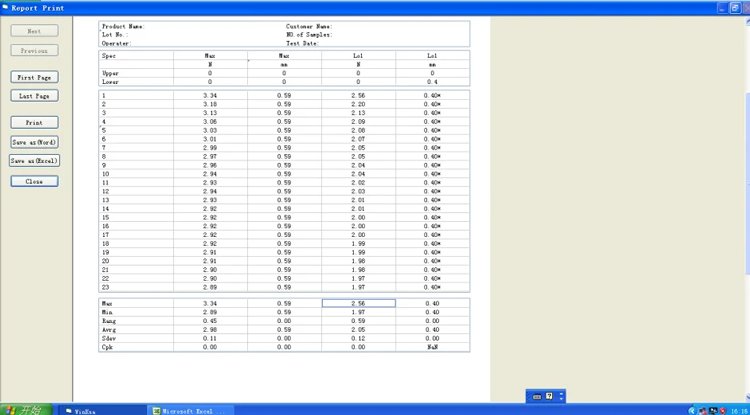

4. Test report:
a) The test report is automatically generated (A4 specification), and can be transferred to the file output (Excel) or directly output through the network;
b) Automatically calculate the maximum value, minimum value, average value, difference, standard deviation and so on;
c) Input the upper and lower limit values of the test, and automatically determine OK or NG beyond the specifications.

Insertion and extraction force tester

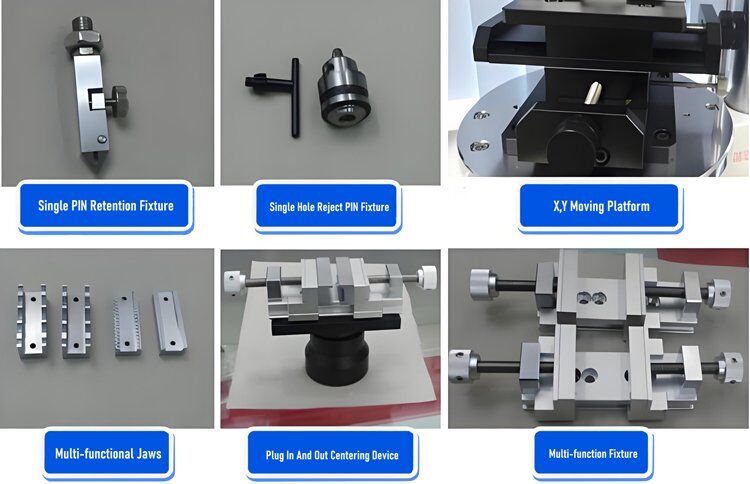

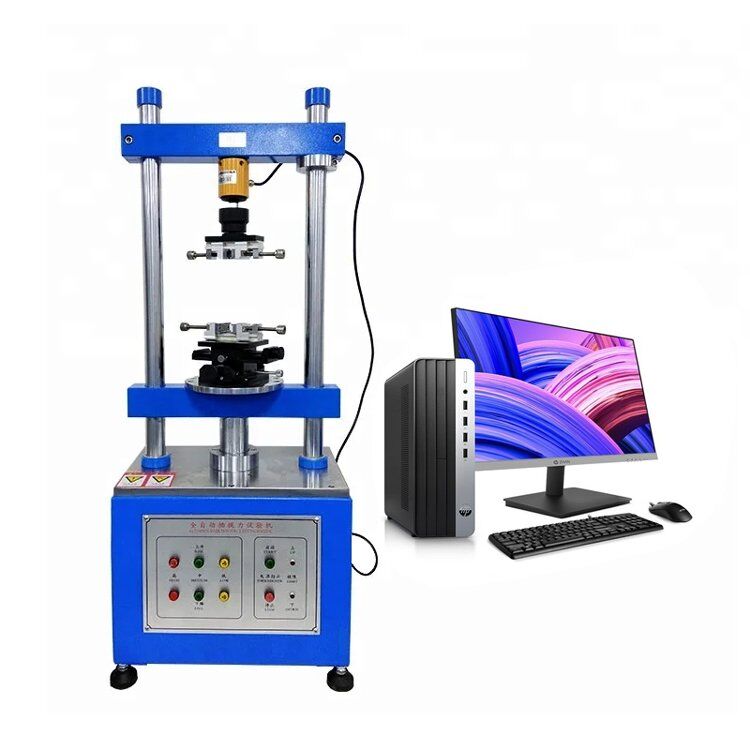

Ⅵ. Plug and Socket Insert Force Tester standard configuration:

1. RT-220 host;
2. A set of multi-function fixture and nozzle;

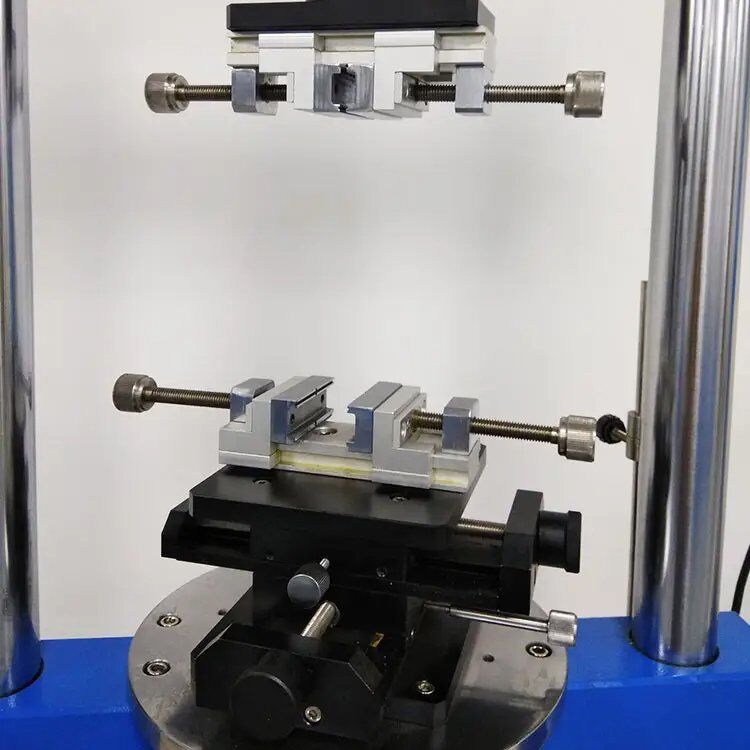

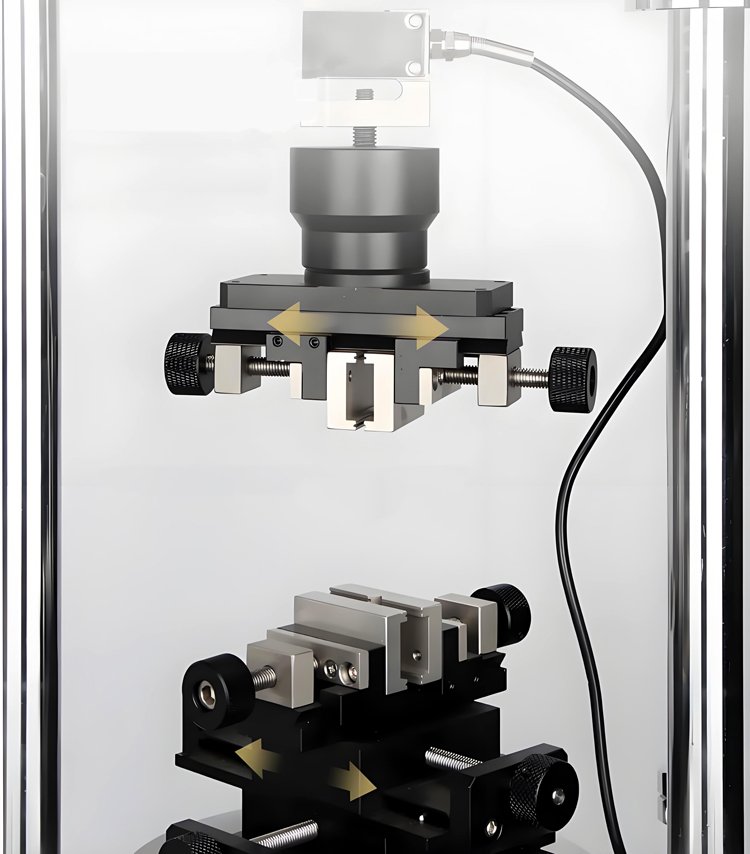

3. The whole row of insertion and extraction with a set of automatic centering device;
4. A set of large X, Y moving table;
5. Normal Force special fixture set;
6. A set of computers (dual-core computer, 500GB hard disk, 4GB memory, 19-inch LED display).

Insertion and extraction force tester
