Model number | RT-109A |
---|---|
Capacity | 10,20,30,50,80,100T |
Control temperature range | Normal temperature~300℃ |
Heating plate layers | Single-layer (2-3 layer can be customized) |
Pressure plate size | 250*250/300*300/350*350/400*400/450*450/500*500/1000*1000mm |

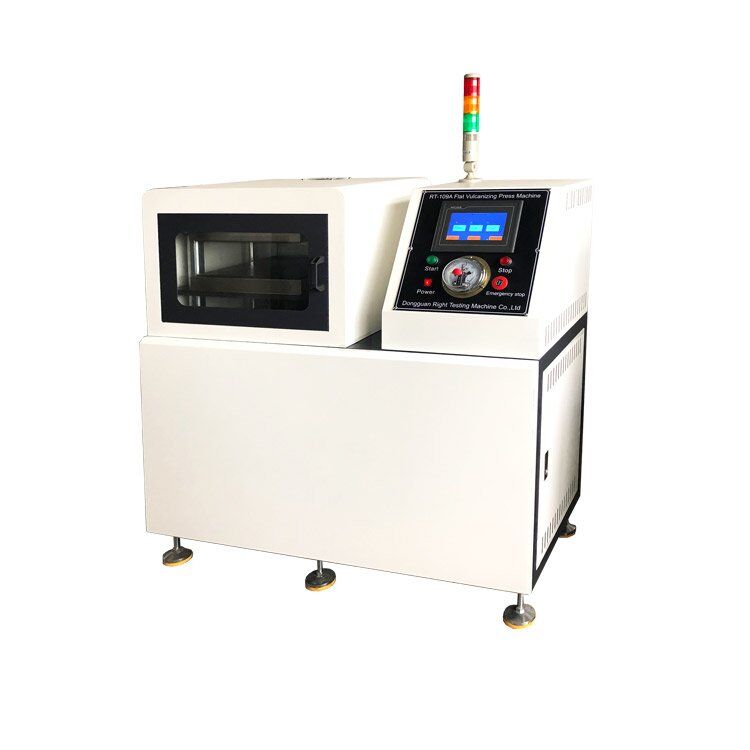

Laboratory small flat vulcanizing machine is also called hot press forming machine. It is mainly used for sample preparation of vulcanised rubber and plastic products, such as: tensile test, impact test, compression test, etc.

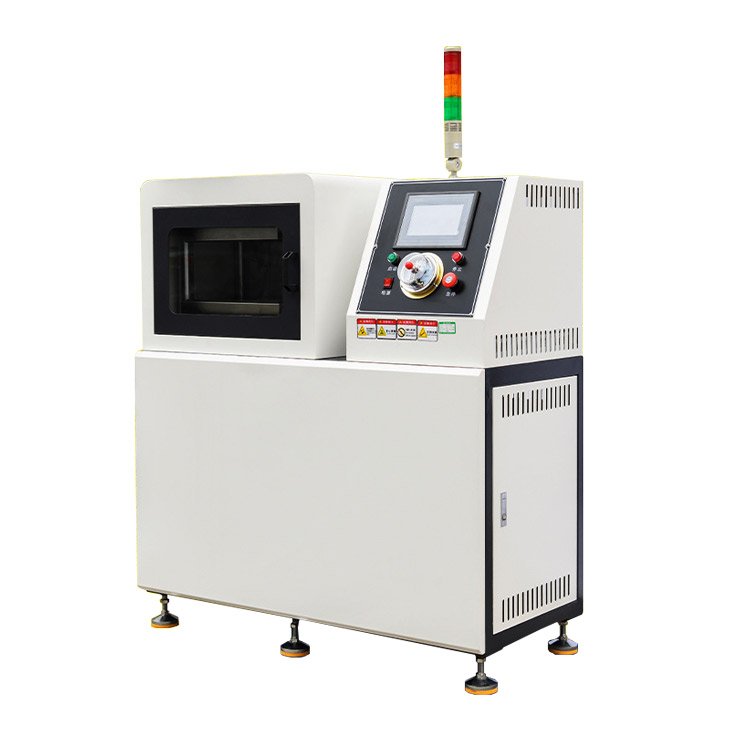

Product name | Rubber Flat Vulcanizing Machine |
Parameter Capacity | 10,20,30,50,80T |
Temperature range | Normal temperature~300℃ |
Temperature Precision | 1℃ |

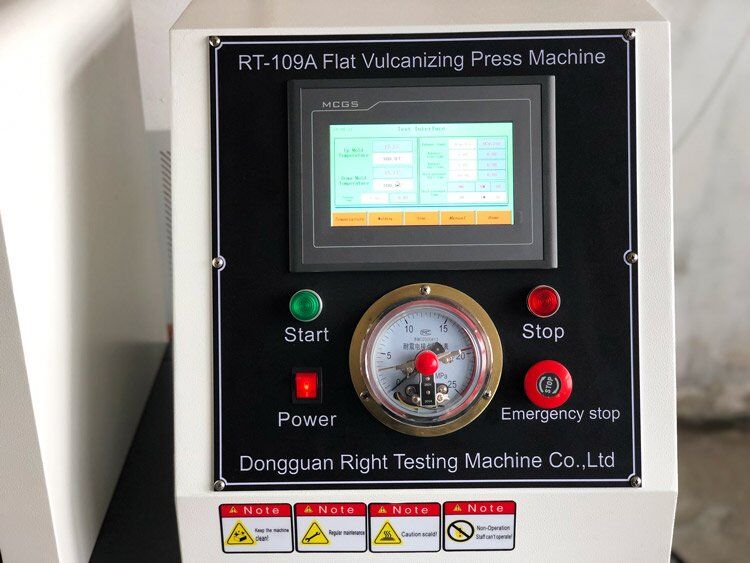

Temperature controller | PLC touch-screen programmed control mode |
Heating method | Electric heating |
Heating up time | Normal temperature to 160℃ about 15min |
Heat pressure plate size | 250*250/300*300/350*350/400*400/450*450/500*500/1000*1000mm (can be customized) |
Cold pressure plate size | 250*250/300*300/350*350/400*400/450*450/500*500/1000*1000mm (can be customized) |

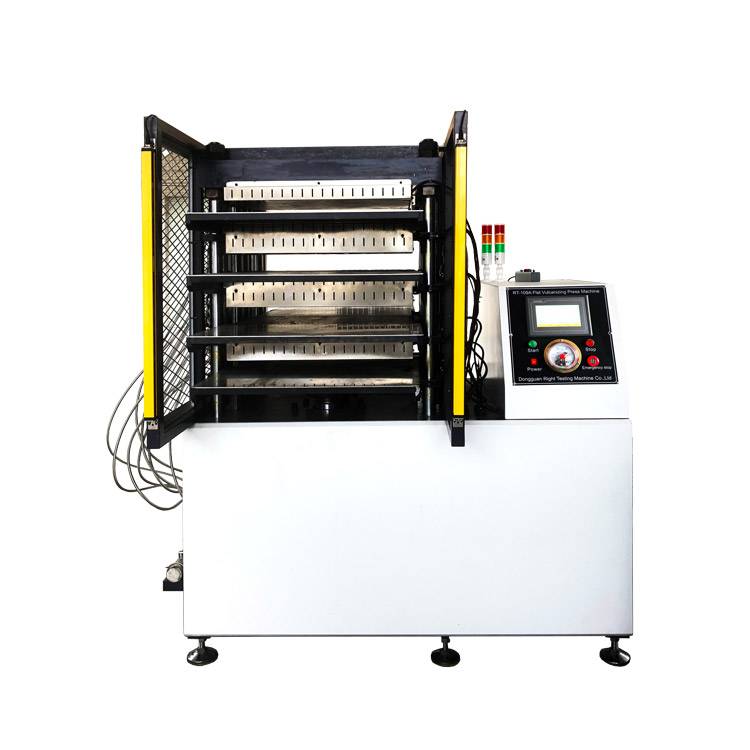

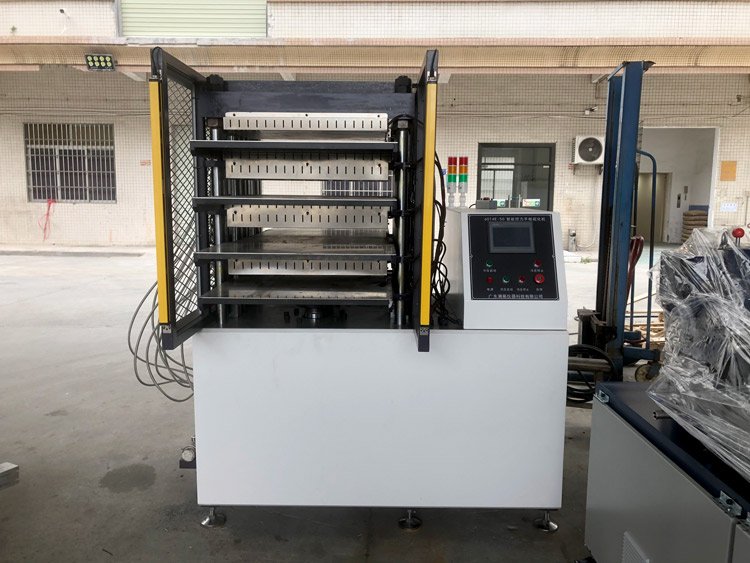

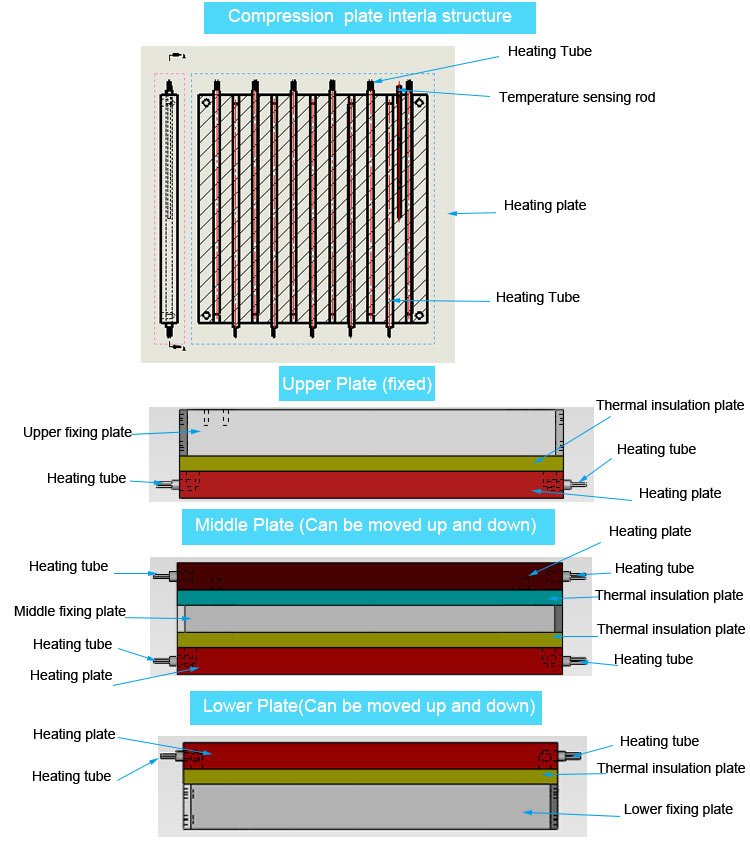

Heating plate layers | Single-layer (2-3 layer can be customized) |
Distance of pressure plate | 300,500mm,800mm (can be customized) |
Exhaust function | automatically exhaust 3~10 times per minute (Adjustable) |
Cylinder stroke | Max 250mm |
Cylinder speed | 11mm/s |
Pressure gauge | 0~200kg/sq.cm |
Dimension | 1400*550*1450mm |
Weight | 350kg |
Power supply | 380V/60HZ(or 50HZ) |
Application Industry
It is suitable for the production of rubber and plastic. Compare this product after removing from hydraulic press vulcanizing, PLC-controlled, custom hydraulic press Force : 0 kN – 1000 kN Rubber vulcanizing press multi-platen solutions, our company has developed and implemented hundreds of hydraulic presses for rubber, plastics & composites applications all over the world.
