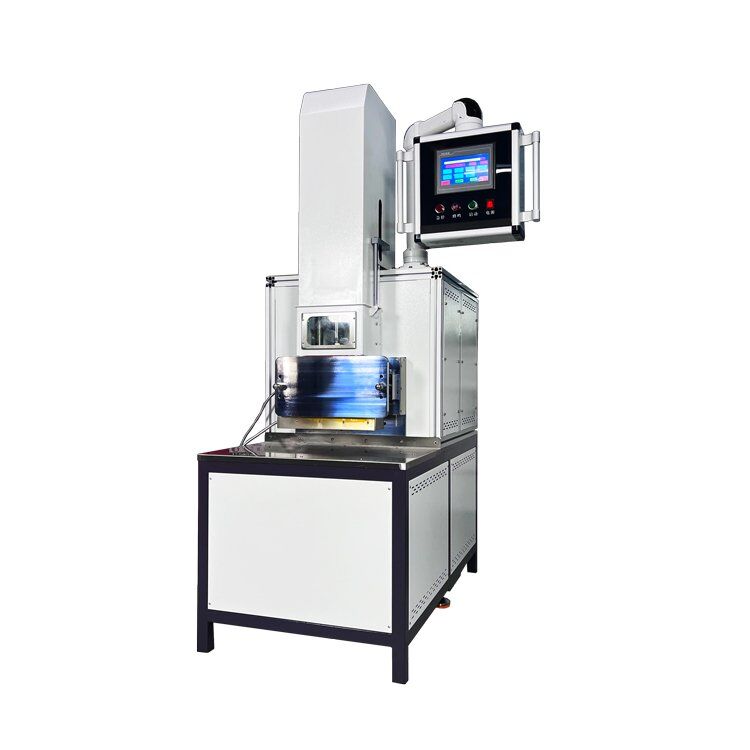

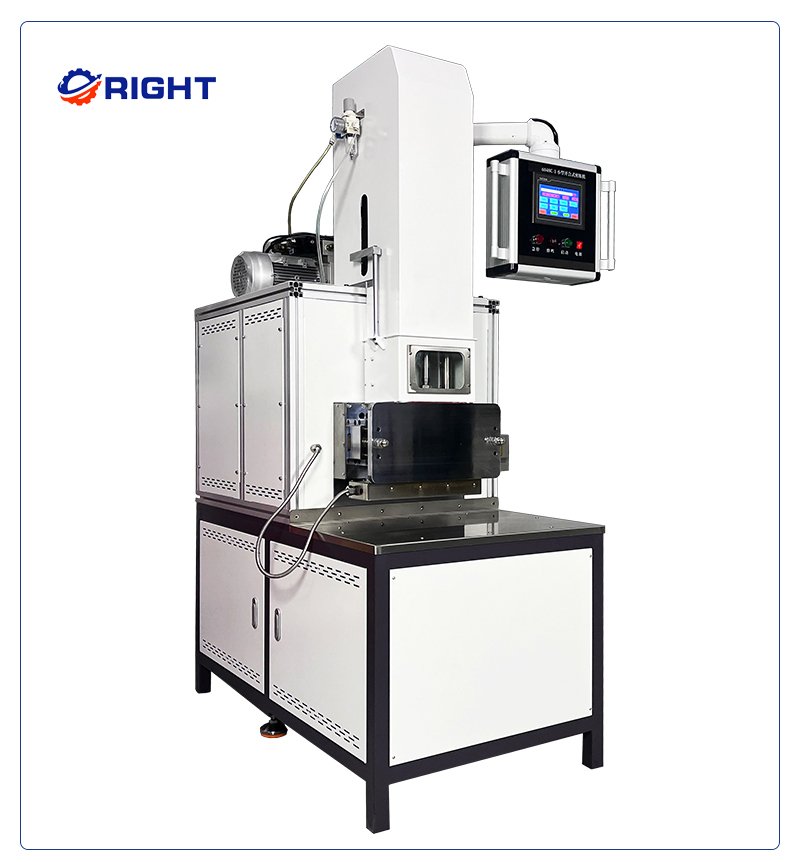

Automatic Opening and Closing Rubber Dispersion Kneader (RT-123)

Additional information

Model

RT-123

Capacity

1L/2L/3L/5L

Temperature

RT~250℃

Cooling method

Water cooling

Pouring method

Chamber opening and closing

What is an internal mixer?

The RT-123 open-close type kneader mixer machine is mainly used for mixing rubber and plastic. It is easy to operate, produces uniform dispersion, and is suitable for laboratory formula development and small production.

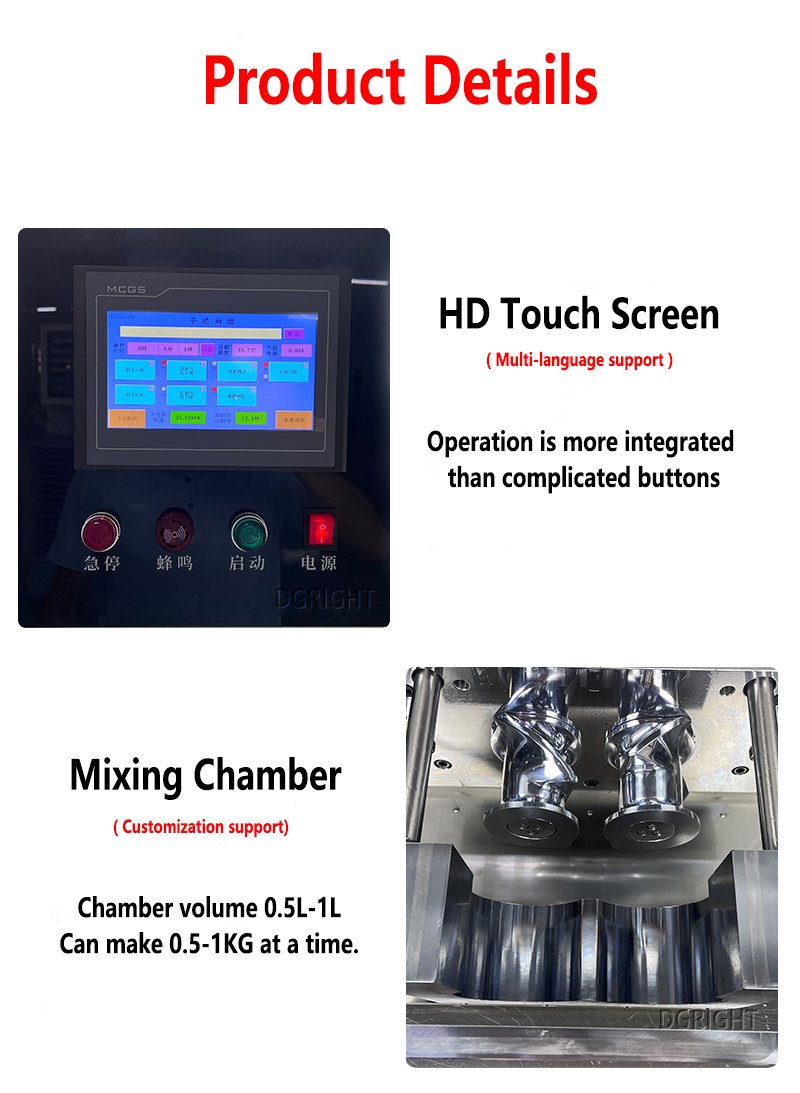

Product Details:

What are the features of the RT-123 Lab Open-close Internal Mixer?

(1) The volume of the refining chamber: 1L/2L/3L/5L, a refining rubber 0.5-1kg, according to the density of the material; the greater the density, the greater the weight;
(2) Main motor: AC motor;

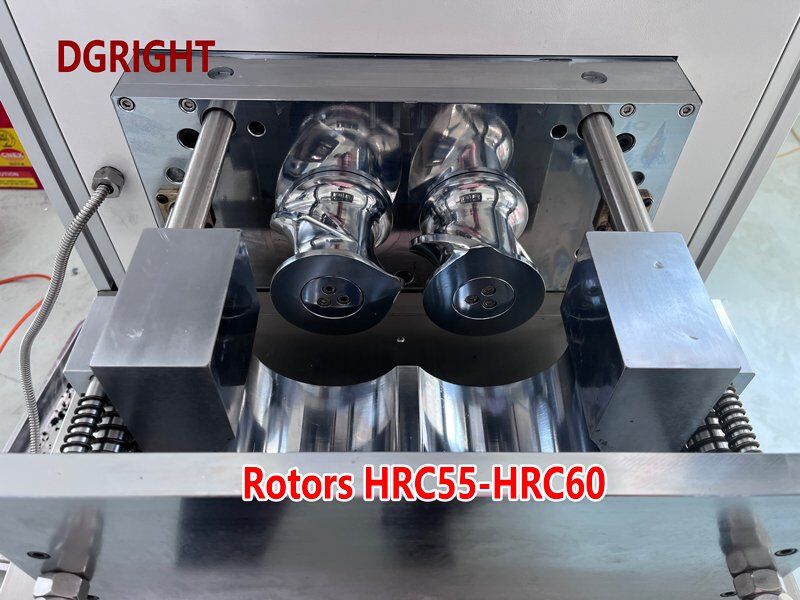

(3) Rotor: two-pronged, synchronous rotor structure (can also be designed and manufactured according to the rotor structure diagram provided by the user), front and rear rotor speed ratio of 1:1.3 or ST synchronous rotor, cast steel tempering hardening treatment, hard chrome-plated surface;
(4) control mode: manual, semi-automatic, and automatic;
(5) the maximum temperature of the refiner: RT-250 °;
(6) chamber wall: high-quality steel, heat treatment, internal surface hard chrome plating treatment;
(7) Upper top bolt: cylinder driven, surface hard chrome plated;
(8) Pouring method: automatic opening and closing of falling-type pouring material;
(9) Feeding hopper: manually operated.

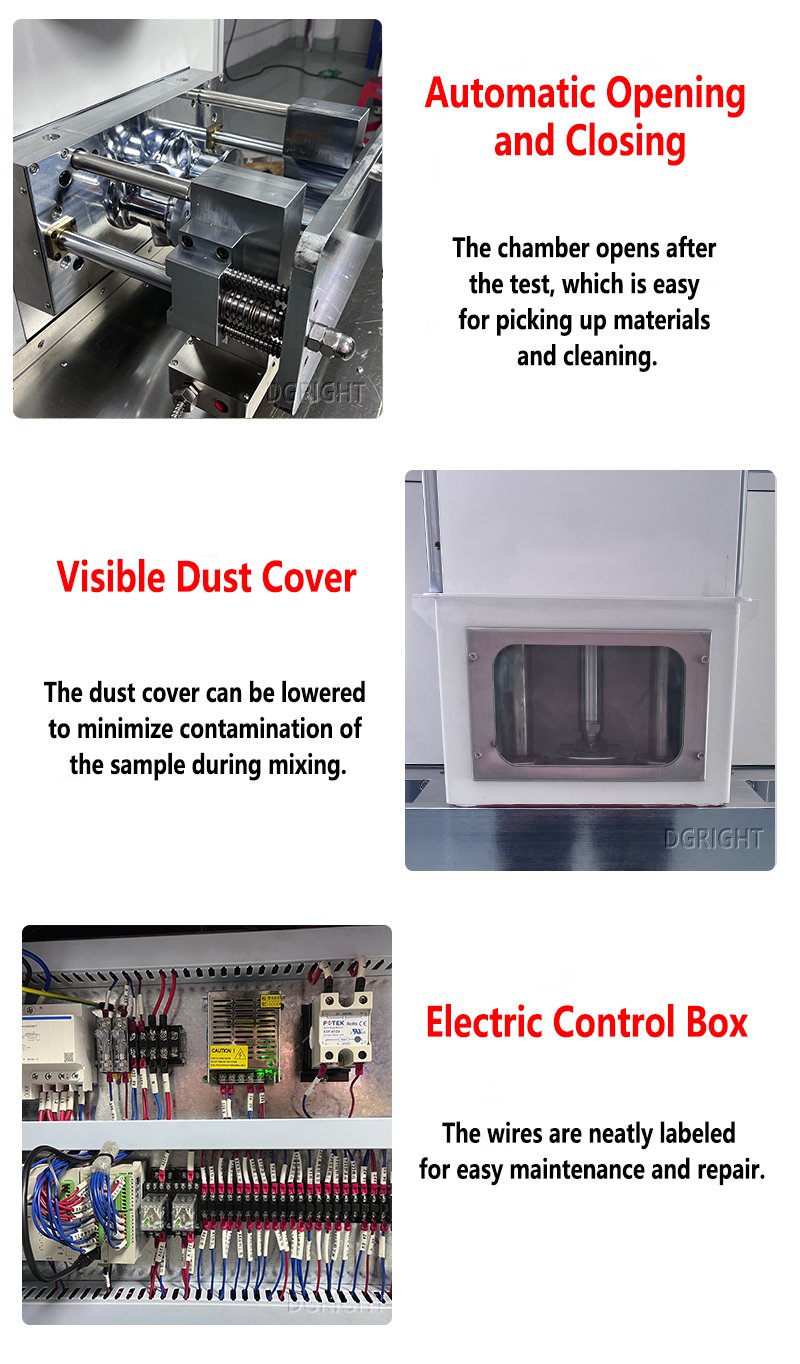

Opening and Closing Rubber Dispersion Kneader

Opening and Closing Rubber Dispersion Kneader

What is the use of the RT-123 internal mixer?

The RT-123 Lab Kneader is mainly used for kneading, dispersing, mixing and plasticizing in all kinds of rubber, plastic raw materials and engineering compound materials, metal powder, ceramic powder and other raw materials. Can produce EVA, PVC, TPR, PE, PP, PC, metal powder, ceramic powder, functional masterbatch, rubber additives, shoes, rubber tires, sealing miscellaneous parts, electronic products, wires and cables, automotive products and other rubber products and raw materials for plastic products.

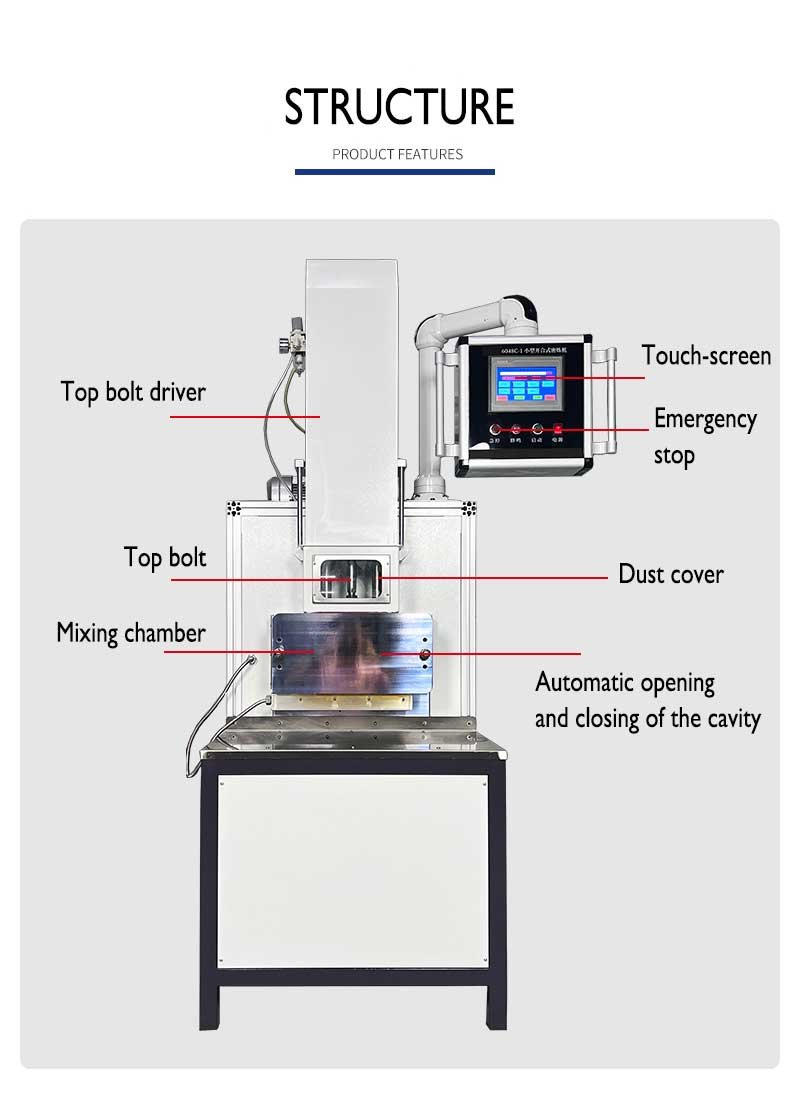

What is the RT-123 kneader mixer structure?

Opening and Closing Rubber Dispersion Kneader



RT-120 Internal mixer specifications:

Model RT-123 Type
Mixing capacity  1L 2L 3L 5L
Production capacity【Adjusted according to the softness or hardness of the material】 0.5-1KG 0.8-2KG 1-3KG 2-5KG
Temperature range RT~250℃【Can be customized 300 degrees】
Heating method Electrical heating
Cooling method Water cooling
Display accuracy  0.1℃
Controller PLC programmable color touch screen, all process parameters can be set
Pouring method Automatic chamber opening and closing, material freely falling
Reducer Hardened gear reducer
Maximum pressure of pressure weight 0.3 (MPa)
Rotor speed ratio 1:1.3
Rotor speed 0-50 rpm/min, Frequency converter speed control
Feeding method Manual
Rotor material Carbide surface hard chrome mirror polishing
Rotor hardness HRC55-HRC60
Mixing chamber The refining chamber adopts rotor structure: rotor by the long prongs, short prongs, rotor body and rotor through the inner cavity of the circulating cooling waterway composed of the main drive system power output speed using infinitely variable frequency speed control.
Upper-pressure weight Full pressure pneumatic, gas source pressure 0.5 ~ 0.8Mpa (customers provide their own gas source connection port)
Control system Purchase advanced RIGHT17.5 mixing software system, can be multi-stage control refining program selection
Main motor【KW】 4.5 5.5
Volume About L1500*W900*H1850mm About L1600*W980*H1850mm
Power supply 3∮ 、AC380V 、22A three-phase, five-wire (PRC)
Weight About 450kg About 550kg About 680kg About 780kg





Opening and Closing Rubber Dispersion Kneader

Internal Mixer Machine

Internal Mixer Machine
