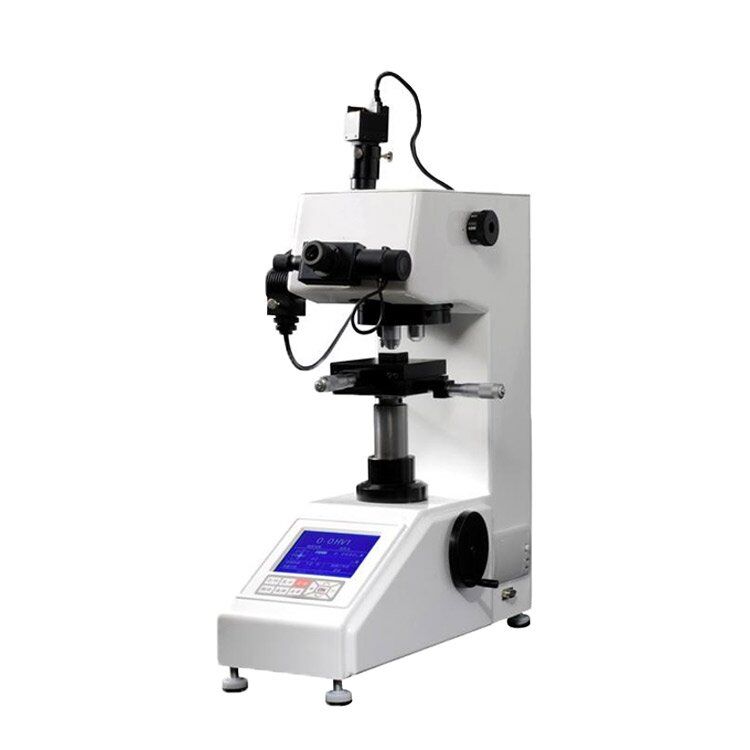

RT-1005A HVS-1000 Digital Micro Vickers Hardness Tester
Product Details：
Product description:
HVS-1000 series of digital Vickers hardness tester using a large screen LCD display, user interface is menu structure, select hardness scale HV or HK on the operation panel, hardness testing, automatic input, automatically displayed. Can make various hardness conversion, the test results can be automatically stored, processed, printed. Equipped with RS-232 interface, on-line with the computer. This machine is digital, high degree of automation. Error hardness values can be corrected by software input, hardness value more accurately meet the requirements.
Application Scope:
Heat treatment, carbide, hardened layer, surface coating, steels, non-ferrous metal, micro and thin shaped components.
Technical parameter:
| Model No. | HVS-1000 |
| Test Force | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
| Minimum of measurement unit | 0.031μm |
| Data output | LCD display，built-in printer and RS-232 port |
| Maximum height of specimen | 80mm |
| Distance from pressure head to ektexine | 95mm |
| Host weight | About 25Kg |
| X-Y test table | Size：100*100mm Maximum removable：25*25mm |
| Power | AC220V+5%，50-60Hz |
| Machine dimension | 405*290*480mm |
| Exchange Scales | HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Hardness measuring range | 8~2900HV |
| Test method | Automatic (add load,remain load, unloading) |
| Test microscope Magnification | 400X(Test)，100X（Observe） |
| Test force holding time | 0~60s |
Accessories (The Packing List)
- The main instrument (including a micro Vickers Indenter, a 40╳Objective and a 10╳Objective )
- The Accessories Kit
| Weights | 6 PCS |
| Weight Axis | 1 PC |
| Cross Testing Table | 1 PC |
| Thin Specimen Testing Table | 1 PC |
| Fork-Shaped Testing Table | 1 PC |
| Fine Wire Testing Table | 1 PC |
| Screw Drivers | 2 PCS |
| Horizontal Regulating Screws | 4 PCS |
| Level | 1 PC |
| Power Cord | 1 PC |
| Eyepiece | 1 PC |
| Vickers Hardness Blocks | 2 PCS (one middle-sized HV0.2 block and one high-sized HV1 block) |
| Prepare Fuses (1A) | 2 PCS |
| The USAGE Instruction Manual | 1 PC |
- Special Accessories(Optional)
3.1 Knoop Indenter
3.2 Hardness Test Blocks
3.3 Metallurgical Specimen Cutter
3.4 Metallurgical Specimen Mounting Press
3.5 Metallurgical Specimen Polisher
3.6 CCD Image Measuring System
