Capillary Tubes Melting Point Apparatus With Microscope

Category 2. Plastic Testing Machine

Additional information

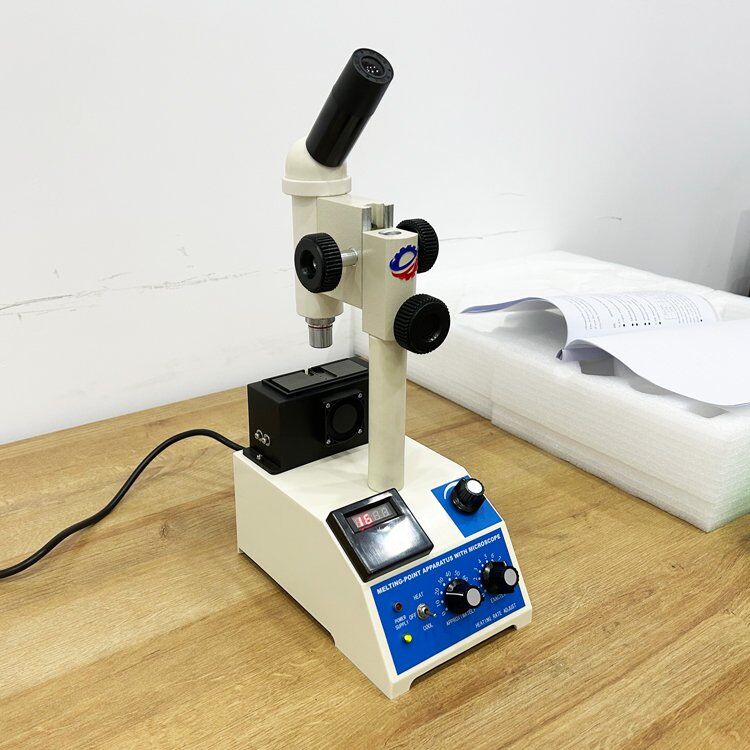

SGW X-4 Melting Point Apparatus

Product Details：

Product Introduction

Determination of the melting point of substances. It is mainly used for drugs, chemicals, textiles, fuels, spices, and the determination of other crystalline organic compounds.

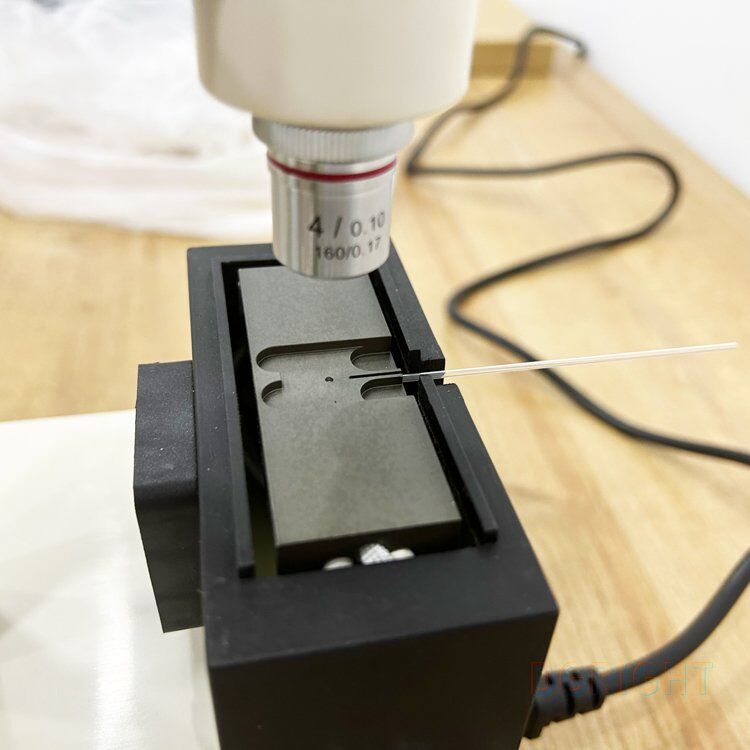

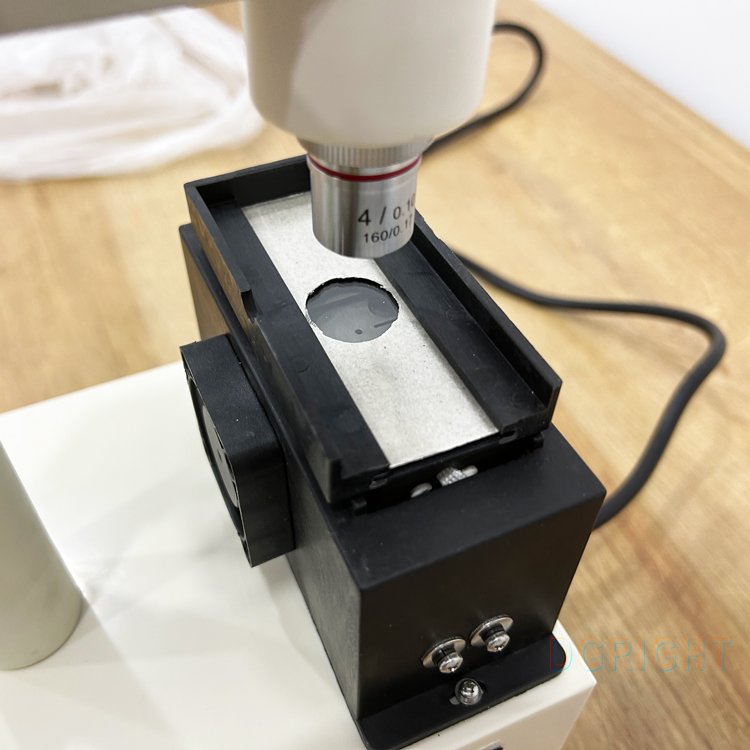

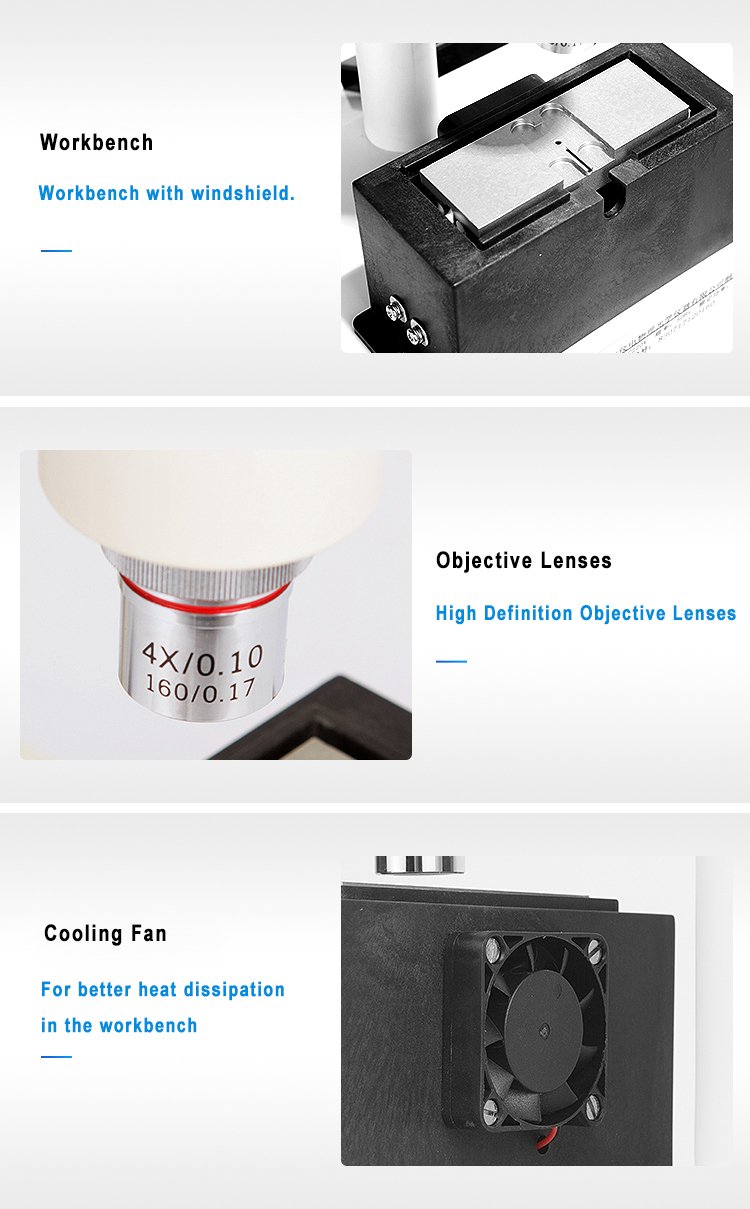

The instrument adopts the microscope observation method and can be used for both the capillary method and the slide-coverslip method (hot table method). SGW X-4A and SGW X-4B are equipped with a windshield to minimize the influence of the environment on the test results.

Product Parameters

Technical Parameters :

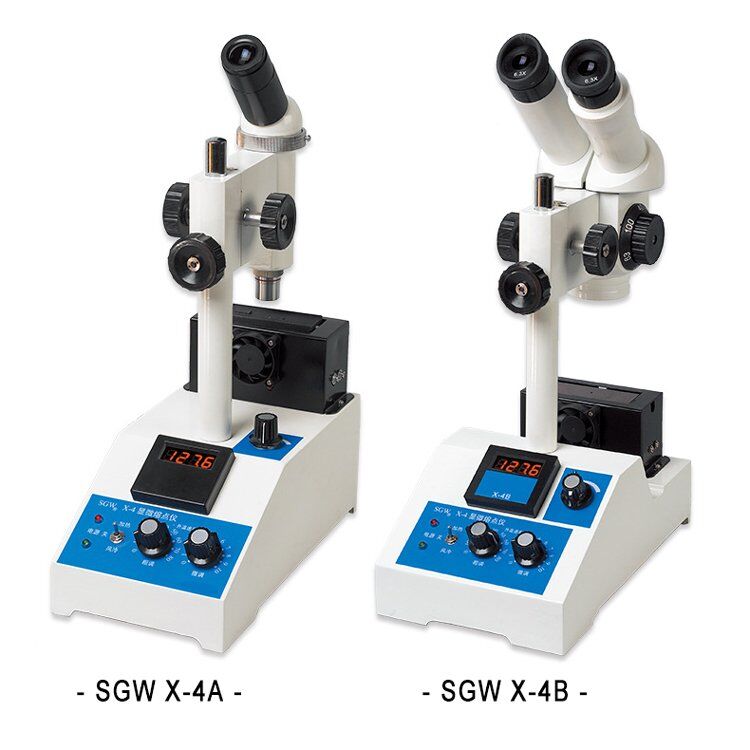

Model	SGW X-4A	SGW X-4B
Measuring Range	room~320℃	room~320℃
Measurement Methods	visual	visual
Measurement Mode	Capillary method, Hot bench method	Capillary method, Hot bench method
Minimum Value	0.1℃	0.1℃
Repeatability	≤200℃±1℃，>200℃±2℃	≤200℃±1℃，>200℃±2℃
Observation Mode	single-eye microscope	binocular stereomicroscope
Magnification	40x	40x-100x zoom
Power Supply	220V±22V，50Hz±1Hz	220V±22V，50Hz±1Hz
Instrument Size	215 x 140 x 395mm	269 x 160 x 435mm
Net Weight	3.6kg	4kg

Product Advantages

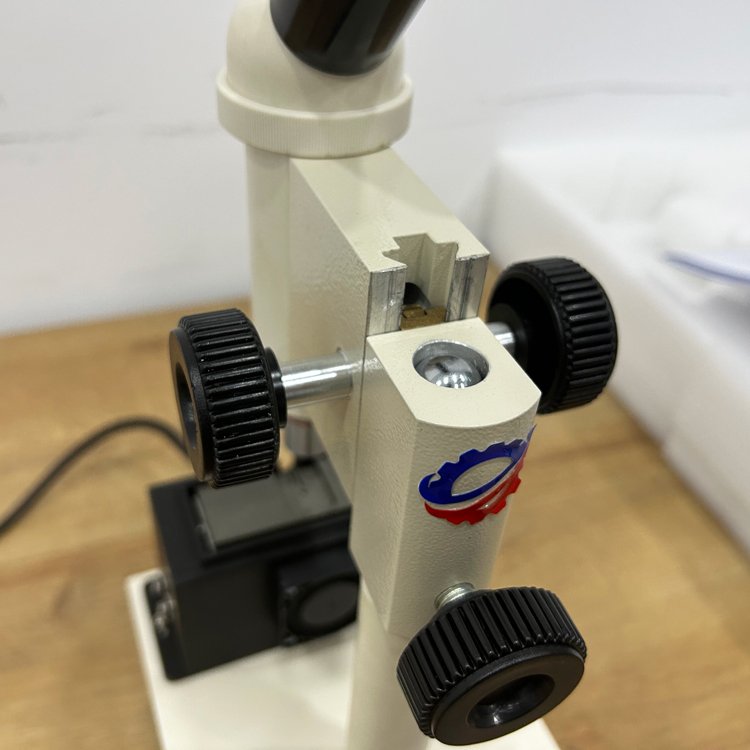

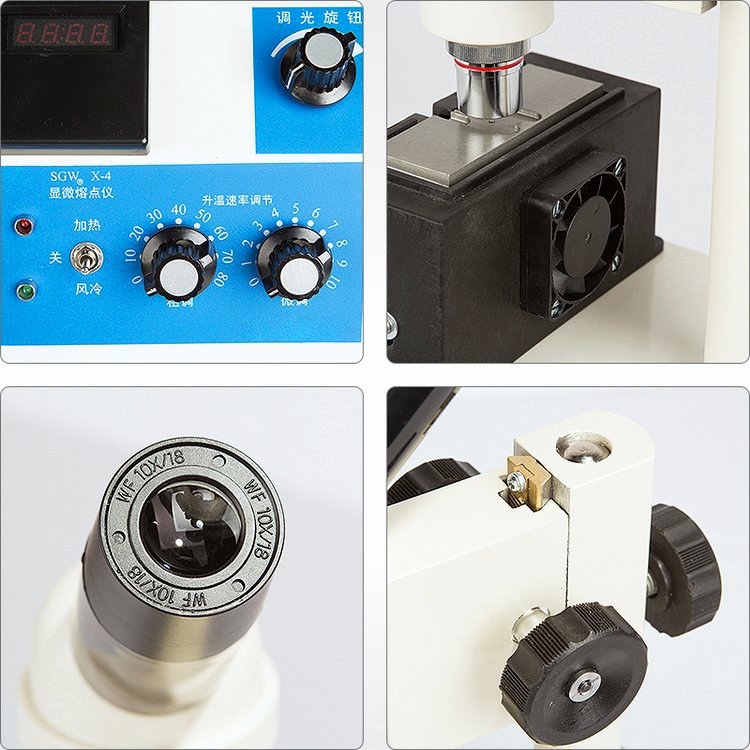

This instrument is a microscope, heating stage for the integration of the structure, temperature detector for the built-in type easy to use, the microscope is used to observe the sample heat reaction changes and the whole process of melting. The heating stage is heated by an electric wire with a fan, which can quickly cool down the temperature and can be used to measure the melting point by slide method or by capillary tube.
