RT-2522 Mask Flammability Tester

Category 12. PPE Testing Equipment

Additional information

Product Details：

Application:

It is used to test the burning performance of medical masks after contacting flame at a certain linear speed. It is a special test instrument for the flame retardant performance of medical masks.

Comply Standard:

GB 19083-2010、YY 0469-2011、GB 2626-2006、EN 136

Features:

The appearance of all stainless steel is used to prevent smoke.

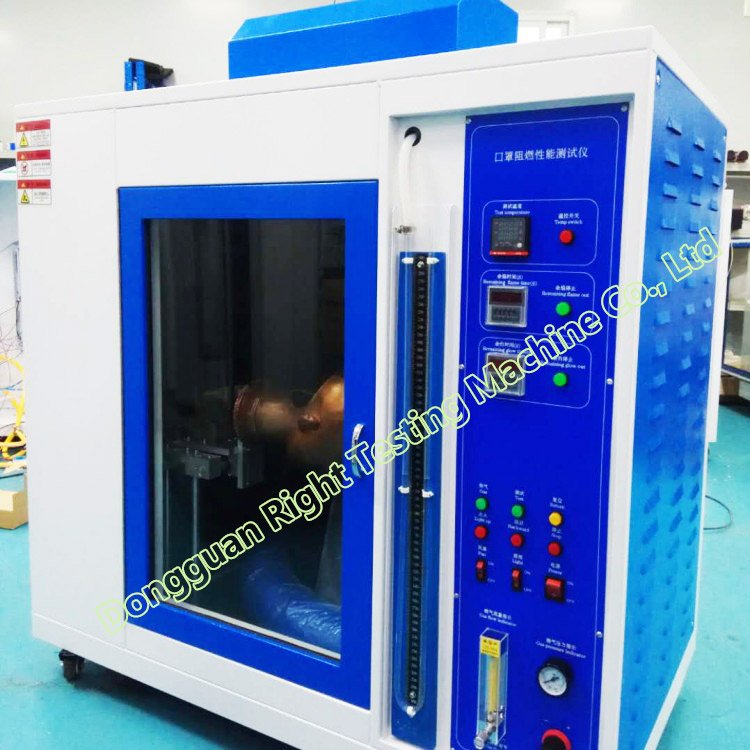

Using industrial color touch screen display control, durable, easy and simple operation.

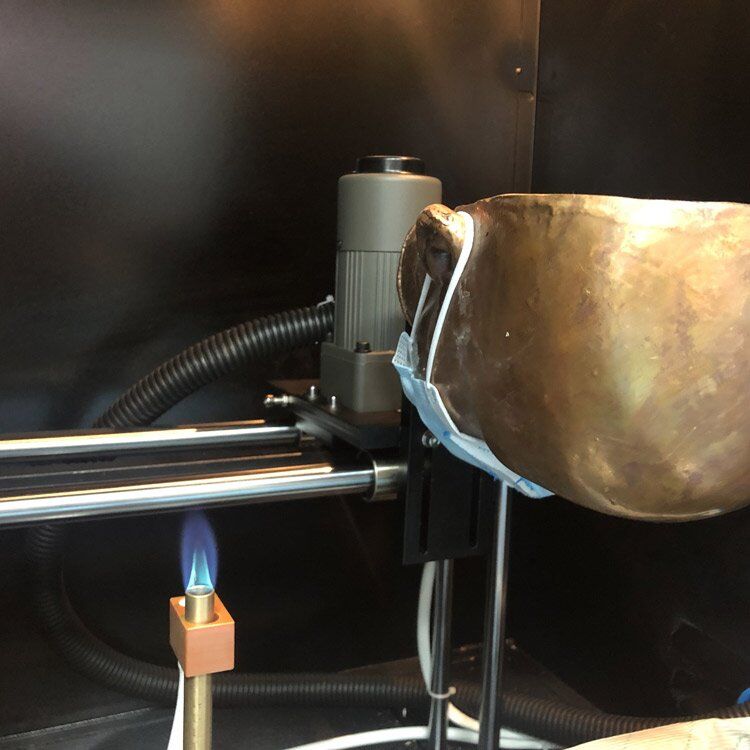

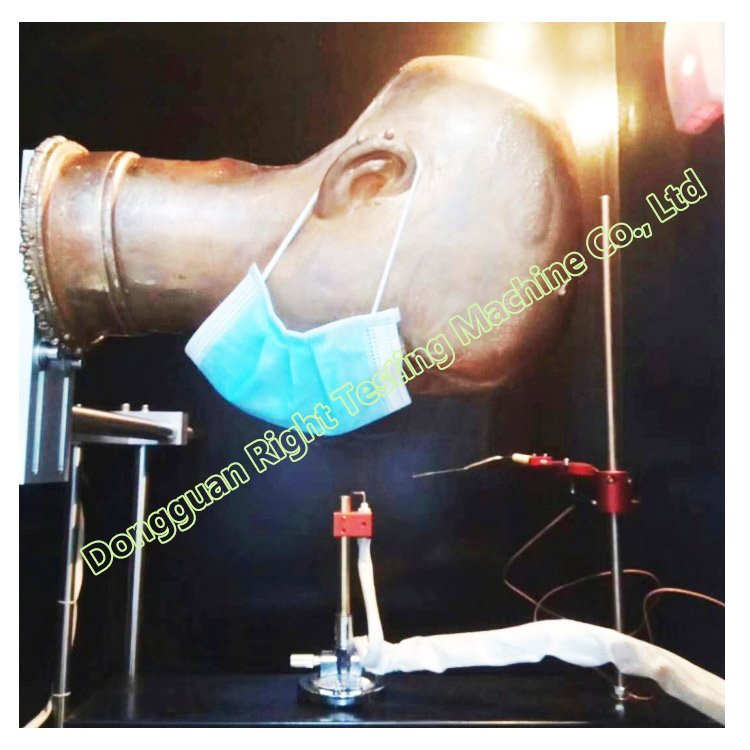

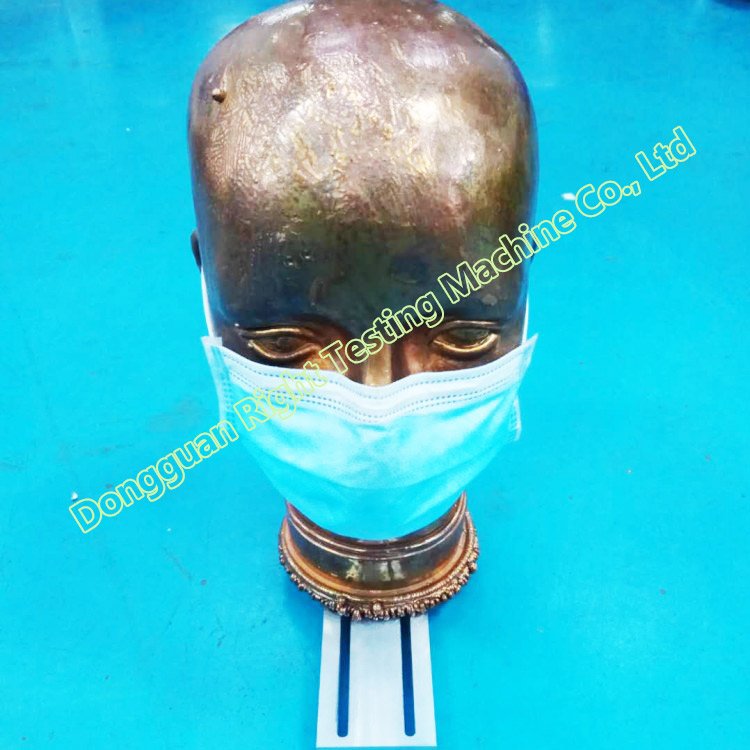

The mask fixture is a metal human head model, which can fully simulate the actual use state of the mask.
The burner is equipped with combustible gas interface such as propane (liquefied gas).
The height of the head mold is adjustable.
The burner is automatically positioned regularly.
The burning time and flame retardant time are automatically recorded, and digital display.
Equipped with flame temperature measurement probe, real-time temperature display.
Linear speed can be set: 30 ～ 99mm / s

Technical Parameter

Timing range	Continue flame time: 0.1-99.99s, accuracy 0.1s Smoldering time: 0.1-99.9s, accuracy 0.1s
Pre-heat time	1-60s
Flame height	40+/-4mm when ex-factory (can be adjustable)
Flame temperature measurement probe diameter	1.5mm
The temperature of the flame at a height of (20 ± 2) mm from the top of the burner	(800+/-50) ℃
The distance between the top of the burner and the lowest point of the mask	(20+/-2)mm
Thickness of head mold	2-3mm, flame resistance
Gas	Dimethylmethane gas a cylinder
Weight	About 30kg
Power	AC 220V 50Hz 50W
