RT-2538 Mask Filter Oscillation Test Chamber

Category 12. PPE Testing Equipment

Additional information

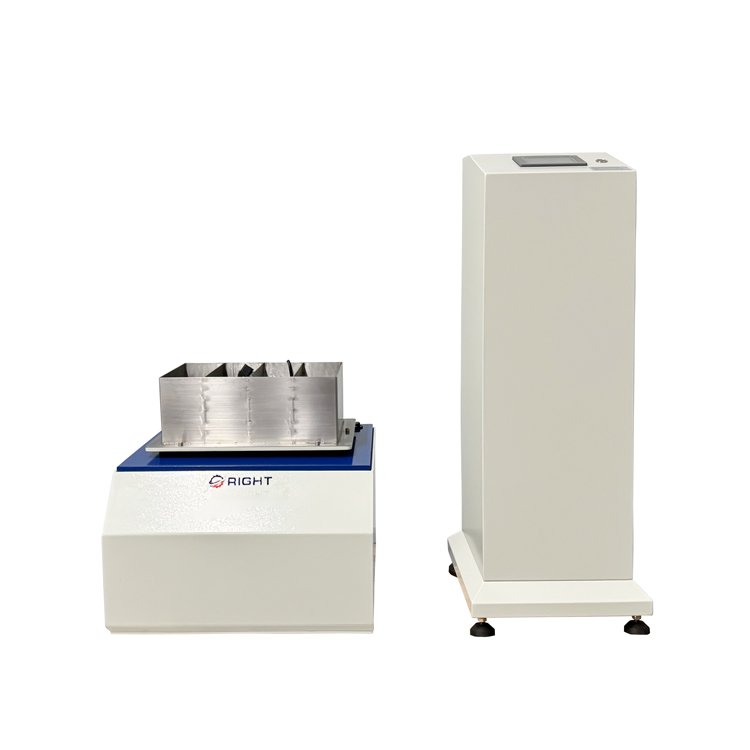

RT-2538 Mechanical Strength Oscillation Tester

The RT-2538 Mask Filter Parts Shock Tester, a pretreatment of respiratory and respiratory protective equipment, tests breathing resistance, filtration efficiency, and clogging before it occurs. Mechanical defects of filters pre-treated to meet the following test requirements are examined by providing a standard 20-minute mechanical pre-treatment and simulating rough use of the filter.

Product Details：

Comply Standard:

GB 2626 Respiratory protection equipment Self-priming filter anti-particulate respirator

EN 143 8.3 Mechanical Strength (M. S)

Features

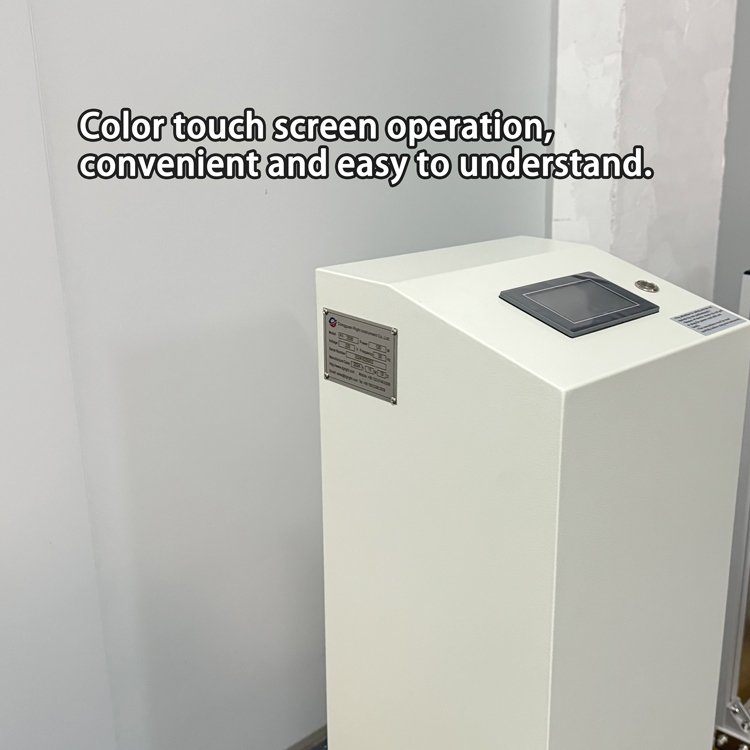

The instrument is operated by a color touch screen, which is convenient and easy to understand.
Users can set the required working mode according to their needs, and the instrument has a variety of options:

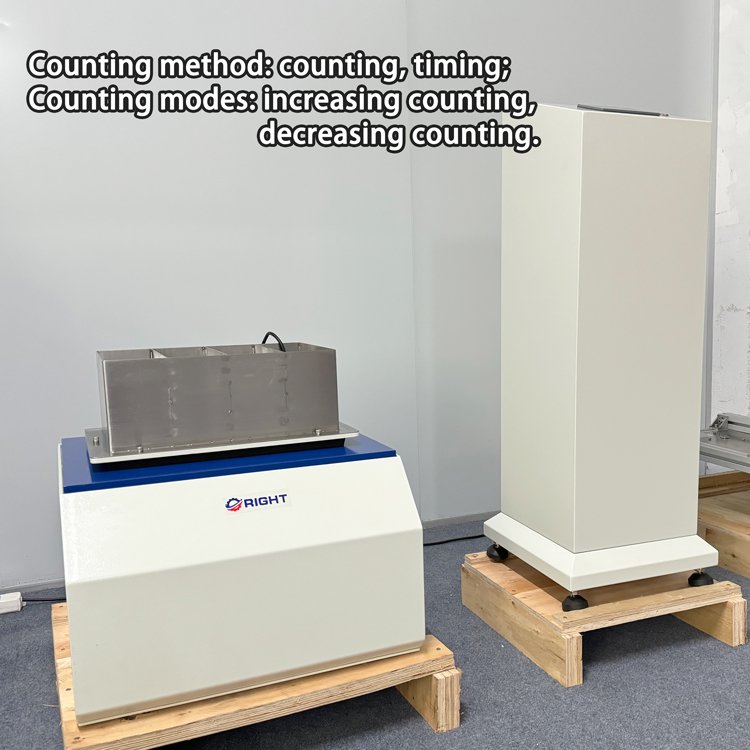

Counting method: times counting, time counting;

Counting mode: up counting, down counting.

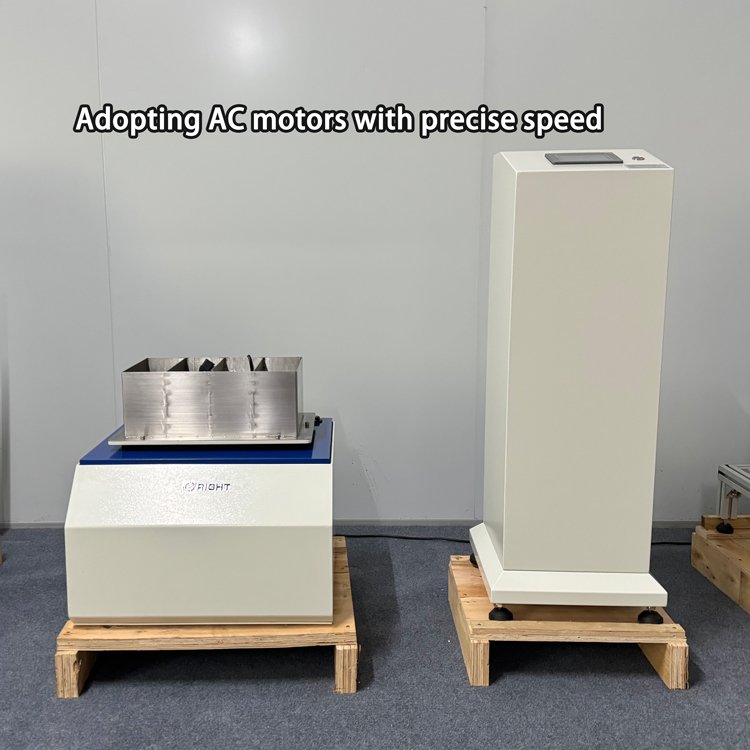

Adopt AC motor with precise speed.
Using 32-bit ARM processor, precise control.

Technical Parameters

Product Name	RT-2538 Mask Filter Oscillation Tester
The drop height of the vibrating box	20mm
Vibration box weight	> 10kg
Cam rotation frequency	100r/min
Vibration time	About 20min, can be set
Vibration times	about 2000 times, can be set
Dimensions	Oscillation box: 590×530×560mm Control box: 350×350×940mm
Weight	150kg

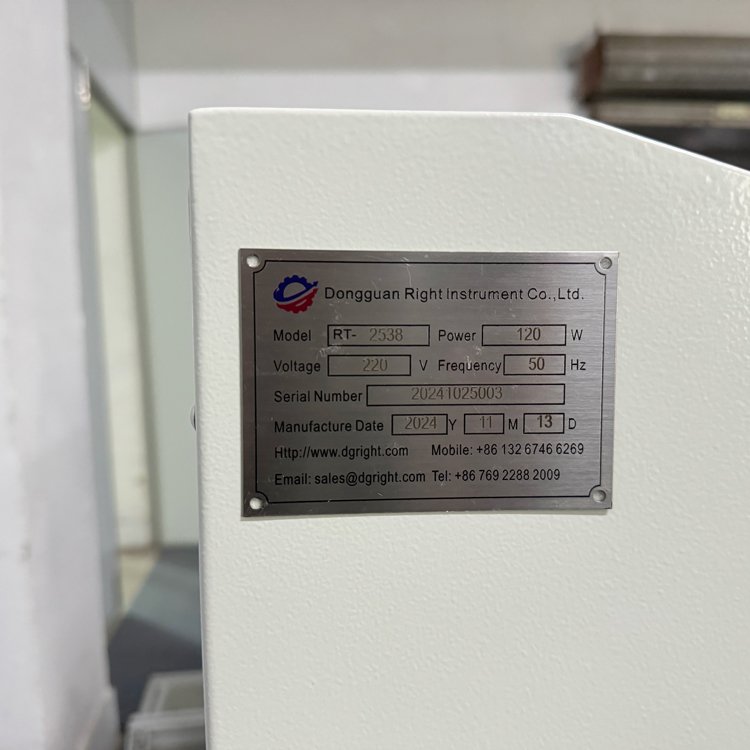

Power source	AC220V 50Hz 120W
