RT-1402 2.5D Manual Video Measuring System

Additional information

Product Details:

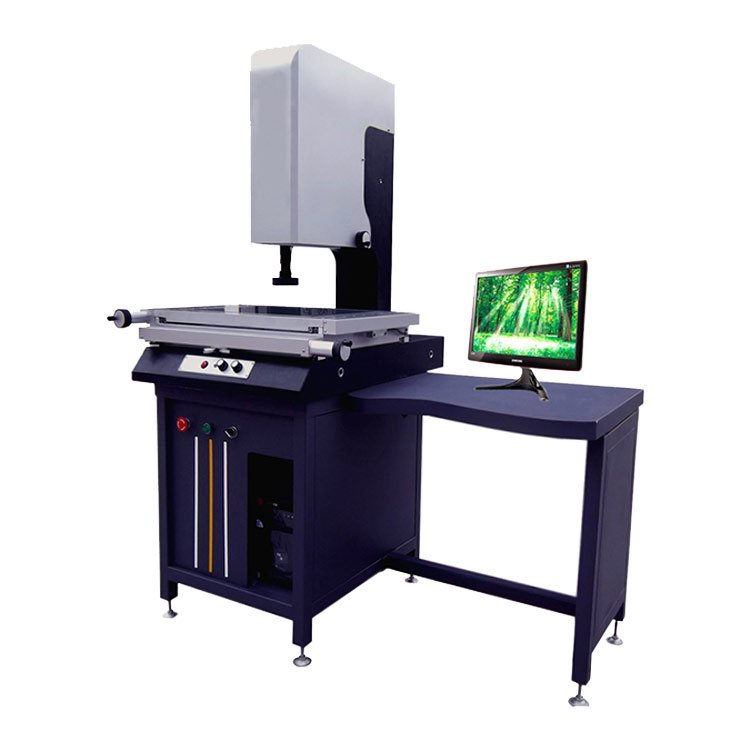

2.5D Manual Video Measuring System

Product description:

  • Be Applied to Mechanical ,,Electronic ,Plastic Fields etc.
  • Fashionable Shape With Stable Ark Pillar Granite Design.
  • Adjustable 4-division LED Illuminator controlled by panel or software
  • Obviously assistant laser position system
  • Powerful Measuring Software Quick Measuring Version
  • Function of Data Processing,Displaying,Input,Output,
  • With RS-232 Interface

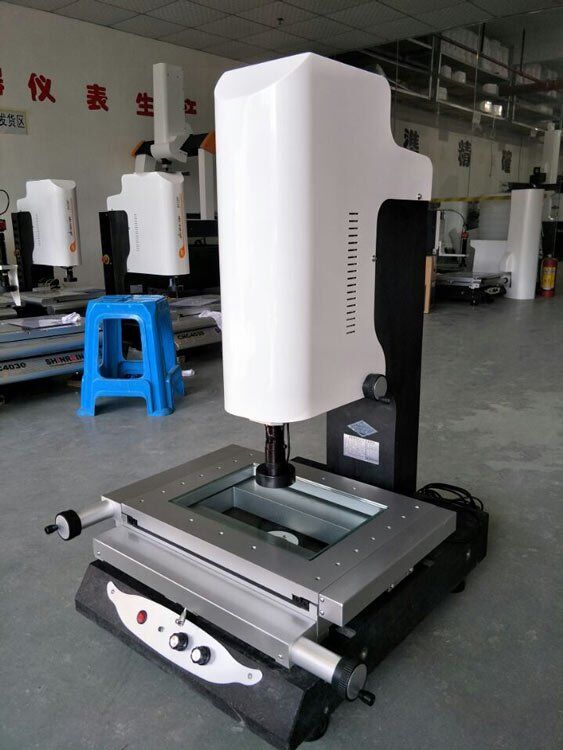

2.5D Manual Video Measuring System



Technical Parameter



Model 2020 3020 4030 5040 6050
Metal Table Size(mm) 470X470 570×470 710*610 910*710 1050*850
Glass Table Size(mm) 240X240 340×240 440×340 540*440 640*540
X,Y-axis Travel(mm) 200X200 300×200 400×300 500*400 600*500
Z-axis Travel(mm) 200 200 200 200 200
Net Weight(kg) 220 250 330 420 500
Dimension(mm) 670x510x900 670x510x900 880*610*900 980*800*900 1300*1100*900
Image measurement system camera SONY chip technology, color 1/3 “high-resolution CCD camera
Zoom lens 0.7-4.5X
Video magnification 18-120X or 36-240X
Object field of view 4-2.2mm
Working distance 75mm
Scale resolution 0.001mm
Display resolution: Can be controlled in the computer, the normal display of 4 digits, need more bits can be set
X,Y-axis Accuracy(um) ≤3+L/200



illumination Surface light source and transmission light source are LED, brightness adjustable
Power 220V 50HZ 30W



2.5D Manual Video Measuring System 2.5D Manual Video Measuring System 2.5D Manual Video Measuring System
