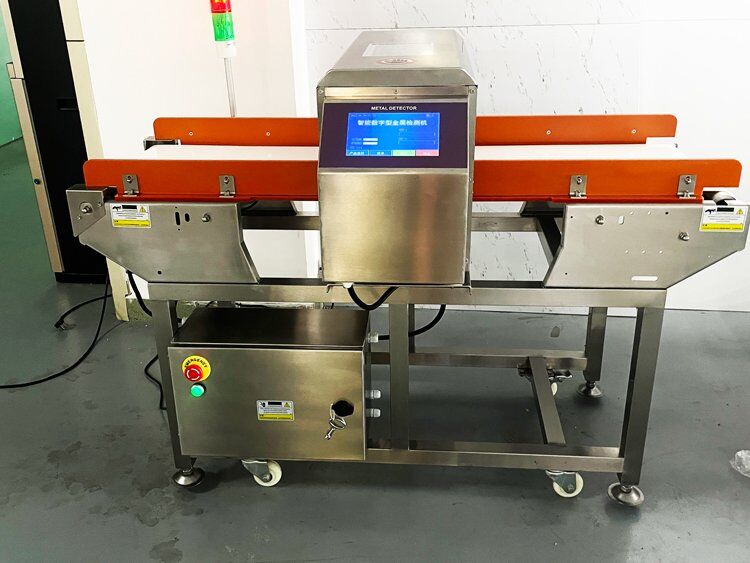

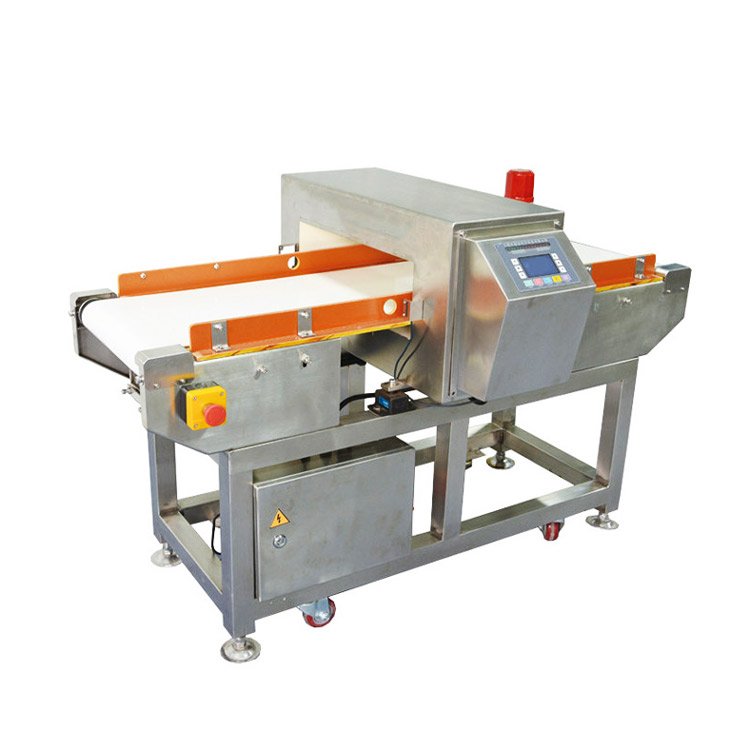

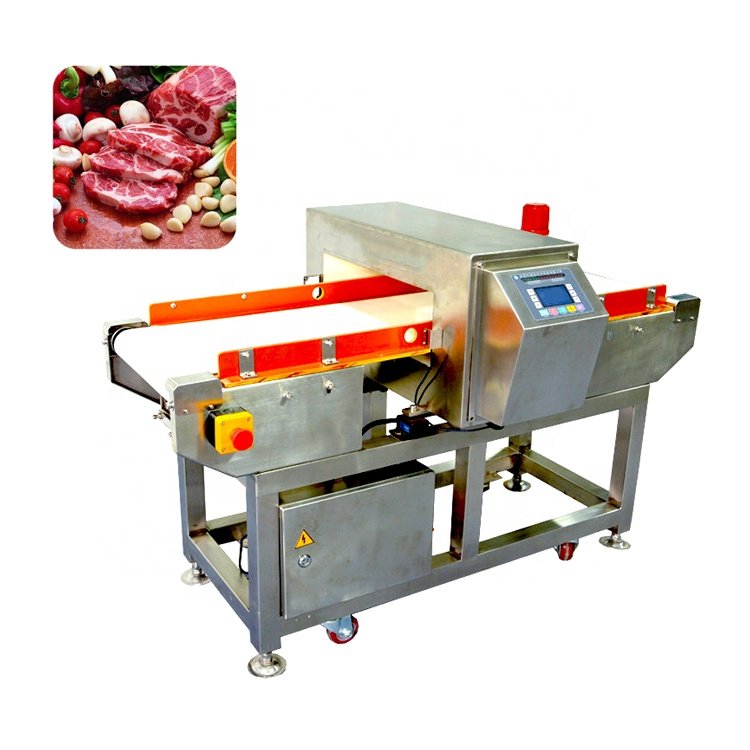

Be applicable to detect broken needles, tacks, ferrous, iron foreign bodies in textiles, garments, shoes, underwear, zippers, socks, beddings, toys, foods etc.
Be applicable to detect broken needles, tacks, ferrous, iron foreign bodies in textiles, garments, shoes, underwear, zippers, socks, beddings, toys, foods, etc.
Detect width:
|
400mm
|
||||||
Detect height:
|
100mm
|
120mm
|
150mm
|
200mm
|
250mm
|
300mm
|
400mm
|

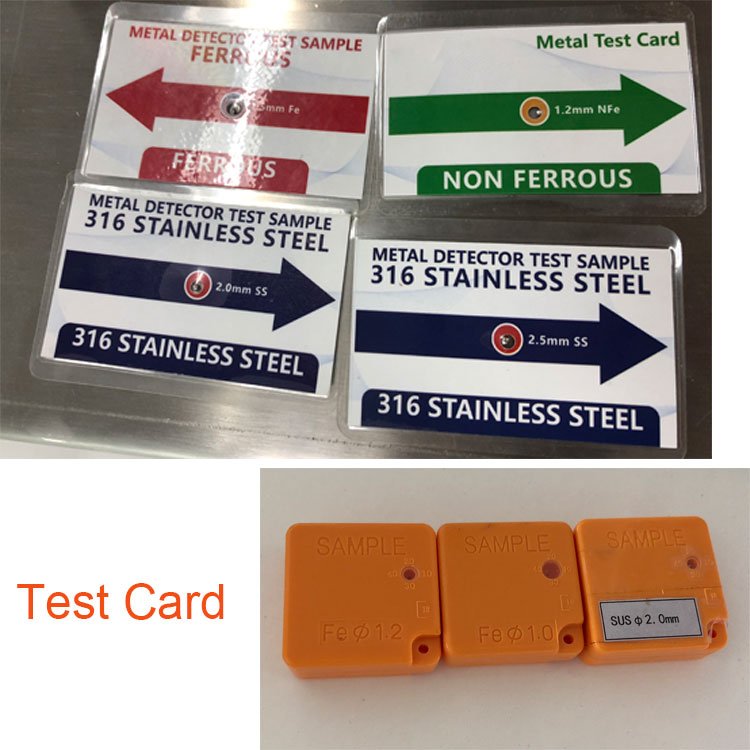

Detect sensitivity:
|
Fe Φ0.8mm
|
Fe Φ1.0mm
|
Fe Φ1.2mm
|
Fe Φ1.5mm
|
Fe Φ2.0mm
|
Fe Φ2.5mm
|
Fe Φ3.0mm
|
No-Fe Φ1.0mm
|
No-Fe Φ1.2mm
|
No-Fe Φ1.5mm
|
No-Fe Φ2.0mm
|
No-Fe Φ2.5mm
|
No-Fe Φ3.0mm
|
No-Fe Φ4.0mm
|
|
SUS Φ2.0mm
|
SUS Φ2.3mm
|
SUS Φ2.5mm
|
SUS Φ3.0mm
|
SUS Φ3.5mm
|
SUS Φ4.0mm
|
SUS Φ5.0mm
|
|
*Fe is iron, SUS is stainless steel
|

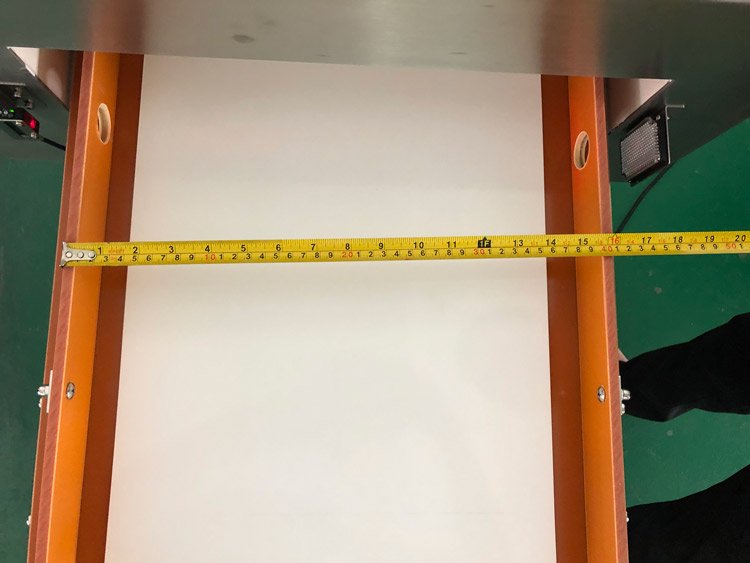

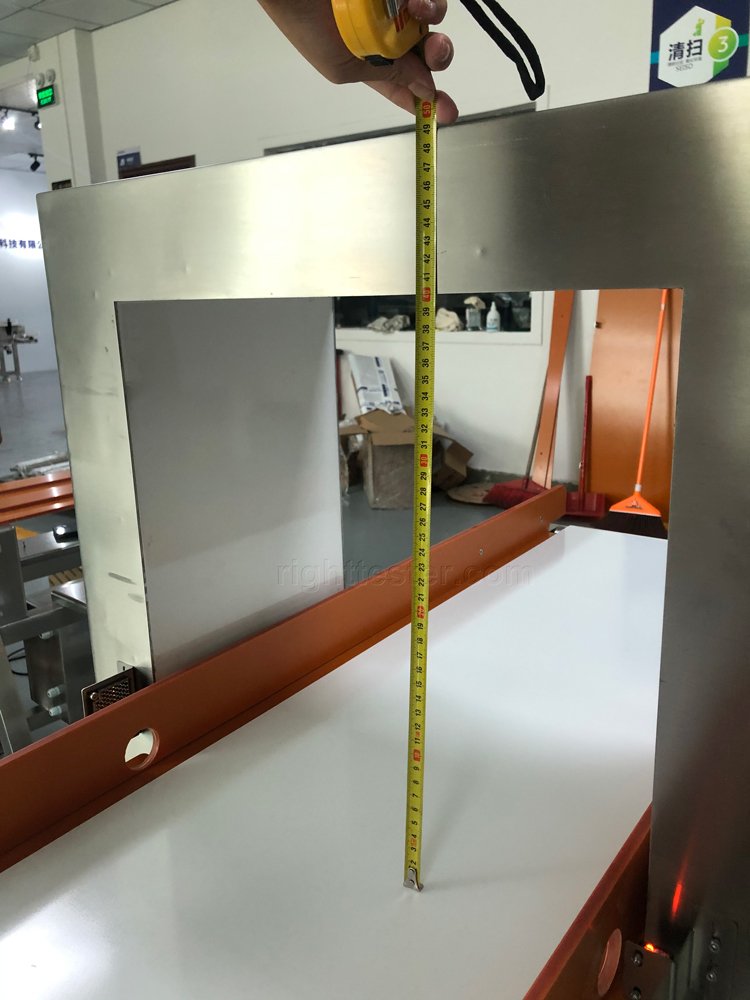

Inspection width
|

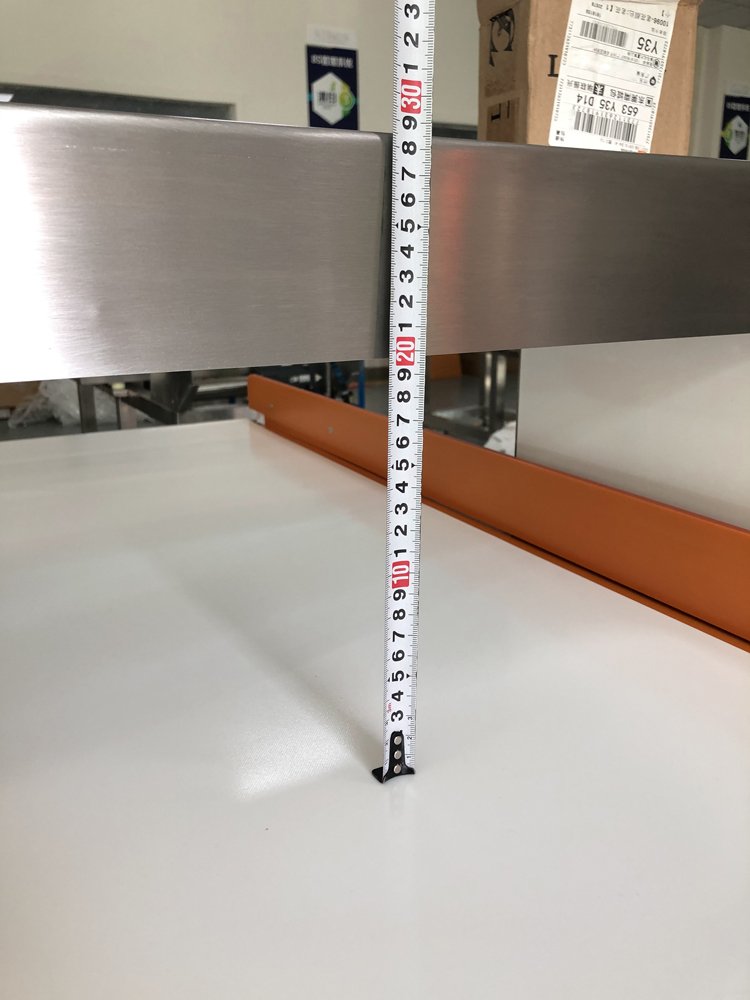

Inspection height
|
Inspection standard
|
Volume/mm
|
600mm
|
120mm
|
Fe≥Φ0.8mm
|
1580*980*890
|
160mm
|
Fe≥Φ1.0mm
|
1580*980*930
|
|
190mm
|
Fe≥Φ1.2mm
|
1580*980*960
|
|
230mm
|
Fe≥Φ1.5mm
|
1580*980*1000
|
Alarm
|
Automatic sound and light alarm stops operation when metal foreign matter is detected.
|
|
The machine material
|
The whole frame is made of 304 stainless steel, in line with HACCP, GMP, CAS and other standards
|
|

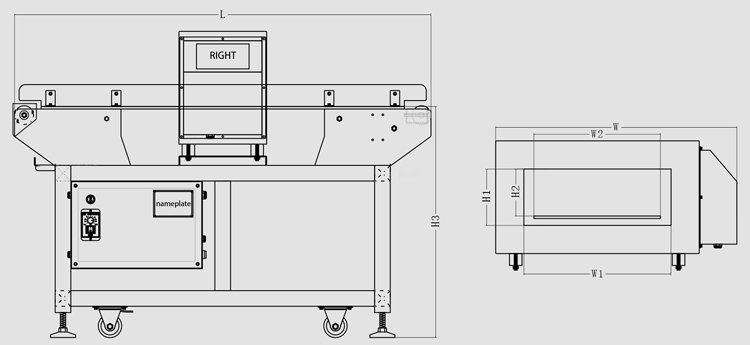

Machine size(mm)
|
1330×880×1000(L×W×H)
|
|
Power
|
220V 50Hz(or 110v)
|
|
Conveyor speed
|
28M/min(Can be equipped with speed regulating motor, speed adjustable)
|
|
Machine weight
|
bbr. 260KG
|
|
Belt height above ground
|
700mm(+150mm Adjustable foot cup)
|
|
Belt color
|
milk white(Food grade PU tape)
|
|
Product storage
|
Can store 100 products
|
|
Operation method
|
LCD display key operation
|
|
Removal method
|
Push rod, flap, air blowing optional
|
|
Running direction
|
left to right
|
|
Loading capacity
|
5KG (can be customized)
|
|
Language selection
|
Can switch between Chinese and English
|
|
Note:
The above sensitivity parameters are the test results when the machine is empty without environmental interference. The actual application will be slightly different due to the interference of the use environment and the composition of the detected object! Products packaged in aluminum foil cannot be detected.
|
1、Operating system adopts humanized, intelligent design, hd 7 inch touch screen, intuitive and convenient. The interface is easy to operate, it is convenient for staff to operate easily and intuitively, and effective information can be obtained without complex operation;
2、With one-button self-learning function, only according to the set program will be tested products through the detection channel once, can automatically set and remember product parameters accurately, without manual adjustment, operation and use is very simple;
3、With user access log and detection log data storage and display. The main interface can display the total number of products, qualified and defective product data, date calendar, log can be traced;
4、Unique detection signal strength display, can clearly reflect the product contains metal foreign body signal size;
5、With more than 200 kinds of product parameters memory function, can store more than 200 kinds of product detection parameters, once set storage, the next use can be called, no need to adjust again. Be able to change products quickly on the production line.
6、With automatic fault detection and prompt function, can effectively eliminate invalid detection;
7、Available in Chinese and English and other languages;
8、The probe part is made of unique materials and production process, with high sensitivity, strong anti-interference ability and stable performance. The service cycle can reach more than 10 years.
9、The whole machine adopts modular design and assembly, simple assembly, debugging and disassembly, convenient maintenance, low maintenance cost;
10、It can be customized according to the size, weight and product characteristics of the tested products to achieve the detection effect;
11、According to the characteristics of the production line can be customized with a variety of supporting automatic conveying, removing and control systems, to achieve seamless docking with the production line, improve production efficiency;
12、Waterproof, dust-proof, shock-proof and explosion-proof can be customized according to the environment and safety requirements of the production site to ensure the safety of the equipment.
