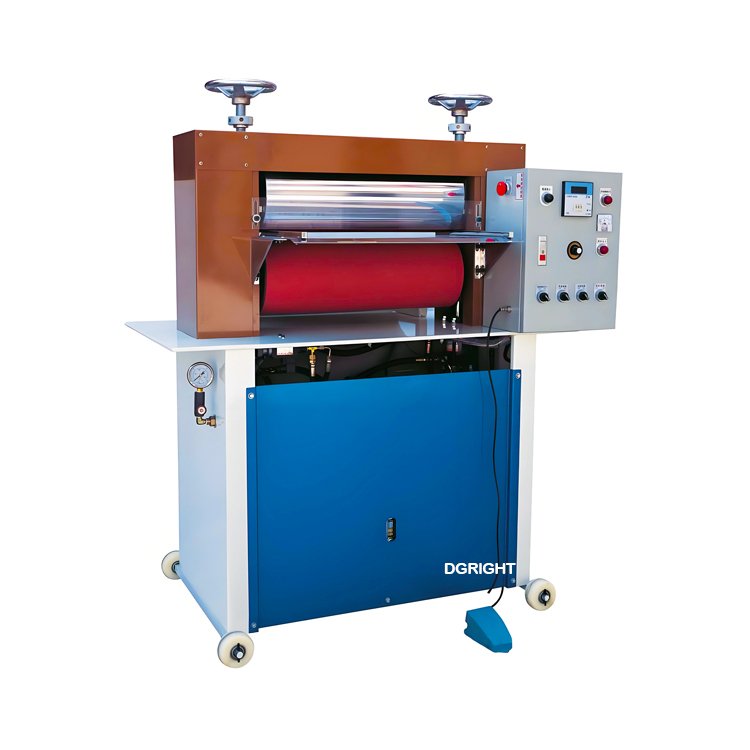

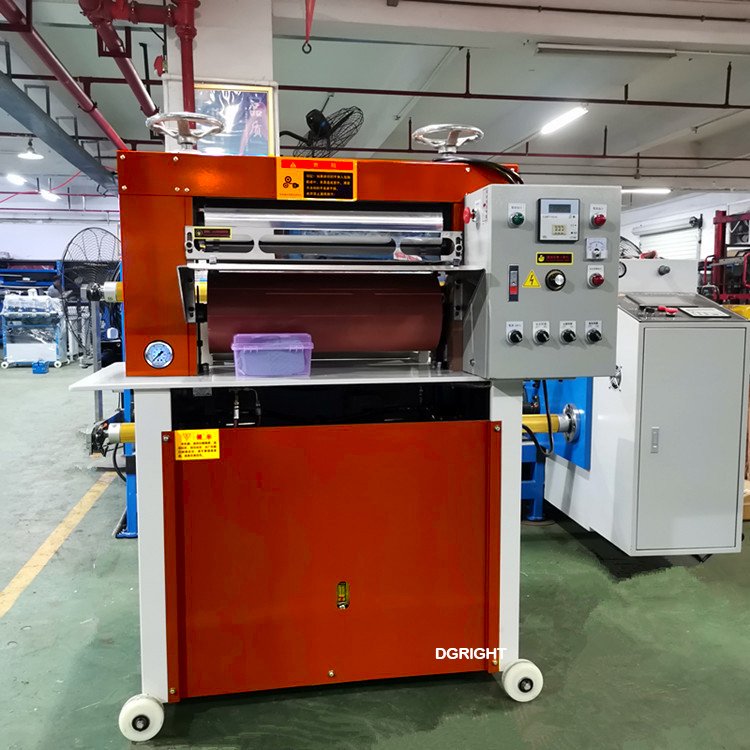

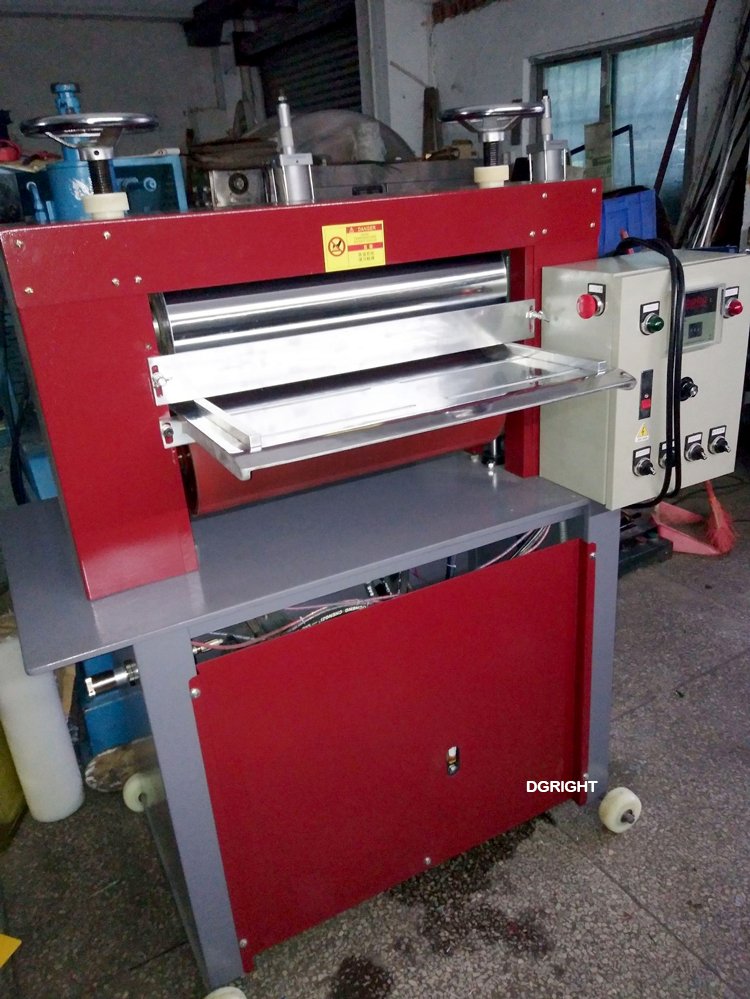

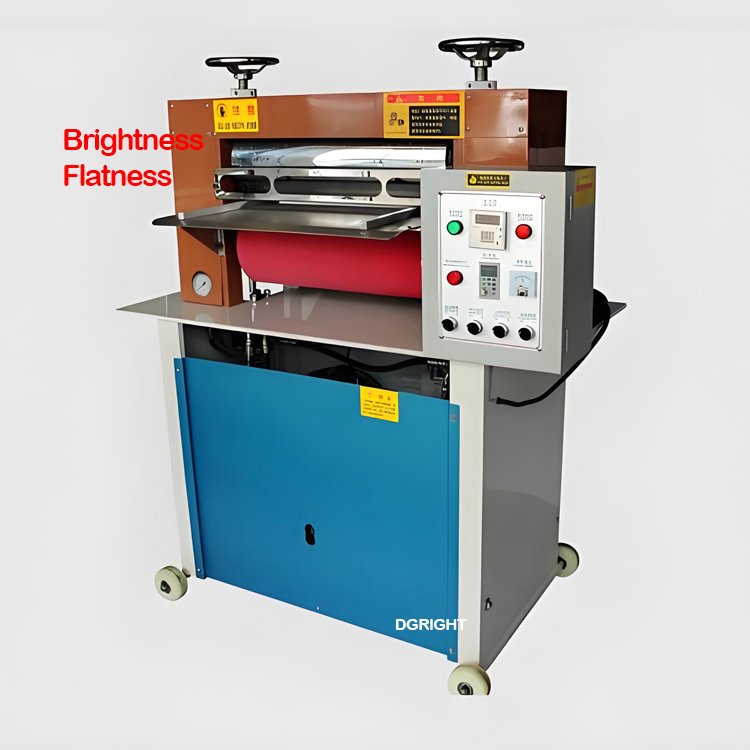

This machine is heated by the upper roller and the lower roller is soft rubber, the leather material is pressed through to make the leather material surface glossy, flat, can choose oil pressure or pneumatic type. The use of built-in heating tube, fast and even heating, can improve the quality and work efficiency, suitable for men and women belts, purses, wallets, shoes and so on.
Product Name
|
Laboratory Calendering Machine For Leather
|
Model
|
RT-851A
|
Functions
|
Leather gloss/ flatting/ laminating/ Ironing
|
Speed
|
0.5m/min (frequency conversion)
|

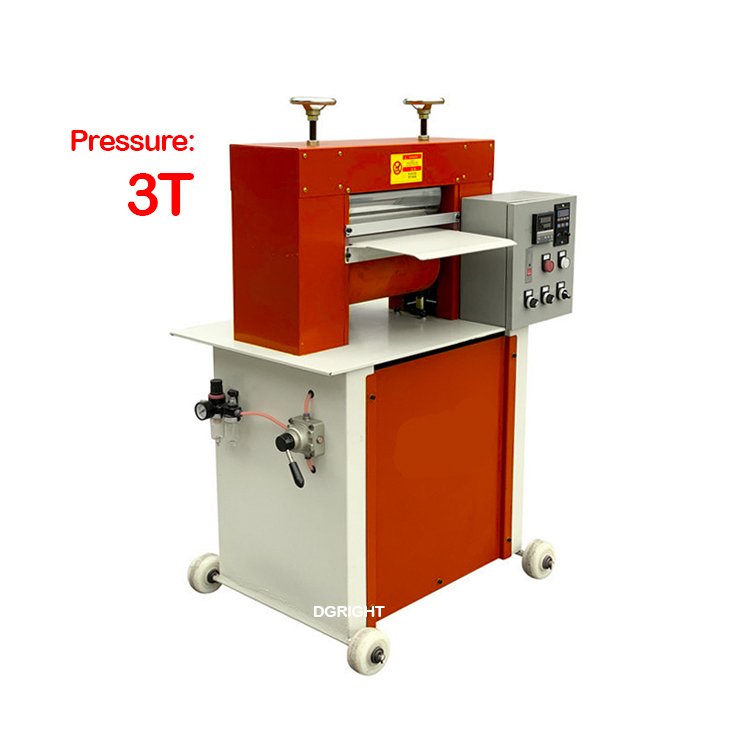

Pressure
|
3T (adjutable)
|
Heating
|
Maximum temperature 200°C
|
Thickness
|
10mm
|
Rolls Diameter
|
215mm
|

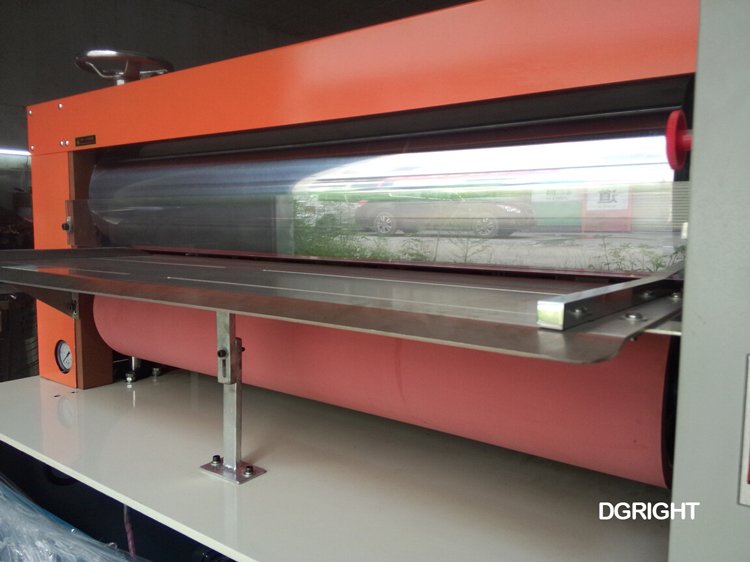

Upper Roller
|
Stainless steel mirror chrome plated heating roller;
|
Lower Roller
|
Specialty Rubber Roller
|

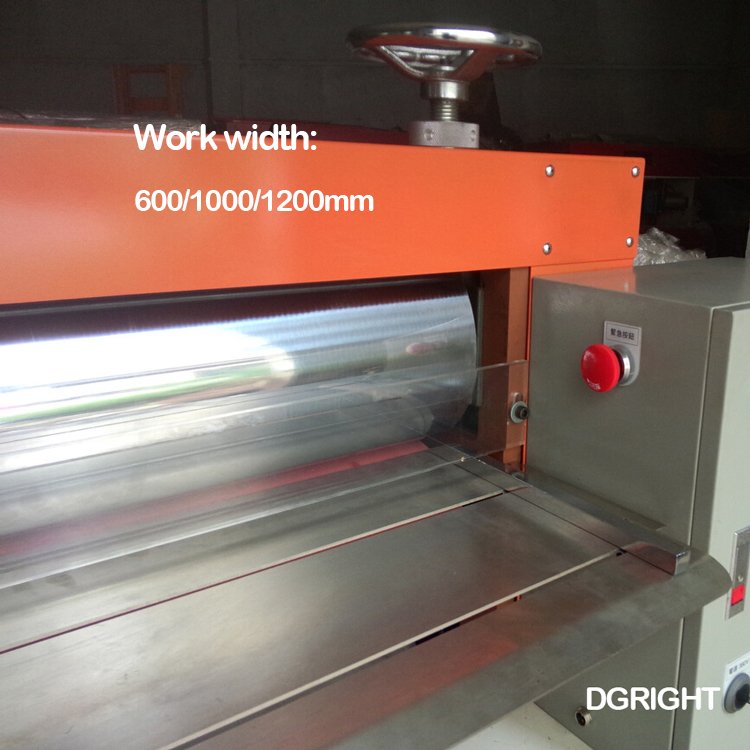

Working Width
|
600 / 1000/ 1200mm
|
Power
|
380V/50HZ
|
1. Frequency converter speed regulation: 1-60m/min, generally about 20 Hz, please do not arbitrarily adjust the parameters of the frequency converter;
2. Leather is suitable at 50-100 degrees; depending on the leather, choose a different temperature. Set the temperature and wait for the machine to warm up.
3. The upper roller should be kept bright and cleaned regularly.

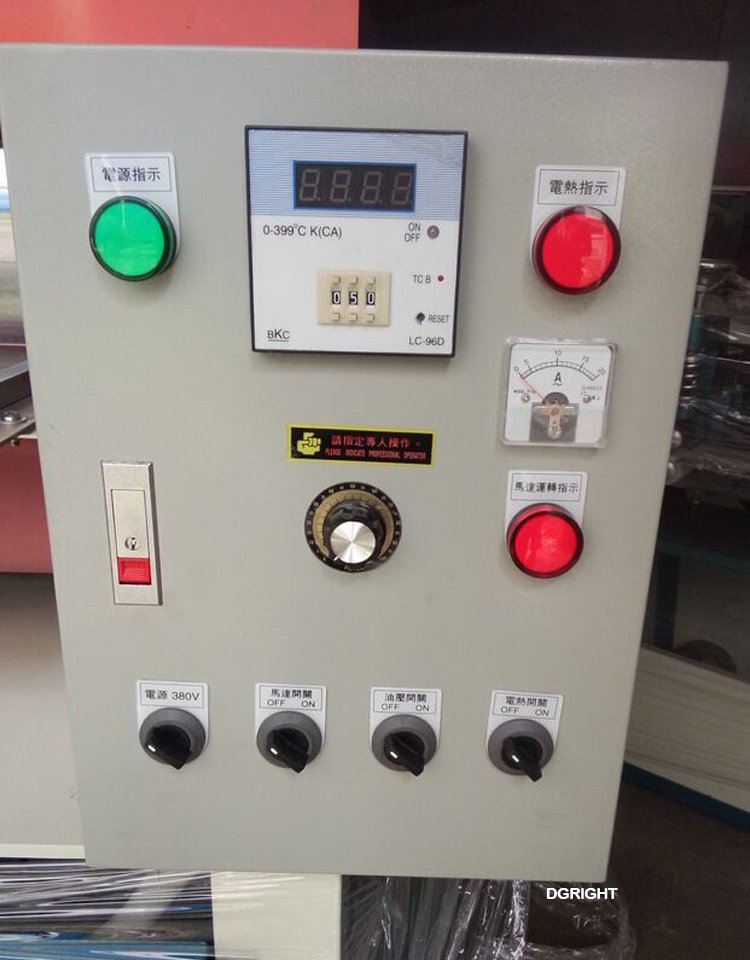

4. The electrical box phase sequence protection: If the machine does not work after the power is on, please invert the phase and retry.

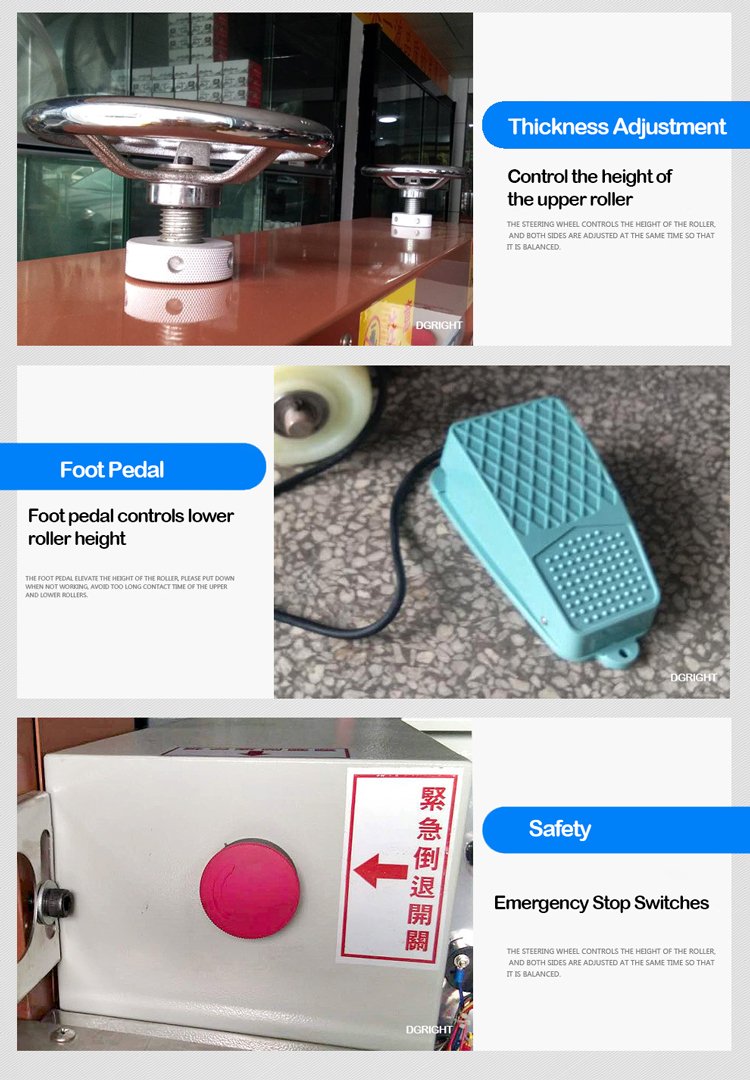

5. The foot pedal controls the height of the lower roller, please put it down when not working to avoid the upper and lower rollers contacting for too long.
6. Emergency stop switch: when there is an emergency, the knob is twisted in the direction of the instruction and then popped out, the roller will turn back counterclockwise.
7. The turntable controls the height of the upper roller, both sides are adjusted at the same time to make it balanced.
8. When shutting down the machine, don’t turn off the power switch directly. You should turn off the electric heat switch first to let the machine cool down, and then turn off the power switch and other switches after it cools down.
9. There are two motors: a feeding motor and a hydraulic motor. 10. Pressure display on the left side of the machine
