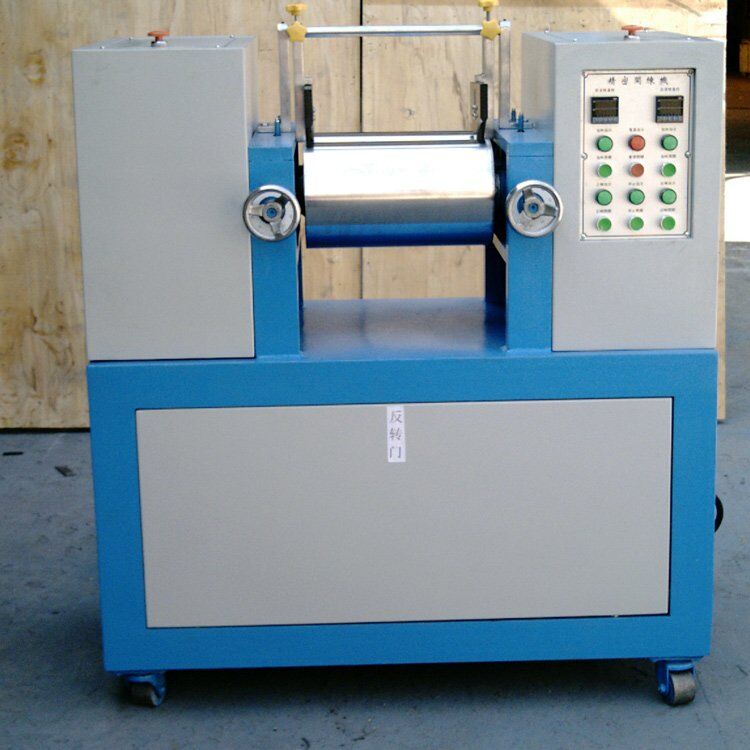

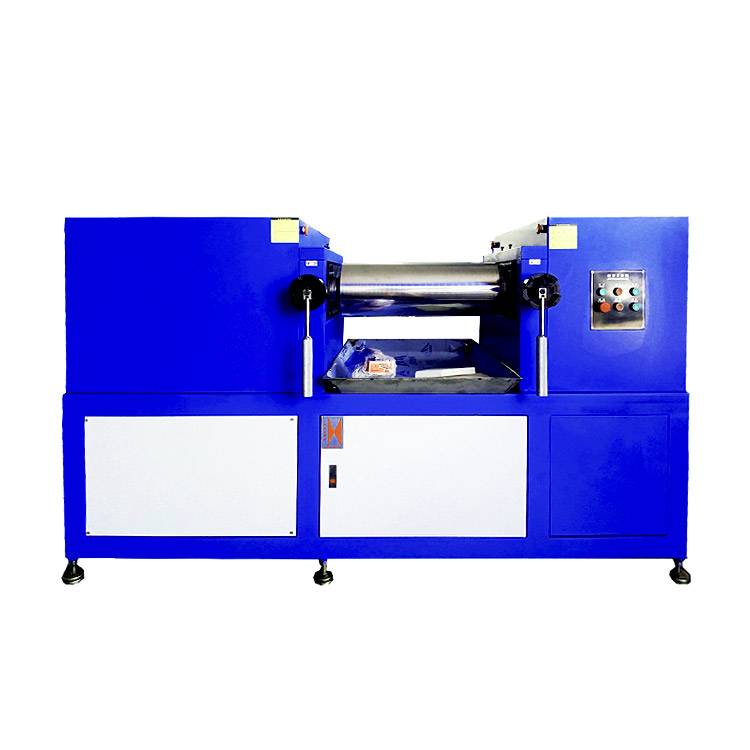

Lab Oil Heating Two Roll Mill ( 12 inch or above)
Laboratory Plastic Rubber Raw Materials Open Type Mixer Oil Heating Two Roll Mill Mixing Machine
The open mixing mill has three types:
1. Water cooling (for rubber)
2. Electric heating (for plastic). It is also necessary to different rubber materials.
3. Oil heating, the temperature is more precise (For mass production, the roller is 12 inch or above)
The open mixing mill can directly make pellets, powders, and sheets into tablets, users also can mix different colors and different types of pellets.
Product Details：
Product Application
The machine is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials’s physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.
| RT-110E Heating Two Roll Mill | |||
| Technical Parameters | Applicable materials | PP, PE, PVC, rubber, etc. | |
| Mixing capacity | 1-3kgs or designated | ||
| Roller diameter | 200mm | ||
| Roller width | 520mm | ||
| Roller gap | 0.1 – 5mm (adjustable) | ||
| Speed of roller | 0 – 30r/min (self-adjust for speed and speed ratio) | ||
| Temperature range of the roller | room temperature – 250°C | ||
| Temperature control accuracy | ±1°C | ||
| Heating mode | Oil heating | ||
| Safety device | protective cover, safety lever, reverse door, emergency stop button | ||
| Motor | 1HP (2 Sets) | ||
| Power supply | 350V/50Hz/3 phases or Customerized | ||
Main Features
1) Oil heating, the temperature is more precise
2) Taiwan Bangcheng motor, low noise, stable operation and good durability
3) A lot safety devices guarantees the operator’s safety

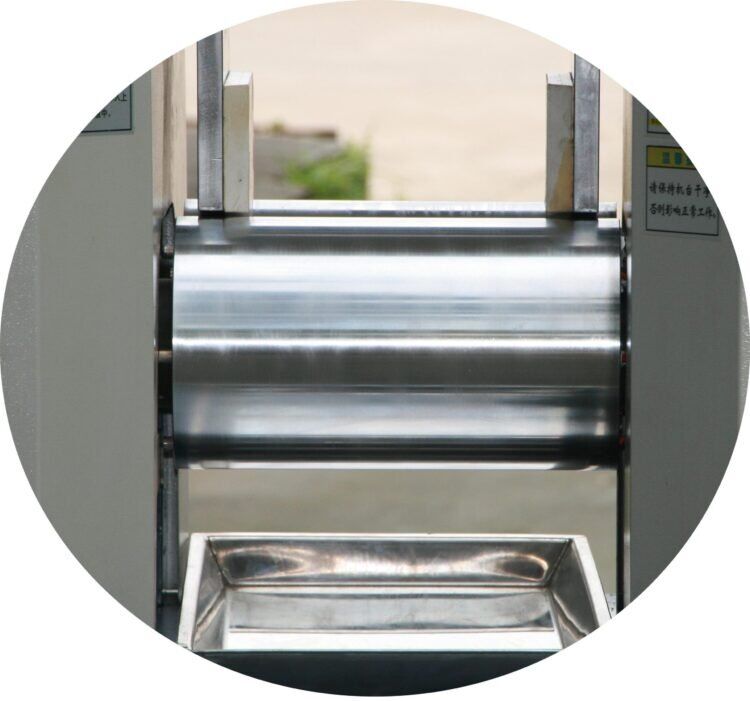

4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer’s specifical requirements.
