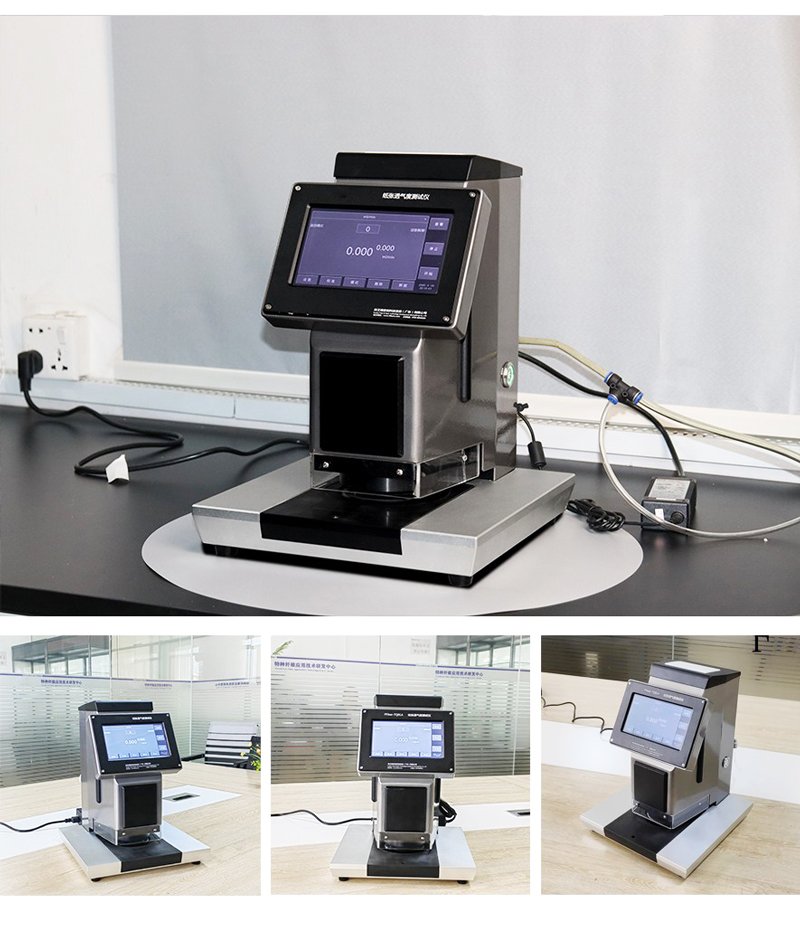

The RT-439B Paper Air Permeability Tester is mainly developed and produced according to the relevant standards of GB/T 458 Determination of Air Permeability of Paper and Paperboard. This machine adopts a positive pressure outflow testing method and positive pressure outflow measurement technology, which can automatically match universal testing standards covering a measurement range of 0.003-100 μm/Pa s. It provides a wide range and high-efficiency gas permeability detection for various industrial materials with high, medium, and low gas barrier properties.

Scope of Application



1. Applicable for: determination of air permeability of industrial paper, packaging printing paper, cigarette paper, packaging paper, and high permeability paper;

2. Applicable for: determination of air permeability of waterproof materials such as battery separators and plastic films;

3. Applicable to the determination of air permeability of composite materials such as textiles, non-woven fabrics, glass fibers, mineral fibers, etc;

4. Applicable to the determination of air permeability of industrial materials such as electrical insulation materials, refractory materials, insulation materials, thermal insulation materials, corrosion-resistant materials, flame retardant materials, and building materials.



Testing principle

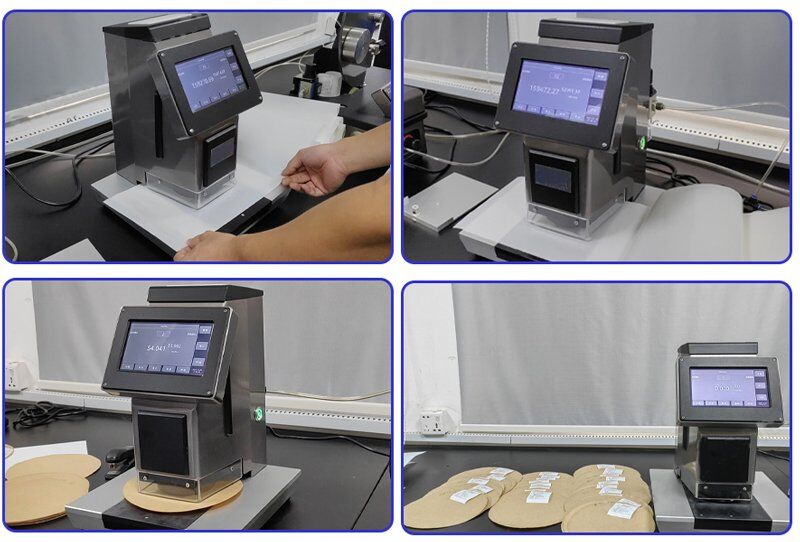

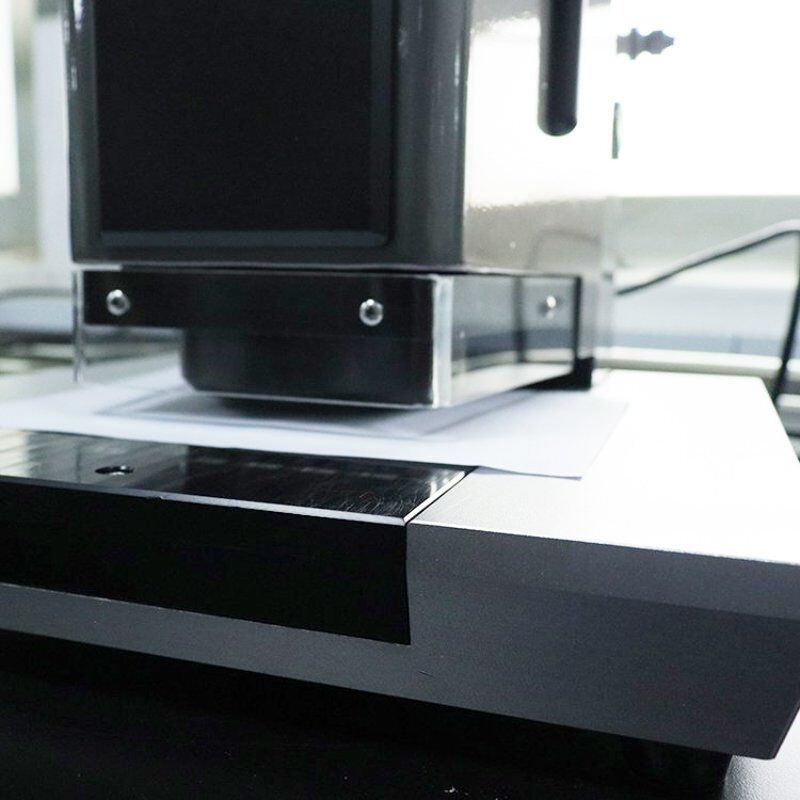

Place the sample in the measurement area. The measurement begins when the sensor senses the sample or presses the start button. The measuring head automatically stops contacting the paper’s surface at a constant standard pressure. The air flow meter starts measuring within a preset time, and then the sample is released and can be moved to another location. Automatic measurement programs can prevent errors caused by manual operations.

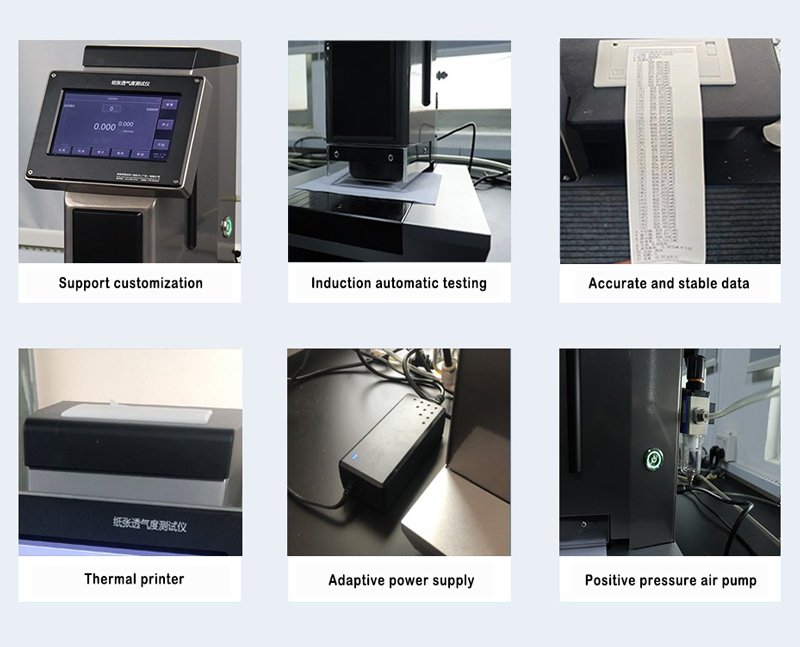

Core Advantages



1. Develop the “3-second prediction” technology, which predicts the final result through short-term data fitting and is suitable for rapid sampling on production lines.

2. Full touch design in both Chinese and English, 7-inch high-definition screen + graphical user interface.

3. Beginners can start in 5 minutes, reducing training time by 70%.

4. Cooperate with third-party testing agencies to provide one-stop services of “testing certification rectification”.

5. The equipment’s lifespan has been extended to 10 years, and maintenance costs have been reduced by 40%.



Product Features



1. Basic function: Automatically switch between various testing standards, such as differential pressure, isobaric pressure, positive pressure testing, etc.

2. Measurable parameters: air permeability (ml/min), air resistance (Pa · s/m).

3. Hardware configuration: Precision sensor (within ± 1% error)

4. Multi-material compatibility: Develop an adjustable pressure difference range (0.1- 50kPa) to support extreme testing requirements for ultra-thin paper (such as cigarette paper) and high-barrier materials (such as medical dialysis paper).

5. Intelligent upgrade system: the industry’s first “self check and self calibration” function, reducing 90% of operational errors.

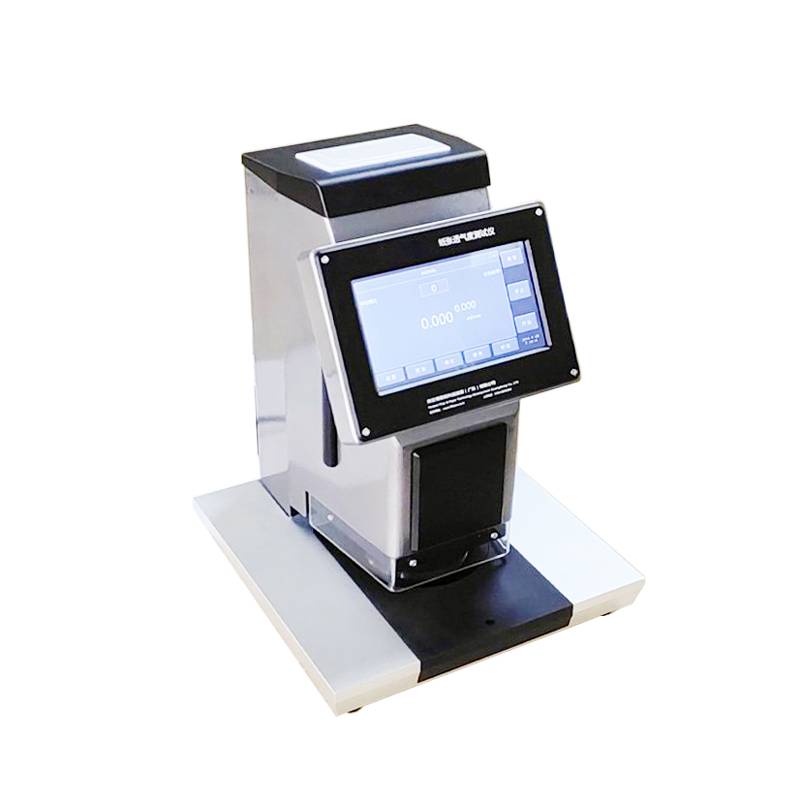

Machine Structure

Model	RT-329B
Test air pressure	20.0 kPa
Measurement range	0.003-100 μm/Pa.s
	2-40,000 s(Gurly)
	0.3-8800ml/min (Bendtsen)
	0.2-1400 SU（Sheffield）
Reading display	0.001 μm/Pa.s

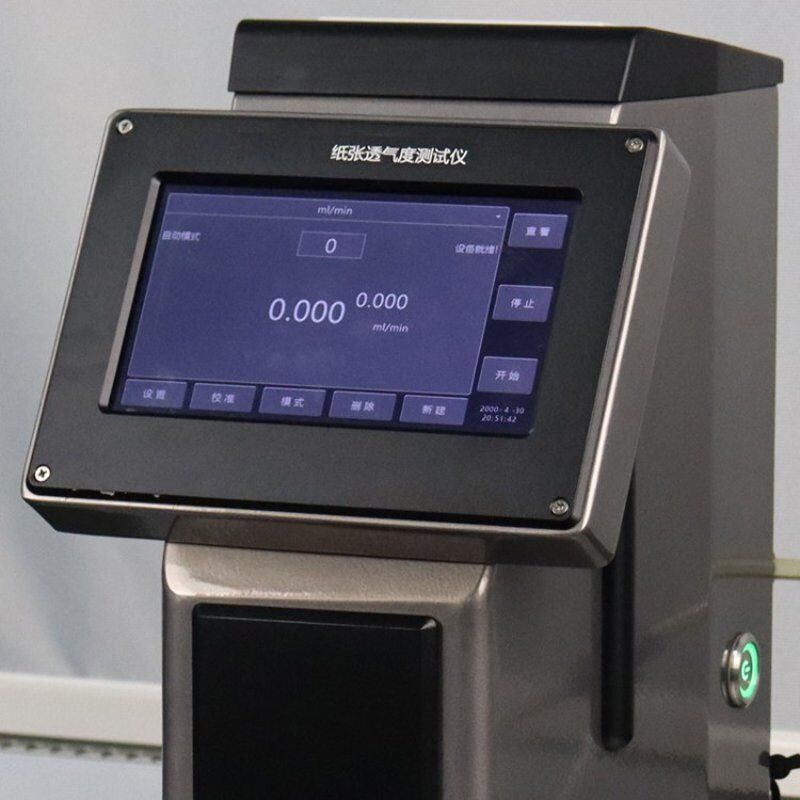

Monitor	7.0-inch color touch screen
Maximum throat depth	110mm
Measurement time	2-10 seconds adjustable
Clamping pressure	1MPa
Test pressure	20kPa
Test area	50cm2
Unit selection	μm/Pa s ,s(Gurly), ml/min (Bendtsen), SU（Sheffield）
Test results	breathability, maximum value, minimum value, average value, standard deviation
Test mode	automatic test mode & manual test mode switching
Power supply	AC 220V ± 10V 50Hz
Weight	25kg
