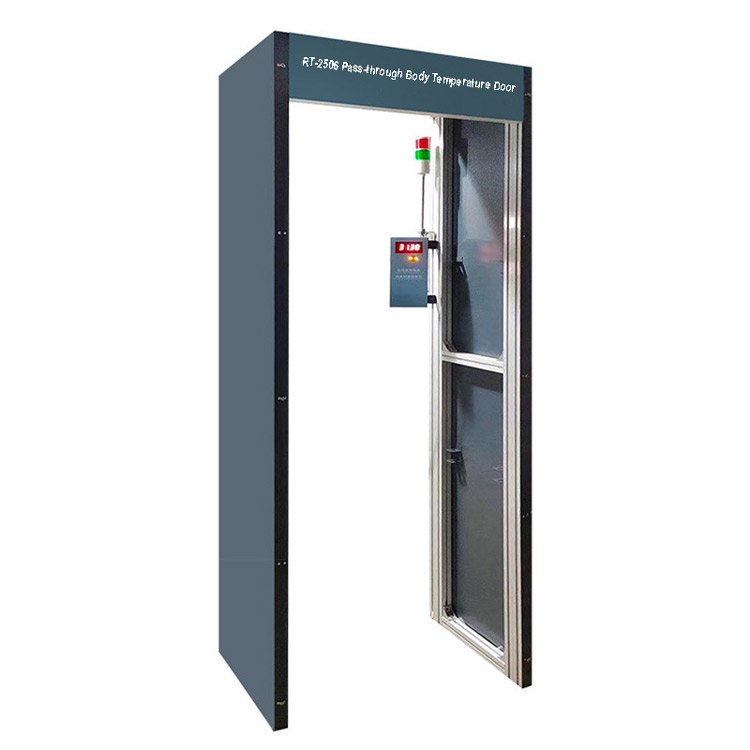

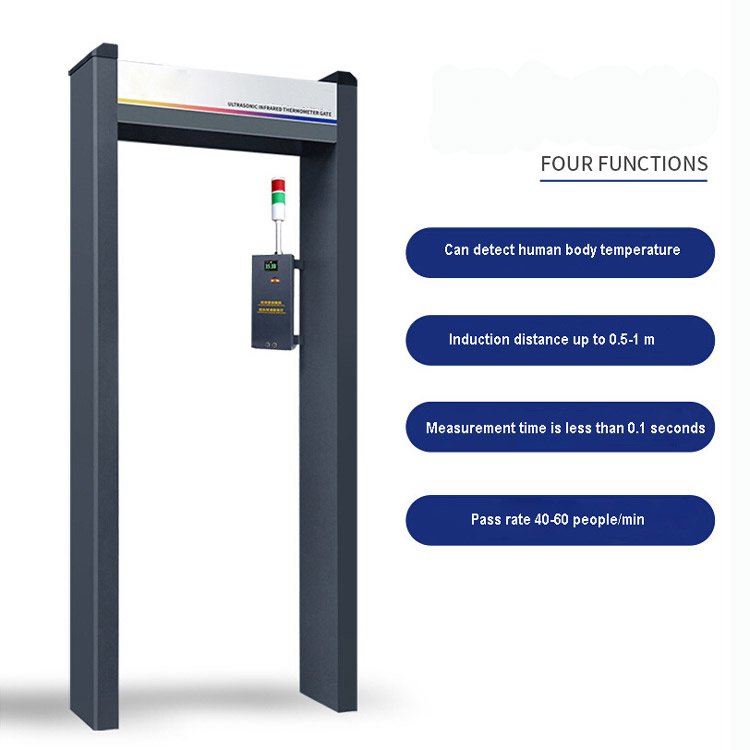

RT-2506 Infrared Human Body Temperature Detection Door
Product Details：
Products description:
The body temperature detection door adopts high precision infrared temperature sensor, the induction distance can reach 0.5-1 meters, has the high precision and the high resolution, to the environment and the sunlight immunity.At room temperature, the measurement error was ±0.5℃ and the resolution was 0.02℃.The initial temperature is set at 37.3℃ (adjustable). The actual body temperature detected will be displayed when the detection door works, and the alarm will be given if it exceeds 37.3℃. The ambient temperature of the site will be displayed when no one passes through.
Non-contact initial screening for abnormal body temperature, fast detection speed, can prevent personnel contact with cross-infection.It has a 7-inch LCD screen, which can display the information of measuring temperature, alarm temperature, alarm times, number of people passing through, compensation parameters and so on.
Application place:
Railway station, bus station, subway station, hospital, stadium, factory, office building, large – scale activities and other public places
Product features:
1. The detection accuracy of this product can be more accurate to two decimal places (one decimal place in general market)
2. The height of the probe can be adjusted up and down to meet people of different heights
3. Easy to install, buy immediately to use
Technical parameters：
| Response time/ Probe time | 0.1S/0.5S-1.5S |
| Measure Range | 30℃~42℃ |
| Temperature Measure Accuracy | ±0.5℃ |
| Repeated accuracy | ±0.2℃ |
| Temperature sensor module | MELEXIS |
| Measure Position and Distance | Forehead, Wrist / 5~15cm |
| Display Screen | 7 inch colour touch screen |

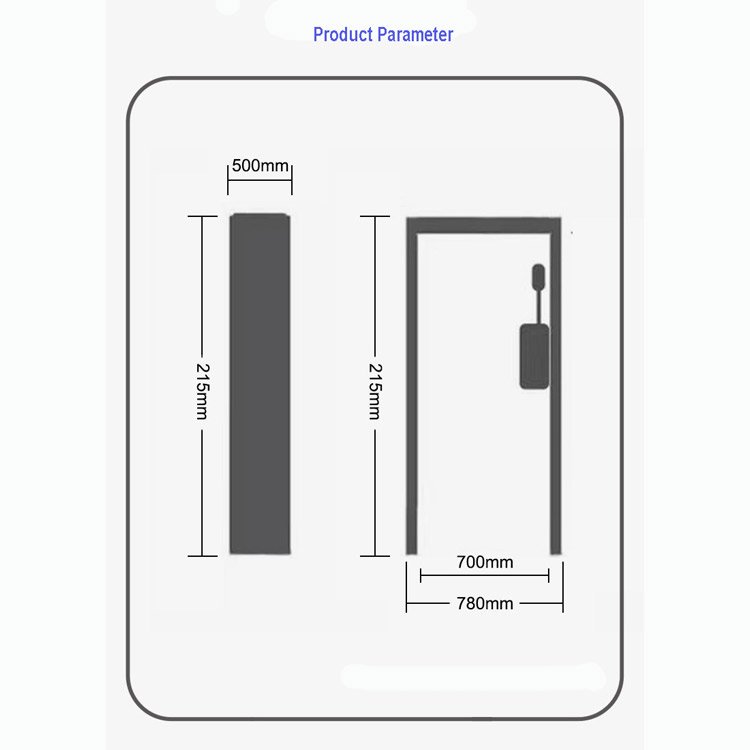

| Frame Dimension | 1950*700*500mm (H*W*D) |
| Channel Dimension | 2150*780*500mm (H*W*D) |
| Power | 110~240V |
Features:

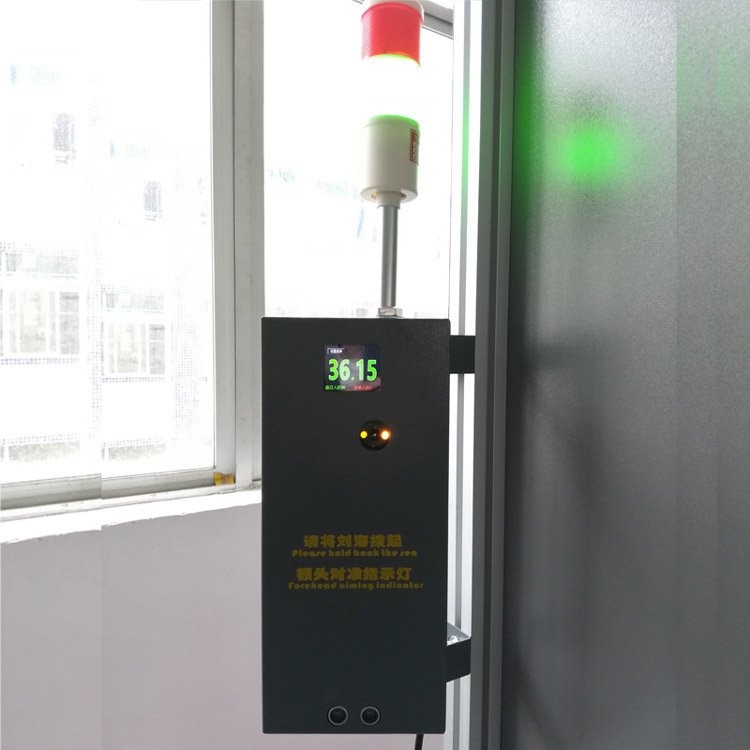

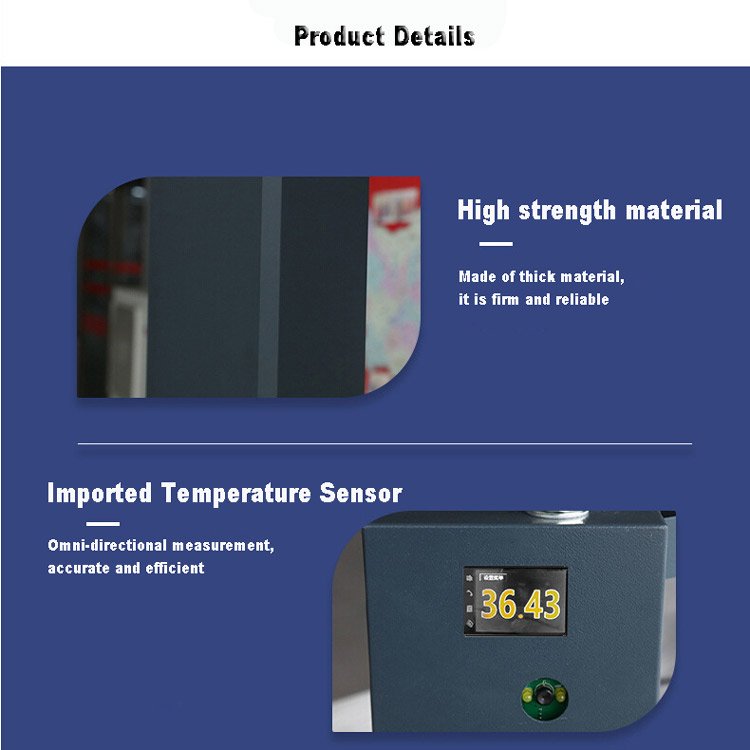

- Sensing probe: imported infrared probe;
- High pass rate: measure the palm, back of the hand, or forehead;
- Prevention of missed inspection: The product design conforms to ergonomics, which can ensure that the inspected person cannot escape the probe and avoid inspection; When a person passes, the temperature of the human body will be automatically broadcasted. When the humanbody reaches a fever temperature (37.3 ℃), it will automatically alarm;
- Detection accuracy: The detection result can be accurate to one digit after the decimal point.
- Temperature error atnormal room temperature ±0.1 ℃;
- System function: After the test is completed, there are reminder and voice readings, there is alarm and voicereadings when the temperature is high;

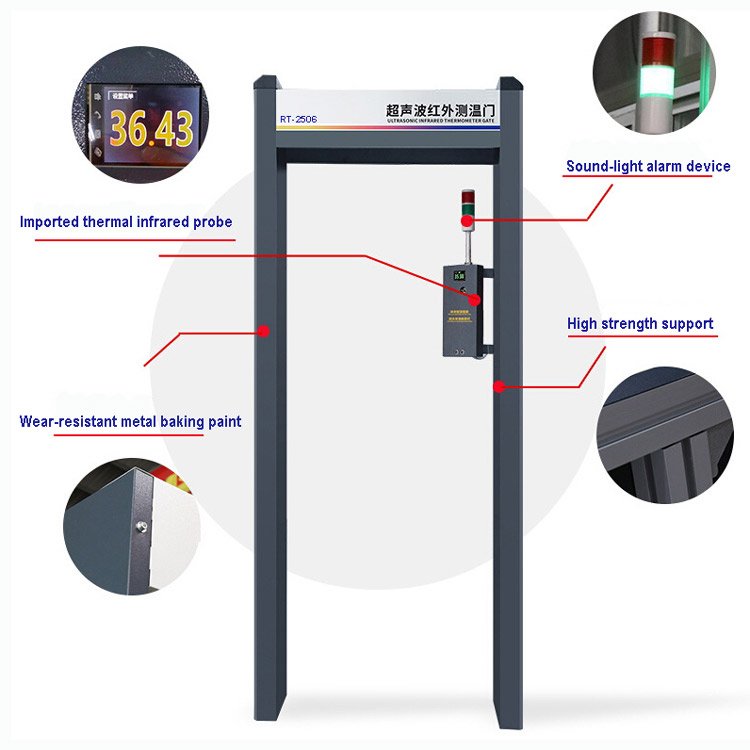

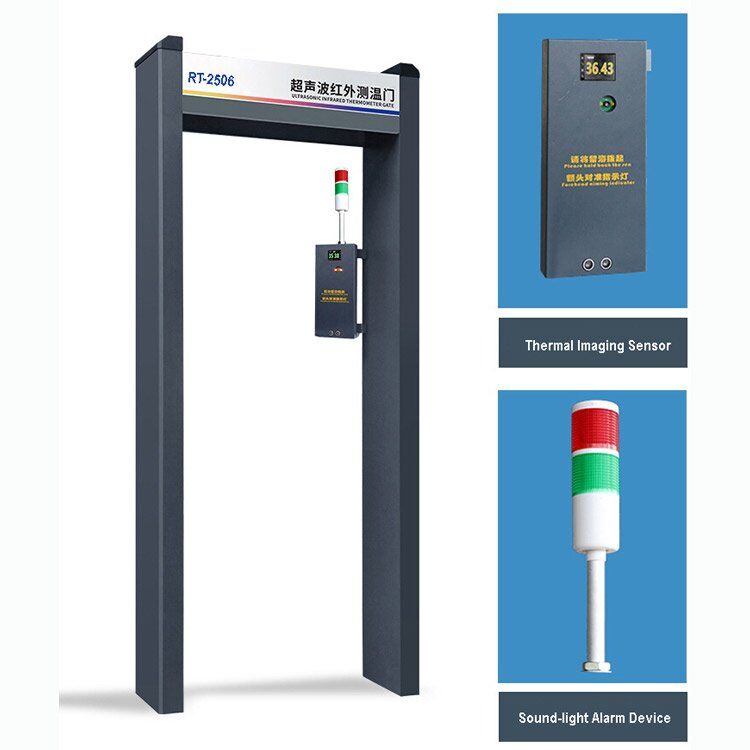

Machine Structure:
