Horizontal Digital Power Plug USB Insertion Force Tester (RT-1311)

Insertion and Extraction Force Life Tester

This machine is used between the power cord and plugs test simulation reciprocating fatigue testing plug; the plug can be fixed by a different shape of the fixture flexibility to adjust, while the test speed stepless adjustable, and can set the number of times to count the number of automatic downtimes.

Product Details:

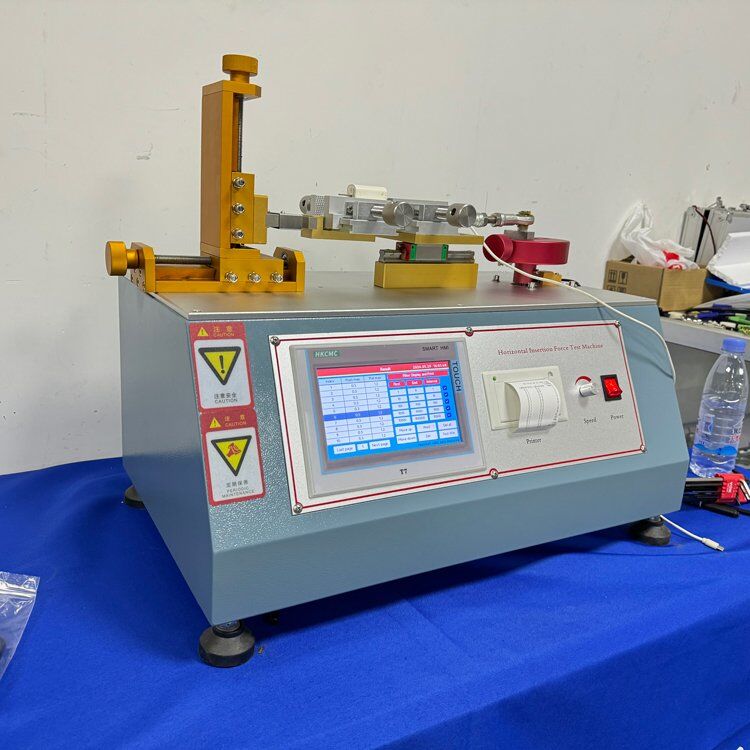

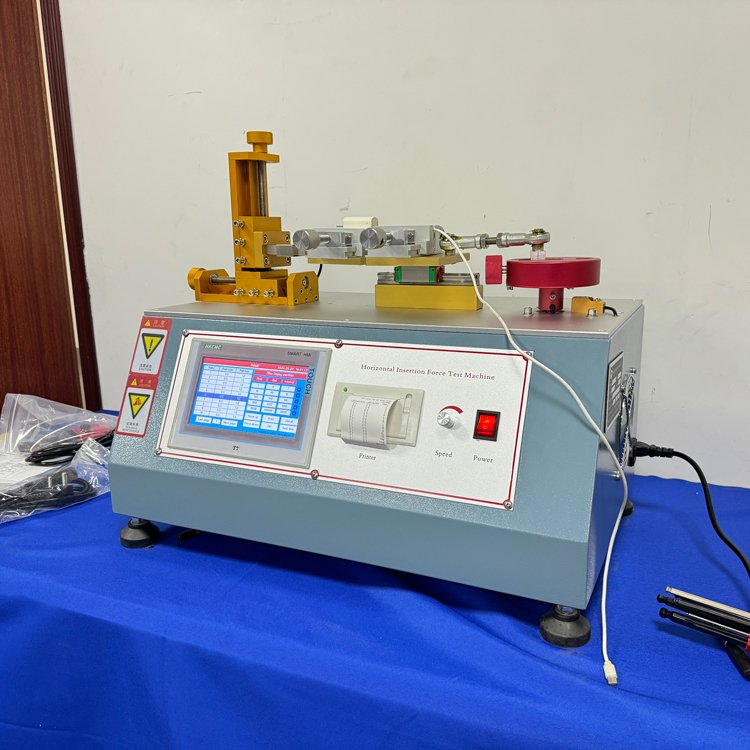

RT-1311 Horizontal Insertion Force Tester



RT-1311 Horizontal Insertion Force Tester is suitable for a variety of connector insertion and extraction tests with the use of embedded microcomputer measurement and control technology. It can simultaneously display the insertion force, pull-out force, and real-time force value and has a number of settings. It is speed stroke adjustable, and it displays the speed value, automatic zero, and unit conversion. Rotary eccentric wheel power design, so that the test speed and test stroke are not associated with long and short stroke connectors, test the same fast. It can be called the most cost-effective plugging and unplugging life-testing machine on the market.

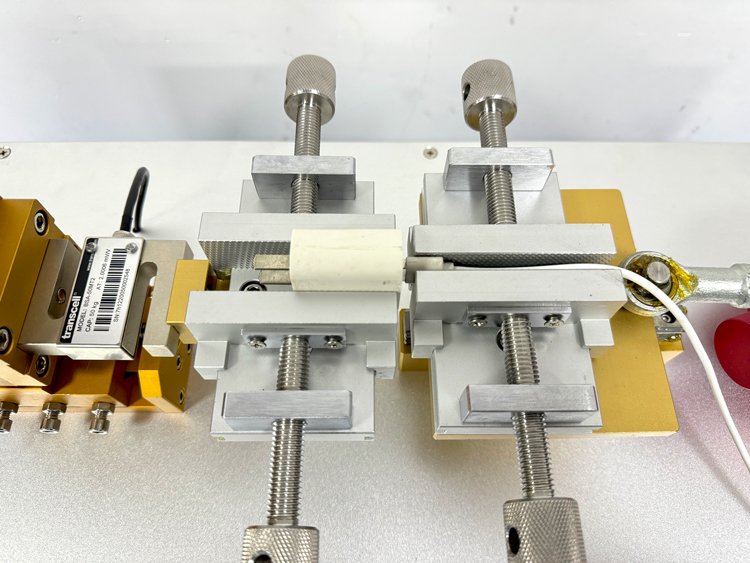

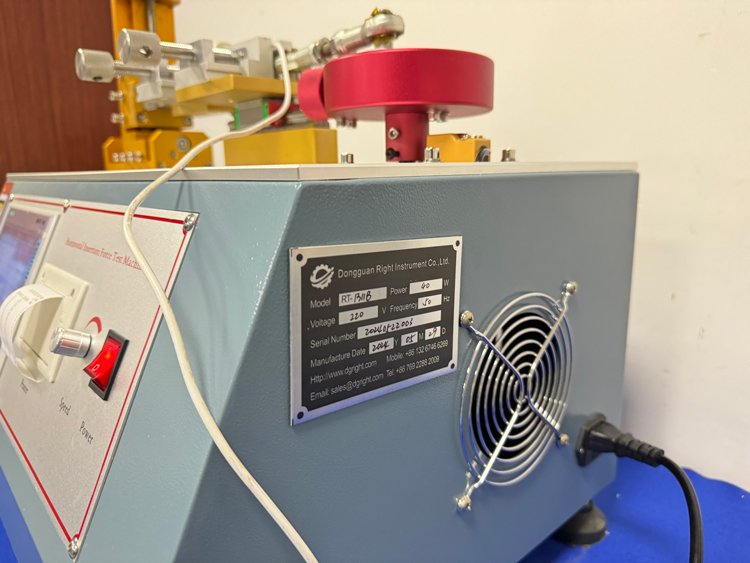

RT-1311 Horizontal Insertion Force Tester



Specification

Product Name:
Charge USB Plug Life Test Machine
Times Range:
0~999999
Transmission Mode:
Rotary eccentric wheel

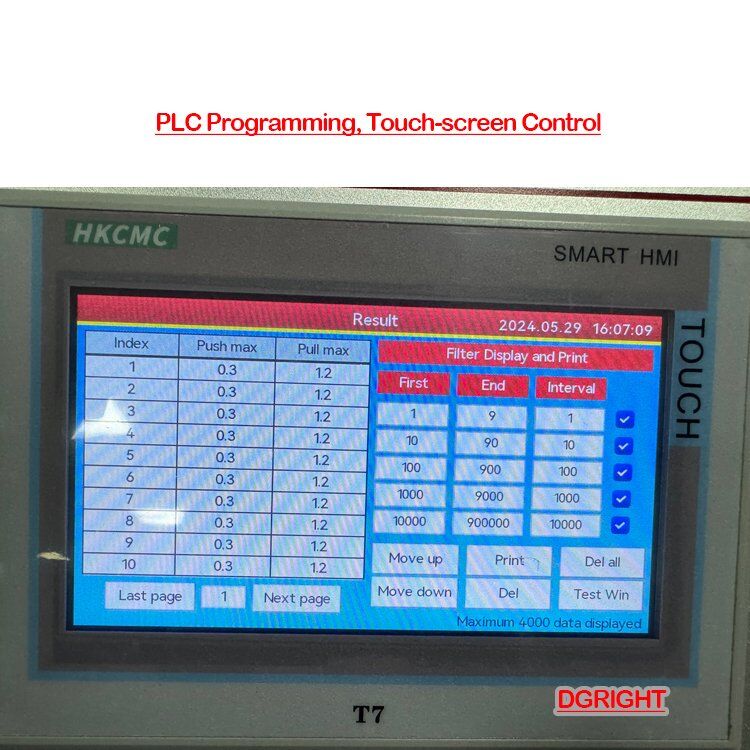

Display Mode:
Extensive screen touch screen control

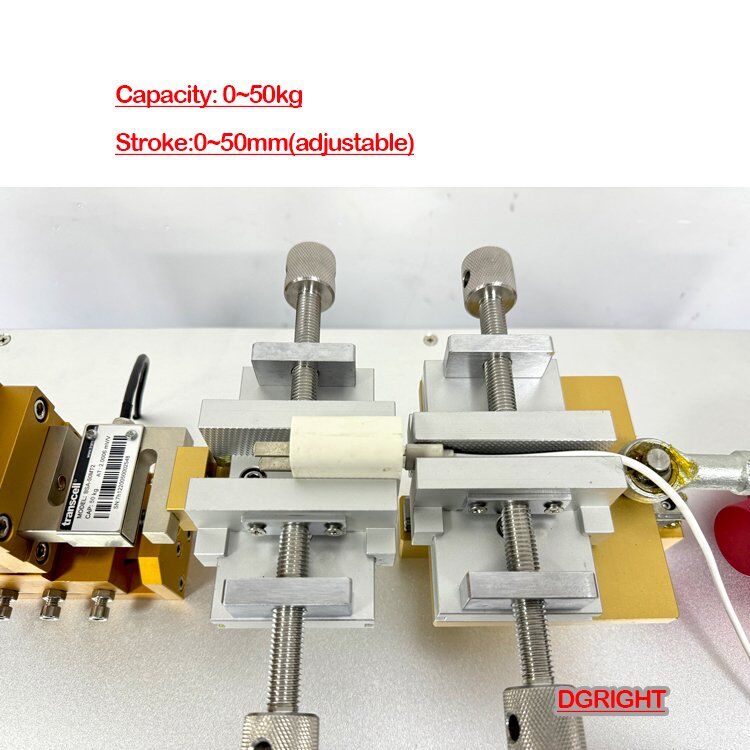

Insertion and Extraction Force Range:
0~50kg
Travel Range:
0~50mm

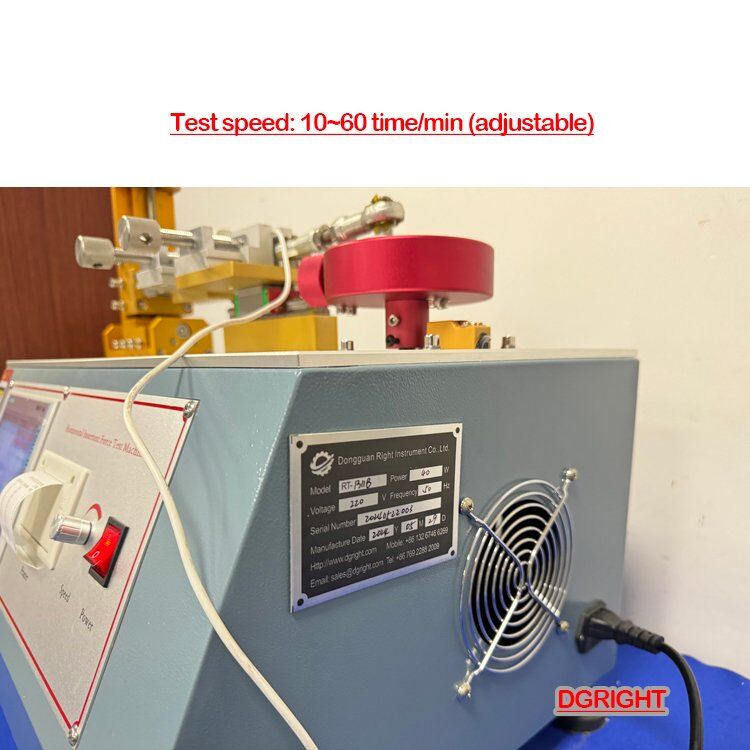

Test Speed:
0 ~ 60 times/min
Unit:
KG、N、LB
Voltage:
single-phase 220V
Machine Size:
640*390*530mm

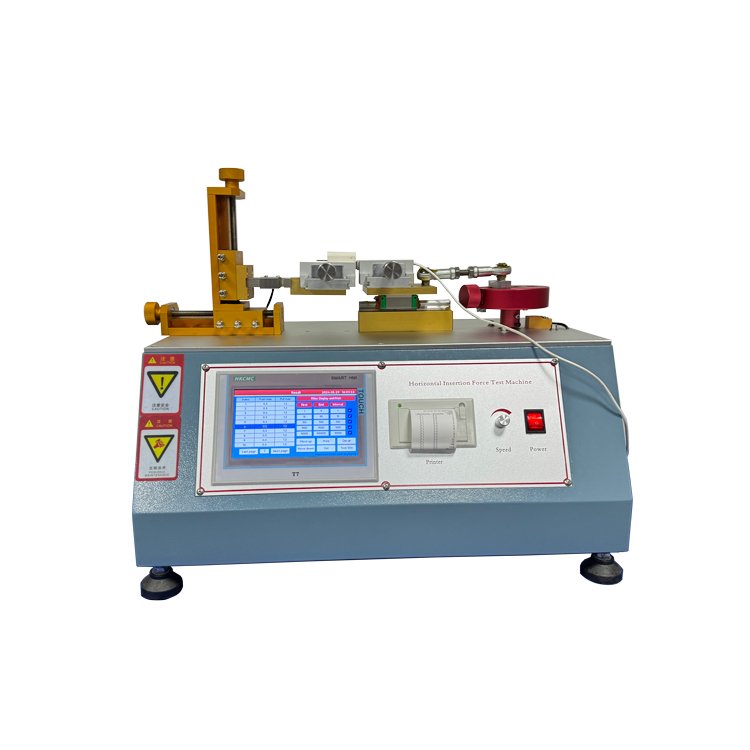

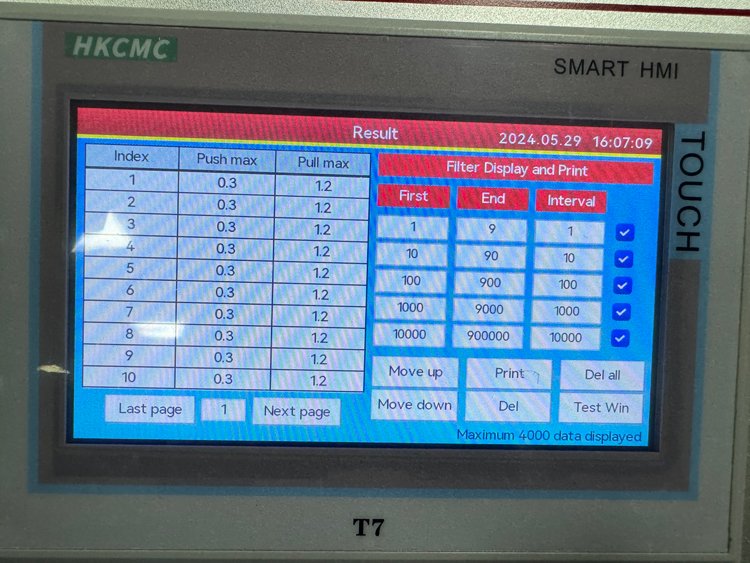

RT-1311 Horizontal Insertion Force Tester RT-1311 Horizontal Insertion Force Tester
