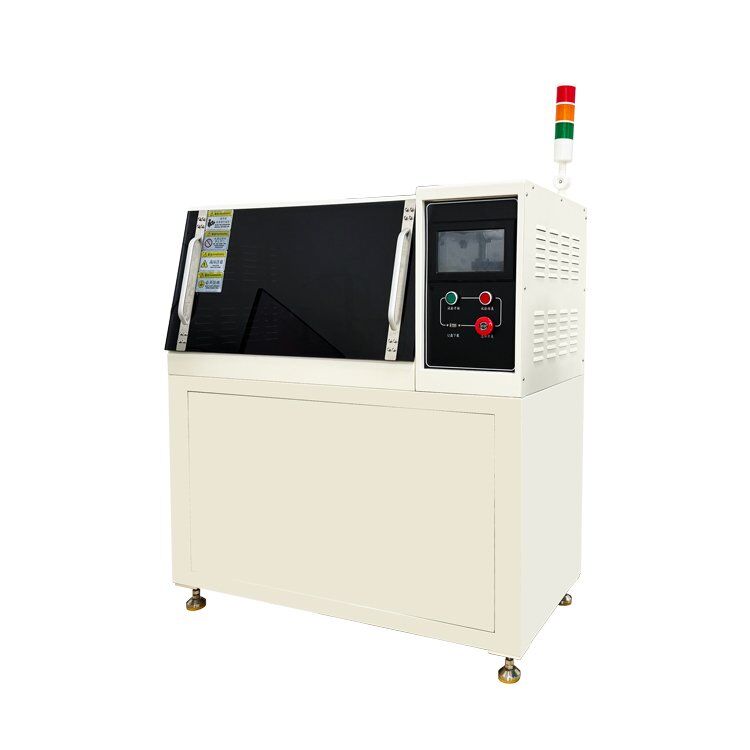

ASTM D149 High Voltage Breakdown Tester 50KV 100KV 150KV (RT-1320)

Insulating Oil Dielectric Strength Tester High Voltage Dielectric Testing Machine

Features:

  1. Two test models: AC test and DC test.
  2. Three test methods: Continuous voltage increase test, stepped voltage increase test, and rapid voltage increase test.

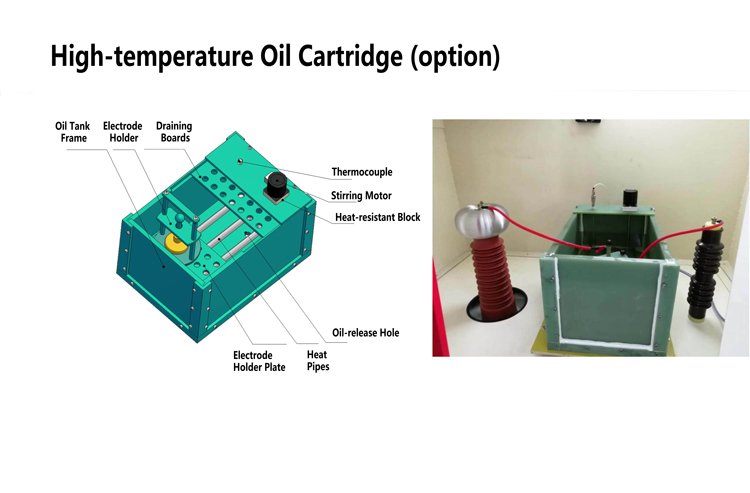

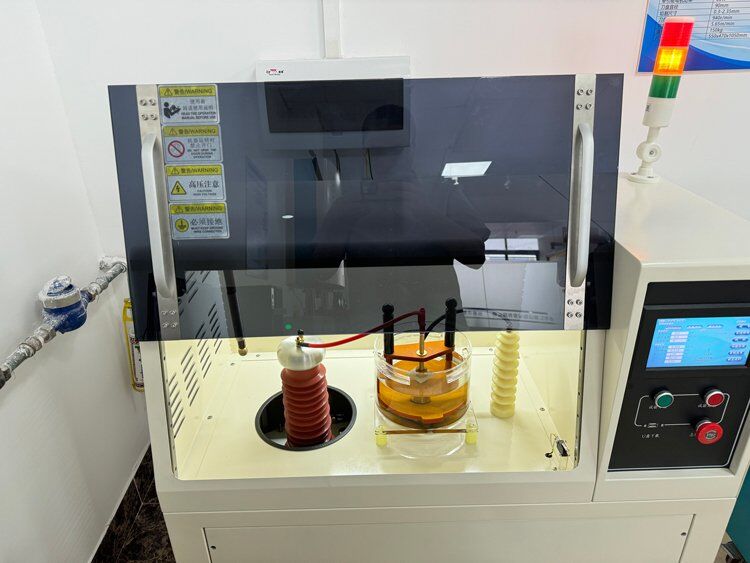

  3. All models are available as high-temperature voltage breakdown testers (oil-heated/air-heated).
  4. Independent module: independent control system, modular structure is convenient for later maintenance.

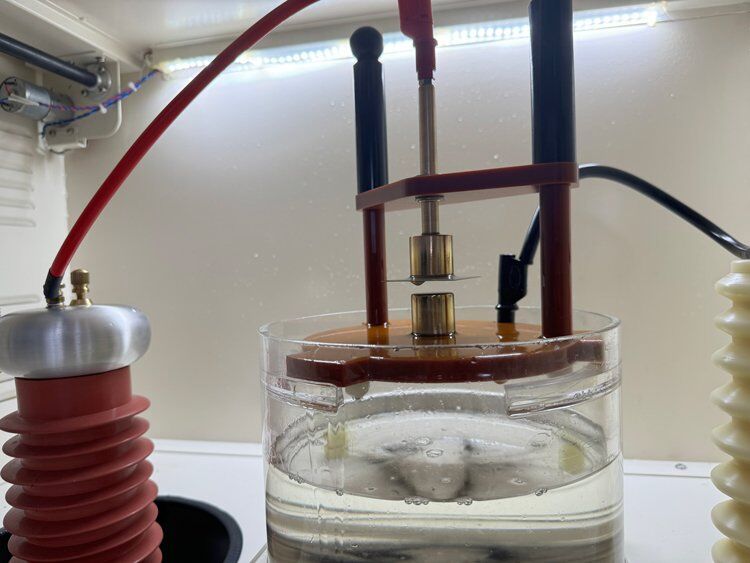

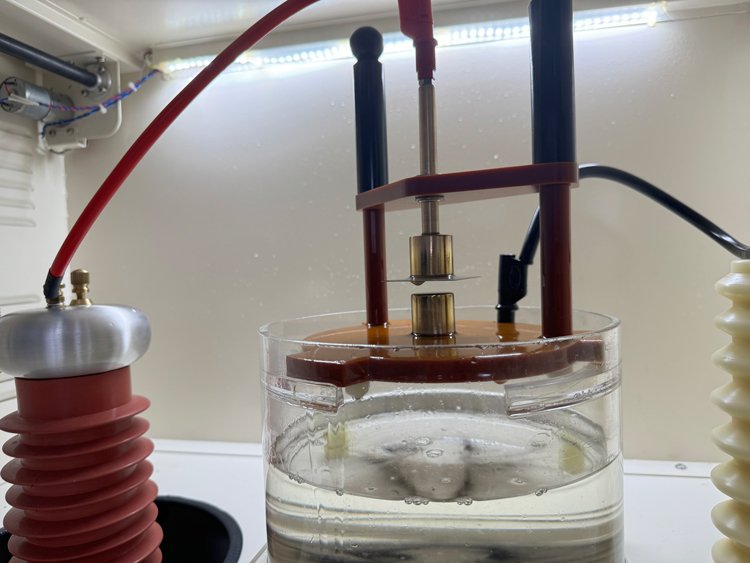

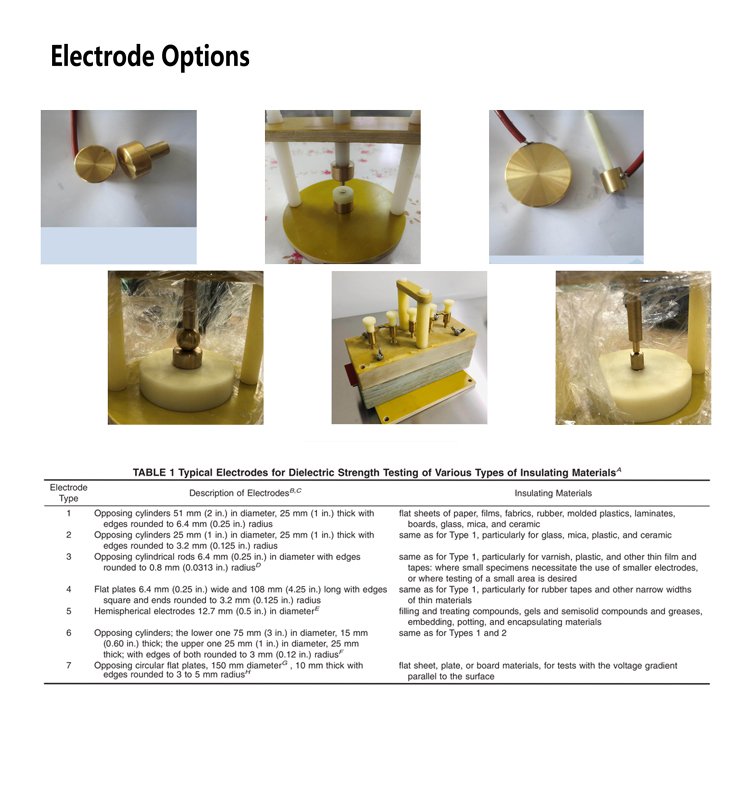

  5. Electrode centering: the electrode is automatically centered and positioned, easy and safe to operate with high precision.
  6. Convenient communication: USB socket data output function; can directly communicate with the computer control.
  7. Sound and light alarm: It can display different working status and carry out corresponding operation, which is safer and more reliable.
  8. Convenient operation: can be independently controlled by touch screen or computer-controlled operation.
  9. Automatic discharge: After the DC test is completed, the equipment will automatically discharge the residual current of the instrument to ensure the safety of the operator.

Product Details:

Product Description

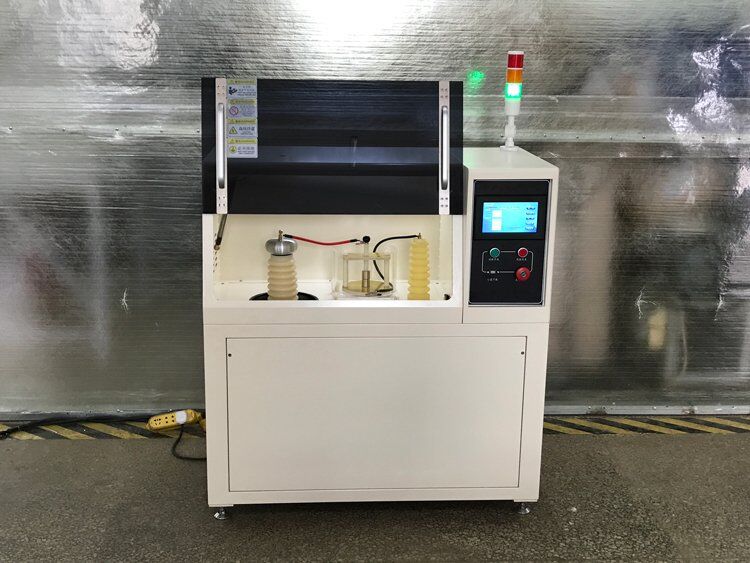

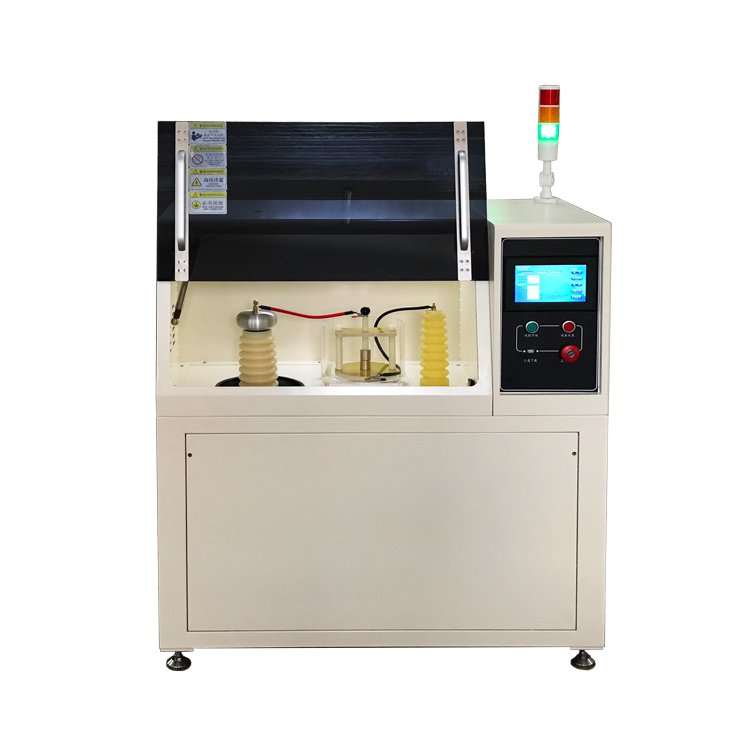

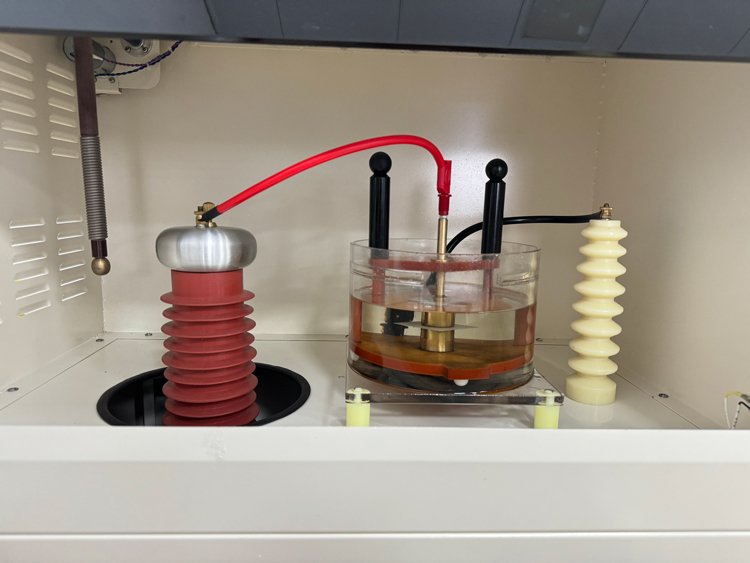

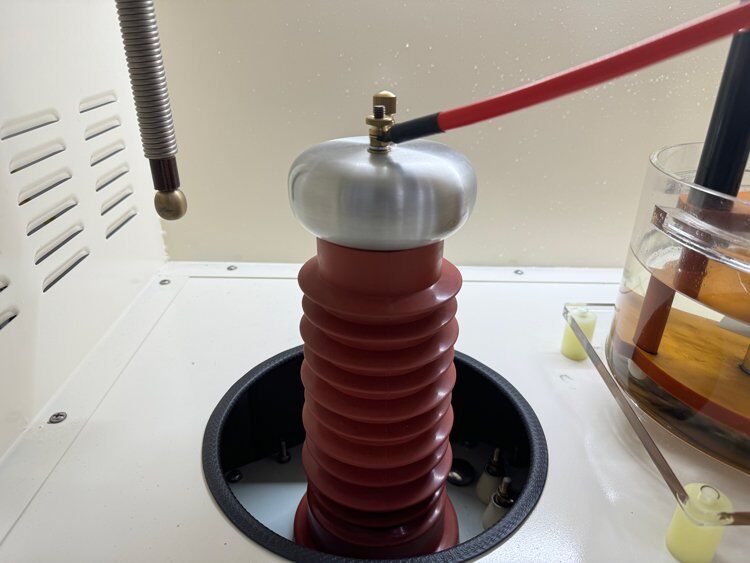

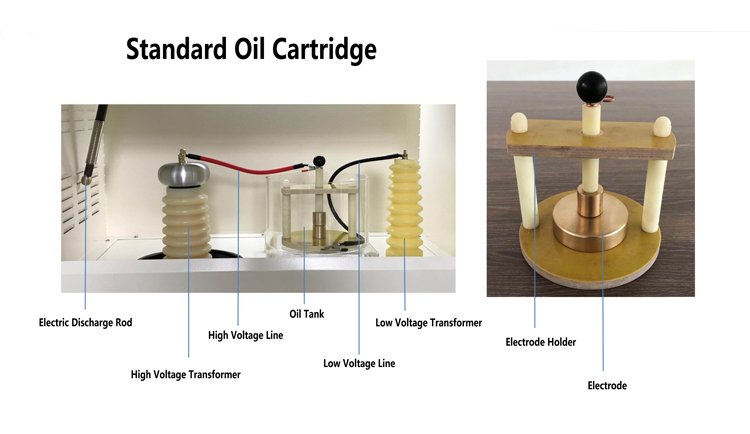

RT-1320 touch screen control electrical dielectric strength equipment measures the dielectric strength of insulating material sheet and pipe; it can also be used for insulation material voltage tests. The principle of the test is that the high voltage test transformer generates high voltage, and the motor changes the output of the voltage regulator to the original site of the high voltage test transformer to obtain the continuously adjustable AC voltage, and the continuously adjustable high voltage can be obtained. A computer controls the instrument, and the data acquisition method is photoelectric isolation, which effectively solves the anti-interference problem during the test. The software is easy to operate and use and can display the dynamic curve in real time. At the same time, the voltage boost rate is stepless and adjustable, and the voltage boost rate can be adjusted according to your own needs. And can accurately measure the current leakage data. It can draw the test curve in real time, display the test data, judge accurately, and save, analyze and print the test data. It can automatically identify sample breakdown and collect breakdown voltage data and leakage current, and can quickly reduce the instantaneous voltage of breakdown and automatically return to zero. The software system is easy to operate, has stable performance, and is safe and reliable.

voltage breakdown tester

Product manufacturing and inspection standards

  1. 1-2006 “Insulation material electrical strength test method”
  2. 2-2016 “Insulation material electrical strength test method Part 2: Additional requirements for the application of DC voltage test”
  3. JJG 795-2016 “Voltage Tester”

The test standards

  1. GB/T1695-2005 “Vulcanized rubber power frequency breakdown voltage strength and voltage resistance measurement method”
  2. GB/T3333 “Cable paper frequency breakdown voltage test method.”
  3. GB12913-2008 “Capacitor paper”
  4. ASTM D149 “Solid electrical insulation materials at industrial power supply frequency dielectric breakdown voltage and dielectric strength test method.”

voltage breakdown tester

voltage breakdown tester

RT-1320 voltage breakdown tester application range

It is mainly applicable to solid insulating materials such as wire bushings, resins and adhesives, impregnated fiber products, mica and its products, plastics, film composite products, ceramics and glass and other media under power frequency voltage or DC voltage breakdown strength and voltage resistance time test; The instrument is controlled by computer, which can collect and process all kinds of data in the test process quickly and accurately, and can be accessed.



voltage breakdown tester

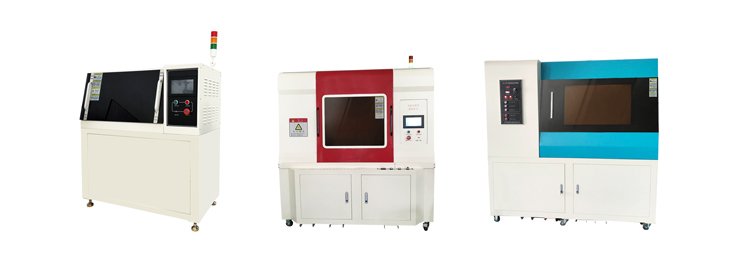

Model RT1320-5E RT1320-10E RT1320-20E RT1320-50E RT1320-100E RT1320-150E
Input voltage AC220V 50HZ
Output voltage AC: 0~5kV

DC: 0~5kV

AC: 0~10kV

DC: 0~10kV

AC: 0~20kV

DC: 0~20kV

AC: 0~50kV

DC: 0~50kV

AC: 0~100kV

DC: 0~100kV

AC: 0~150kV

DC: 0~150kV

Output power 0.5kVA 1kVA 2kVA 5kVA 10kVA 15kVA
Measuring range AC: 0.05~5kV

DC: 0~5KV

AC: 0.5~10kV

DC: 0.5~10KV

AC: 1~20kV

DC: 1~20KV

AC: 1~50kV

DC: 1~50KV

AC: 1~100kV

DC: 1~100KV

AC: 1~150kV

DC: 1~150KV

Measurement error ≤2%
Voltage boost rate 0.025kV/s ~0.5kV/s 0.05kV/s ~1kV/s 0.1kV/s ~2kV/s 0.25kV/s ~5kV/s 0.5kV/s ~10kV/s 1kV/s ~10kV/s
Withstand voltage 0~4H
Leakage current 1~30 mA can be freely set by computer software
Power supply AC 220V+10% single-phase AC voltage and 50HZ+1% frequency
Test temperature RT-300 °C
Test ambient temperature 15 ~30 °C
Relative humidity 0~85% stable operation
Dimension(L*W*H) 1000x500x1050 mm 1000x500x1100 mm 1000x500x1100 mm 1000x500x1100 mm 1580x1060x1520 mm 2040x1380x2070 mm
Equipment weight 90kg 100kg 100kg 100kg 250kg 800kg

voltage breakdown tester

voltage breakdown tester voltage breakdown tester voltage breakdown tester
