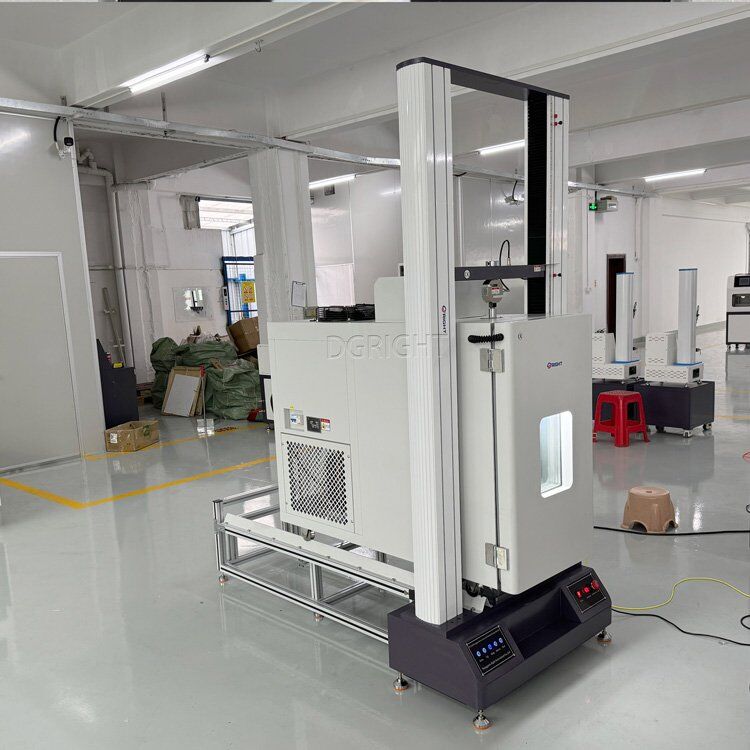

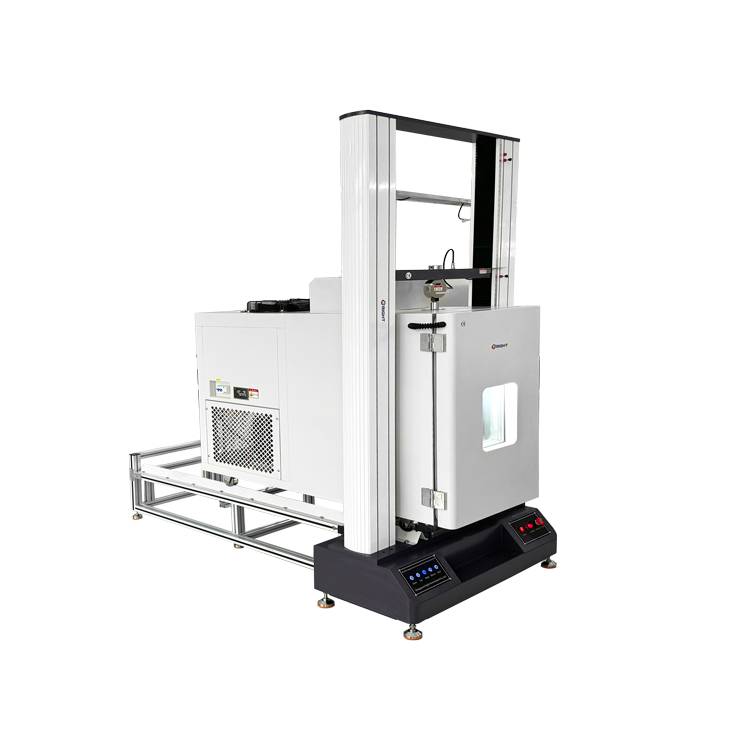

High Low Temperature Universal Material Testing Machine (RT-204D)

Additional information

Maximum force:

20kN (or others)

Test stroke:

300mm(or custom)

Testing width:

350mm(or custom)

Test speed:

0.1~500mm/min

Computer control:

multi-step software

Temperature range:

-70 ~ 150 degrees

High Low Temperature Tensile Compression Machine (RT-204D)

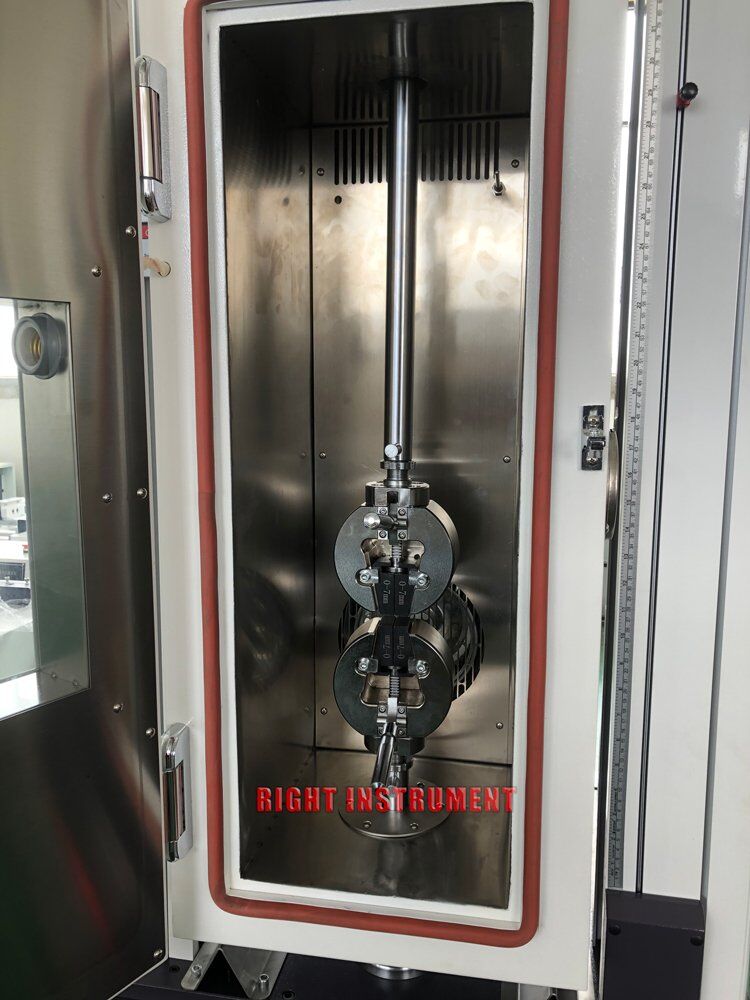

High Low Temperature Tensile Compression Testing Machine is equipped with special high and low temperature chamber. With the temperature protection of sensor, high and low temperature fixtures, and sliding auxiliary.The high and low temperature tensile testing machine is suitable for universal materials testing, for tensile, compression, bending, tearing, peeling, bursting, fatigue test on metal rod, metal plate, rubber, PU, leather, plastic, foam, sponge, water-proof material, cable, wire, fabric, nettle, non-woven, etc.

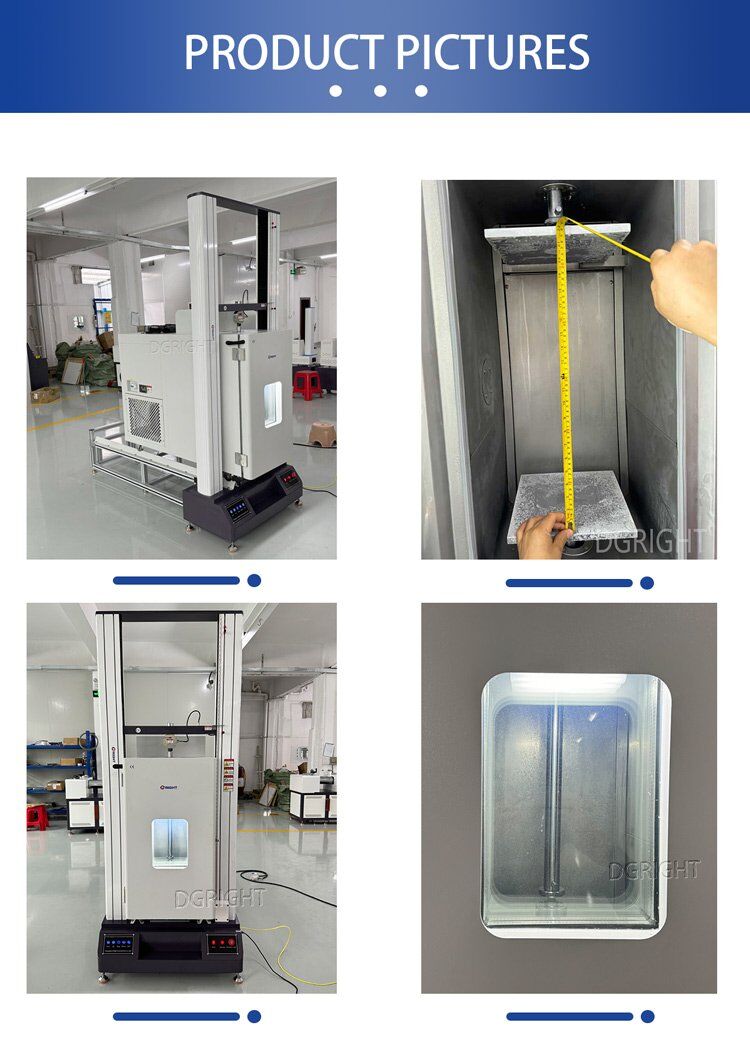

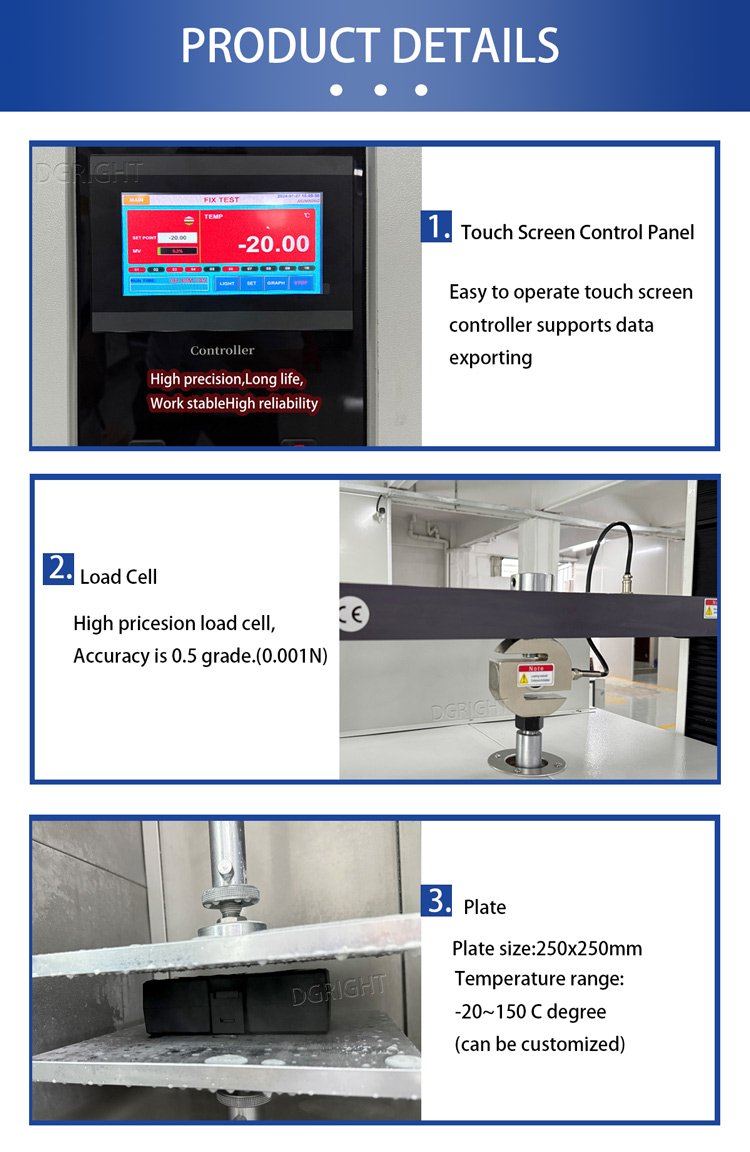

Product Details:

High temperature tensile strength machine



Equipment summary:

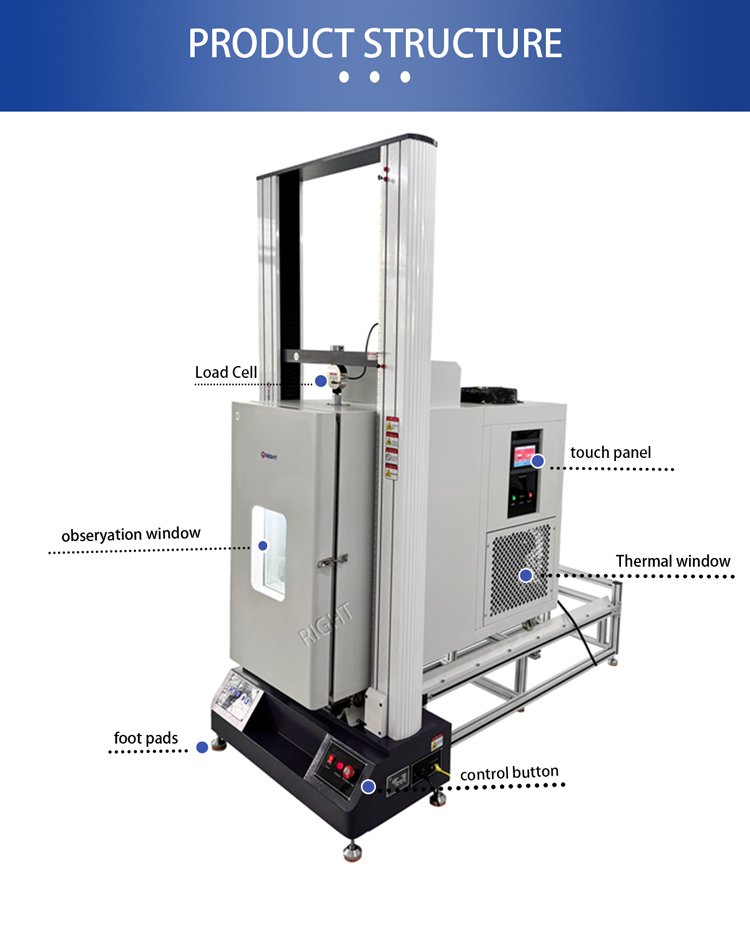

RT-204D Computer servo universal material testing machine with temperature chamber according to the requirements of the guests and the specific tensile machine size custom design processing production. Mainly by the guide rail, aluminum support frame and high temperature box, etc., for the entire material with high low temperature tensile, peel, tear, compression, bending, shear, puncture, low circumference fatigue and other items of mechanical properties test; use room temperature test, you can move the high temperature box to increase the use of space and facilitate other test purposes.

【Related standards】: GB, ISO, JIS, ASTM, DIN and other international and industry standards;



High temperature tensile strength machine

What is the main function of high and low temperature universal material testing machine?

High temperature tensile strength machine

Applicable industry:

High temperature tensile testing machine, mainly by the tensile machine and high temperature environment chamber two major components, tensile machine the main test process such as tensile test, bending test, compression test are completed in the high temperature environment test box.



High temperature tensile strength machine



Main feature:



1. Deformation under defined load: Test deformation under defined load of tested sample;

2. Load under defined deformation: Test load under defined deformation of tested sample;

3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear
strength, compression strength, etc;

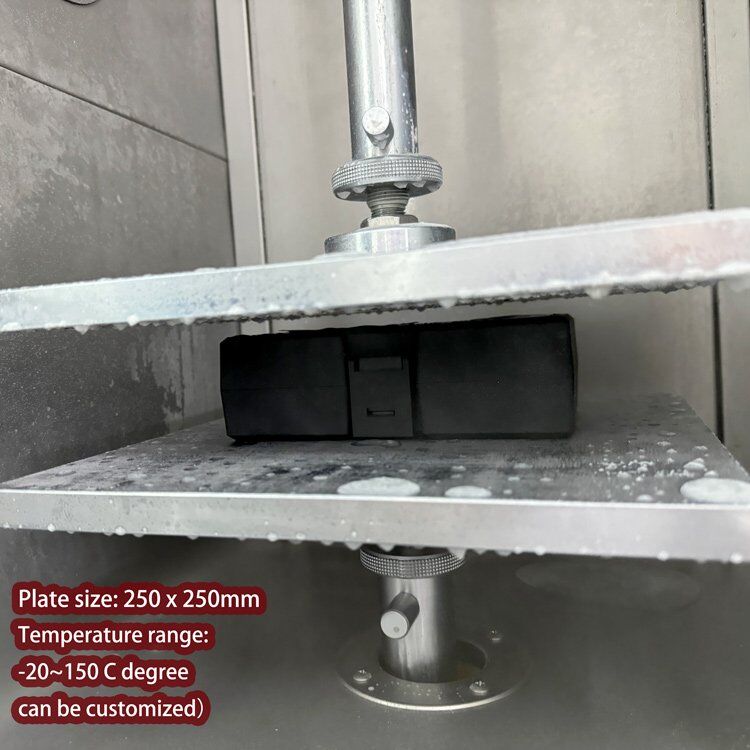

4. This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.



High temperature tensile strength machine

Technical parameter:

Speficiations of Tensile/ Compression Testing Part:
ITEM
DESCRIPTION
Product Name
universal material testing machine with high and low temperature chamber
Capacity
1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN, 200KN, 300KN (optional)
Unit
Kg, N, LB, TON can be exchanged
Accurate Grade
0.5 grade
Control system

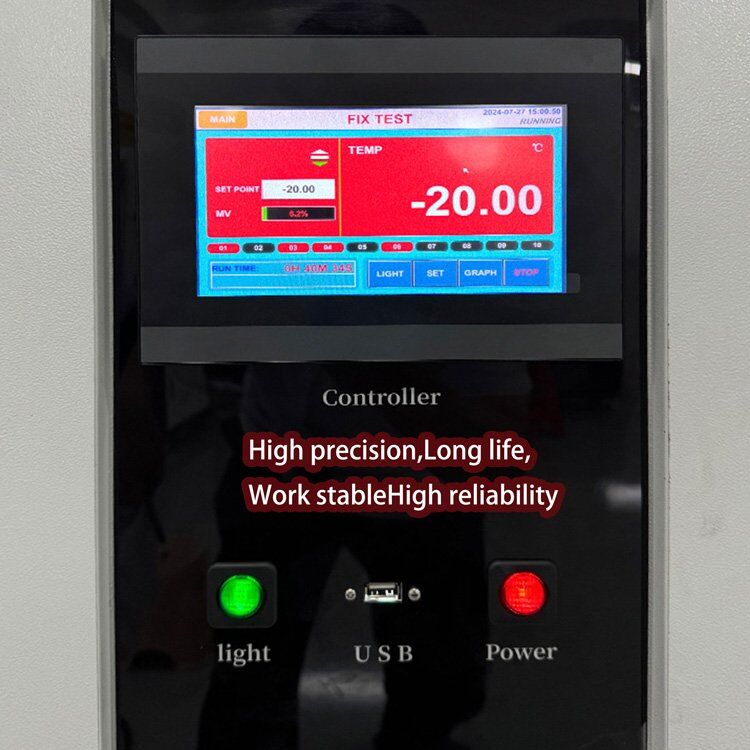

computer + touch screen
Resolution
1/250,000
Effective Accuracy
±0.5% (0.5grade)
Max.Stroke
300mm(Height can be customized)
Speed Range
0.05-250mm/min (or customize)
Motor
Servo Motor + High Precise Ball Screw
Test width
350mm (Can be customized)
Power
AC220V / 380V (Or custom-made)

High temperature tensile strength machine

Speficiations of Temperature Test Chamber Part:
Temperature range
-40°C~100°C (or -70°C, 150°C)
Controlling method
P.I.D.automatic control
Stability
±2.5%RH,±1°C
Heating System
SUS#304 stainless steel heater
Cooling system
Fan cooling mode, high efficiency of all sealed compressor

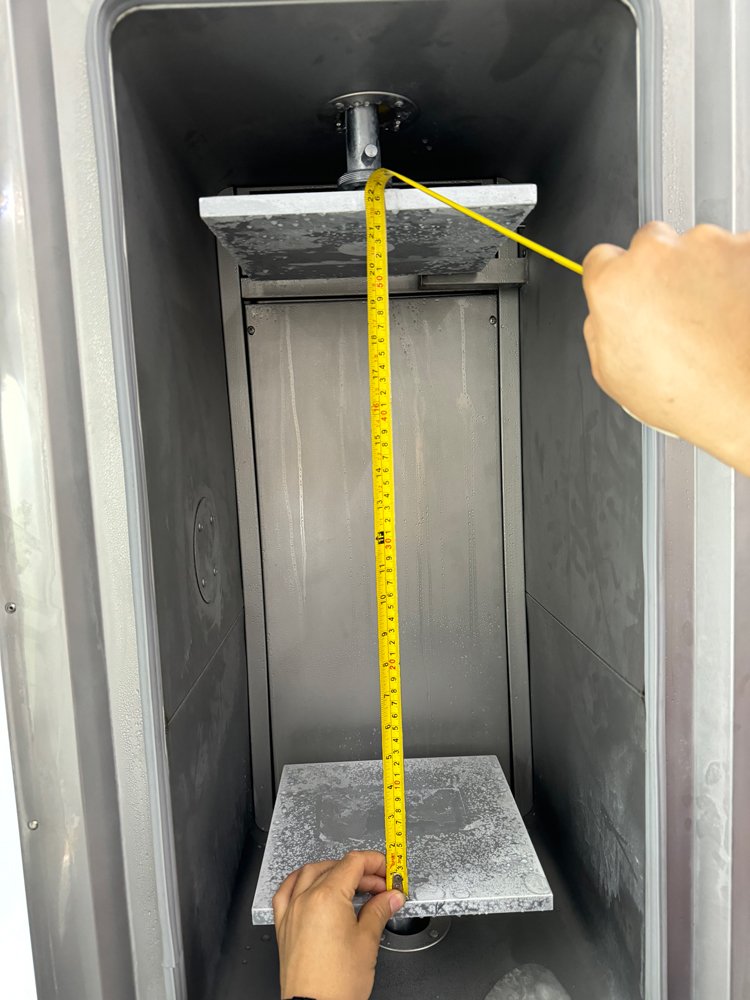

Testing Room Size
Custom-made as your requirements



High temperature tensile strength machine

Software features:

1.The software description about Computer servo testing machine

  1. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS … and other testing standard specification.
  2. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.
  3. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)
  4. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.
  5. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load – displacement, load – time, displacement – time, stress – strain load -2 points extending maps, and lots of graph compared.
  6. Test results can be output in EXCEL format.
    G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.
  7. Software has a capability that can output the before data.

2.The accessories about Computer servo testing machine

  1. warranted book within one-year and operating instructions.

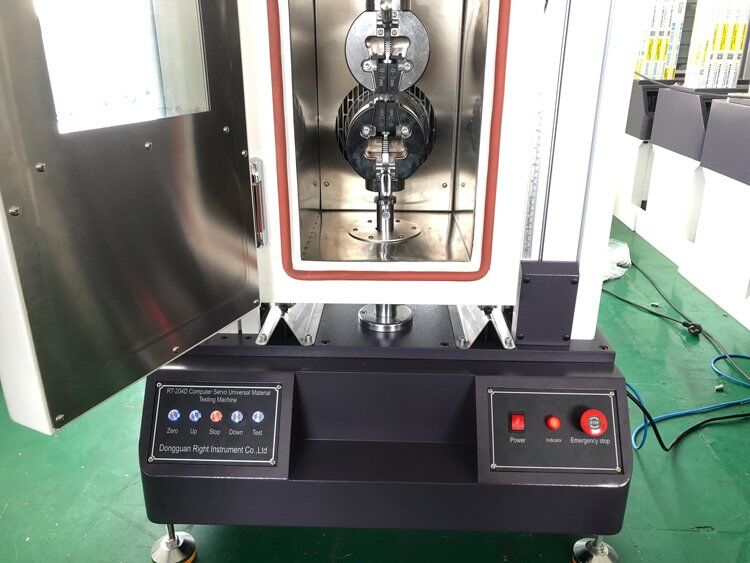

  2. a group of fixture
  3. testing software for tensile machine.
  4. a set of brand computer, color printer

  1. items can be tested in theComputer servo testing machine

Common items: ( display data and calculation )

  • tensile stress                     ● tensile strength
  • tensile strength                  ● rate of elongation at break
  • fixed stress                     ● rate of stress at break
  • stress strength                  ● tear strength
  • the value of force at any point     ●rate of elongation at any point
  • pull-out strength                 ● force of adhesion and the peak of force
  • High temperature tensile strength machine
