Equipment summary:

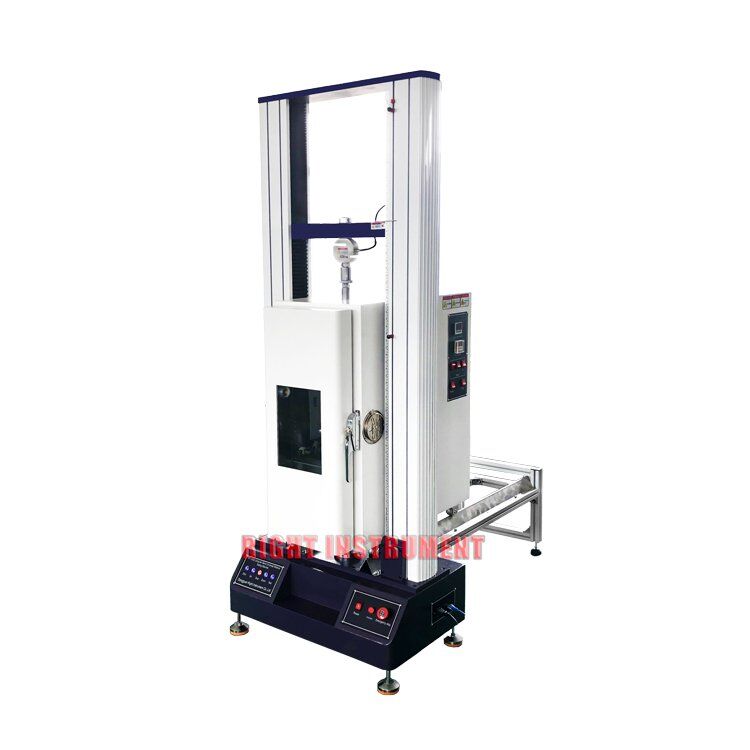

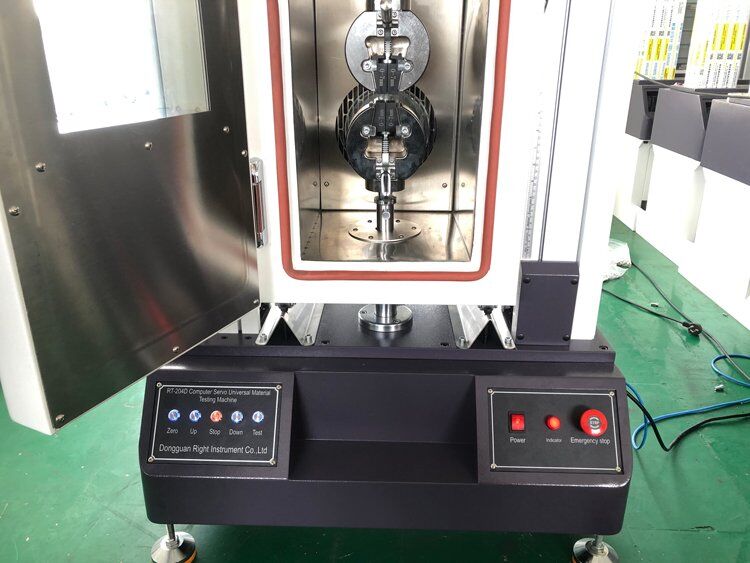

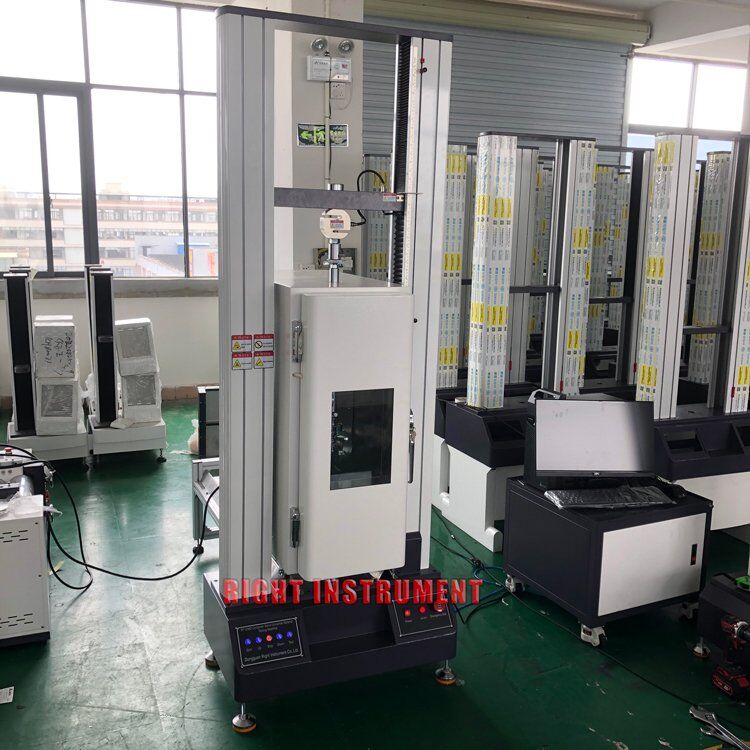

RT-204D Computer servo universal material testing machine with high and low temperature chamber is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.

Main functions:

This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.

Main feature:

Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.

Applicable industry：

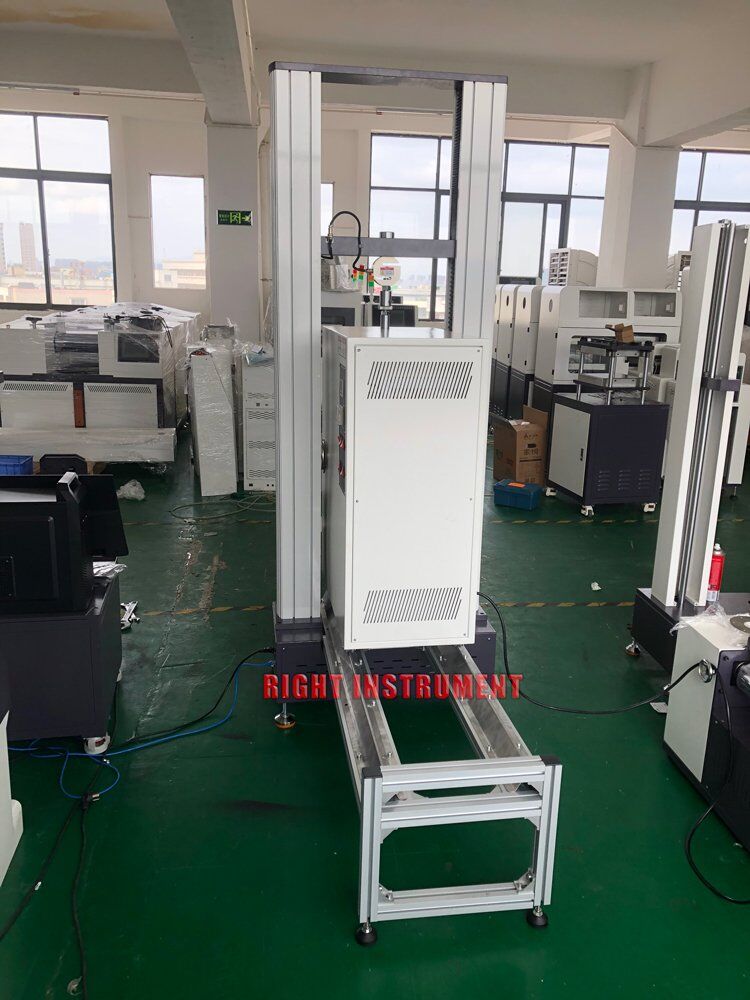

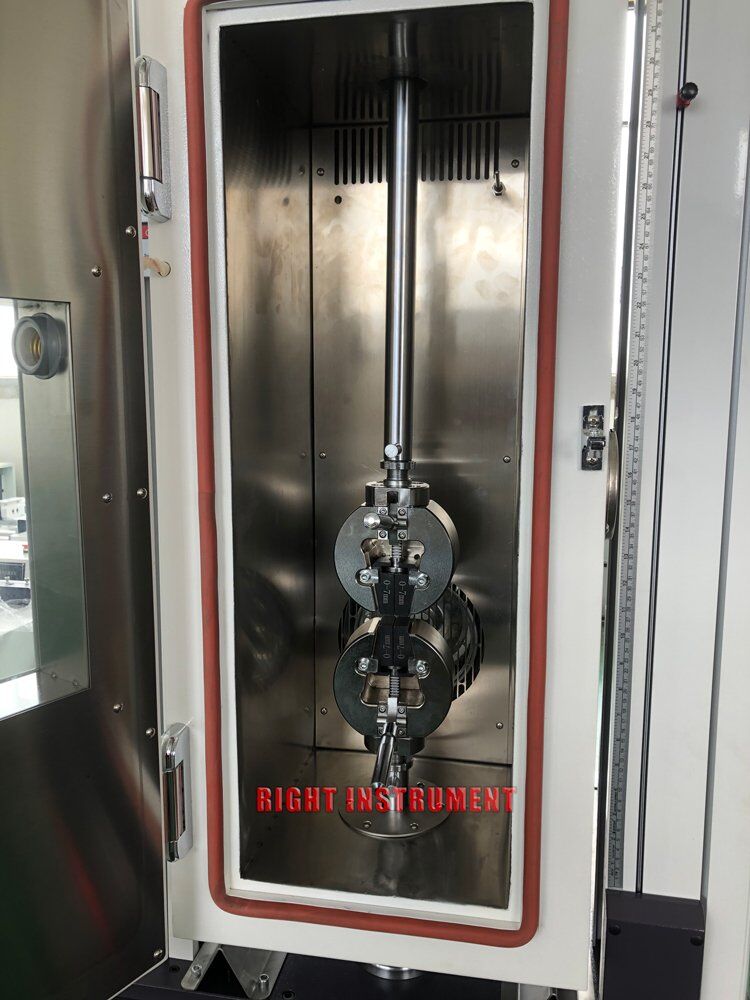

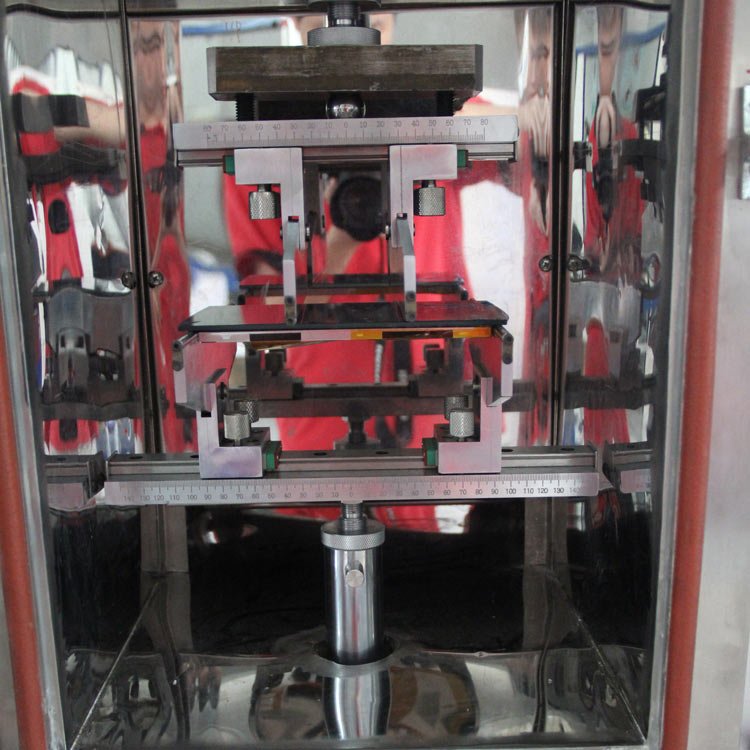

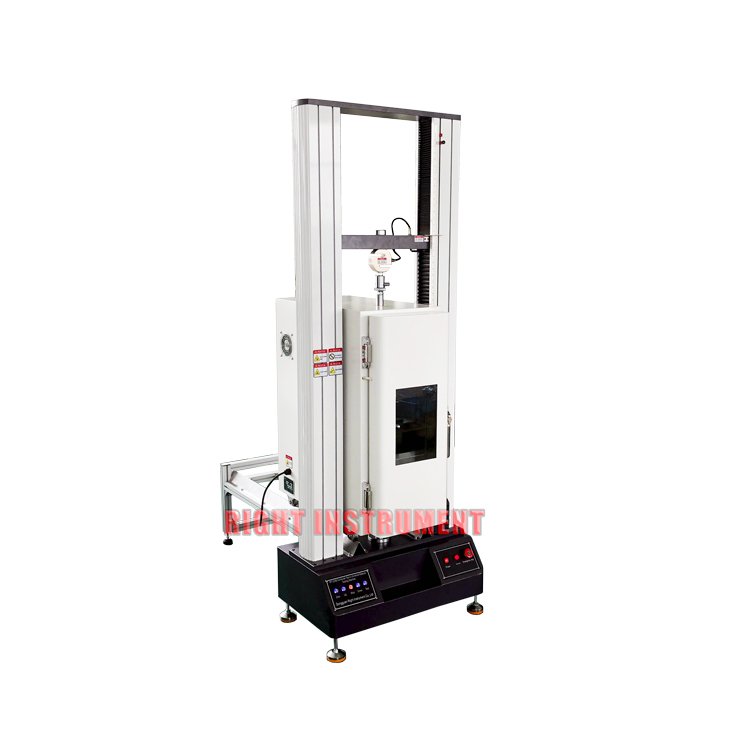

High temperature tensile testing machine, mainly by the tensile machine and high temperature environment chamber two major components, tensile machine the main test process such as tensile test, bending test, compression test are completed in the high temperature environment test box.

Technical parameter:

Software features:

1.The software description about Computer servo testing machine

1. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS … and other testing standard specification.
2. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.
3. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)
4. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.
5. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load – displacement, load – time, displacement – time, stress – strain load -2 points extending maps, and lots of graph compared.
6. Test results can be output in EXCEL format.
   G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.
7. Software has a capability that can output the before data.

2.The accessories about Computer servo testing machine

1. warranted book within one-year and operating instructions.

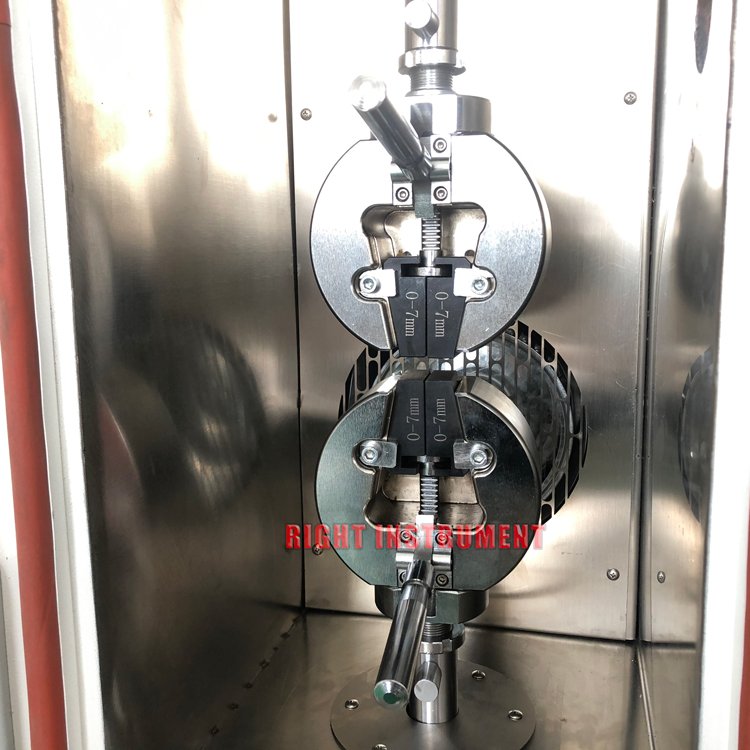

2. a group of fixture
3. testing software for tensile machine.
4. a set of brand computer, color printer

3. items can be tested in theComputer servo testing machine

Common items: ( display data and calculation )

• tensile stress                     ● tensile strength
• tensile strength                  ● rate of elongation at break
• fixed stress                     ● rate of stress at break
• stress strength                  ● tear strength
• the value of force at any point     ●rate of elongation at any point
• pull-out strength                 ● force of adhesion and the peak of force
•
