3-Point and 4-Point Glass Bending Flexural Testing Machine For Phone

Additional information

RT-203B universal bending tester adopts advanced measurement and control technology, microcomputer complete control, servo motor drive, used to test cell phone glass, tempered film and other materials three-point bending, four-point bending, annular static pressure and other items, applicable to 0.2mm-3mm display screen function glass panel, glass substrate, tablet PC substrate glass, LCD panel, capacitive screen cover, sapphire glass, glass lenses, Tempered glass, cell phone cover and other optoelectronic industries.

Product Details:

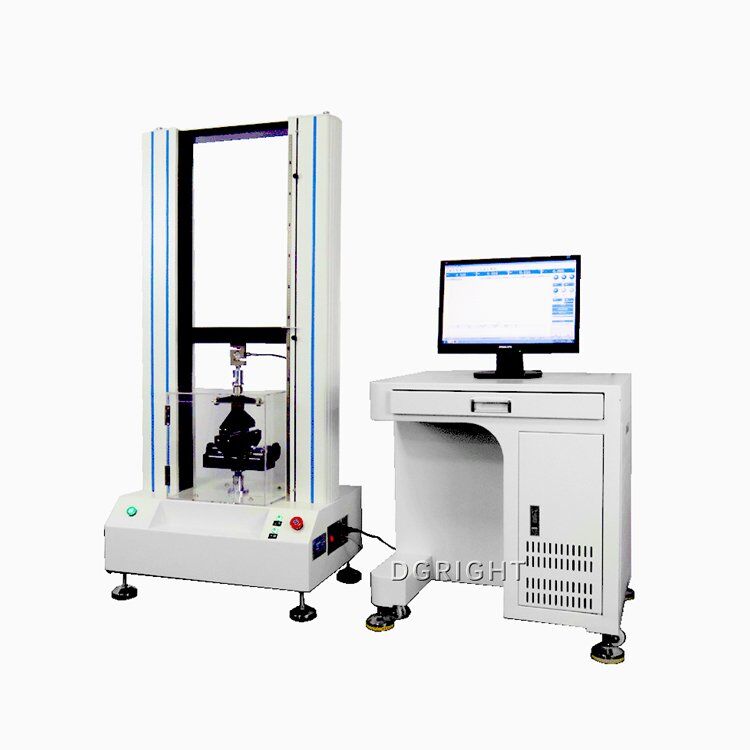

RT-203B 3/4 POINT BENDING TESTING MACHINE

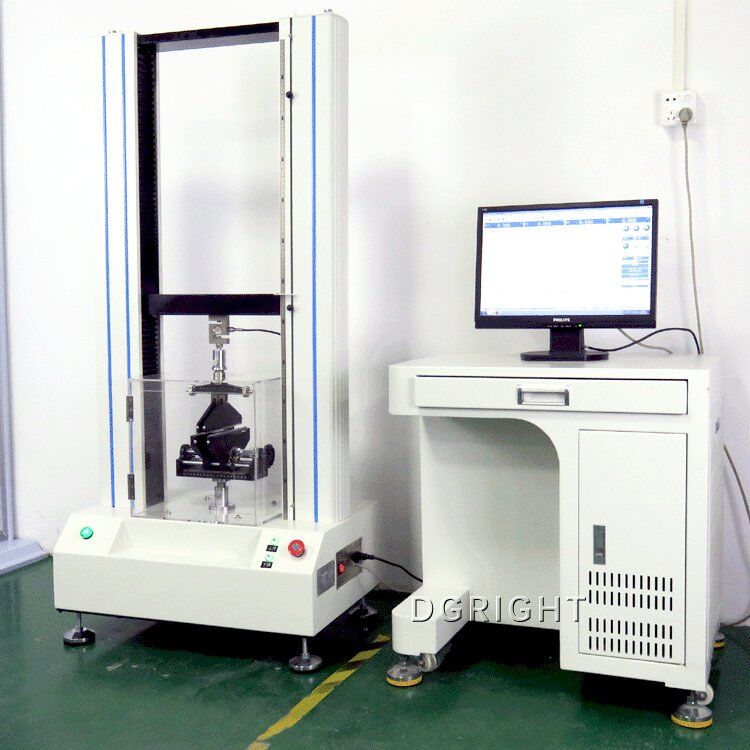

glass bending testing machine
This machine is suitable for widely used in tablet computers, cell phone lenses, glass and other products to do compression, bending test, the use of servo motors, ball screws, the original U.S. force sensor. Equipped with special test control software and special three-point compression, four-point compression, bending fixtures, automatically derive the maximum test force value (minimum force value / average value), the value of the breaking force, tensile strength, elongation peeling strength, peeling force and other parameters, the results are accurate, reliable and repeatable. Print out the mechanical property indexes such as Fm, Rm, Rp, ReH, ReL, ReA, ZE, etc. and the curves of load~deformation, stress~strain.
glass bending testing machine

Specification:

ITEM
DESCRIPTION
Brand Name
RIGHT
Model Number
RT-203B
Product name
Tensile And Compression Testing Machine
Maximum load
500N, 1KN, 2KN, 5KN(optional )
Accurate grade
1 grade
Effective measuring range
0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy
the value ±1% / the value ±0.5%
Tester resolution
Max load 1/200000, regardless of inside and outside, constant the resolution
Load sensor
Basic configuration: sensor (max load): one

Extended configuration: can add more sensors
Effective tensile stoke
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)
Testing speed
0.05~500mm/min
Effective testing width
300mm(can be widened according to customer’s requirement )
Accuracy of displacement measurement
Tolerance:±0.5% / tolerance: ±0.2%
Safety
Electronic-limit protection
Testing platform moving device
Fast /slow two speeds to control, can jog
Return Back
Manual or automatic operation, After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation
Overload protection
Overload 10%, automatic protection
Fixture
A set of tensile clamp
Power system
Panasonic AC Servo Motor + Driver + high-precision ball screw
Unit
KG, N, LB, TON can be exchanged.
Power supply
220V, 50HZ or according to the requirement
Machine size
720*480*2100mm(length*width*height)
Machine weight
(about)300 Kg

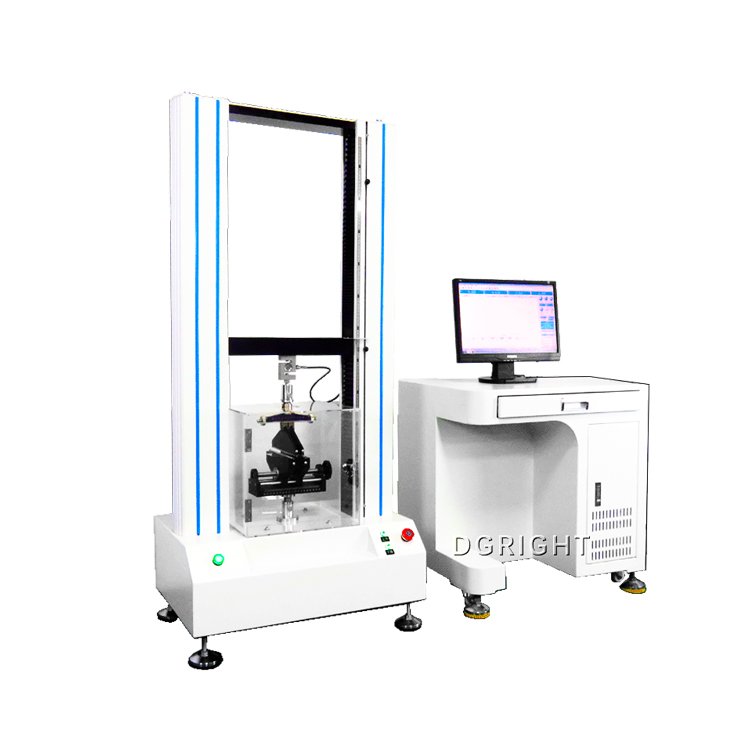

glass bending testing machine

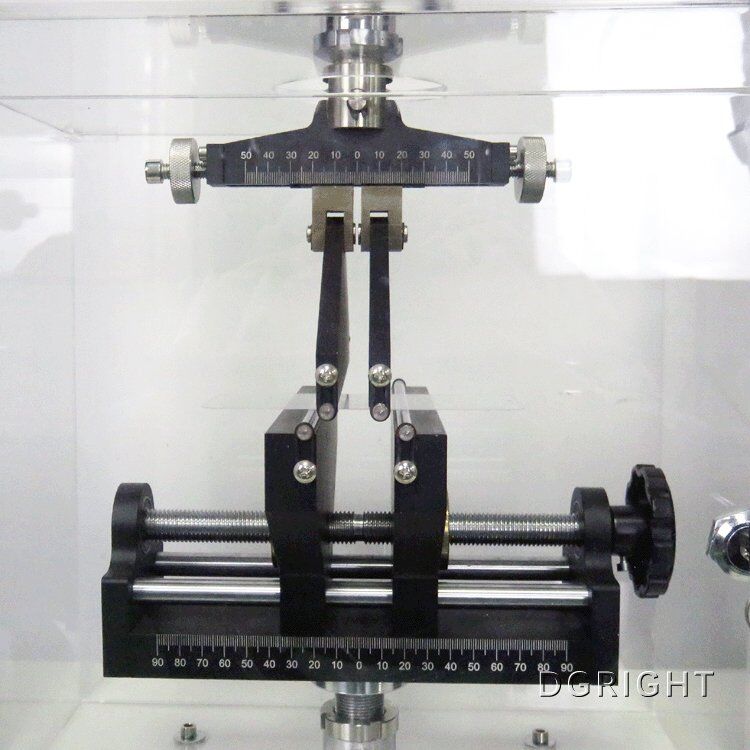

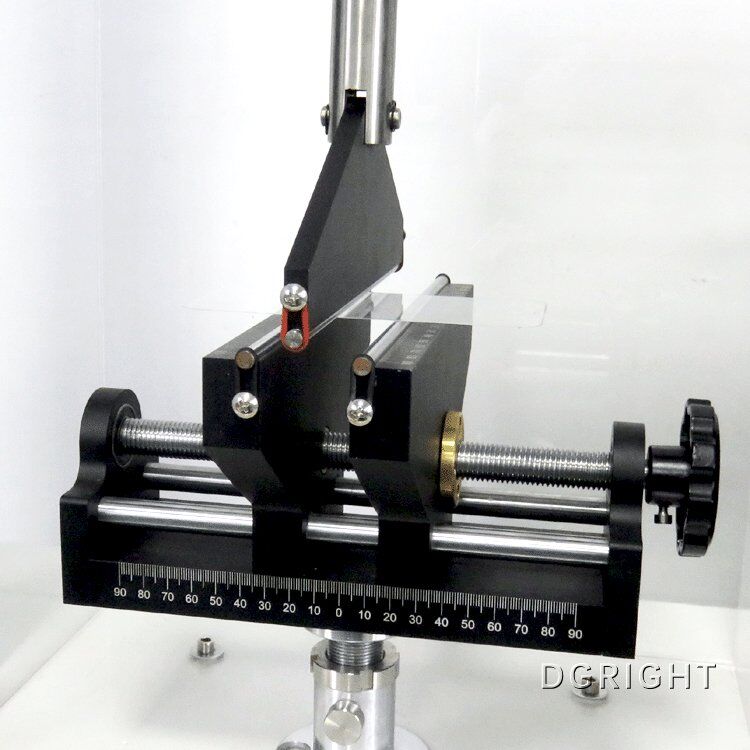

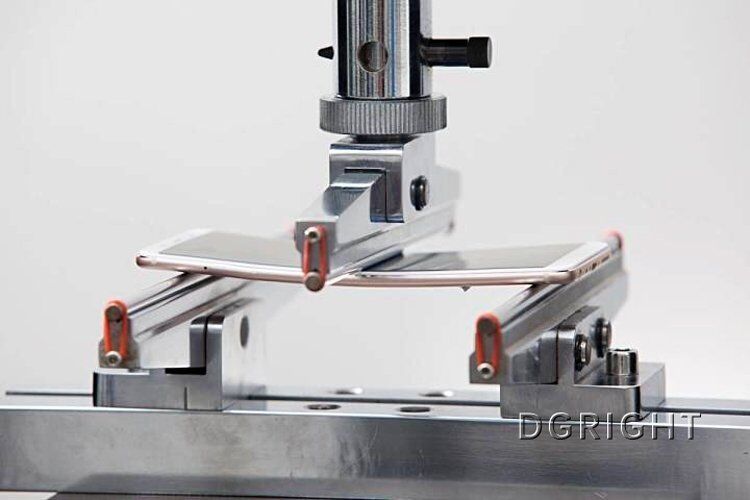

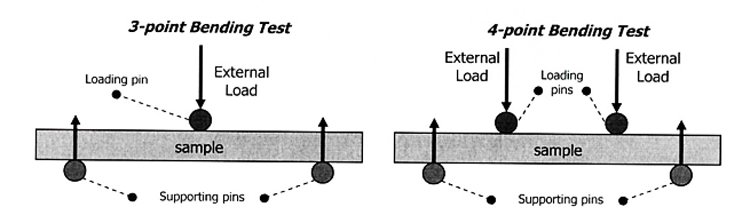

RT-203B series of bend fixtures are met for 3-point and 4-point bend testing of plastics, metals, ceramics, glass, tubing, and many other materials. Two base sizes, an upper anvil, and optional support diameters are available. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

glass bending testing machine glass bending testing machine

Product Features:


Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatically calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, and automated statistical results; it automatically records the biggest point, breaking point, the designated point value or the rate of elongation. Using a computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analyze and edit the data by amplifying the curves through the graphics processing module, printing reports, and product performance reached the international advanced level.
Universal Testing Machine With Extensometer
glass bending testing machine
