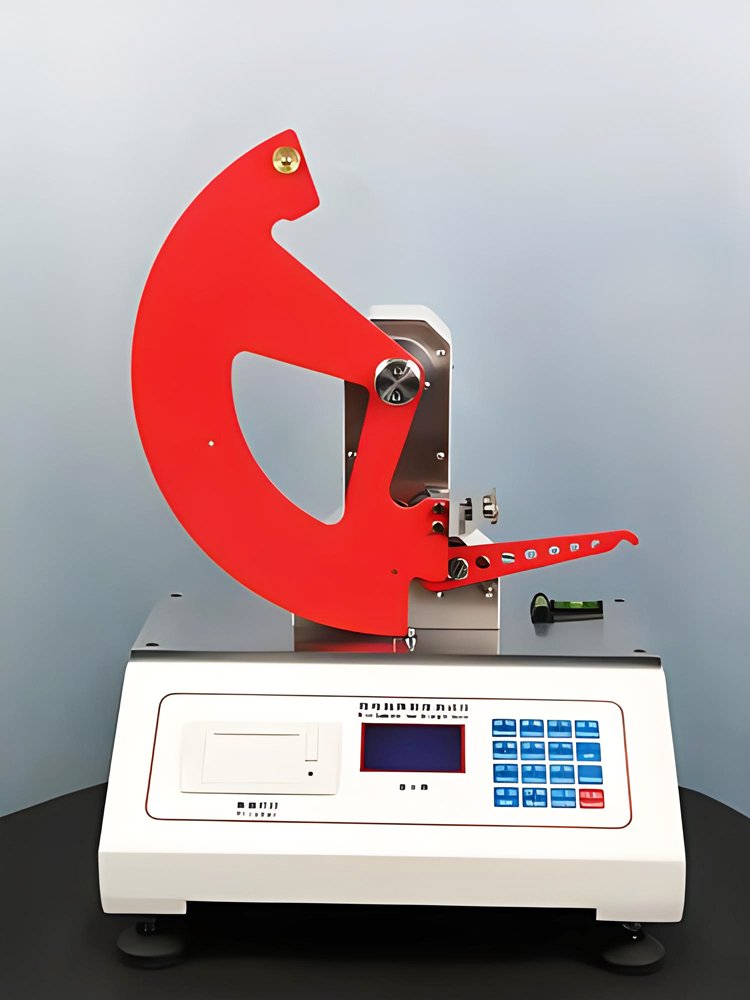

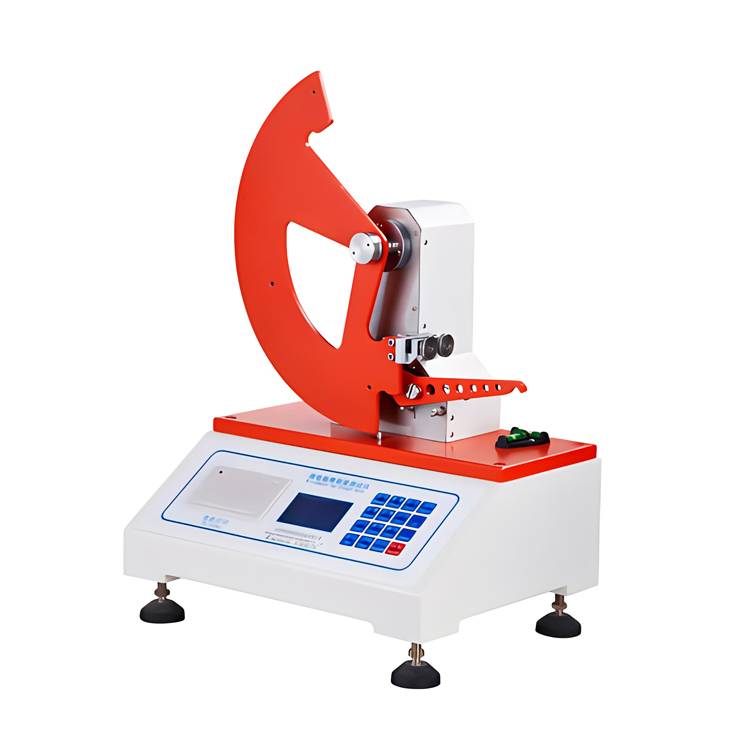

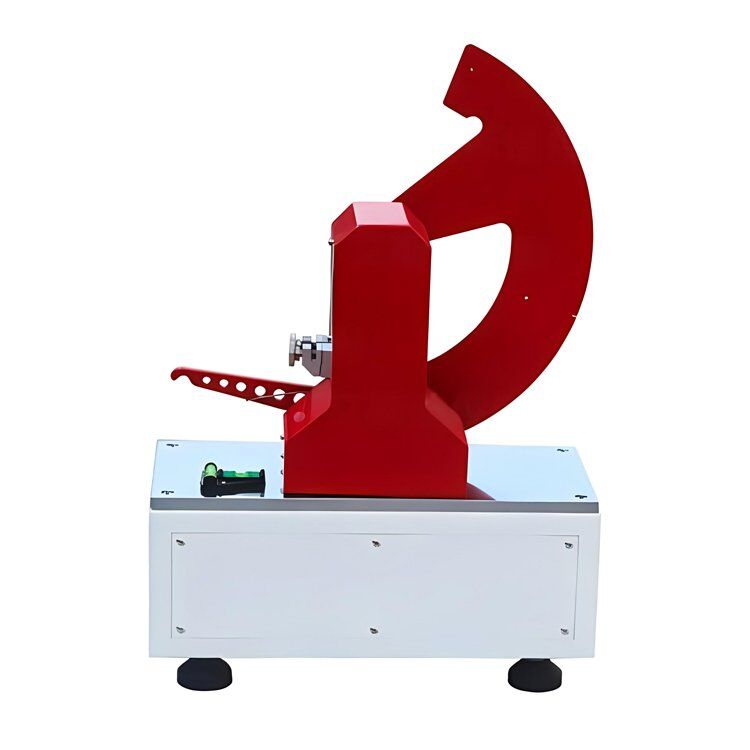

RT-404B Digital Fiber Film Paper Tearing Strength Test Machine

Category 5. Paper and Carton Box Testing Machine

Additional information

RT-404B Digital Fiber Film Paper Elmendorf Tear Tester

This machine is suitable for testing the tear strength of a certain number of pre-cuts in paper materials, in line with ISO1974 “Paper – Determination of Tear Strength (Erimendorph Method)” and GB455.1 “Paper Tear Strength Tester.”

Product Details：

Product Summary:

RT-404B Digital Fiber Film Paper Tearing Strength Test Machine is suitable for testing the tear strength of a certain number of pre-cuts in paper materials, in line with ISO1974 “Paper – Determination of Tear Strength (Erimendorph Method)” and GB455.1 “Paper Tear Strength Tester.”

It is applicable to determining the tearing degree of various types of paper and can also test the tear resistance of sheet composite materials such as low-strength cardboard, textiles, leather, and films.

a) Paper: tearing is suitable for the tearing strength test of base paper, printing paper, bobbin paper and other materials

b) Fiber material: tear is suitable for the tear strength test of glass fiber, carbon fiber and other materials

c) Film: tear strength test of tearing optical film, composite film, superconducting film, insulating diaphragm material

d) Other materials: tearing is suitable for tearing strength testing of non-woven fabrics, fabrics, leather, and other composite materials

Test principle:

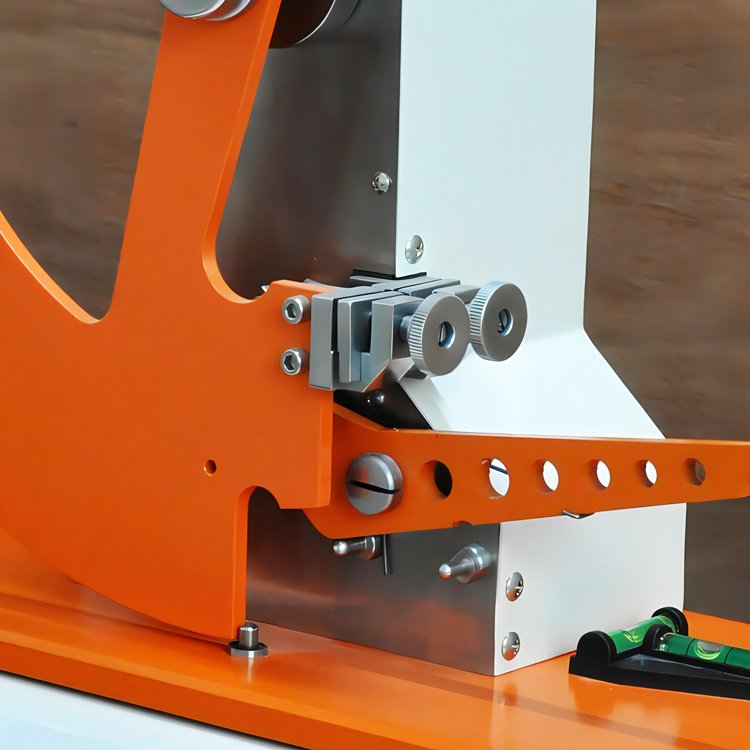

The equipment has a stack of samples (usually 4 layers) with prescribed pre-cuts. The pendulum is lifted to a certain height to make it have a certain potential energy. When the pendulum swings freely, it uses its own stored energy to tear the sample to a fixed distance. The potential energy loss of the pendulum measures the work done in tearing the specimen.

According to the standard:

GB/T 455, QB/T 1050, GB/T 16578.2, ISO 1974, TAPPI T414 and other test standards

Technical Parameter:

Model	RT-404B
Measurement range	100mN~13000Mn(Provides the best sample layer and the corresponding measuring range, according to the tested sample strength of rational choice specimen layer)
Indication accuracy	Displaying error:±1% ;Repeatability error of indication:≤1%
Tearing arm	(104±1)mm
Tear the initial angle	27.5 ±0.5°
Sample length of incision	(20±0.5)mm
Outside dimension	450×310×465(L×W×Hmm)
Quality	About 15kg
Room temperature	20±10 Degree/temperature
Power	AC22V±22V,50Hz,Power should be a reliable ground
Note	The working environment clean, dry, non-magnetic field strong motion source and corrosive gases
