Textile Finishing Shaping Machine for Drying Fabric Sample Stenter Machine (RT-855)

Category 6. Textile Testing Machine

Additional information

Fabric Sample Stenter Small Setting Textile Machine

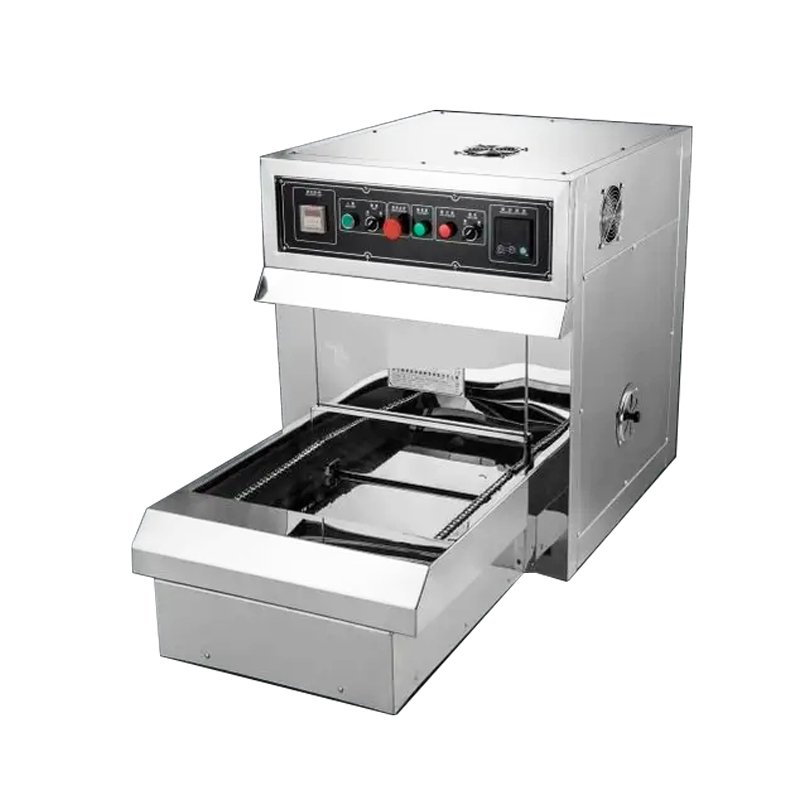

RT-855 Laboratory Mini Stenter is suitable for drying, fixing, and curing fabric samples after lab dyeing or coating.

Product Details：

RT-855 Fabric Sample Small Sample Drying and Shaping Textile Stenter Machine

RT-855 Series Mini Sample Dryer/Stenter can be used with lab padder and carry out drying, fixing, resin processing baking, rolling dyeing baking and hot fixing color test; test dyeing and finishing processing discoloration as well as verifying the results of pharmaceutical test to get the correct resin processing formula. It can simulate spot conditions to test the hardness and quality influence of dyes, auxiliaries and finishing auxiliaries.

Working Process:

Material preparation (needle plate rack) → automatic feeding → automatic timing → automatic withdrawal and alarm ring.

Specification

Product name	RT-855 Mini Fabric Stenter Machine
Equipment material	Made of SUS304 stainless steel plate
Sample cloth size	350×400mm（effective size 300×350mm）
Working temperature	20 ℃ ~ 250 ℃
Temperature control accuracy	± 2%
Heat preservation control time	from 10 seconds to 6 minutes can be preset

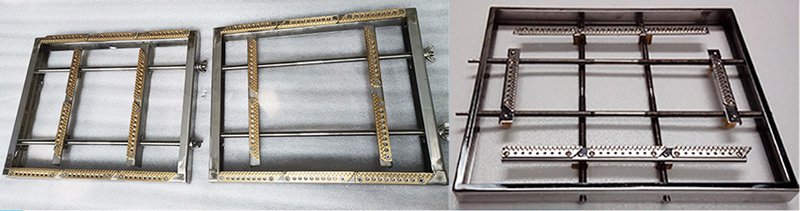

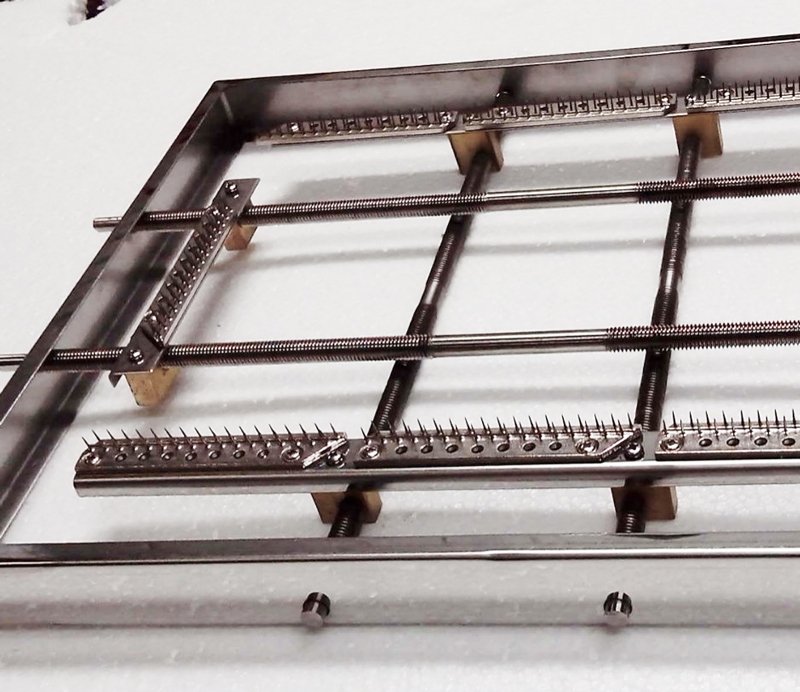

Needle plate	two groups of two-way stretching needle plate cloth frame

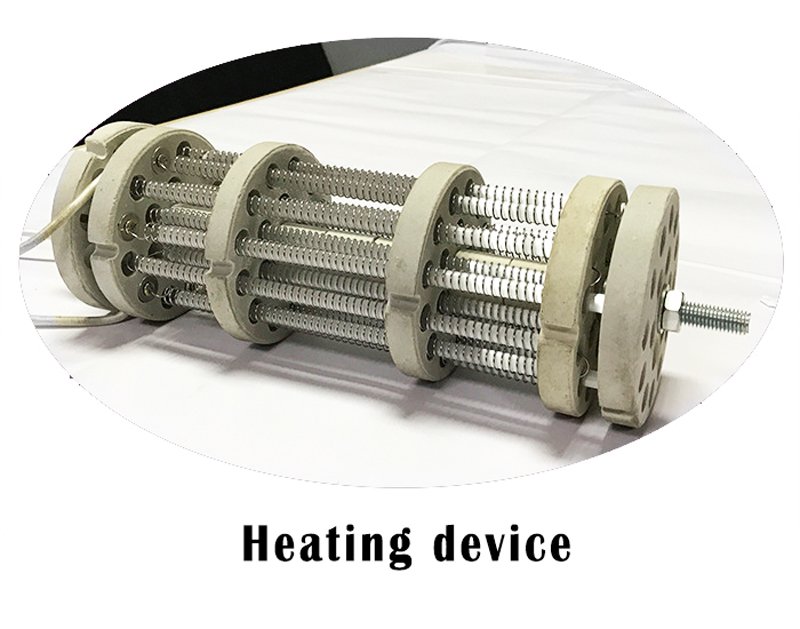

Electric heating power	6KW
Power supply	Three-phase 380V, 50HZ
External Dimension	Side 1360×Center 730×High 840mm
Weight	Approx. 120kg

More information:

1. This machine can be used with a small rolling padder machine (resin pressure dyeing machine).

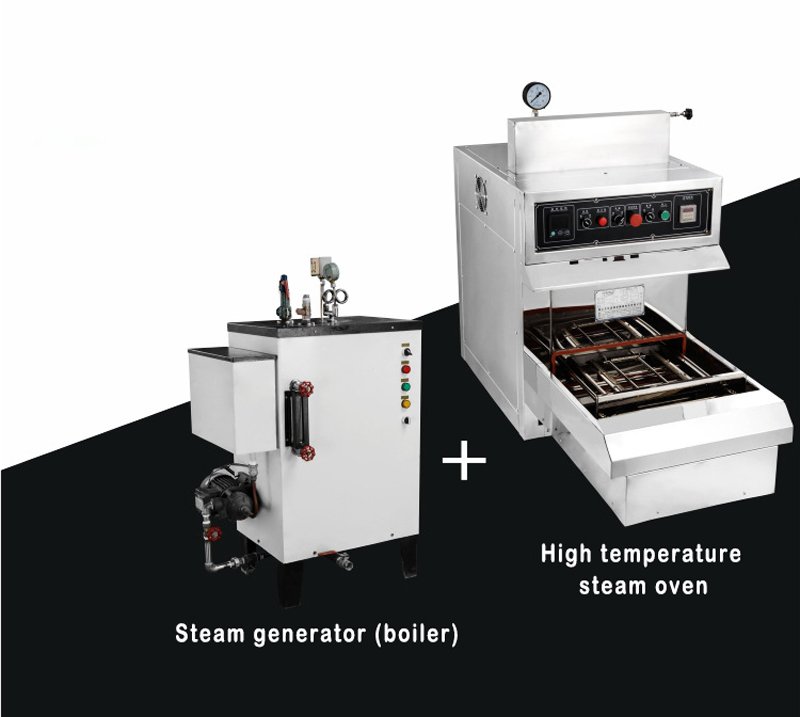

2. Can be equipped with a steam generator. (RT-855A)

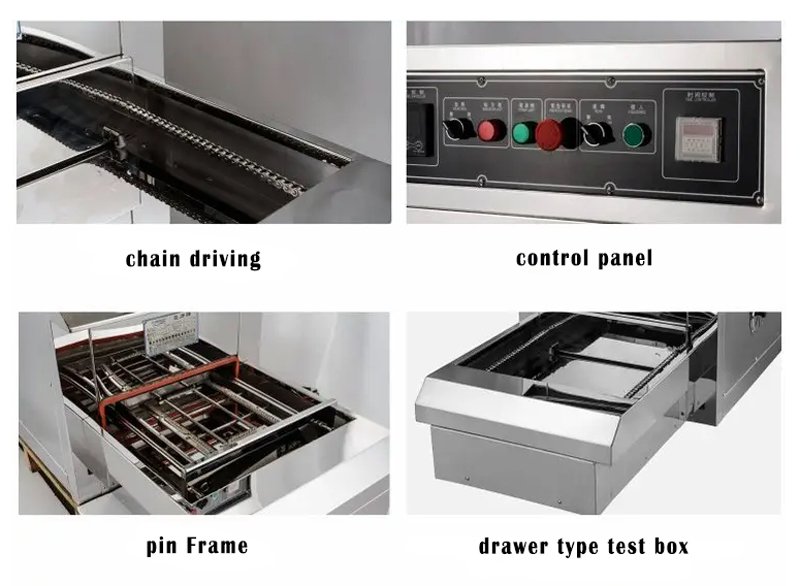

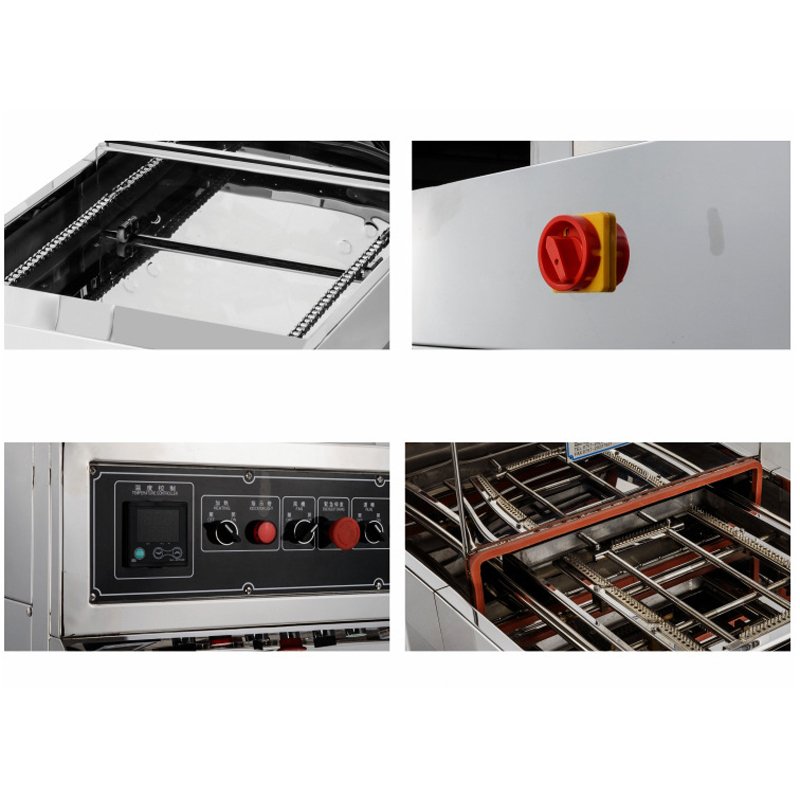

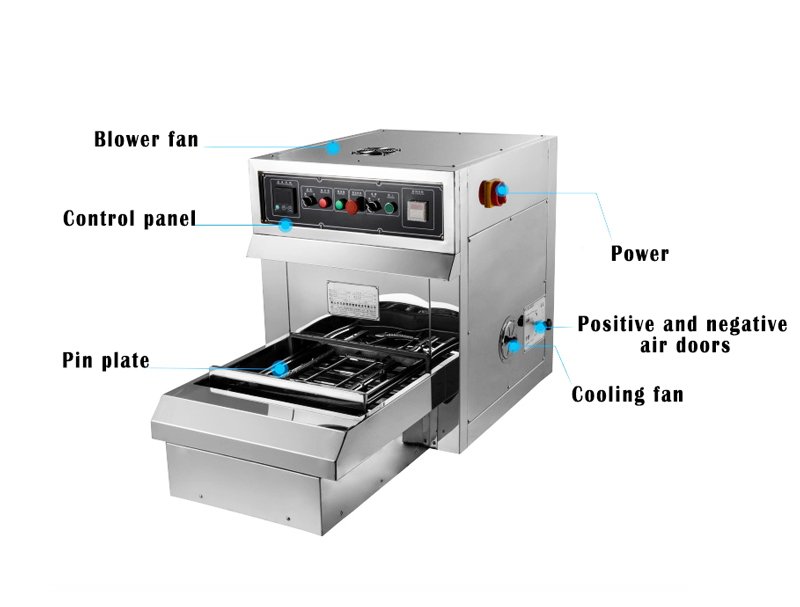

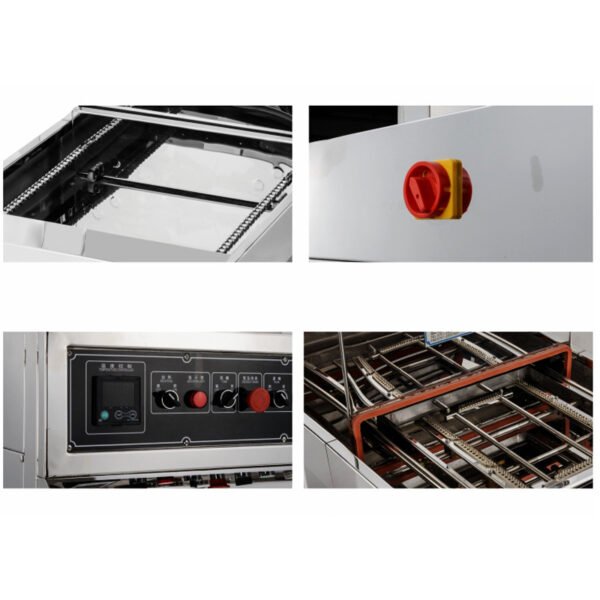

Product Feature

1. Drying time is settable

2. Automatically feeding sample and discharging

3. Precision temperature control system with cyclic hot air system, hot air flow can be control

4. Special designed needle frame is applied for both plain stitch cloth and knitted fabric

5. The tension of warp and weft direction both can be adjusted.

6. RT-855A equipped with steamer generator

7. Machine frame is made from SUS304

8. Machine equipped with alarm when program finish
