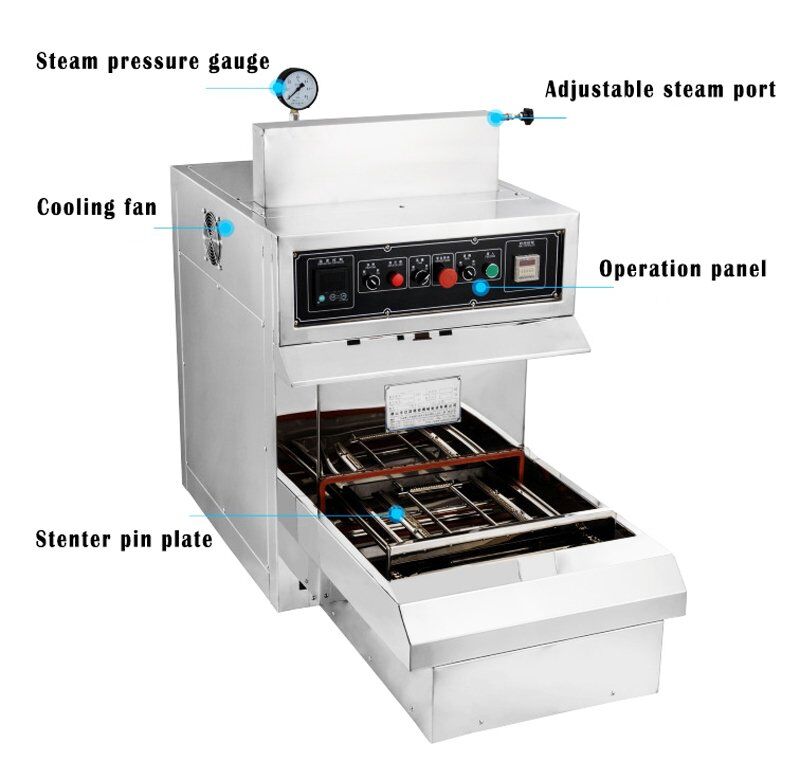

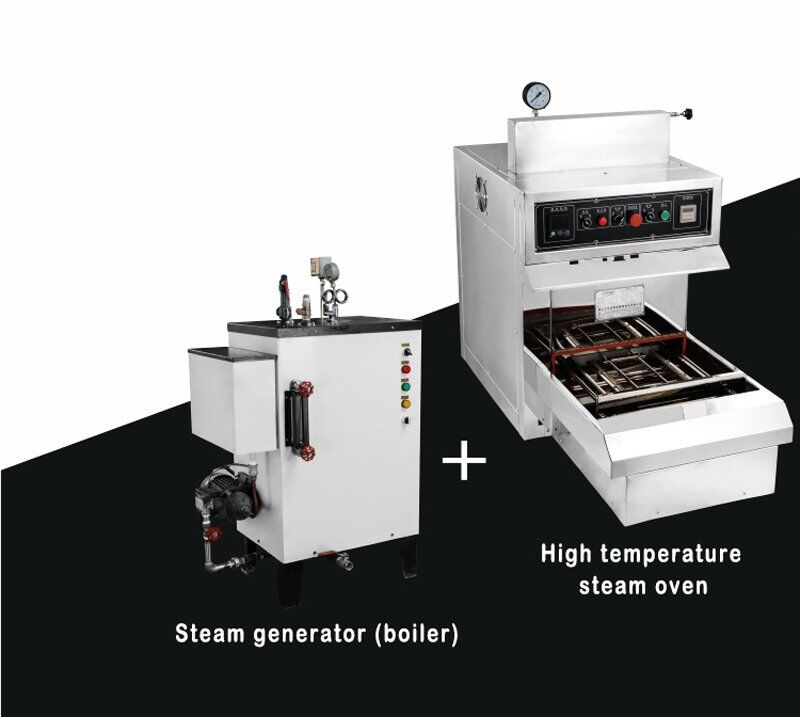

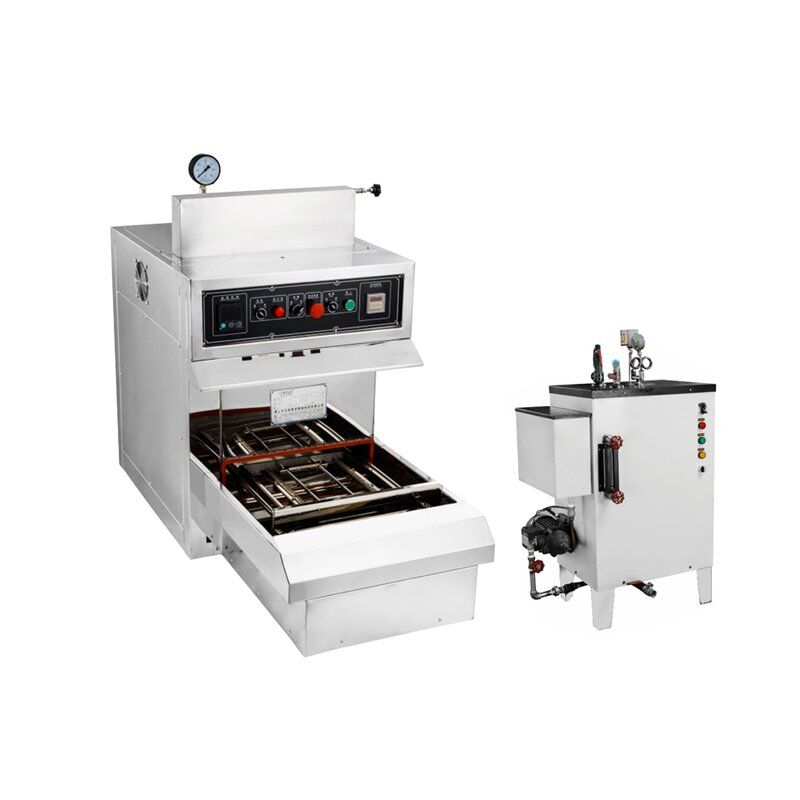

Fabric Sample Stenter Frame Machine with Steamer Generator (RT-855A)
Mini Dryer Stenter With Steamer Generator
It consists of a feeding and discharging drive system, a hot air circulation heating and control system, a needle plate cloth rack and frame, steam heating, etc.
Product Details：
RT-855A Lab Scale Continuous Stenter Machine Drying Machine
RT-855 Series Mini Sample Dryer/Stenter is suitable for conducting experiments such as steam culture, baking, and shaping drying in dyeing and finishing laboratories, in order to obtain the correct resin processing formula, test the discoloration of dyeing and finishing processes, and verify the results of chemical tests; It can also be used to complete the production of tactile samples, obtain correct color samples and organizational samples.
Working Process:
Material preparation (needle plate rack) → automatic feeding → automatic timing → automatic withdrawal and alarm ring.
Specification
| Product name | RT-855A High Temperature Steaming Drying Oven |
| Equipment material | Made of SUS304 stainless steel plate |
| Driver | Equipped with a Taiwanese motor drive system, a specially designed high-temperature resistant motor, and a precise timer that can flexibly select various timing ranges. |
| Sample cloth size | 350×400mm（effective size 300×350mm） |
| Working temperature | 20 ℃ ~ 250 ℃ |
| Temperature control accuracy | ± 2% |

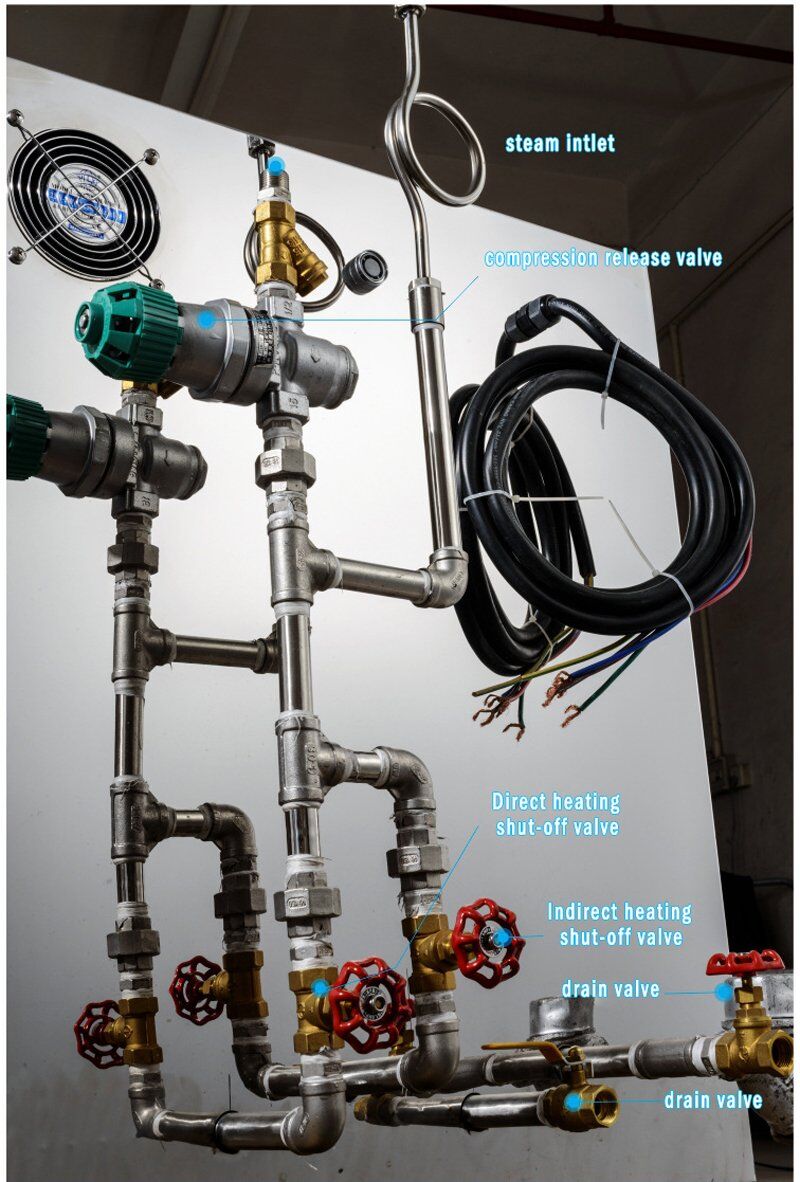

| Saturated steam baking | Steam heating temperature range 102 ° C ± 2 ° C |
| High temperature steam processing | Combination of electric heating and steam, temperature range 100 ° C~250 ° C |
| Heat preservation control time | 1~99M can be preset. Automatically exit upon completion and end ringing. |

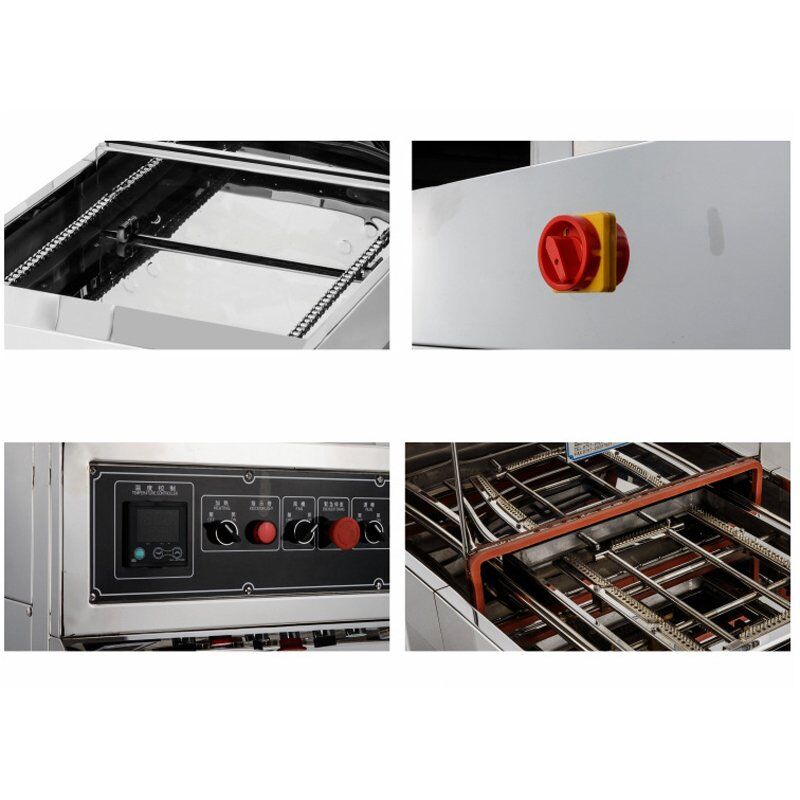

| Needle plate | two groups of two-way stretching needle plate cloth frame |
| Fan | Moisture removal and cooling heat dissipation port |
| Electric heating power | 6KW |
| Power supply | Three-phase 380V, 50HZ |
| External Dimension | Side 1540×Center 700×High 1050mm |
| Weight | Approx. 180kg |
Product Feature
1. Drying time is settable.
2. Automatically feeding sample and discharging.
3. Precision temperature control system with cyclic hot air system, hot air flow can be control.
4. Special designed needle frame is applied for both plain stitch cloth and knitted fabric.
5. The tension of warp and weft direction both can be adjusted.

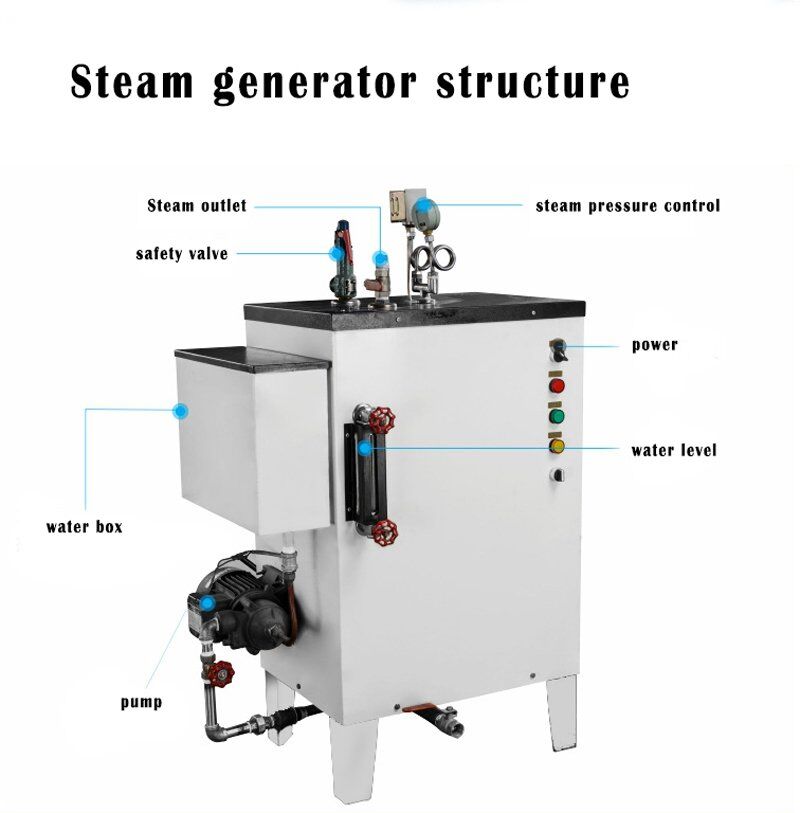

6. RT-855A equipped with steamer generator.
7. Machine frame is made from SUS304.
8. Machine equipped with alarm when program finish.
