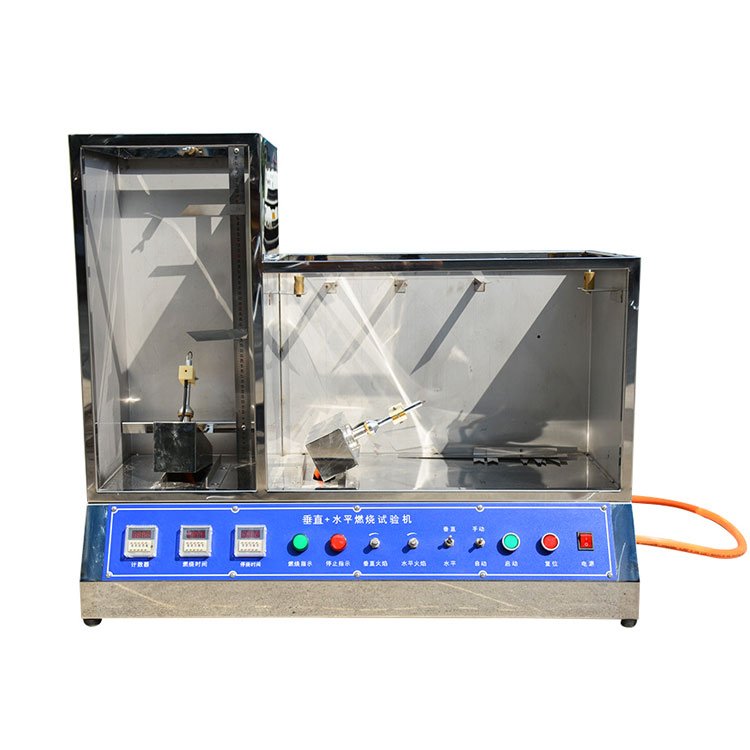

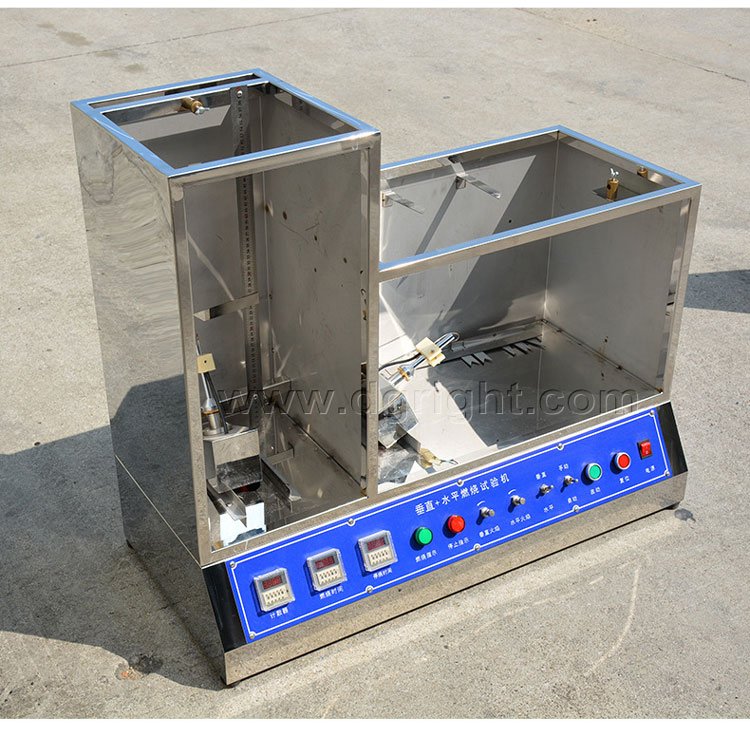

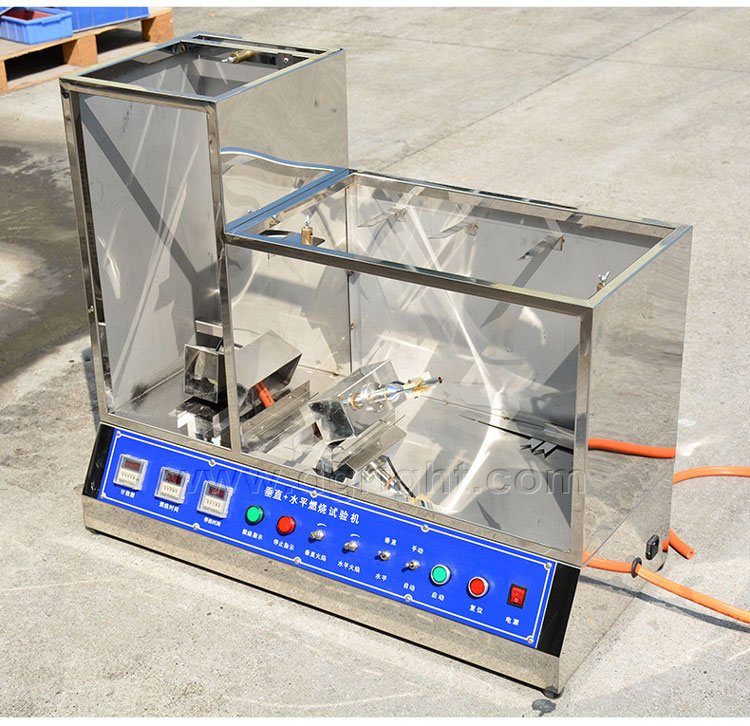

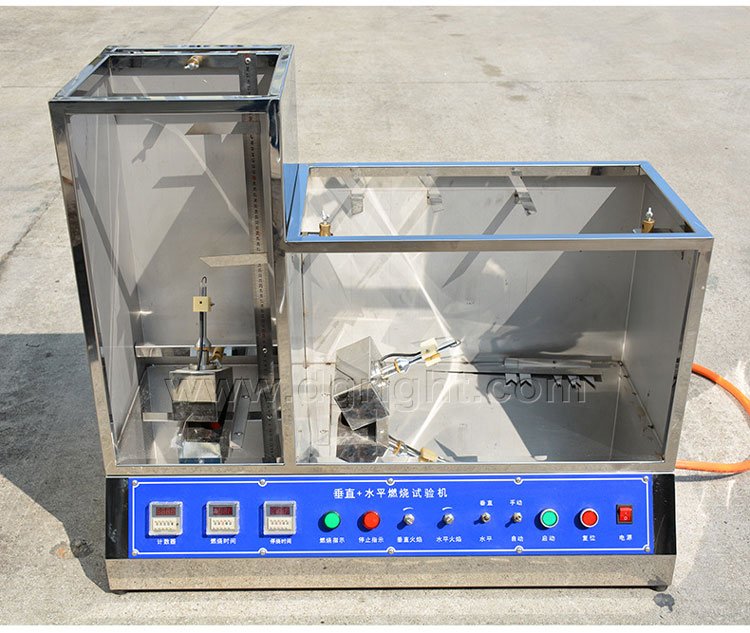

RT-813 Fabric Horizontal & Vertical Flammability Tester

RT-813 Fabric Horizontal & Vertical Flammability Tester - Image 3

Category 6. Textile Testing Machine

Additional information

RT-813 Horizontal & Vertical Flammability Testing Equipment

This machine is suitable for vertical combustion test for clothing fabric, decorative fabric, tent fabric with requirements of flame retardant.

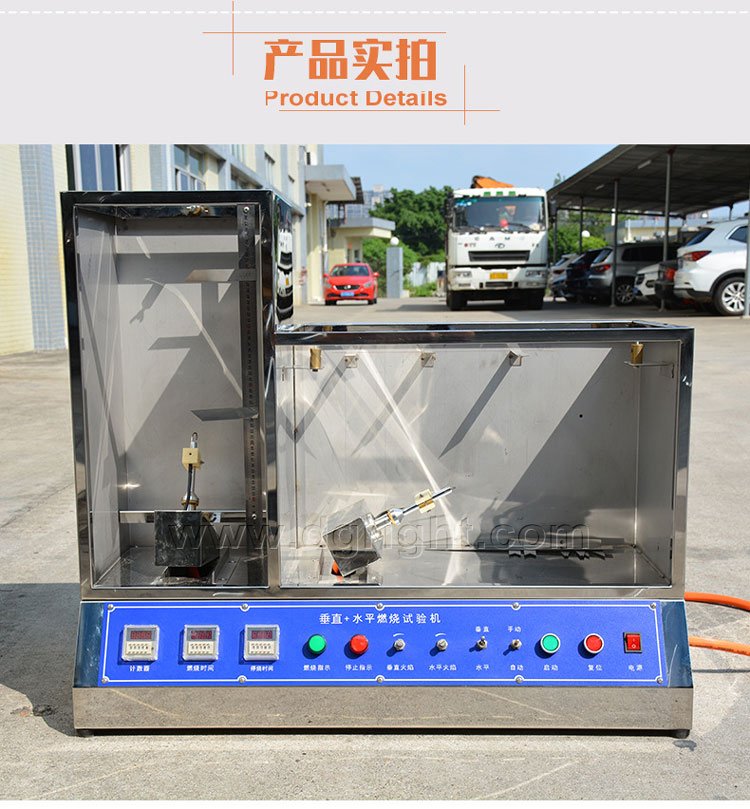

Product Details：

Equipment description:

Flammability Testing Equipment Flammability Tester Flame Detector Tester

The instrument is applicable to determination of vertical and horizontal combustion properties method of all types of textile fabrics, clothing, tents, etc.

Meet standard:

GB / T14644-2014、ASTM D1230、16CFR-1610

GB/T5455-97<Vertical method for fabrics flame retardant textile>

GB/T14645-93<Measuring of textile fabrics Combustion properties in the 45 °direction damaged area and the number of flame>

Technical parameter:

Name	Flammability Testing Equipment Flammability Tester
Model	RT-813
Renewal time range	0-999.9S Resolution 0.1S
Yin Yan-time range	0-999.9S Resolution 0.1S
Box room temperature display range	0-99°C Resolution 1°C
Ignition time	12S(can be set)
Igniter nozzle diameter	11mm
Sample distance from the ignition to the top	17mm dip 25°
Standard configuration	1 Sample clip
	4 Clips
	Hammer weight:54.5g,113.6g,226.8g,340.2g,453.6g per 1
Sample folder size	Shape 422mm×89mm
	Inner frame:356mm×51mm
Studio Size	329mm×329mm×767mm
Dimensions	500mm×331mm×900mm
Mobile Electric Power ignition	10W
Power	Ac220V,50Hz
