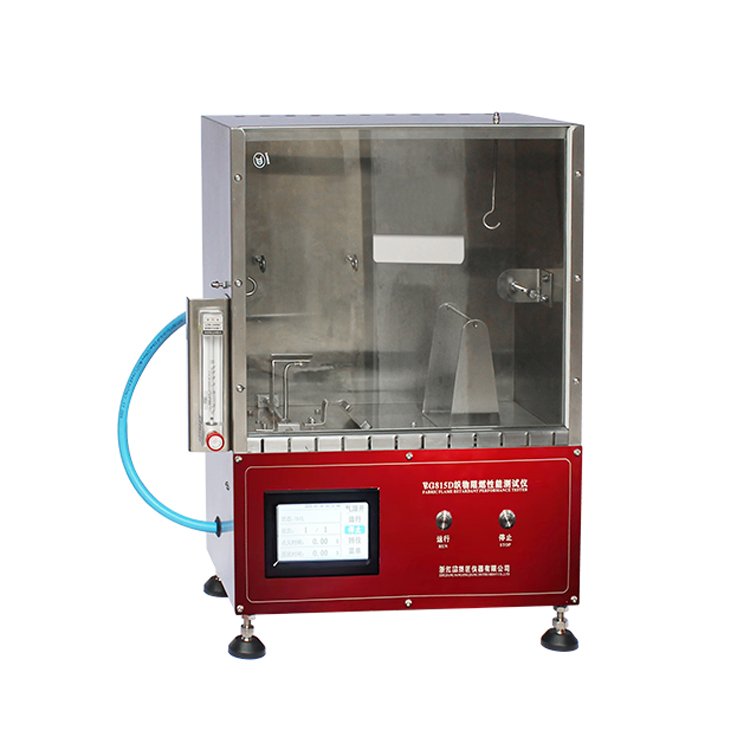

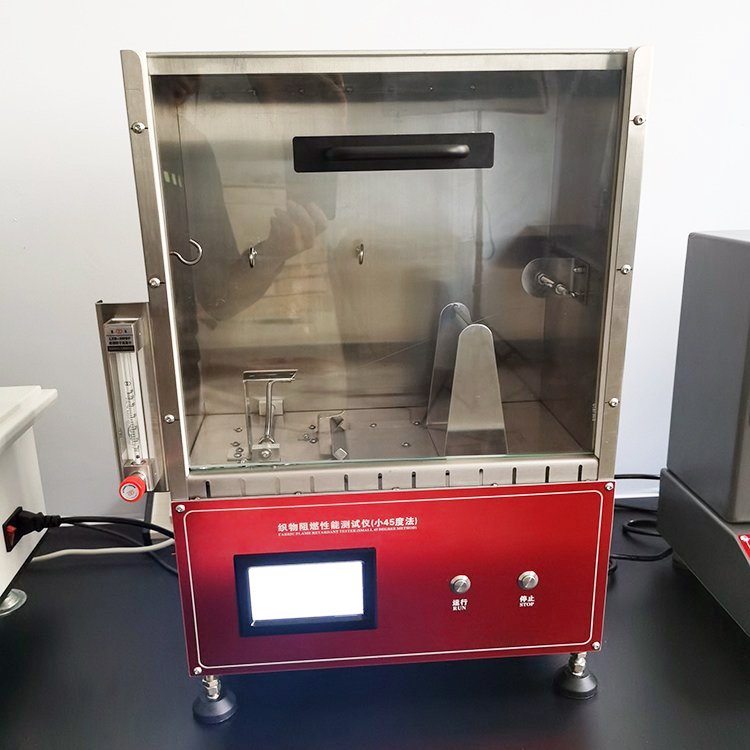

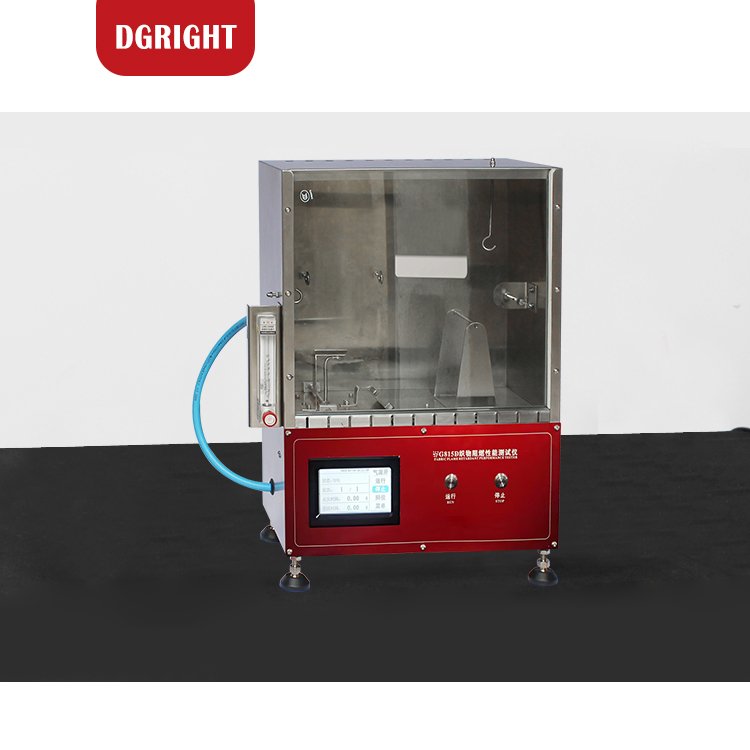

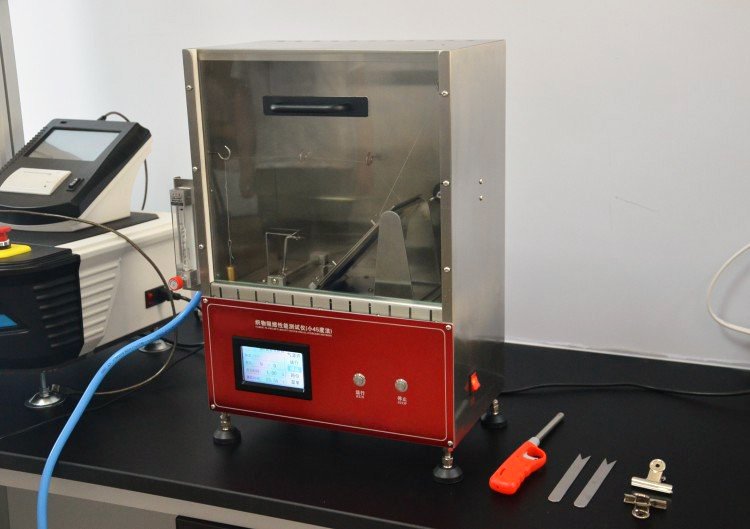

RT-813C Fabric Flame Retardant Tester(Small 45 degree)
RT-813C Fabric Flame Retardant Performance Tester (small 45°)
Scope of application:
Used to determine the flame retardancy, ignition speed, and intensity of flammable items such as textiles, infant and children’s textiles.
Product Details：
Product structure:
Meet standard:
ASTM D 1230：Standard Test Method for Flammability of Apparel Textiles;
GB/T14644: Textiles―Burning behaviour―The 45°test determination of flame spread rate;
CRF16-1610, CRF 16-1610、CALIF TB 117、FTMS191-5908
Technical parameter:
| Model | RT-813C |
| display system | Color LCD touch screen, can set and display ignition time and spread time |
| burner | Professionally made burner, made of brass, beautiful and durable, the distance between the tip of the igniter and the sample surface is 8mm, and the flame height: 16mm |
| Mark line | White cotton mercerized sewing thread |
| Timer | 0 ~ 999.9 seconds can be set, timing resolution: 0.1S |
| Flowmeter range | 0 ~ 60mL / minute |
| Heavy hammer | The mass is 30g±5g |
| Combustion gas | Butane gas (the factory configuration is butane with a purity greater than 98%) |

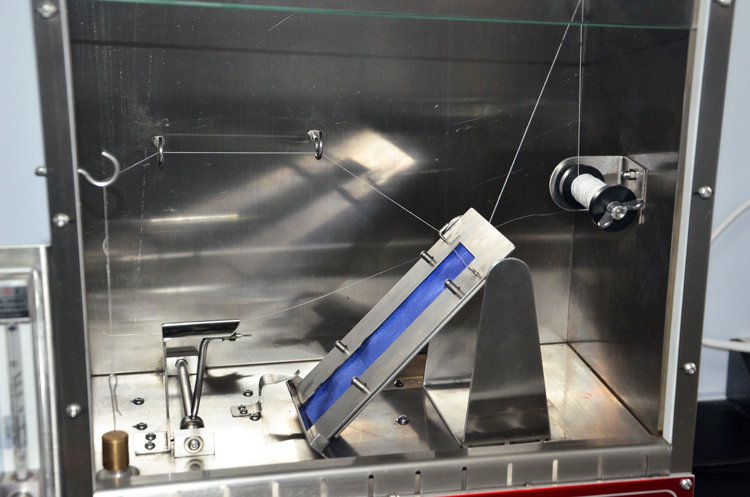

| Sample holder | The sample holder can be supported and fixed at a 45-degree angle, and its relative position with the flame front end can be adjusted according to the thickness of the sample |

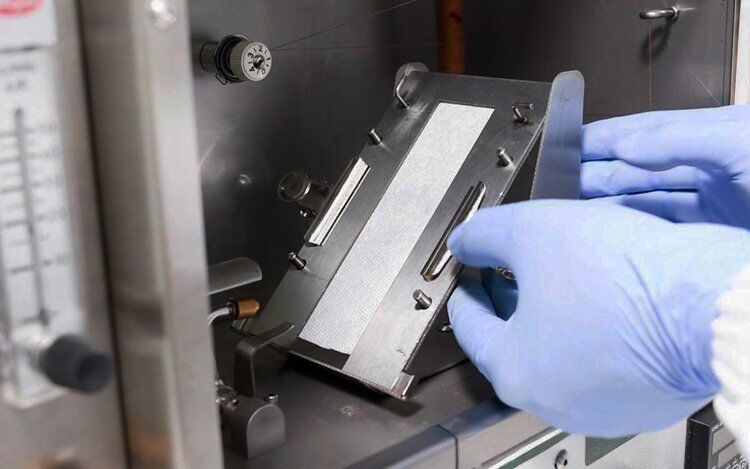

| Specimen holder | It is composed of two U-shaped steel plates with a thickness of 2.0mm. The inner frame size is 152x38mm. The sample is fixed between the two plates and clamped on both sides with clamps. |
| Burner size parameters | The inner diameter of the nozzle is Ø9.5±0.3mm, the effective length of the nozzle is 100±10mm, and there is an air adjustment hole |
| Combustion gas | Liquefied petroleum gas, industrial methane gas shall be used in arbitration |
| Flame height | According to standard requirements, it can be adjusted from 20mm to 175mm |
| Features | This testing machine is made of SUS#304 brushed stainless steel, heat-resistant and smoke-resistant, and easy to clean. The size of the box is (L x W x H): 370x220x350mm±10mm. The front of the combustion box is a transparent observation door, which is convenient for the tester to operate and control. The top of the box There are 11 evenly arranged ventilation holes with a diameter of 12.7mm on the back |
| power supply | AC 220V / 50Hz |
| display system | Color LCD touch screen, can set and display ignition time and spread time |
| burner | Professionally made burner, made of brass, beautiful and durable, the distance between the tip of the igniter and the sample surface is 8mm, and the flame height: 16mm |
Technical features:

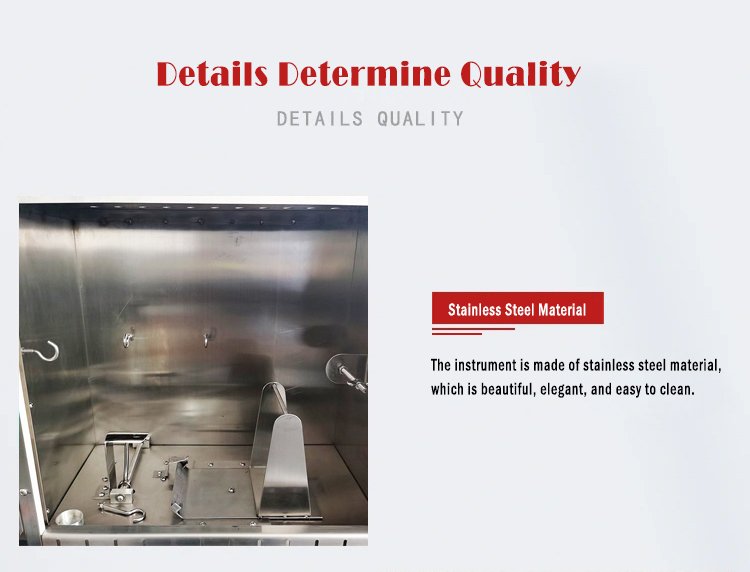

1. Made of 1.5mm thick imported brushed stainless steel, heat-resistant and smoke-resistant, easy to clean;
2. The flame height adjustment is controlled by a precision rotor flowmeter, which ensures stable and easy adjustment of the flame.

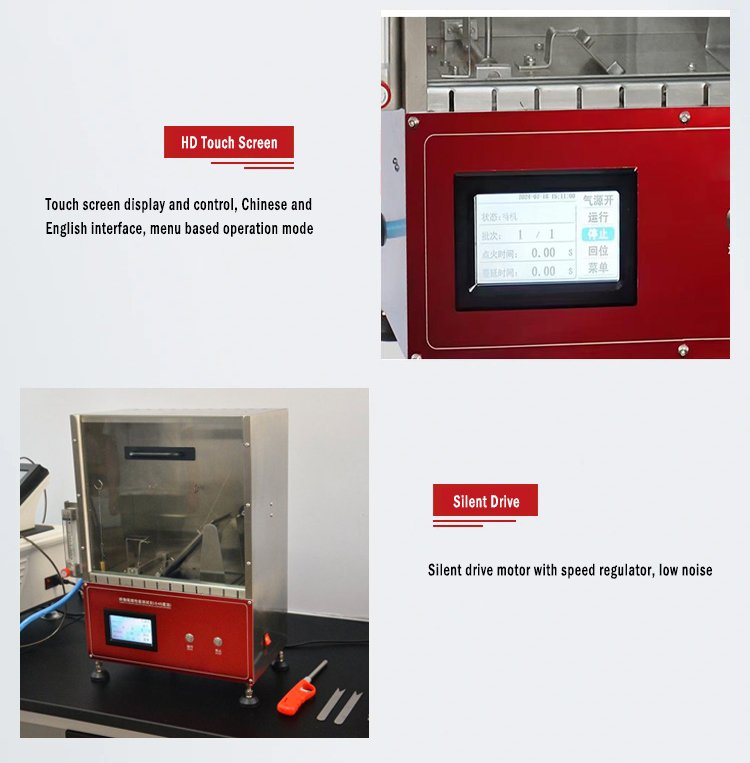

3. Color touch screen display operation, Chinese and English interface, menu-based operation mode;
4. The core components use STMicroelectronics’ 32-bit multifunctional motherboard to process data;
5. Stepper motor motion control ensures smooth and precise movement of the burner;
6. The burner is made of B63 material, which is corrosion-resistant, non-deformable, and non-embroidered;
7. Automatic electric ignition (replacing manual ignition mode);
8. Automatically cut off the gas source when the ignition time is up (replacing the manual shutdown function);
Testing Principles

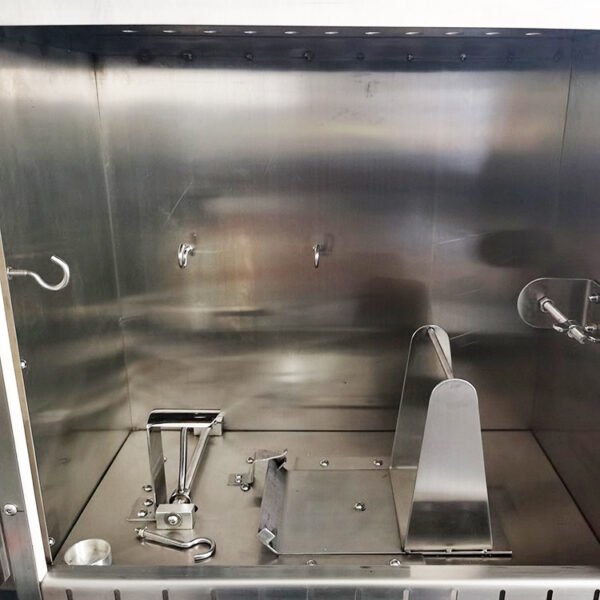

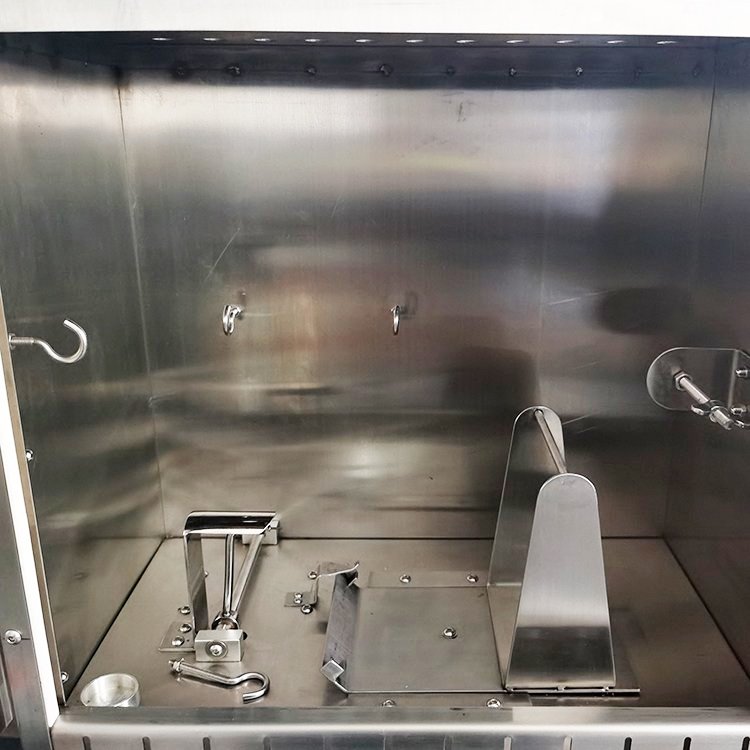

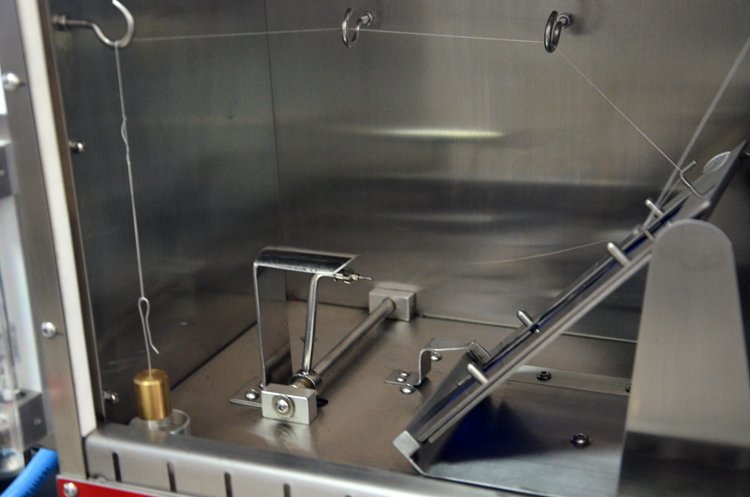

This instrument is designed as a whole box and mainly consists of a control system and a combustion chamber. The sample is installed on a sample holder tilted at a 45 ° angle in the combustion chamber, with the flame nozzle close to the sample. After igniting the sample with a flame for a specified time, it returns to observe the combustion situation of the sample and the spread speed of the flame on the sample, and evaluate the ignitability and flame spread performance of the sample.
