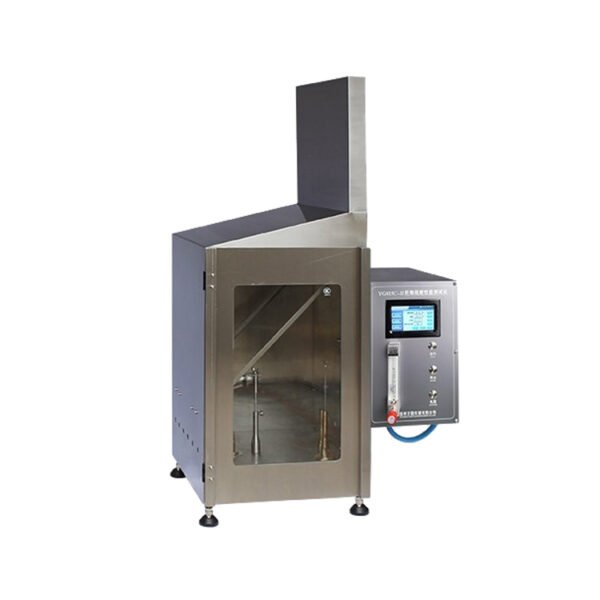

GB/T14645-2014 Fabric Flame Retardant Performance Tester (Large 45 Degrees)

Textile Flammability Test Chamber （large 45°）

Category 6. Textile Testing Machine

Additional information

Product Details：

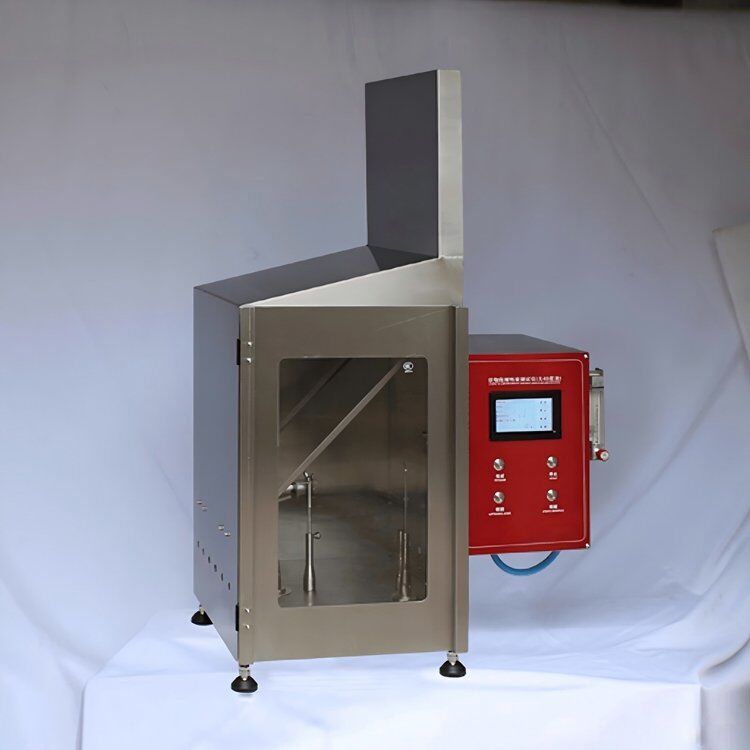

RT-813D Fabric Flame Retardant Performance Tester (large 45°)

Scope of application:

Used to ignite fabrics in a 45 ° direction, measure their ignition time, smoldering time, damage length, damage area, or determine the number of times the fabric needs to come into contact with flames to burn to a specified length.

Meet standards:

GB/T14645-2014 Textiles―Burning behaviour―The 45°test determination of damaged area and ignition times

Method A is used to determine the damaged area and length of textiles and other materials when burned at 45 ° C;

Method B is used to determine the number of times textiles come into contact with flames when heated and melted to a specified length at 45 ° C.

Specification

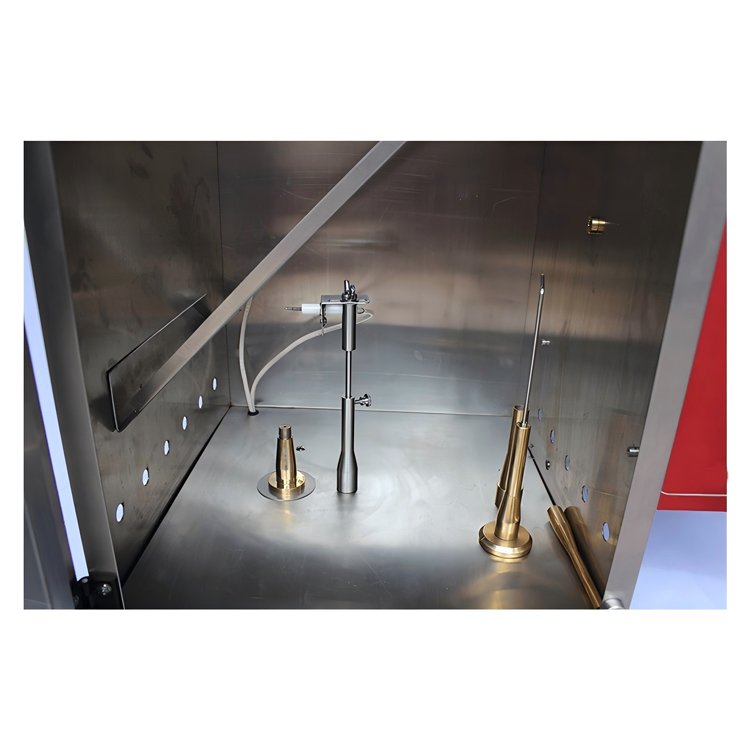

1. The sample holder is fixed at a 45-degree angle inside the box

2. Combustion test chamber size: 350mm × 350mm × 900 ± 2mm (L × W × H)

3. Method A sample holder: composed of two stainless steel frames with a thickness of 2mm, a length of 490mm, and a width of 230mm, with an inner frame size of 250mm × 150mm

4. B method sample clamp, also known as sample support coil: a coil with an inner diameter of 10mm, a wire to wire spacing of 2mm, and a length of 150mm, made by winding a hard stainless steel wire with a diameter of 0.5mm

5. Igniter:

Method A thin textile: Inner diameter of igniter nozzle: 6.4mm, flame height: 45mm, distance between burner tip and sample surface: 45mm, ignition time: 30S

A-method thick textile: inner diameter of burner nozzle: 20mm, flame height: 65mm, distance between burner top and sample surface: 65mm, ignition time: 120S

B-method textile: Inner diameter of igniter nozzle: 6.4mm, flame height: 45mm, distance between burner top and sample bottom: 45mm

6. Ignition time: 0~999s ± 0.05s can be set arbitrarily

7. Continuation timing range: 0-99.9s, resolution 0.1s

8. Smoldering timing range: 0~999.9s, resolution 0.1s

9. Power supply: 220V, 50Hz

10. Weight: 30kg

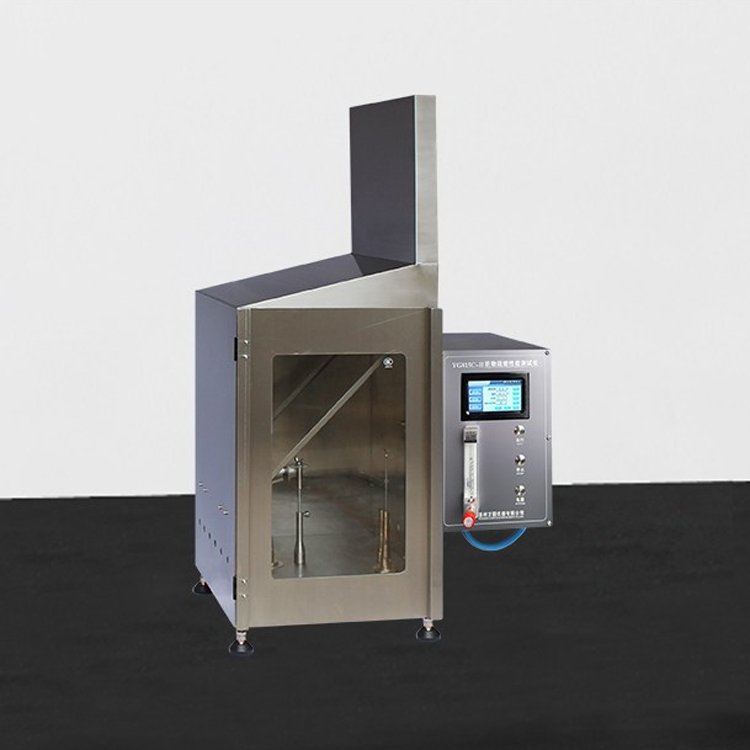

GB/T14645-2014 Textile Flammability Test Chamber （large 45°）
Testing Parameters	Method A		Method A
Testing Parameters	Thin fibric	Thick fabric	Method A
Timing	30s	120s	manual control
Inner diameter of igniter nozzle	￠6.4mm	￠20mm	￠6.4mm
Inner diameter of igniter nozzle	45mm	65mm	45mm
Sample clamp size	Appearance: 490 × 230mm Inner frame: 250 × 150mm		Spiral ring diameter ￠ 10mm Pitch 2mm; total length 150mm;

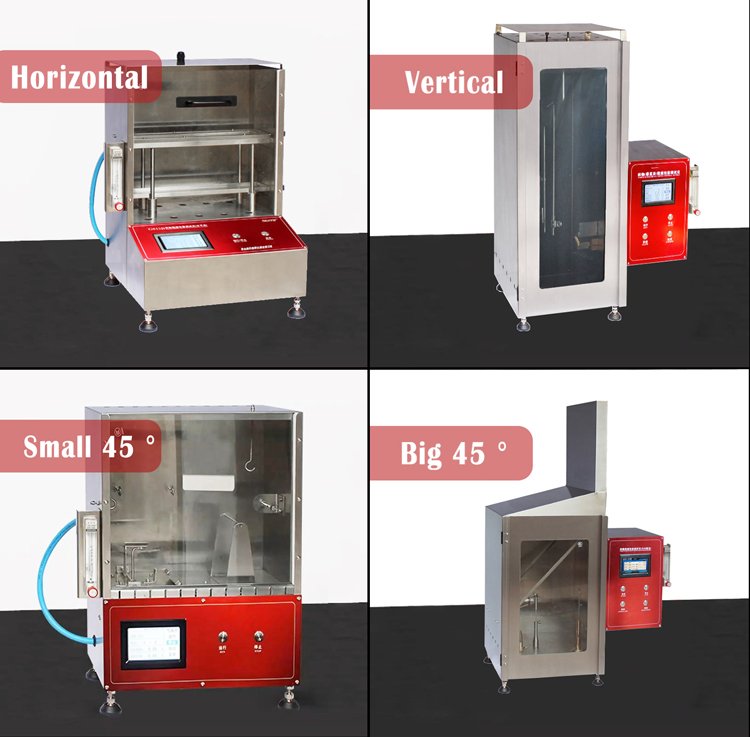

Textile Flammability Test Chamber （large 45°）

Technical features:

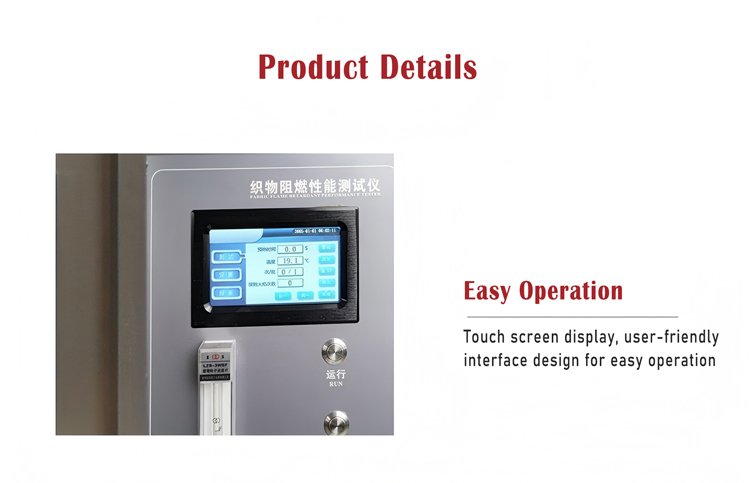

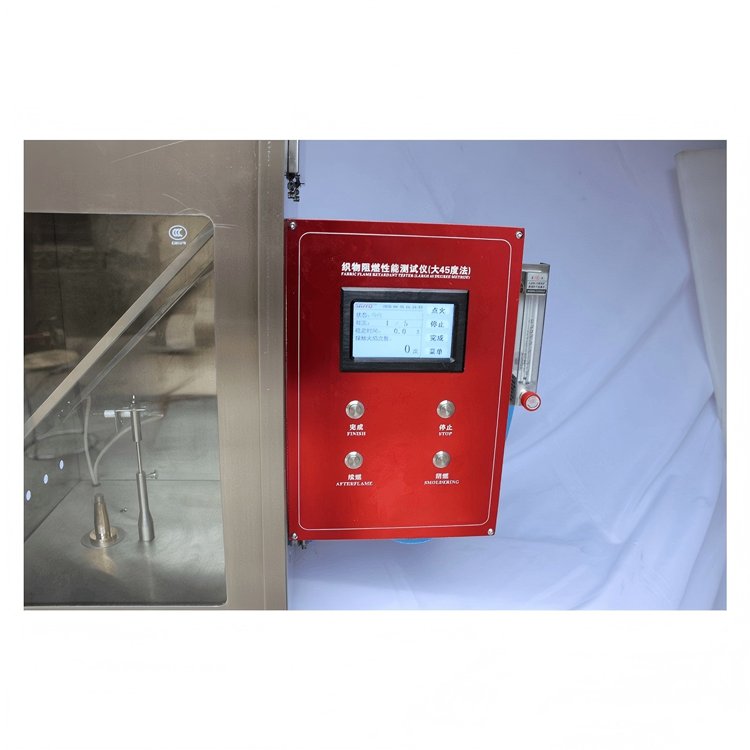

1. Color touch screen display operation, Chinese and English interface, menu-based operation mode;

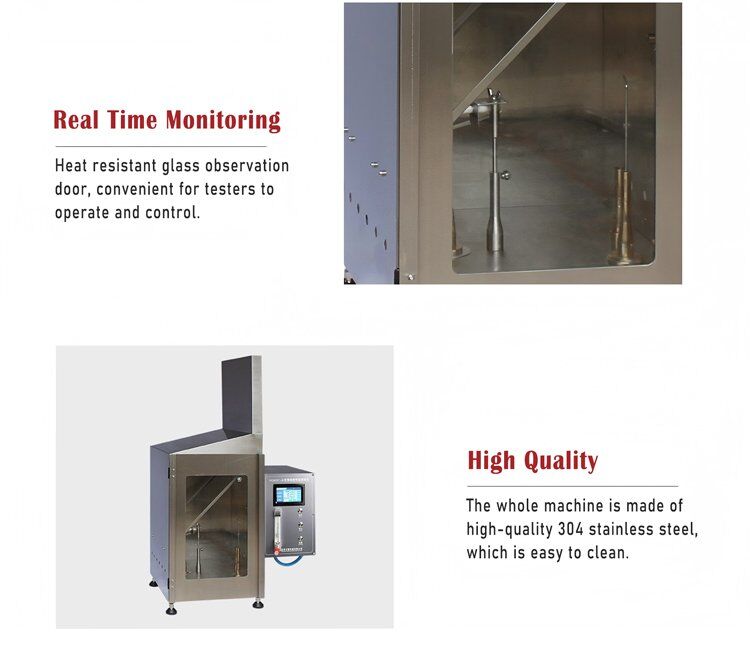

2. The whole machine is made of high-quality 304 stainless steel, which is easy to clean.

3. The flame height adjustment is controlled by a precision rotor flowmeter, which ensures stable and easy adjustment of the flame.

4. Both burner models A and B are made of B63 material, which is corrosion-resistant, non-deformable, and non-embroidered;

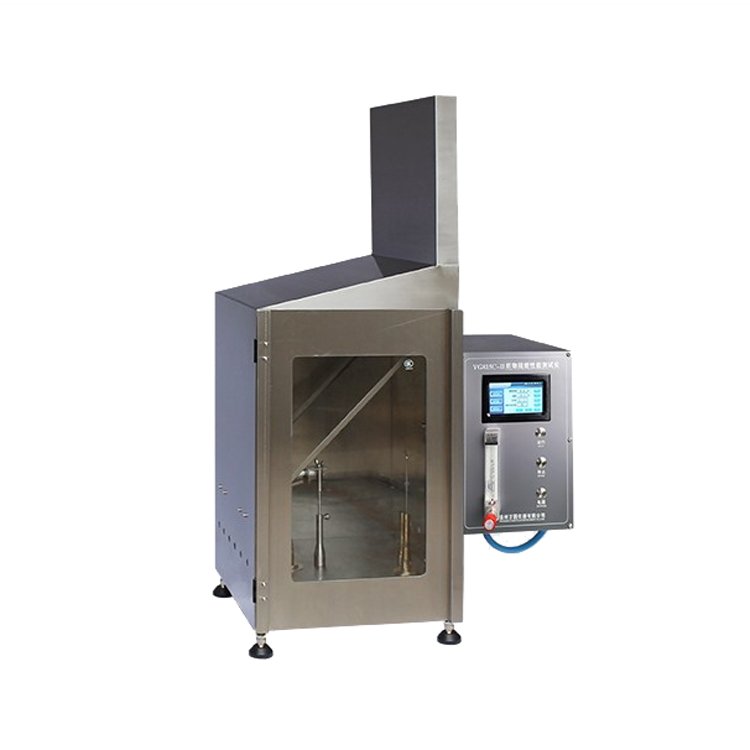

Textile Flammability Test Chamber （large 45°）
