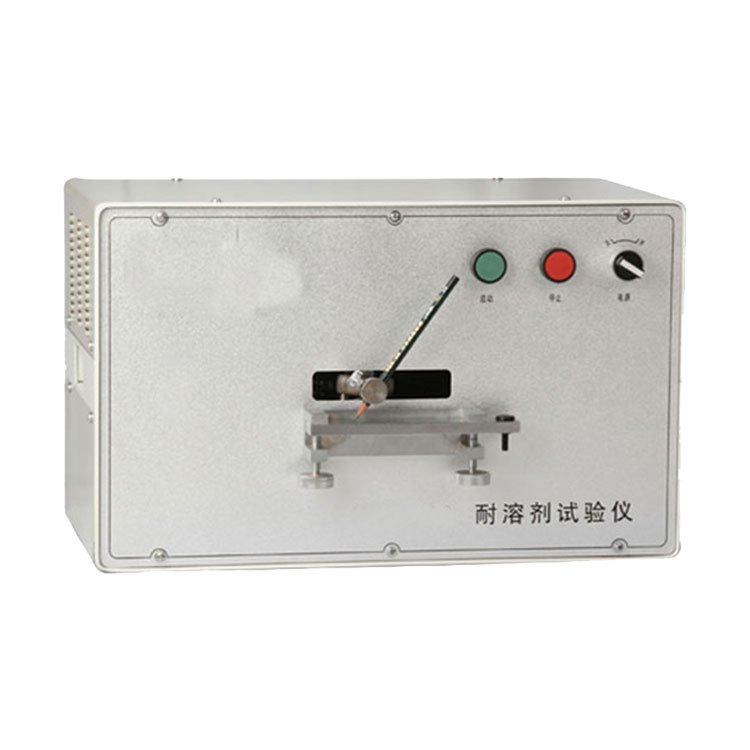

RT-1615 Enameled Wire Solvent-resistance Tester

Category 13. Enameled Wire Testing Machine

Additional information

Product Details：

Product description:

or detecting conductor nominal diameter of 0.250mm or more solvent resistance enameled round wire and enameled flat line;

single-chip computer control;

pencil goes device can automatically put down the pencil goes forward, lift the pencil automatically return to the starting position;

with JRK-60 temperature controller supporting the use of;

automatic grinding tip of a pencil sharpener can grind symmetrical about its axis 60 ° angle;

Applied standard:

implementation of standards: GB / T4074.4-2008 / IEC60851-4: 2005;

inspection standards: JB / T4279.10-2008;

meet GB / T6109-2008 standard requirements;

Technical parameter:

Pencil lapse rate	（400±40）mm/min
Pencil goes the distance	＞60mm
The angle between the pencil and the specimen	(60 ± 5) °
Pencil along the direction of the force	5N ± 5%
Test temperature of the solvent	(60 ± 3) ℃
Input power	AC220V±10% 50HZ
Power consumption	＜100W
Work environment	Temperature:0-40℃;Humidity:≤85%
Machine dimension	L×W×H 640×345×350mm
Weight	35kg
