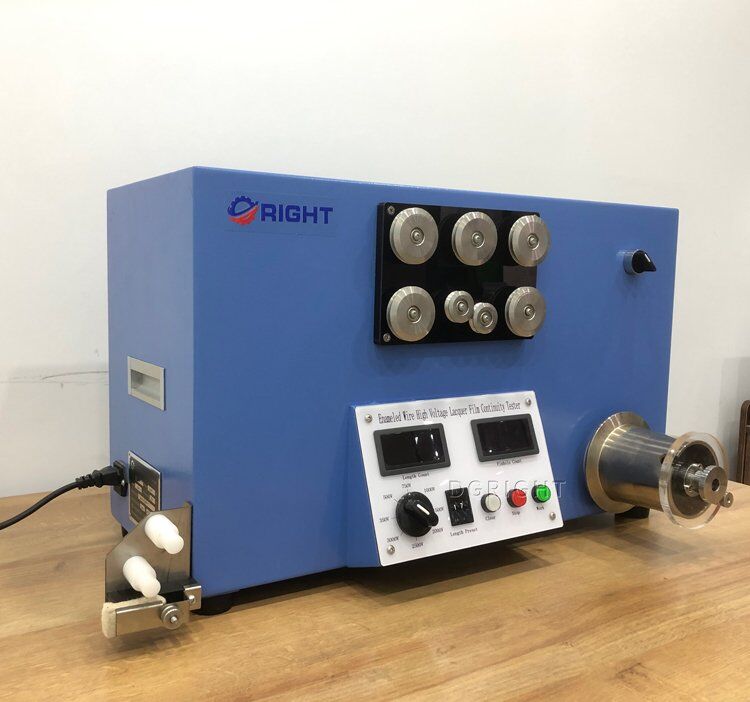

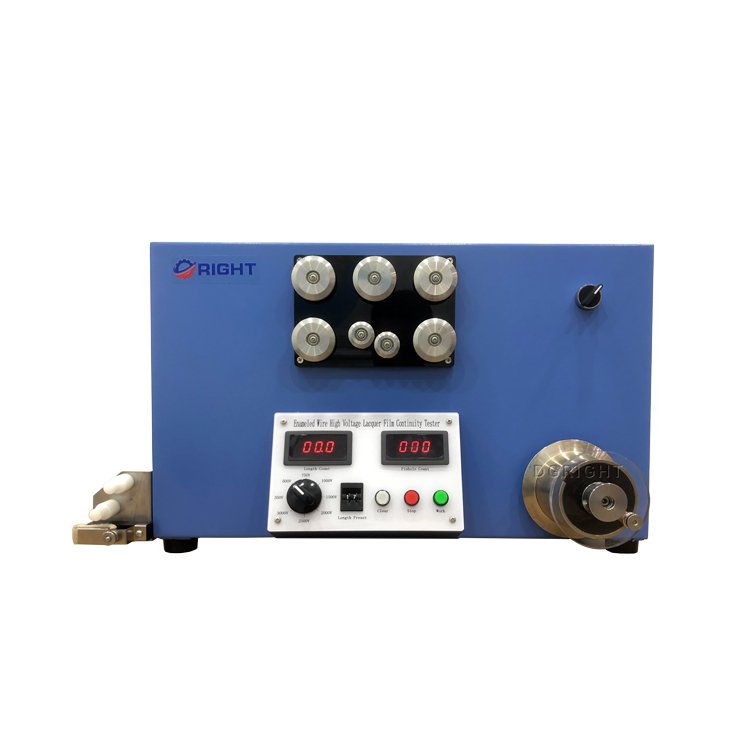

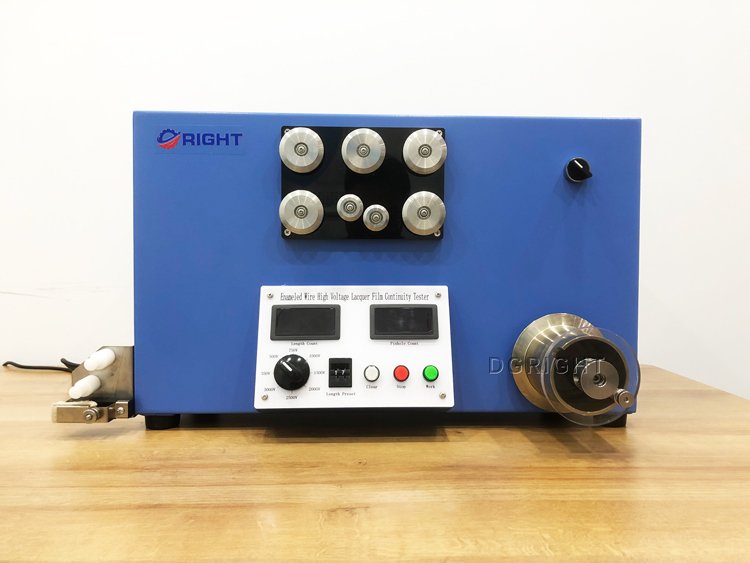

RT-1609 High-voltage Paint Film Continuity Tester is for magnet wire manufacturers, product quality supervision, inspection industries, and sectors.
RT-1609 Enameled wire high voltage continuity tester is used to test the lacquer film continuity (i.e., the number of pinholes per unit length of enameled wire specimen) of enameled round wires with conductor nominal diameters of 0.050mm above 1.600mm and below.

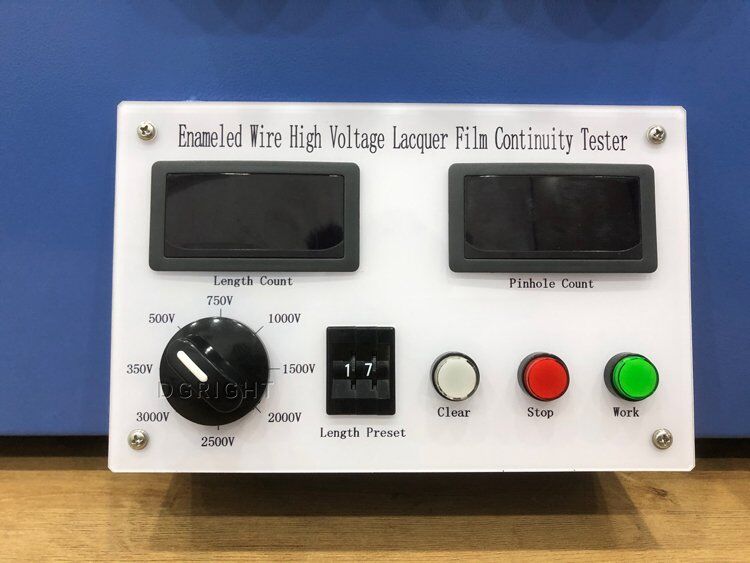

Selecting eight test voltages of 350V, 500V, 750V, 1000V, 1500V, 2000V, 2500V and 3000V.
Test specimen length 0 to 99m arbitrary preset.
Execution standard: GB/T4074.5-2008 and IEC60851-5:2005;
Inspection standard: JB/T4279.13-2008;
Meet the requirements of GB/T6109-2008 standard;
Model | RT-1609 |
Test voltage error | &5% |
Steady-state short-circuit current | 25±5a |
Frequency | 500±10 times /min |
50mΩ defect resistance caused voltage drop | 75% |
Response time of defects counting circuit | 5±1μs |
Working environment | Temperature: 0 – 40 centigrace |
External power supply | ac220v±5% 50hz |
Power consumption | 250w |
Outside dimension | 638*480*405mm (L*W*H) |
Weight | 40kg |
