EN149 Nacl And Oil Type Mask Particle Filtration Efficiency PFE Tester

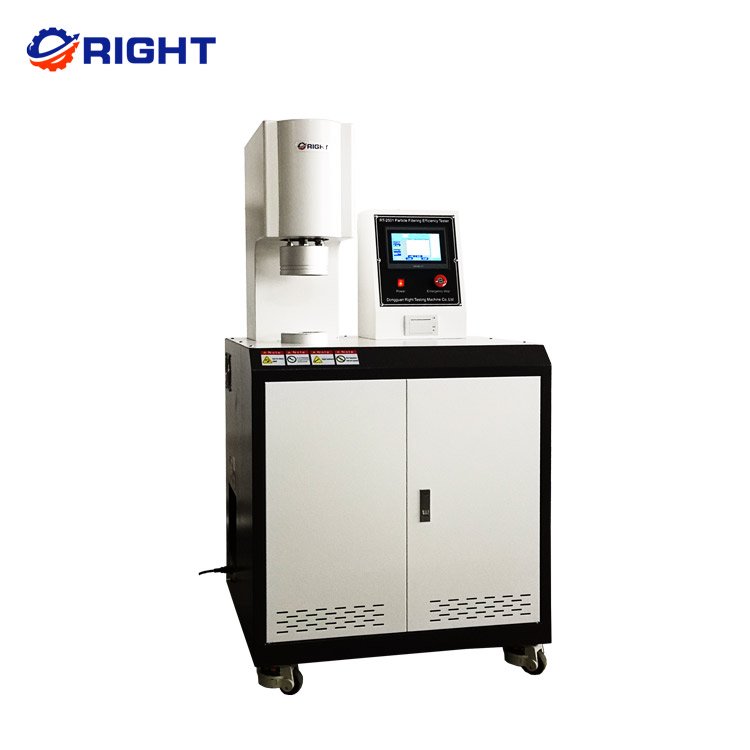

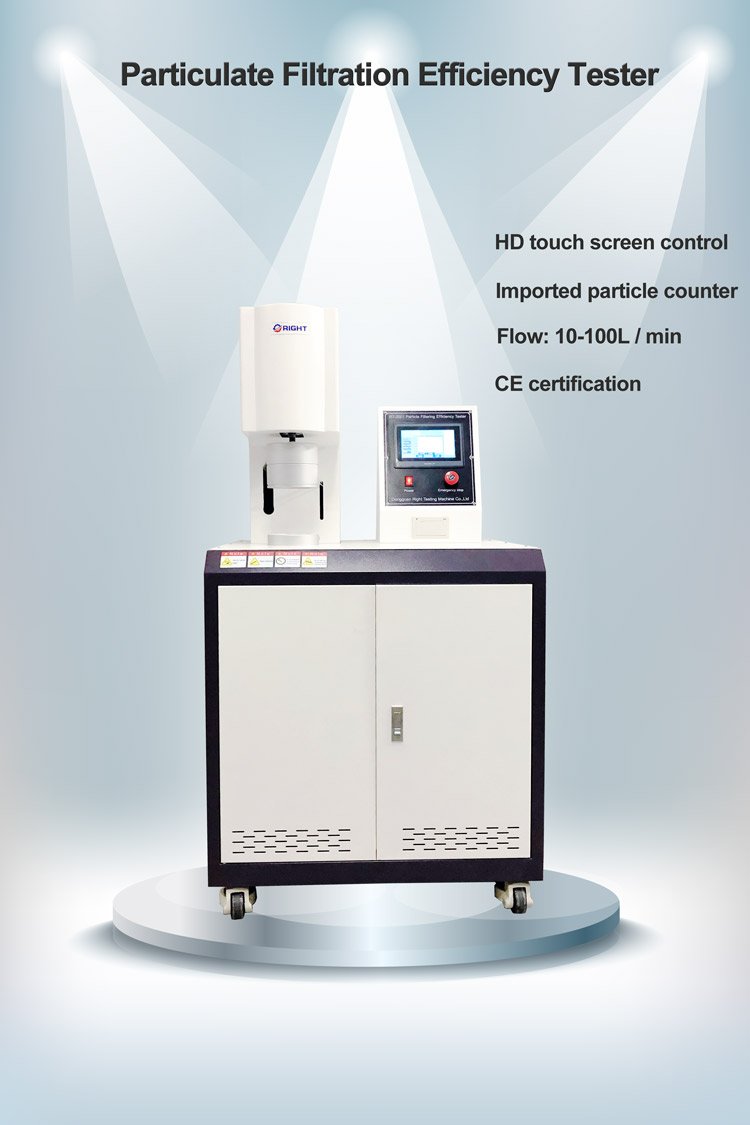

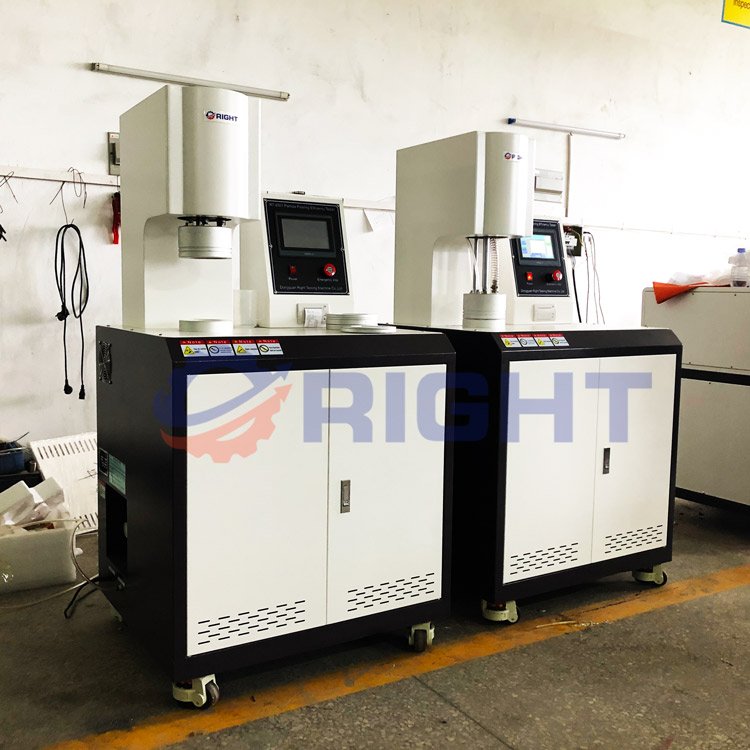

RT-2501 Automatic Particle Filtering Efficiency Tester
Product Details：
Scope of application
It is used to detect the filtration efficiency of particulates such as masks and filter materials. The system uses precise instruments to control the flow rate and aerosol concentration. It is easy to operate and has good stability.
Standards compliant
EN 149
NIOSH 42 CFR Part 84
GB 2626 Respiratory protective equipment
GB / T 32610-2016 daily protective mask technical specifications
Technical Parameters
- Flow range: 15 L / min, 32 L / min, 85 L / min, accuracy 1%
- Filtration efficiency: (0.001 ～ 99.999)%
- Resistance: 0 ～ 1000Pa, ± 1% FS
- Test area: 100cm²
- Aerosol: NaCland Oil
- Aerosol concentration: no more than 30mg / m³ (salinity), no more than 30mg / m³ (oily)
- Test mode: initial efficiency and loading efficiency
- Test temperature:(25 ± 5) ℃
- Relative humidity: (30 ± 10)%
- Dimensions: 800mm×700mm×1500mm
- Weight: 200kg
- Power source: AC220V 50Hz 300W
- Air source:5Mpa
- Power supply:AC220V 50Hz 1000W
Standard Accessories list
| Product Name | QTY. |
| Product certification | 1 |
| Product Manual | 1 |
| Product Installation Manual | 1 |
| Host | 1 |
| Filter paper | 3 |
| Air purifier | 1 |
| Water separator | 1 |

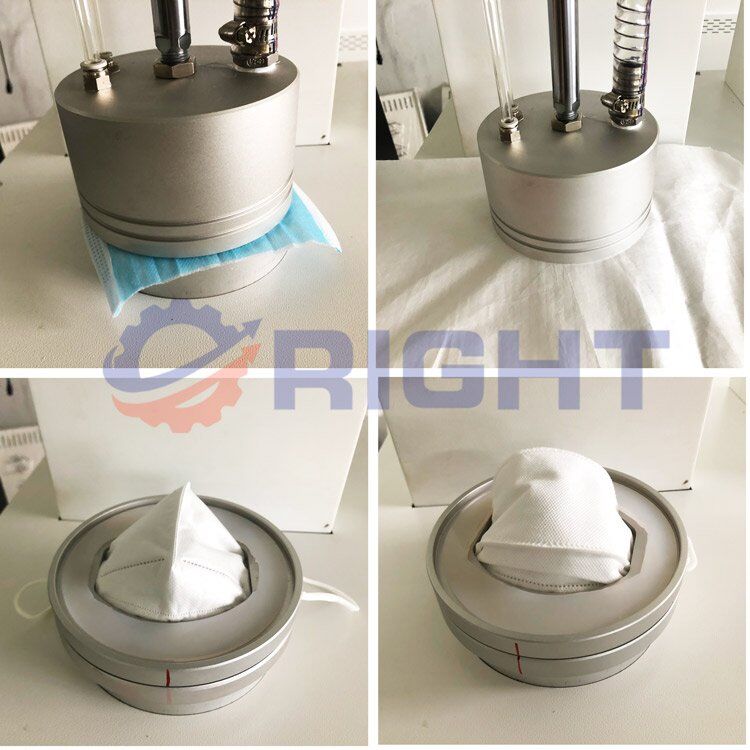

| Mask three-dimensional fixture | 1 |
| Sodium chloride | 1 |
| Particle Counter | 1 |

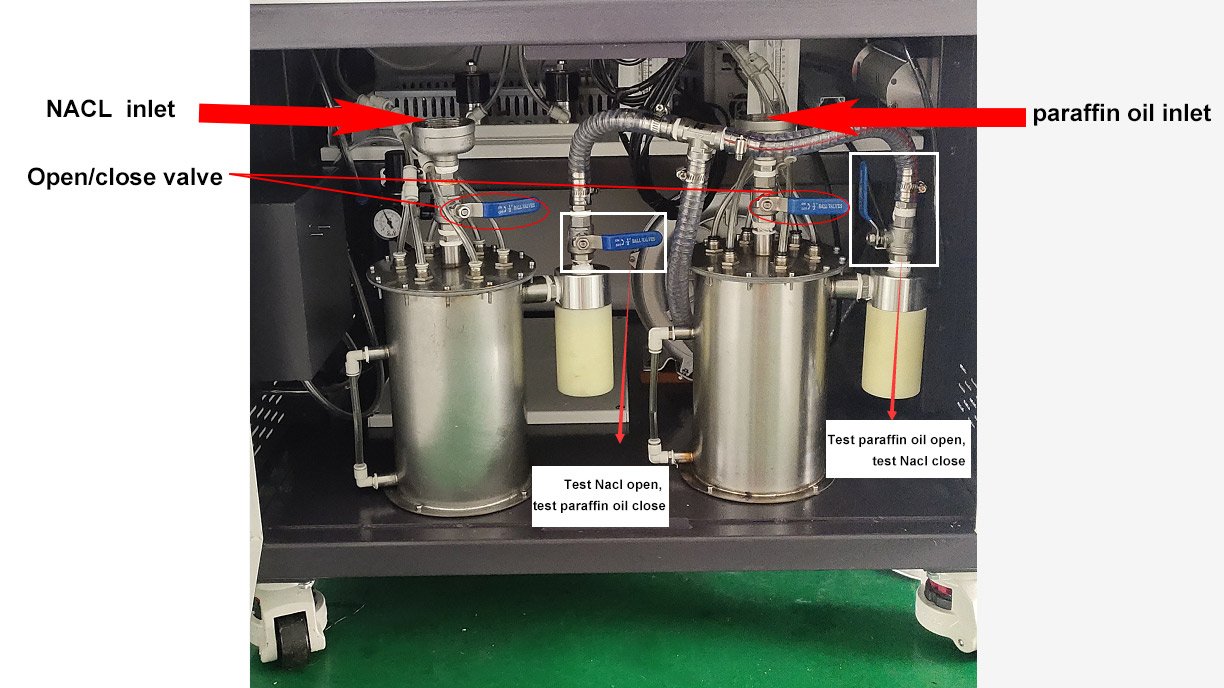

| Aerosol generator | 1 |
| Air pump (optional) | 1 |
| Air pipe (8mm) | 1 |
| Fuse | 2 |
| 1000ml measuring cup | 1 |
| Hot melt glue gun | 1 |
