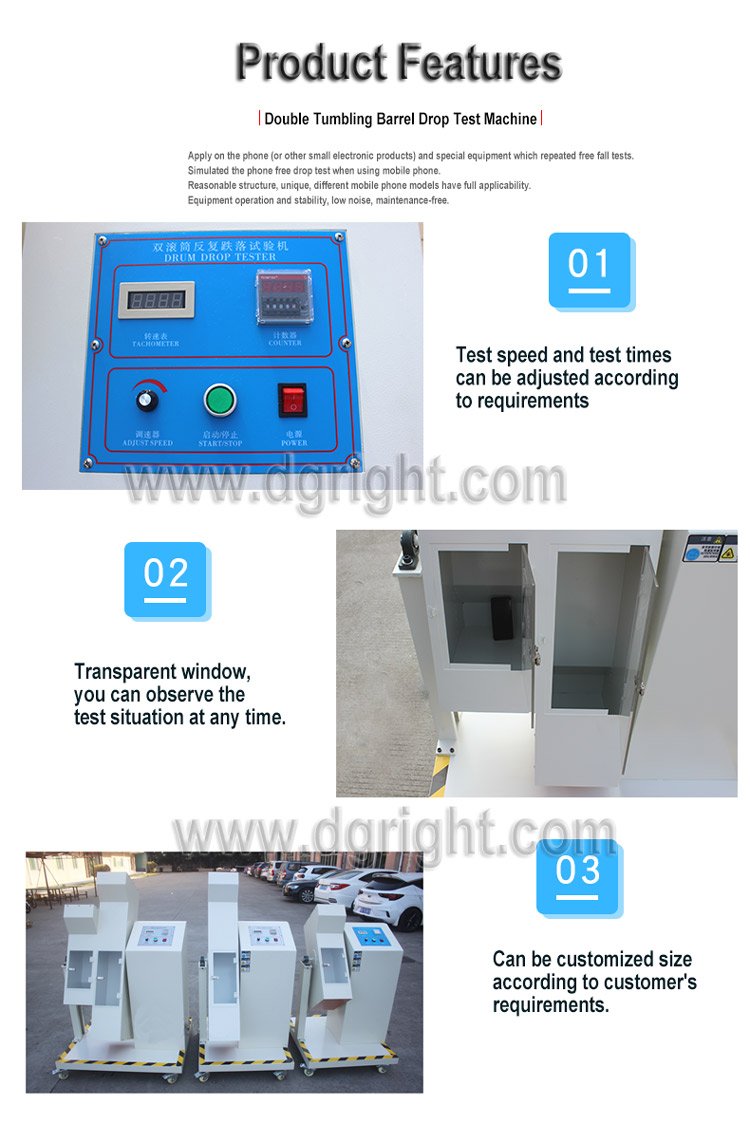

Apply to the phone (or other small electronic products) and special equipment that undergo repeated free-fall tests.
Simulated the phone free drop test when using the mobile phone.
Reasonable structure, unique, and different mobile phone models have full applicability.
Equipment operation and stability, low noise, and maintenance-free.

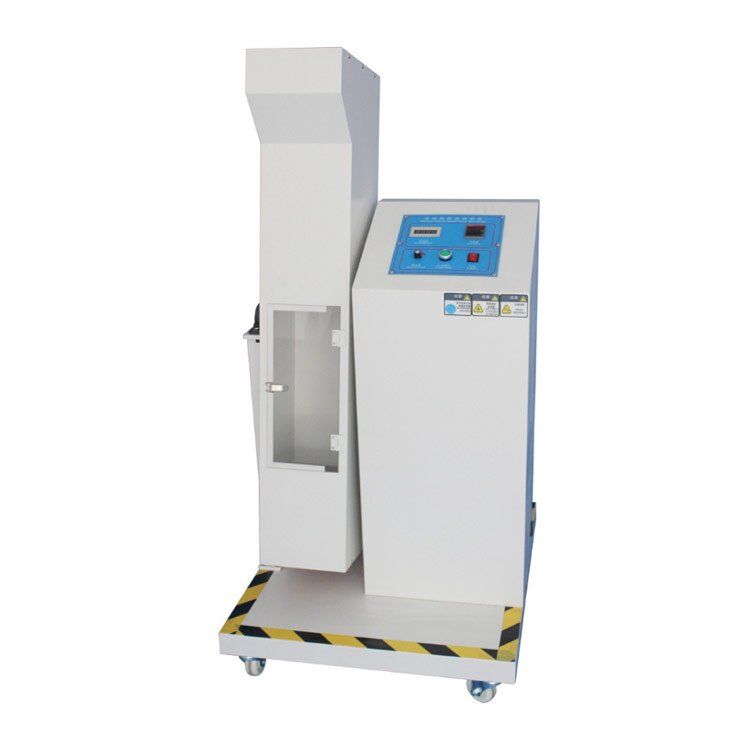

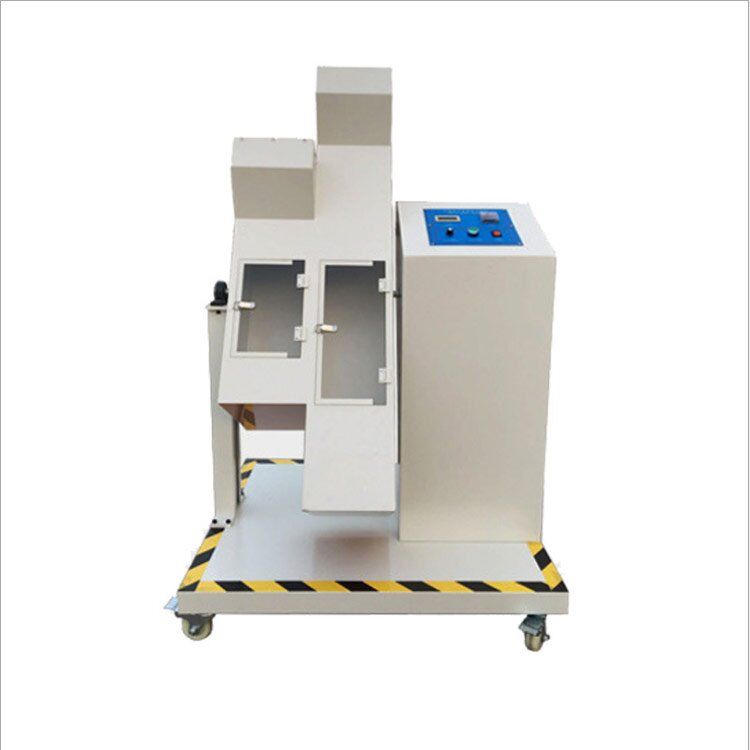

Electronic Products Tumbling Barrel Drop Tester (RT-2003)
Purpose of Tumbling Barrel Drop Tester
- Durability of the housing.
- Internal Structures in throw performance.
- Withstand repeated free-fall adaptability.
Product Details：
Application:
Tumble Drop Testing Machine is suitable for mobile phones, PDA, electronic dictionaries, CDs, MP3s, remote control devices, and other small portable electronic products that need continuous rotary free-falling testing. RT-2003 has one / two/ three testing zones which can do the test at the same time, through the testing times reach the setting, then check whether the testing samples are damaged or not.
Comply standard: IEC 60068-2-32, GB T 2324.8
Specification:
|
Test Speed
|
5~20times/min
|
|
Drop of height
|
500mm or 1000mm(can be customized)
|
|
Free Fall Zones
|
one/two/three
|
|
Timer
|
1~999999 adjustable
|
|
Max. Load
|
5kg
|
|
Power
|
AC220V
|
|
External Dimension
|
1500*1300*1150mm(one zone)
|
|
Weight
|
about 200kg(one zone)
|
Features:
